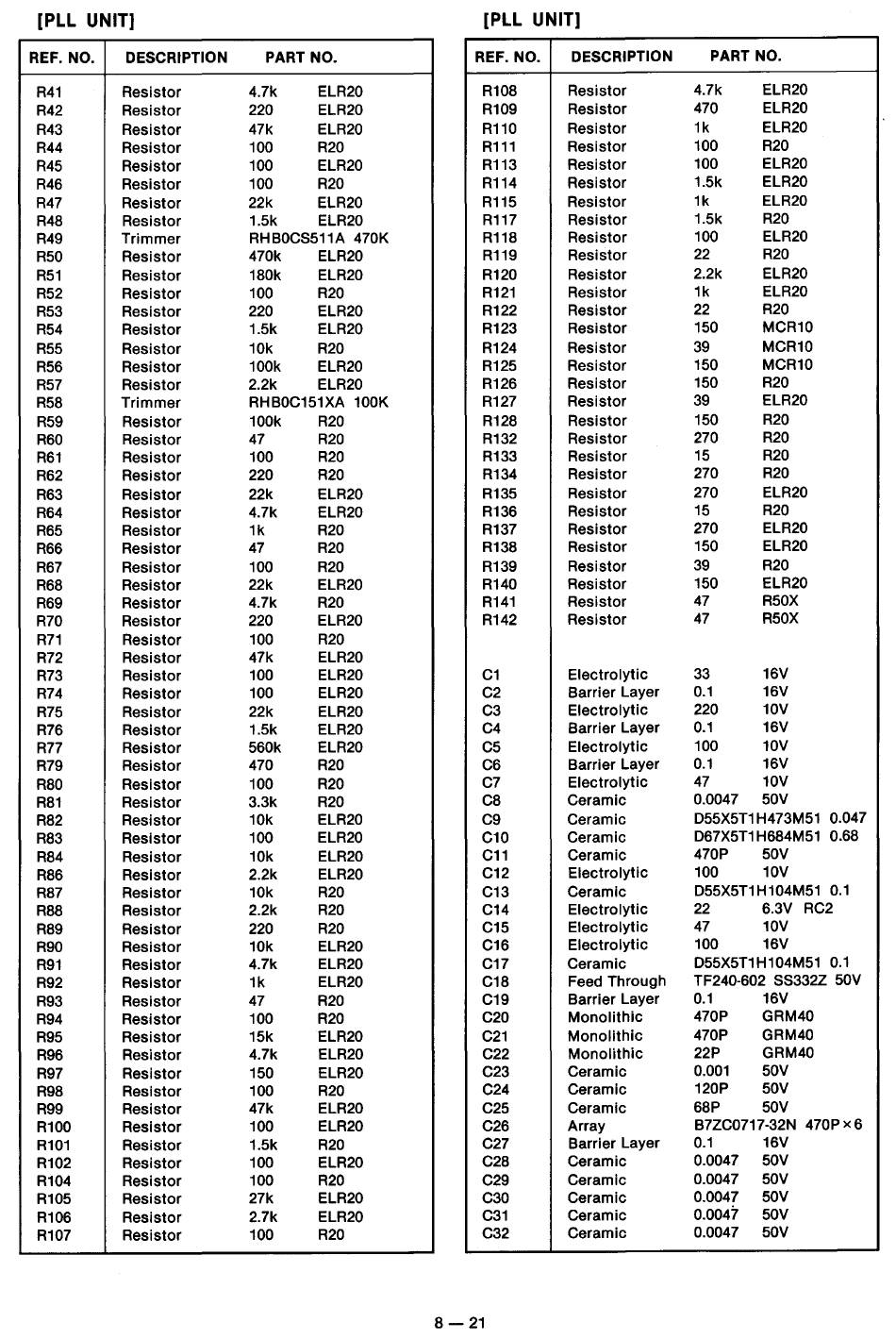

Icom IC-R7000 Service Manual page 91

[PLL UNIT]
[PLL UNIT]
REF. NO. DESCRIPTION PART NO.
REF. NO. DESCRIPTION
PART NO.
R41 Resistor 4.7k ELR20
R108 Resistor
4.7k ELR20
R42 Resistor
220 ELR20
R109 Resistor
470 ELR20
R43 Resistor
47k ELR20 R110 Resistor
1k ELR20
R44 Resistor 100 R20
R111 Resistor
100 R20
R45 Resistor 100 ELR20
R113 Resistor
100 ELR20
R46 Resistor
100 R20
R114 Resistor
1.5k ELR20
R47 Resistor 22k ELR20 R115
Resistor
1k ELR20
R48 Resistor
1.5k ELR20
R117 Resistor
1.5k R20
R49
Trimmer RHBOCS511A 470K
R118 Resistor
100 ELR20
R50 Resistor 470k ELR20
R119 Resistor
22 R20
R51 Resistor
180k ELR20 R120
Resistor
2.2k ELR20
R52 Resistor 100 R20 R121
Resistor
1k ELR20
R53 Resistor
220 ELR20
R122 Resistor
22 R20
R54 Resistor
1.5k ELR20 R123
Resistor
150 MCR10
R55 Resistor 10k R20
R124 Resistor
39 MCR10
R56 Resistor 100k ELR20
R125 Resistor
150 MCR10
R57 Resistor 2.2k ELR20
R126
Resistor 150 R20
R58 Trimmer RHBOC151XA 100K
R127
Resistor 39
ELR20
R59 Resistor 100k R20
R128 Resistor 150
R20
R60
Resistor 47 R20
R132 Resistor
270 R20
R61 Resistor 100
R20 R133 Resistor
15 R20
R62 Resistor 220 R20
R134
Resistor 270 R20
R63
Resistor 22k ELR20 R135
Resistor
270 ELR20
R64 Resistor
4.7k ELR20
R136 Resistor
15 R20
R65 Resistor 1k R20
R137 Resistor
270 ELR20
R66 Resistor
47 R20
R138 Resistor
150 ELR20
R67 Resistor
100 R20 R139
Resistor
39 R20
R68 Resistor 22k ELR20
R140 Resistor
150 ELR20
R69
Resistor 4.7k R20
R141 Resistor
47 R50X
R70 Resistor 220 ELR20
R142 Resistor
47
R50X
R71 Resistor 100 R20
R72 Resistor 47k ELR20
R73 Resistor 100
ELR20 C1 Electrolytic 33
16V
R74 Resistor 100 ELR20
C2
Barrier Layer 0.1 16V
R75 Resistor
22k ELR20 C3
Electrolytic
220 10V
R76 Resistor
1.5k ELR20
C4
Barrier Layer 0.1 16V
R77 Resistor
560k ELR20 C5
Electrolytic 100
10V
R79
Resistor 470 R20 C6
Barrier Layer
0.1 16V
R80 Resistor
100 R20
C7 Electrolytic 47
10V
R81 Resistor 3.3k R20
CB Ceramic
0.0047 50V
R82
Resistor 10k ELR20 C9
Ceramic
D55X5T1 H473M51 0.047
R83 Resistor
100 ELR20 C10
Ceramic
D67X5T1 H684M51 0.68
R84 Resistor 10k ELR20
C11
Ceramic
470P 50V
R86 Resistor
2.2k ELR20
C12 Electrolytic
100 10V
R87 Resistor 10k R20 C13
Ceramic
D55X5T1H104M51 0.1
R88 Resistor
2.2k R20 C14 Electrolytic
22 6.3V RC2
R89 Resistor 220
R20
C15
Electrolytic 47
10V
R90 Resistor
10k ELR20
C16
Electrolytic 100
16V
R91 Resistor
4.7k ELR20 C17
Ceramic
D55X5T1H104M51 0.1
R92 Resistor 1k ELR20 C18
Feed Through
TF240-602 SS332Z 50V
R93 Resistor 47 R20
C19 Barrier Layer
0.1 16V
R94 Resistor 100 R20
C20 Monolithic
470P GRM40
R95 Resistor
15k ELR20 C21 Monolithic
470P GRM40
R96 Resistor
4.7k ELR20 C22
Monolithic 22P GRM40
R97 Resistor
150 ELR20
C23 Ceramic
0.001
50V
R98 Resistor
100 R20
C24 Ceramic
120P 50V
R99
Resistor 47k ELR20 C25
Ceramic
68P 50V
R100 Resistor 100 ELR20 C26
Array
B7ZC0717-32N 470P x 6
R101 Resistor
1.5k R20
C27
Barrier Layer 0.1 16V
R102 Resistor
100 ELR20
C28
Ceramic 0.0047 50V
R104 Resistor 100 R20 C29 Ceramic
0.0047
50V
R105
Resistor 27k ELR20 C30
Ceramic 0.0047
50V
R106 Resistor 2.7k ELR20
C31 Ceramic
0.0047 50V
R107 Resistor
100 R20
C32 Ceramic
0.0047 50V
8-21
