Icom IC-R7000 Service Manual page 87

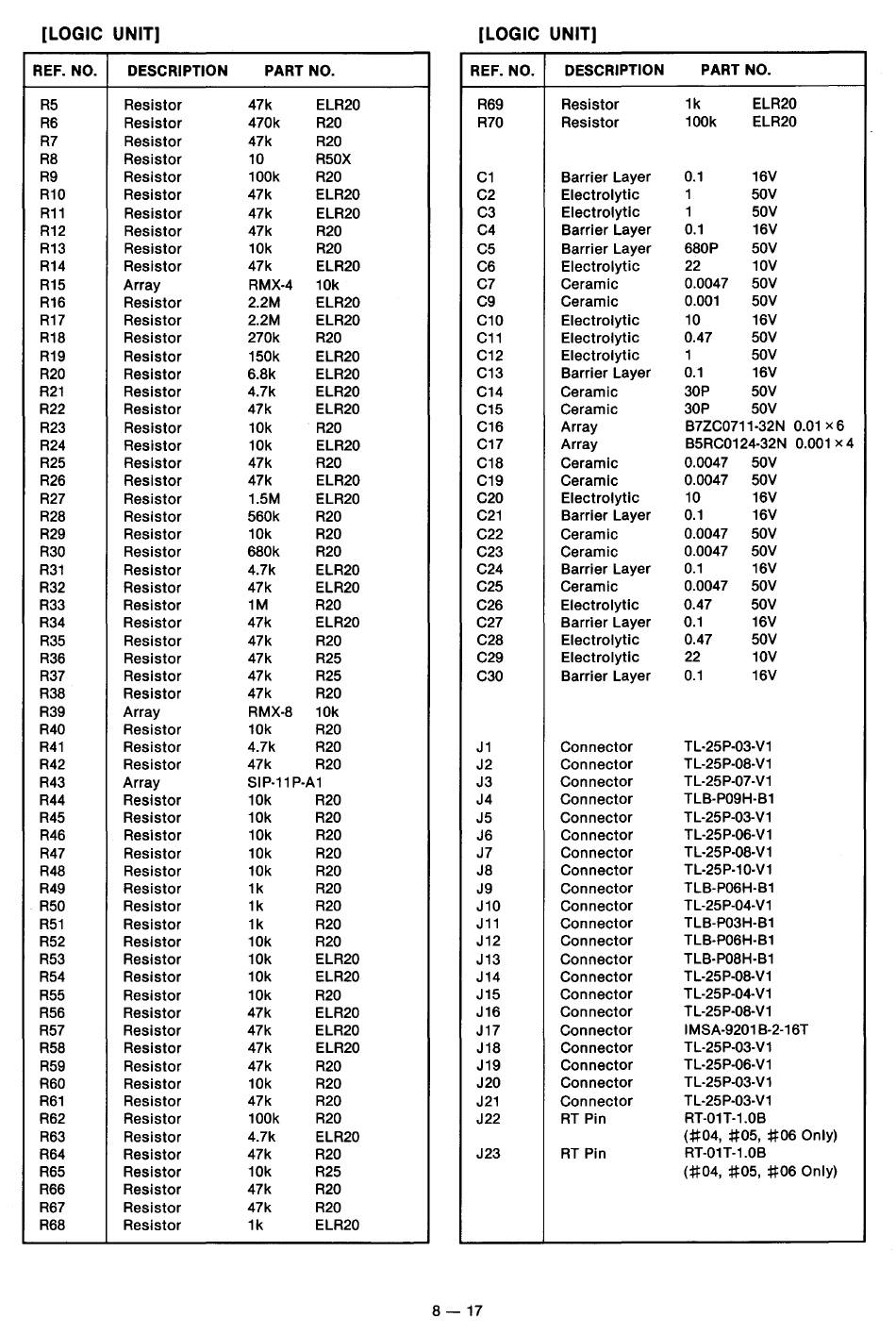

[LOGIC UNIT]
[LOGIC UNIT]
REF. NO. DESCRIPTION PART NO. REF. NO.
DESCRIPTION PART NO.
R5 Resistor 47k ELR20
R69 Resistor 1k ELR20
R6 Resistor 470k R20
R70 Resistor
100k ELR20
R7 Resistor 47k R20
RB Resistor 10 R50X
R9 Resistor 100k R20
C1
Barrier Layer 0.1 16V
R10 Resistor 47k ELR20 C2 Electrolytic
1 50V
R11 Resistor 47k ELR20
C3 Electrolytic
1 50V
R12
Resistor
47k R20 C4
Barrier Layer 0.1 16V
R13 Resistor 10k R20
C5
Barrier Layer 680P 50V
R14 Resistor
47k
ELR20 C6 Electrolytic
22 10V
R15 Array RMX-4 10k
C7 Ceramic
0.0047 50V
R16 Resistor 2.2M ELR20 C9
Ceramic
0.001 50V
R17 Resistor 2.2M ELR20 C10 Electrolytic
10 16V
R18 Resistor
270k R20
C11 Electrolytic
0.47 50V
R19
Resistor 150k ELR20
C12 Electrolytic 1 50V
R20 Resistor 6.8k ELR20
C13 Barrier Layer
0.1 16V
R21 Resistor 4.7k ELR20
C14 Ceramic
30P 50V
R22 Resistor 47k ELR20 C15 Ceramic 30P 50V
R23 Resistor 10k R20
C16 Array
B7ZC0711 ·32N 0.01 x 6
R24 Resistor 10k ELR20
C17 Array
B5RC0124·32N 0.001x4
R25 Resistor 47k R20 C18 Ceramic 0.0047 50V
R26 Resistor 47k ELR20 C19 Ceramic
0.0047 50V
R27 Resistor 1.5M ELR20
C20 Electrolytic 10 16V
R28 Resistor 560k R20
C21
Barrier Layer 0.1 16V
R29 Resistor
10k
R20 C22 Ceramic
0.0047 50V
R30 Resistor 680k R20
C23
Ceramic 0.0047
50V
R31
Resistor
4.7k ELR20 C24
Barrier Layer 0.1 16V
R32 Resistor 47k ELR20
C25 Ceramic
0.0047 50V
R33 Resistor
1M
R20 C26
Electrolytic 0.47 50V
R34 Resistor 47k ELR20 C27 Barrier Layer
0.1 16V
R35 Resistor 47k R20
C28 Electrolytic
0.47 50V
R36 Resistor 47k R25
C29 Electrolytic
22 10V
R37 Resistor 47k R25 C30 Barrier Layer
0.1 16V
R38 Resistor 47k R20
R39 Array RMX·B 10k
R40 Resistor
10k
R20
R41 Resistor 4.7k R20 J1 Connector TL·25P·03·V1
R42 Resistor
47k
R20 J2
Connector TL-25P·OB·V1
R43 Array
SIP-11 P·A1 J3 Connector TL·25P·07·V1
R44 Resistor 10k R20 J4 Connector
TLB·P09H·B1
R45 Resistor 10k R20 J5 Connector
TL-25P-03-V1
R46 Resistor
10k R20
J6
Connector TL-25P-06-V1
R47 Resistor 10k R20
J7 Connector
TL-25P·OB·V1
R48 Resistor 10k R20
JB
Connector TL·25P·10·V1
R49 Resistor 1k R20 J9 Connector TLB-P06H·B1
R50 Resistor
1k R20 J10 Connector TL-25P·04·V1
R51 Resistor 1k R20
J11 Connector TLB-P03H·B1
R52 Resistor 10k R20
J12 Connector TLB·P06H·B1
R53 Resistor 10k ELR20 J13 Connector
TLB-P08H·B1
R54 Resistor
10k ELR20
J14 Connector
TL-25P-08-V1
R55 Resistor 10k R20
J15 Connector
TL-25P-04-V1
R56 Resistor
47k
ELR20
J16 Connector
TL-25P-08-V1
R57 Resistor 47k ELR20 J17 Connector
IMSA-9201 B-2-16T
R58 Resistor 47k ELR20 J18 Connector
TL-25P-03-V1
R59
Resistor
47k
R20
J19 Connector
TL-25P-06·V1
R60 Resistor 10k R20
J20
Connector TL-25P-03-V1
R61 Resistor 47k R20 J21 Connector TL-25P-03·V1
R62 Resistor 100k R20 J22 RT Pin
RT-01T-1.0B
R63 Resistor 4.7k ELR20
(#04, #05, #06 Only)
R64 Resistor 47k R20
J23 RT Pin
RT-01T-1.0B
R65 Resistor 10k R25 (#04, #05, #06 Only)
R66 Resistor 47k R20
R67 Resistor 47k R20
R68 Resistor 1k ELR20
8-17
