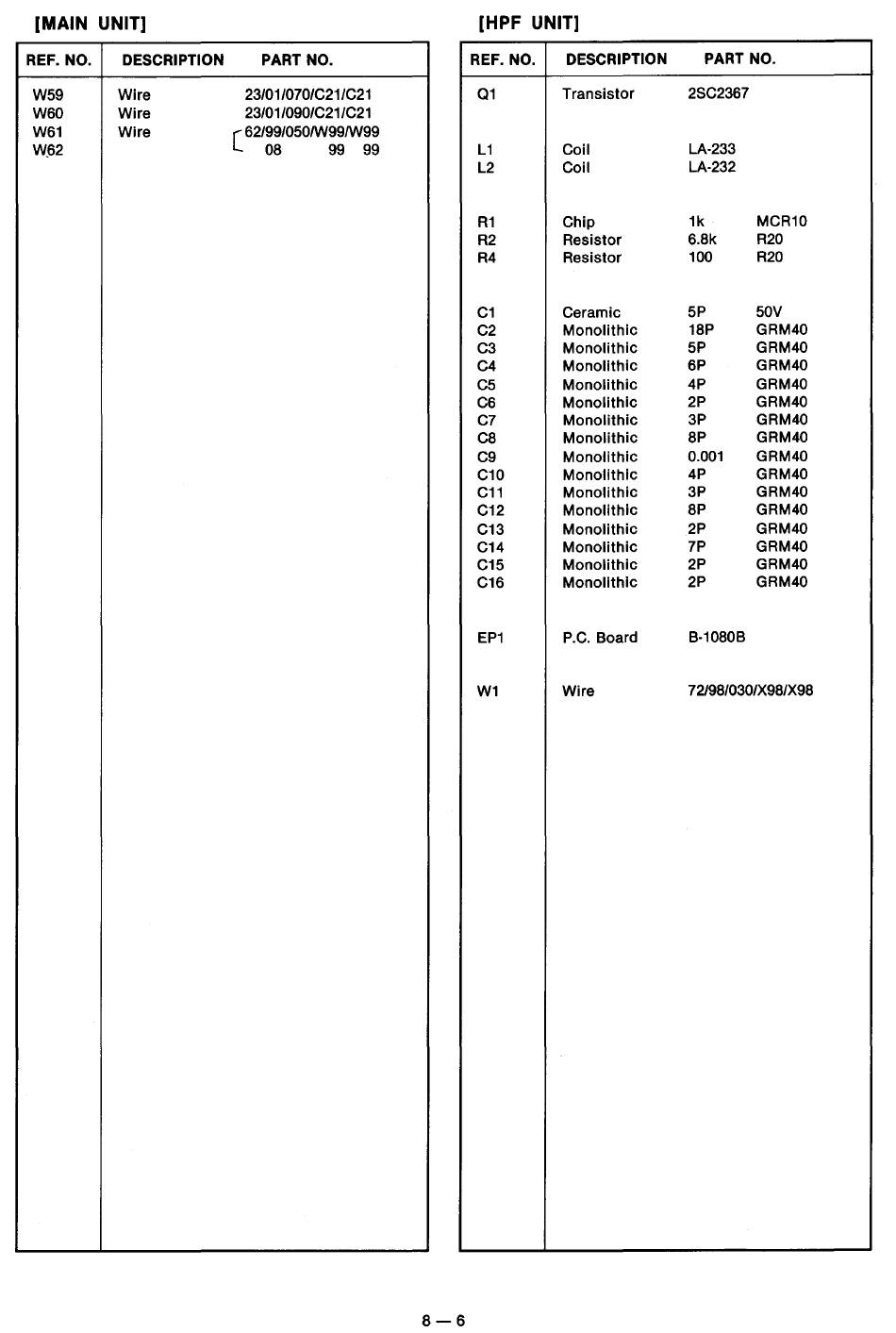

Icom IC-R7000 Service Manual page 76

[MAIN UNIT]
[HPF UNIT]
REF. NO. DESCRIPTION PART NO.
REF. NO. DESCRIPTION
PART NO.
W59
Wire 23/01 /070/C21 /C21 01
Transistor
2SC2367
W60 Wire
23/01 /090/C21 /C21
W61 Wire
[ 62/99/050/W99/W99
W.62 OB 99 99
L1 Coil
LA-233
L2 Coil LA·232
R1 Chip
1k MCR10
R2
Resistor 6.Bk R20
R4 Resistor
100 R20
C1 Ceramic
5P 50V
C2
Monolithic 1BP GRM40
C3
Monolithic 5P GRM40
C4 Monolithic 6P GRM40
C5 Monolithic 4P GRM40
C6 Monolithic
2P GRM40
C7 Monolithic
3P GRM40
CB
Monolithic BP GRM40
C9
Monolithic 0.001 GRM40
C10
Monolithic 4P GRM40
C11 Monolithic 3P GRM40
C12 Monolithic
BP GRM40
C13
Monolithic 2P
GRM40
C14
Monolithic 7P
GRM40
C15
Monolithic 2P GRM40
C16
Monolithic 2P GRM40
EP1 P.C. Board B·10BOB
W1 Wire
72/9B/030/X9B/X9B
B-6
