Summary of Contents for Vax VCU-O3C

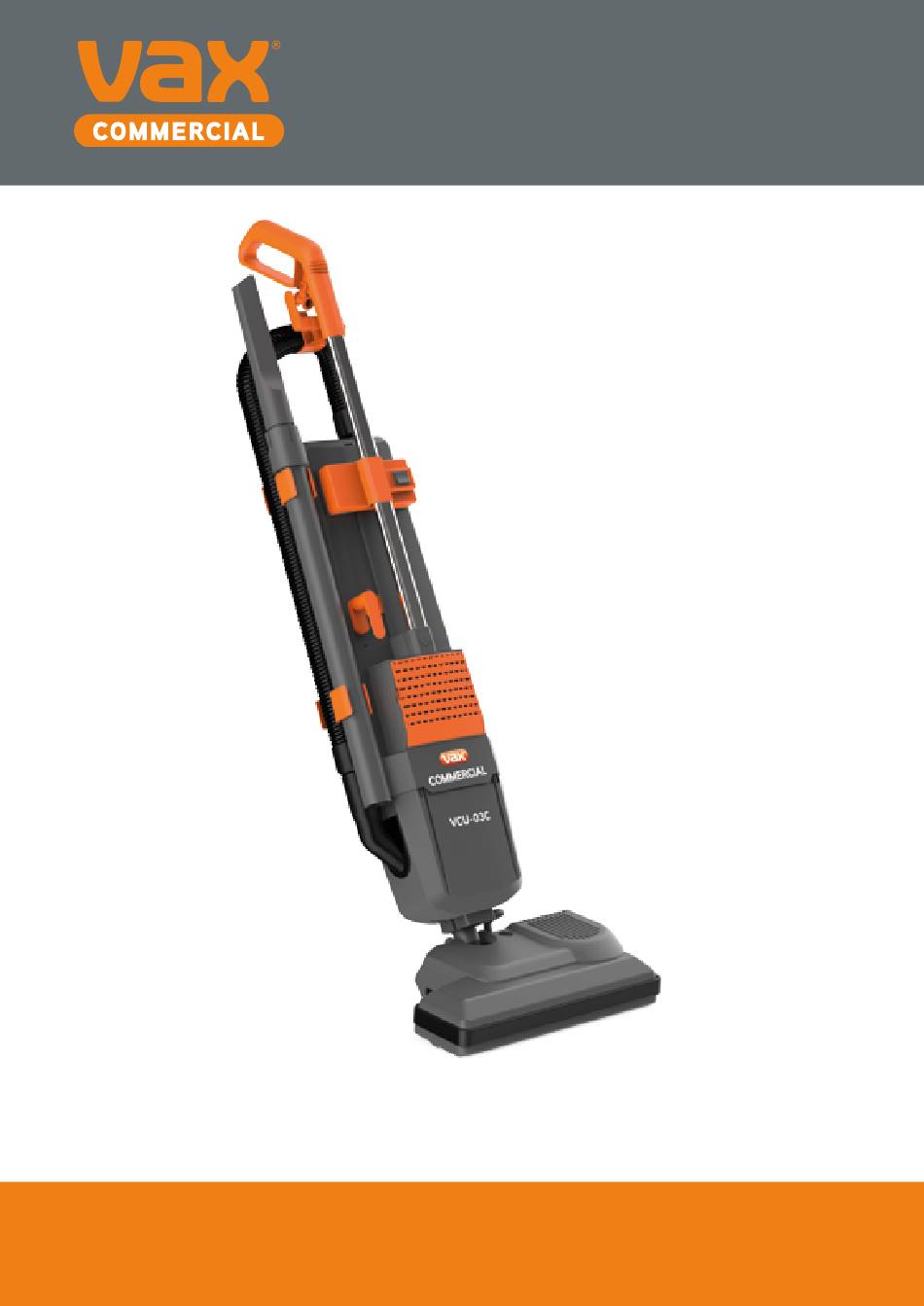

- Page 1 VCU-O3C User Guide Vax Commercial Careline: (UK) 0330 026 4275 vaxcommercial.co.uk A leading brand from one of the world’s VCU-O3C largest floorcare manufacturers.
-
Page 2: General Safety Information
To avoid unauthorised use, keep the machine in a place that denies access to unauthorised personnel when it is not in use. 6. Only use Vax Commercial recommended tools and accessories with this machine. Using others may invalidate your guarantee. - Page 3 14. Regularly examine the power cable for damage, such as cracking or ageing. If damage is found contact Vax Commercial Careline: (UK) 0330 026 4275. DO NOT: 15. Use this machine for any other purpose than that which it is specifically designed.
-
Page 4: Table Of Contents
CONTENTS Page 2-3 ..... General safety information Page 4 ....Contents Page 5 ....Machine Overview Page 6 ....Preparation and use Page 7 ....Maintenance Page 7-8 ....Changing the dust bag Page 9 ....Pre-motor filter maintenance Page 10....Post-motor filter maintenance Page 10.... -
Page 5: Machine Overview
Motor Housing Clean filters installed. 2. Dust bag empty No obstruction within air path Brushbar (hidden) CAUTION: VCU-03C is a carpet Bumper Strip only vacuum cleaner and should not be used to clean hard floors. Vax Careline: (UK) 0330 026 4275... -
Page 6: Preparation And Use
PREPARATION AND USE CAUTION: PLEASE READ SAFETY INFORMATION BEFORE USE (pages 2-3). Setting up the vacuum cleaner Connect both ends of the Unwrap power cable Switch on at mains. hose into the main body and plug into mains. of the vacuum cleaner. To recline the machine place Switch machine on. -
Page 7: Maintenance
(1) Lift dust bag upwards and slot the cardboard tab into the bag so that it sits on the back of the green bag holder. pre-motor filter cover. (2) Align the bag opening with the hose and push firmly upwards. Vax Careline: (UK) 0330 026 4275... - Page 8 MAINTENANCE CAUTION: The back panel will not close without a bag being fitted or if the bag is incorrectly fitted. Holding the cardboard tabs push firmly upwards making sure the green safety tab is pushed as far as it will go. Line up the tabs on the back Push and lock into place.
-
Page 9: Pre-Motor Filter Maintenance
CAUTION: For best performance, check the filters when replacing the dust bag. Replace the filters every 3 months or if they become damaged or discoloured. Replace both pre and post motor filter at the same time. Vax Careline: (UK) 0330 026 4275... -
Page 10: Post-Motor Filter Maintenance
MAINTENANCE Post-motor filter maintenance To remove the front, push the Slide the old filter out. Check the Post-motor filter clip up and slide the cover Clean filter by tapping gently. for discolouration. to the right. CAUTION: To maintain optimum performance, check the filters whenever you replace the dust bag. Replace the filters every 3 months or if they become damaged or discoloured. -
Page 11: Changing Belt And Brushbar
Use a crosshead screwdriver base of vacuum cleaner. to remove 3 screws. Lift to remove brushbar. Clean any debris from spindle Remove and dispose of old belt. and place new belt onto spindle. Vax Careline: (UK) 0330 026 4275... - Page 12 MAINTENANCE Hook brushbar through belt and place belt on Line up right side of brushbar with base, rounded area of brushbar without bristles. push into place. Line up left side and push until clicks into place. Replace brushbar cover and secure with the 3 screws.
-
Page 13: The Dust Bag Full Indicator Light
The paper will drop through if the hose is clear. Removing debris from the brushbar Switch off your vacuum cleaner at the main socket. Using a pair of scissors cut any hair or debris free from around the brushbar. Vax Careline: (UK) 0330 026 4275... -
Page 14: Faqs
FAQs Why does the vacuum cleaner have no power? • It may not be plugged into the electrical outlet correctly. Ensure that the plug is pushed into the electrical outlet securely. • The electrical supply may not be working. If unsure consult an electrician. •... -
Page 15: Machine Overview
Monday-Friday 8:30am to 6:30pm Saturday and Sunday 9:00am to 5:00pm Any queries or concerns about using your Vax, call the Vax Commercial Careline. Calls are charged at the UK local rate. Please make a note of the serial number and model number of the machine cleaner before calling. - Page 16 Vax Ltd., 5th Floor 2 Colmore Square, 38 Colmore Circus, Queensway, Birmingham, B4 6BN, UK email: info@vaxcommercial.co.uk website: vaxcommercial A leading brand from one of the world’s Version 1 largest floorcare manufacturers.
