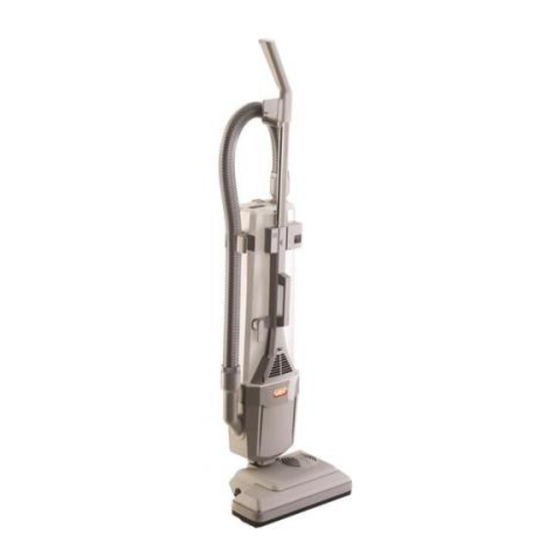

SERVICE MANUAL
Service Manual VCU-03 © Vax.co.uk
Date- 27-03-2013
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Related Manuals for Vax VCU-03
Vacuum Cleaner Vax VCU-03 User Manual
(13 pages)
Vacuum Cleaner Vax VCU-03 User Manual
Commercial (12 pages)
Vacuum Cleaner Vax VCU-02 Instruction Manual
Commercial upright (13 pages)
Vacuum Cleaner Vax VCU-O3C User Manual
(16 pages)
Vacuum Cleaner Vax VCAB1500 User Manual
Air series bagless cylinder (13 pages)
Vacuum Cleaner Vax VaxAIR VCAB1500 User Manual
Vax air series bagless cylinder (12 pages)
Vacuum Cleaner Vax VCAPH1500 User Manual
Air powerhead (16 pages)
Vacuum Cleaner Vax VC-1002 User Manual
(25 pages)
Vacuum Cleaner Vax Agility Compact V-128 Instruction Manual
Vizio carpet cleaner user manual (12 pages)
Vacuum Cleaner Vax Workman VCC-05 User Manual
Vacuum cleaner (13 pages)
Vacuum Cleaner Vax Rapide Spring Clean VCWRS700 User Manual
Carpet washer rapide spring clean (11 pages)
Vacuum Cleaner Vax VCW-04 Instruction Manual
Commercial carpet cleaner (21 pages)
Vacuum Cleaner Vax VCW-04 Instruction Manual
Commercial carpet cleaner (21 pages)
Vacuum Cleaner Vax VCW-01 Instruction Manual
(17 pages)
Vacuum Cleaner Vax VCZPH1600 User Manual
(13 pages)
Vacuum Cleaner Vax VCW-06 User Manual
(20 pages)
Summary of Contents for Vax VCU-03
Page 1
SERVICE MANUAL Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 2: Table Of Contents
Page | 1 Contents 1. Safety Information……………………………………2-3 2. Specification…………………………………………….4 3. Exploded diagram…………………………………….5-6 4. Spares list…………………………………………………7-10 5. Troubleshooting & Repairing guide…………..11-14 Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 3: Safety Information
• Only wipe the appliance clean with a dry (or very slightly damp) cloth while it is unplugged. Never place the appliance in water. • Never clean up anything that is burning or smoking, such as cigarettes, matches, hot ash, etc. Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 4
Dust bags need to be disposed of and can be used only once. Do not try to re-use them • If your vacuum cleaner has a blower function, do not use it to operate paint spraying or other similar equipment that emits volatile or toxic fumes. Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 5: Specification
Air Watts 192 AW Variable Power Capacity 6.5L Turbo Tool Turbo Brush Cord Filters HEPA H13 Hose Suitable for hard floors Weight 6.5kg Guarantee 1 year guarantee Other tools included Part number 1-1-132595-0 Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 6: Exploded Diagram
Page | 5 Exploded Diagram Base Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 7: Main Body
Page | 6 Main Body Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 8: Spares List
Page | 7 Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 9
Page | 8 Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 10
Page | 9 Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 11
Page | 10 Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 12: Troubleshooting & Repairing Guide
Undo 3 screws from Screws the base & remove the base or sole plate. Change the brush bar and the belt if required. Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 13
Now you can open the Top cover as shown and remove the brush bar motor after disconnecting the electrical connections. Note- Always Switch off and unplug the m/c bfore conducting maintenance Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 14
Page | 13 Main Motor Fault Repair Guide Screws Remove the hatch and undo two screws as shown Screws Now remove two screws located at the front of the machine Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
Page 15
Now take the motor out from its housing & replace with new one after disconnecting two cables Note- Always Switch off and unplug the m/c bfore conducting maintenance Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013...
