Summary of Contents for Vax VCC-05

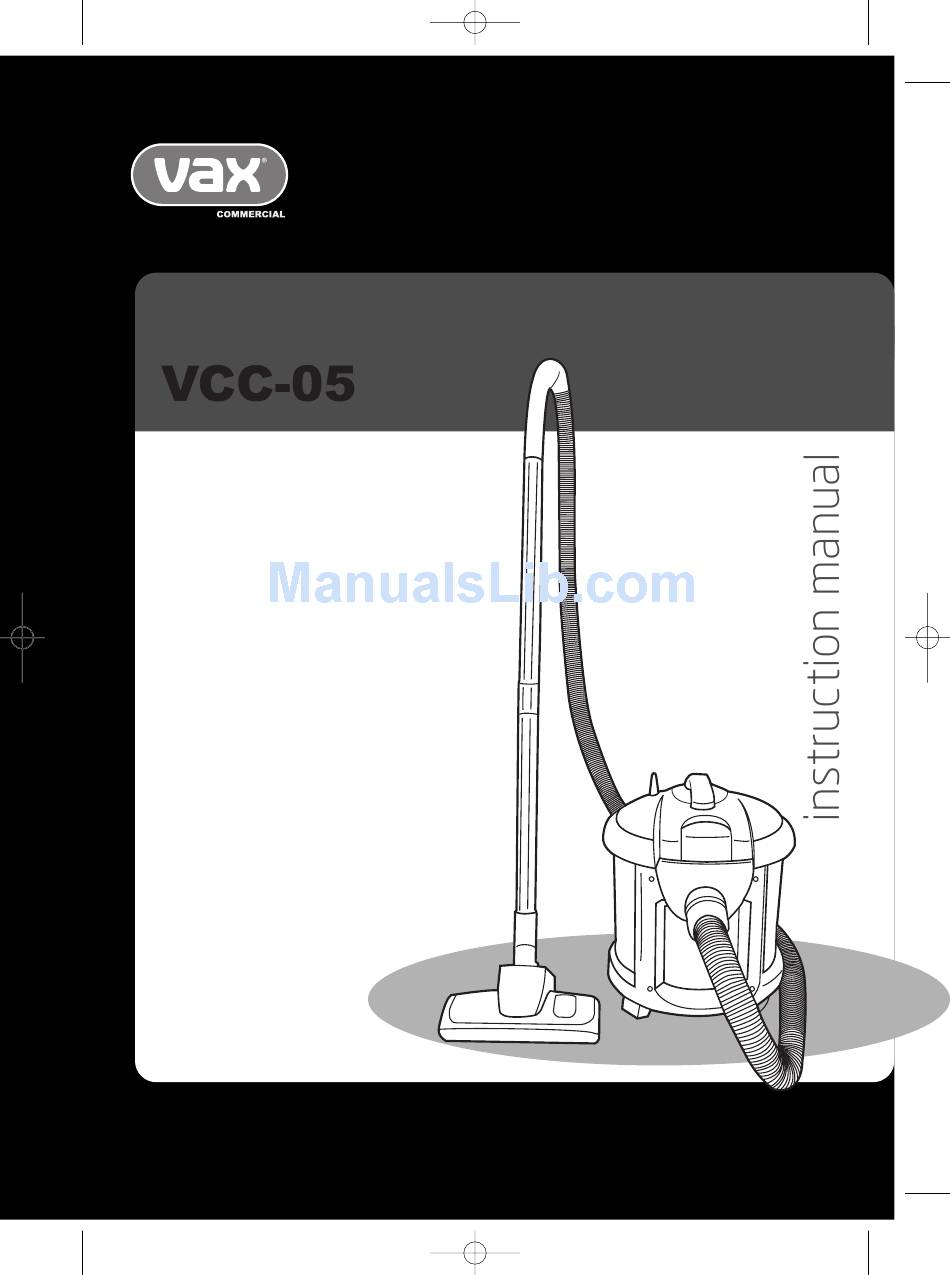

- Page 1 Vax VCC_05 User Guide.qxd 25/4/07 14:22 Page 1 Vax careline 0870 1129 145 (UK only) Commercial bagged cylinder Vax model number: VCC-05 Please read carefully before using this cleaner. www.vaxcommercial.co.uk Always fully extend the mains cable before use. Retain for future reference.
- Page 2 Vax VCC_05 User Guide.qxd 25/4/07 14:22 Page 2 VCC-05 1. Diagram VCC-05 Fig.1/1 1 Hose inlet 7 Exhaust grill 13 Extension tubes 2 Top cover retainer clip 8 On/off button 14 Crevice tool 3 Top cover 9 Wheel 15 Dusting brush 4 Carry handle 10 360°...
-
Page 3: Safety Information
Do not use the vacuum cleaner if it has been vacuum cleaner firmly when starting and in use. dropped, damaged, left outdoors or dropped into water. Return the vacuum cleaner to a Vax IMPORTANT: If the inlet or hose is blocked, Authorised Service Agent or suitably qualified person switch off the vacuum cleaner and remove the for examination, repair or adjustment. -
Page 4: How To Assemble
Vax VCC_05 User Guide.qxd 25/4/07 14:22 Page 4 VCC-05 3. How to Assemble 4. How to Operate On/Off Button Insert the power plug into the electrical outlet. Ensure the vacuum cleaner is switched off. Press the on/off button located at the rear of the machine to turn on and press the button again to turn the vacuum cleaner off. - Page 5 Vax VCC_05 User Guide.qxd 25/4/07 14:22 Page 5 user guide 6. Accessories Carry Handle Use the carry handle located on the top of the machine to move the vacuum cleaner from room to room. (Fig.4/4) The accessories can be attached directly to the handle by removing the extension tube and pushing in the desired Fig.4/4...
- Page 6 Vax VCC_05 User Guide.qxd 25/4/07 14:22 Page 6 VCC-05 7. Dirt Container & Filters: Pre-motor Filter 1. Turn off the vacuum cleaner and unplug it from the Removal & Replacement electrical outlet. 2. Unclip the retainer clip on the top of the vacuum cleaner...
-
Page 7: Clearing Blockages
Remove any blockages found then reconnect the hose. Fig.7/5 NOTE: Vax recommends replacing the pre-motor filter when it becomes discoloured. Fig.8/1 Fig.7/6 5. Replace with a new filter inside and turn the retaining disc clockwise to secure. -
Page 8: Troubleshooting
Please make a note of the serial number and model Solution: Press on/off button. number of the carpet cleaner before calling. There are over 400 approved Vax Service Agents in the UK. For the Cause: No electricity in the electrical outlet. nearest Service Agent, please call the Vax Careline. -
Page 9: Technical Specification
Vax VCC_05 User Guide.qxd 25/4/07 14:22 Page 9 user guide 11. Technical Specification Voltage: 220-240V ~50Hz Wattage: 1400W (max) Noise: 76* dB(A) *The sound level is measured in accordance with IEC 60704-2-1 Capacity: 6 litres max Filters: Fibre pre-motor filter... - Page 10 Vax VCC_05 User Guide.qxd 25/4/07 14:22 Page 10 VCC-05 This page has been left intentionally blank...
- Page 11 Vax VCC_05 User Guide.qxd 25/4/07 14:22 Page 11 user guide This page has been left intentionally blank...
- Page 12 14:22 Page 12 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the product VCC-05 Commercial Bagged Cylinder is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive EMC: 89/336/EEC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
