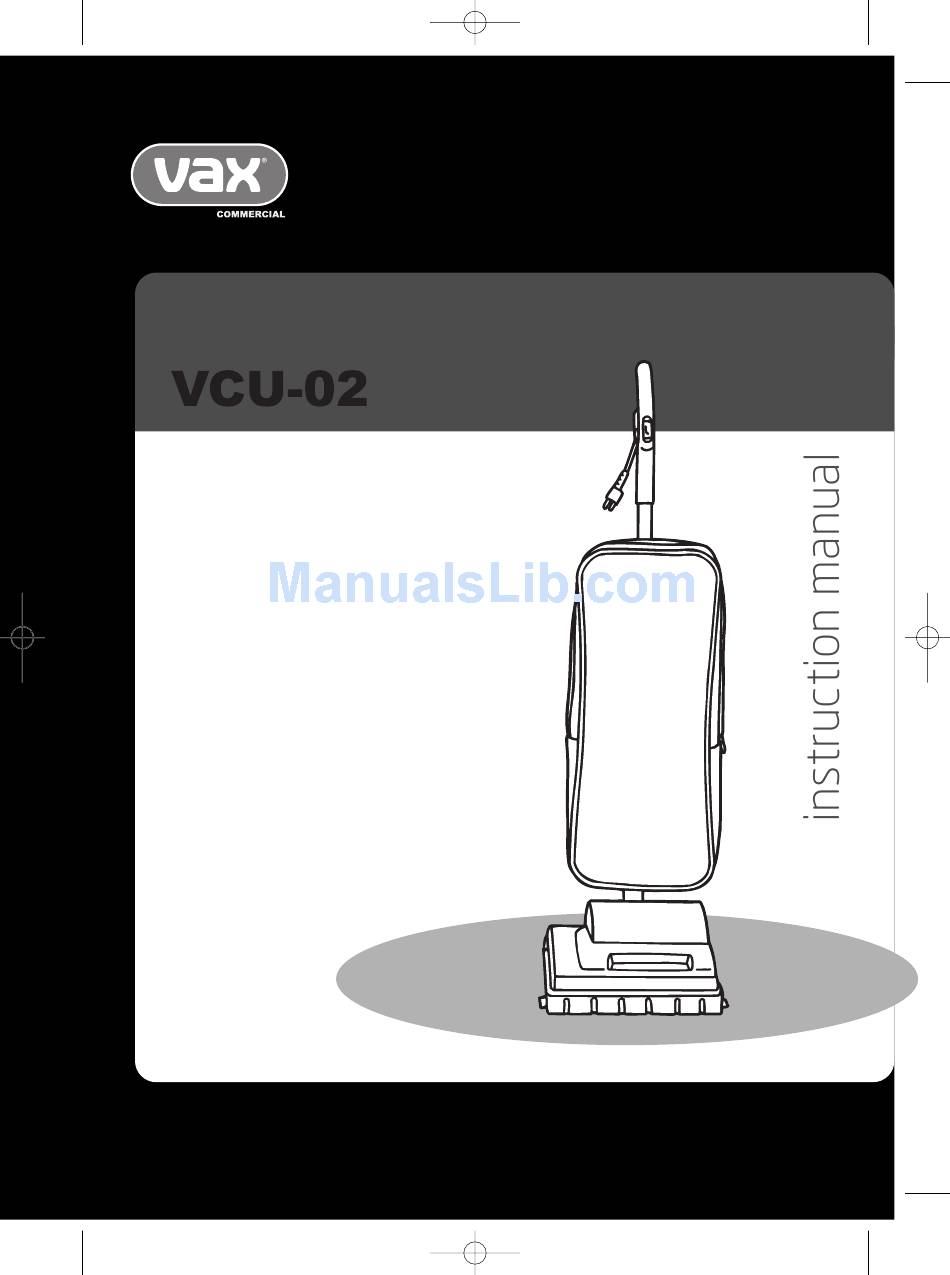

Vax VCU-02 User Guide.qxd
6/3/07
13:58
Page 1
Vax careline
0870 1129 145
(UK only)
Commercial Upright
Vax model number:
VCU-02
Please read carefully before using this cleaner.
www.vax.co.uk
Always fully extend the mains cable before use.
Retain for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Vax VCU-02

Summary of Contents for Vax VCU-02

  • Page 1 Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 1 Vax careline 0870 1129 145 (UK only) Commercial Upright Vax model number: VCU-02 Please read carefully before using this cleaner. www.vax.co.uk Always fully extend the mains cable before use. Retain for future reference.
  • Page 2 Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 2 VCU-02 1. Diagram VCU-02 Fig.1/1 1 Handle Grip 10 Cord Extension Connector 2 On/Off Switch 11 Cord Lock 3 Upper Handle 12 Collars 4 Zip 13 Carry Handle 5 Outer Cloth Bag...

  • Page 3: Safety Information

    Do not use the vacuum cleaner if it has been vacuum cleaner firmly when starting and in use. dropped, damaged, left outdoors or dropped into water. Return the vacuum cleaner to a Vax IMPORTANT: If the inlet is blocked, switch off Authorised Service Agent or suitably qualified person the vacuum cleaner and remove the blockage(s) for examination, repair or adjustment.

  • Page 4: How To Assemble

    Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 4 VCU-02 3. How to Assemble To attach the upper handle, align with middle section of cleaner and push firmly into place (Fig.3/5). Turn the knob clockwise to tighten (Fig.3/6). NOTE: To ensure proper operation of the cleaner, verify that the rubber O-ring is in place and tighten all collars.

  • Page 5: How To Operate

    Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 5 user guide 4. How to Operate Plug extension cord into electrical outlet. Turn power switch to the “ON“ position. WARNING: Fully assemble before operating. Fig.4/4 Fig.4/1 Tilt the cleaner back before you start vacuuming. At the same Plug the extension cord firmly into the cord extension time, use your foot to press the base down onto the carpet.

  • Page 6: Dust Bag

    Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 6 VCU-02 5. Paper Bag: Removal & Replacement WARNING: To reduce the risk of injury from moving parts - unplug from servicing. NOTE: Cleaner MUST have paper bag in place at all times.
  • Page 7 Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 7 user guide 6. Belt or Brush Bar: Removal & Replacement Tool required: Phillips Screwdriver WARNING: To reduce the risk of injury from moving parts - uplug before servicing. Fig.6/3 Be sure belt is off motor shaft. Lift and remove brush bar.

  • Page 8: Motor Shaft

    Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 8 VCU-02 To Replace New Belt Slip brush bar through belt. Place belt in area of brush bar without bristles (Fig.6/4). Fig.6/7 To reassemble the nozzle guard, align the three (3) tabs on the front of the nozzle guard with the slots in the base.

  • Page 9: Edge Cleaning Bristles: Removal & Replacement

    Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 9 user guide 7. Edge Cleaning Bristles: Removal & Replacement Tool required: Phillips Screwdriver WARNING: To reduce the risk of injury from moving parts - uplug before servicing. Fig.7/3 Replace all four (4) screws to secure.

  • Page 10: Troubleshooting

    Cord not fully connected or number of the vacuum cleaner before calling. There are unconnected completely. over 400 approved Vax Service Agents in the UK. For the Solution: Firmly push cords together until they are nearest Service Agent, please call the Vax Careline.

  • Page 11: Technical Specification

    Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 11 user guide 10. Technical Specification Voltage: 220-240V ~50Hz Wattage: 450W (max) Capacity: 7.5 litres Filters: 2 layer paper bag and HEPA outer cloth bag. Cord length: 12.5m Weight: 5.81kg Sound Level: 84 dB(A)* *The sound level is measured in accordance with IEC 60704-2-1 Subject to technical change without notice.
  • Page 12 13:58 Page 12 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the product VCU-02 Commercial Upright is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive EMC: 89/336/EEC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
