EMF917F

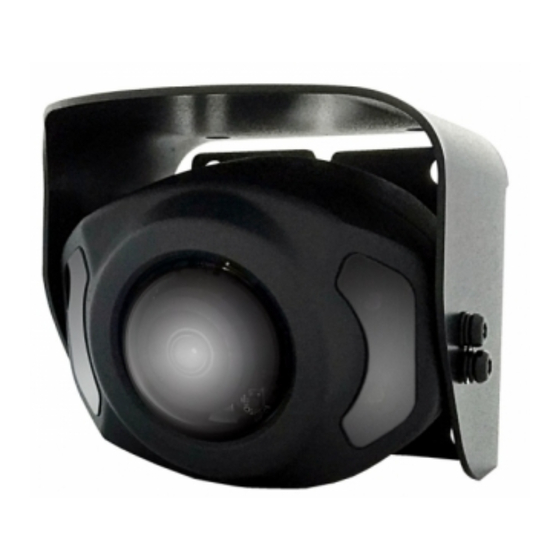

2MP, 180°, IP68 AHD Mobile IR Fisheye Camera
User's Manual
Copyright © EverFocus Electronics Corp,
Release Date: July, 2018
All the images including product pictures or screen shots in this document are for example only. The
images may vary depending on the product and software version. Information contained in this
document is subject to change without notice.
Advertisement
Related Manuals for EverFocus EMF917F
Summary of Contents for EverFocus EMF917F
- Page 1 EMF917F 2MP, 180°, IP68 AHD Mobile IR Fisheye Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: July, 2018 All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version. Information contained in this...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.
-
Page 3: Safety Notice
Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 4 1. Introduction EverFocus’ EMF917F is a fisheye camera, supporting 2MP full HD image quality. The camera comes with a 1.72mm fisheye lens, providing 180° viewing angle. EMF917F features 4 LEDs, which enable night vision up to 10m (~33ft.). The camera is IP68-certified and supports both NTSC and PAL scanning systems.
-
Page 5: Installation
1.3 Cable Description The EMF917F provides 3 types of cable, please select either one before shipping. BNC (1Vp-p, 75Ω) + 12VDC Power M12 (transmit both video signal and power) Mini DIN (transmit both video signal and power) ... - Page 6 3.2 Mounting the Camera There are 2 ways to mount the camera onto the surface: Top Mounting and Rear Mounting. Top Mounting: Stick the Installation Sticker onto the surface and mark the two screw hole positions on the surface. Drill two screw holes on the surface and insert the supplied two Anchors to the holes. Remove the sunshield from the camera (refer to 3.4 Removing Sunshield) and screw the sunshield to the surface using the supplied two Screws.
- Page 7 3.3 Adjusting Camera Angle You can adjust camera tilting angle by 90°. To do this, loosen the lower screws on both side of the camera using the supplied Torx Wrench and then adjust the angle. Tighten the screw after adjusting angle. 0°...
-
Page 8: Specification
FAX: +1 626 844 8838 FAX: +81 3 5625 8189 www.everfocus.com www.everfocus.co.jp sales@everfocus.com info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
