Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1.
Do not have camera immersed in water.
2.
Do not disassemble it or place it on an unstable base.
3.
Do not touch the surface of CCD sensor by hand directly.
4.
Never face the camera toward the sun.
5.
Use proper power source otherwise the camera will not function correctly.
6.
Use the camera at temperatures within -10℃ ~ 50℃ and humidity between 20%~ 80%. The
input power source is DC 12V.

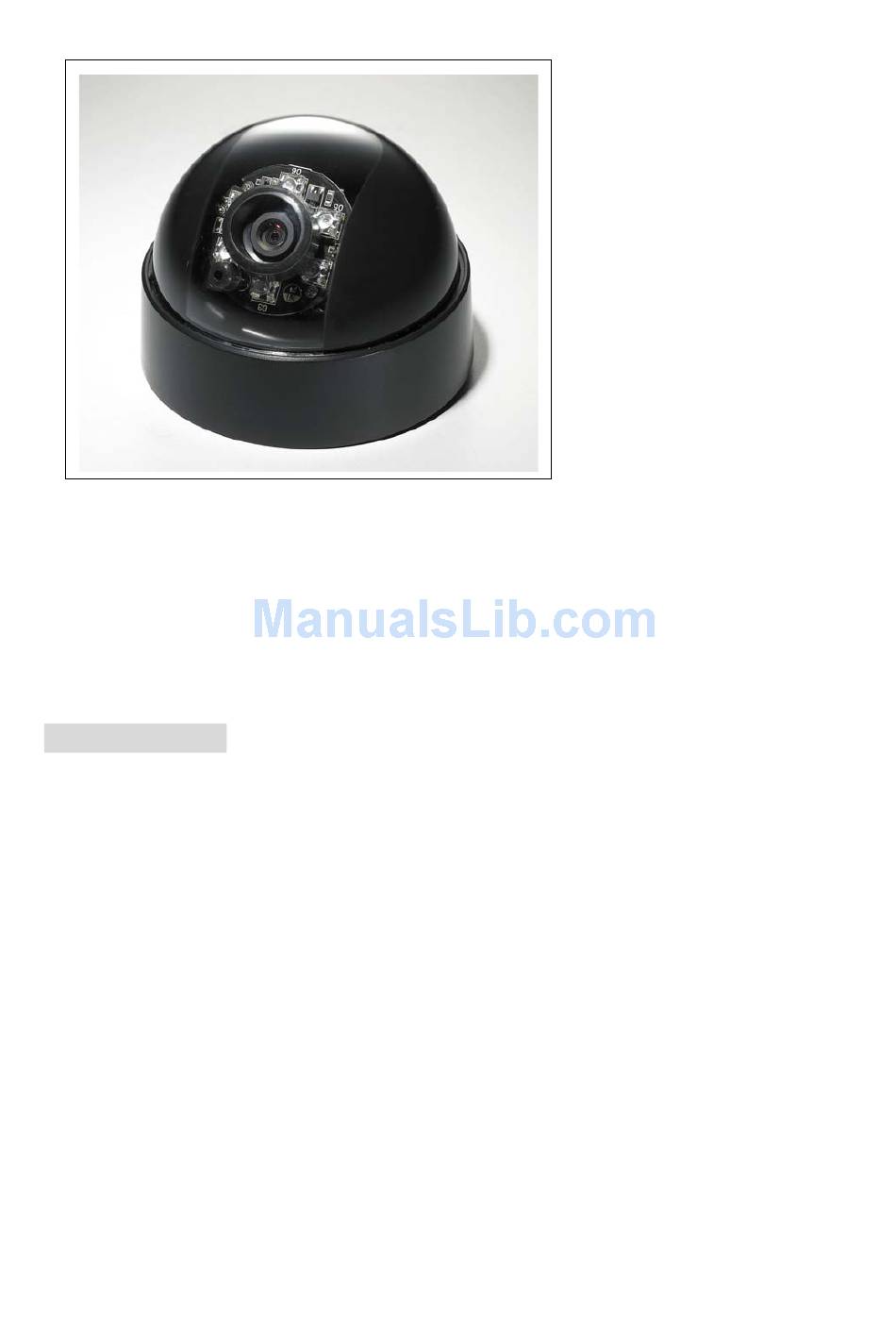

EVERFOCUS

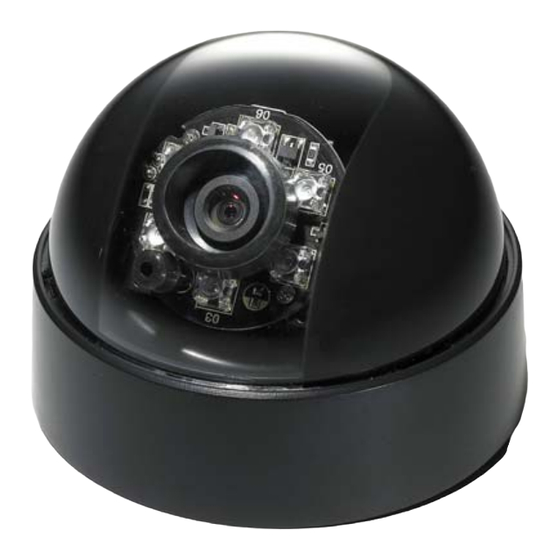

1/3" CCD IR Camera
Operation Instructions
ED230/330
Model No.
Advertisement
Related Manuals for EverFocus ED230
Summary of Contents for EverFocus ED230
- Page 1 Use proper power source otherwise the camera will not function correctly. Use the camera at temperatures within -10℃ ~ 50℃ and humidity between 20%~ 80%. The input power source is DC 12V. EVERFOCUS 1/3" CCD IR Camera Operation Instructions ED230/330 Model No.
-
Page 2: Package Contents
These dome cameras can be mounted either on the ceiling or on the wall easily. ED230/330 uses high sensitive 1/3" color interline transfer CCD sensor, built in long life, high light & high reliability LED, sensors are featured with Auto Electronic Shutter, Automatic Gain Control, and Auto White Balance function. - Page 3 ED230/330 Type Pickup Device Video Format Scanning System Picture Elements Horizontal Resolution Video Output *Lens Sensitivity Gamma Correction S/N Ratio Auto White Balance Electronic Shutter Black Light Comp. Auto Gain Control Sync. Mode Power Source Power Consumption Dimensions Weight Operating Temperature...
-
Page 4: Installation
INSTALLATION This section cover simple steps and detail installation. Please follow instruction for preventing any unnecessary damage. Simple Steps: 1. Open Camera Cover 2. Mount Camera on Ceiling or Wall 3. Connect power, video Detail installation: 1. Open Camera Cover Turn Clockwise to open it gently. - Page 5 The arrow indicator should be on the top when you do wall mounting. Unscrew the fixing screws and rotate the camera module to the view angle you want 1. ED230/330 Dome camera's angle of view for lens is 83-degree. Decide the location to install the Dome camera.
- Page 6 b) Wall mount Note!! Please make sure you connect power +,- correctly. Wrong Connection damage the camera. 3. Connect Video and Power a. Connect the BNC connector of the camera to a color monitor, or other video device through a 75 ohm type coaxial cable with BNC female connector at cable extension.
- Page 7 415 Oser Avenue Unit S Hauppauge, NY 11788 TEL: 631-436-5070 FAX: 631-436-5027 www.everfocus.com Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
