EMC921F / EMW921F eZ.HD Series
1080p Full HD Super Wide Angle
IP67 Mobile IR Mini Camera
User's Manual

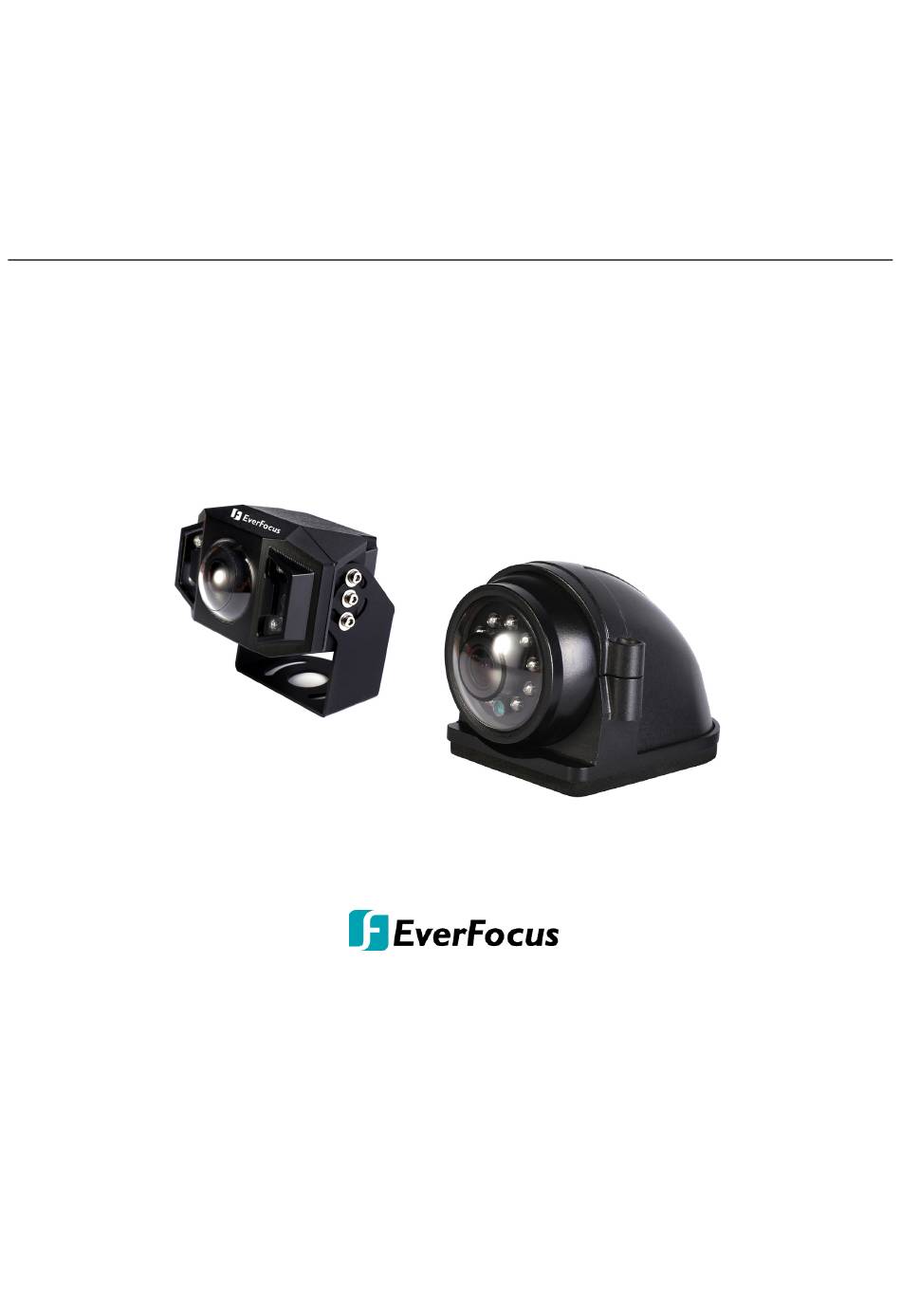

EMC921F
EMW921F
Copyright © EverFocus Electronics Corp.
Release Date: April, 2018
All the images including product pictures or screen shots in this document are for example only. The images
may vary depending on the product and software version. Information contained in this document is
subject to change without notice.
Advertisement
Table of Contents
Related Manuals for EverFocus eZ.HD Series
Summary of Contents for EverFocus eZ.HD Series
- Page 1 EMC921F / EMW921F eZ.HD Series 1080p Full HD Super Wide Angle IP67 Mobile IR Mini Camera User’s Manual EMC921F EMW921F Copyright © EverFocus Electronics Corp. Release Date: April, 2018 All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version.
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.
- Page 3 This Product is RoHS compliant. WEEE Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please, dispose of this equipment at your local community waste collection/recycling centre.
-
Page 4: Table Of Contents
Contents 1. Introduction ........................1 Packing List ........................1 Features .......................... 1 Dimensions ........................2 Optional Accessory ......................2 2. Cable Description ......................3 3. Installation ........................3 EMW921F ........................3 EMC921F ......................... 5 4. Configuration in the OSD Menu ..................6 5. -
Page 5: Introduction
EMC921F/EMW921F eZ.HD Mobile IR Mini Camera 1. Introduction Equipped with a 1080p CMOS sensor, the EverFocus eZ.HD series cameras - EMC921F and EMW921F deliver 1080p full HD image quality. Both of the models provide 2.1mm or 2.8mm lens (selectable) to capture the desired field of view. Featured with Digital Wide Dynamic Range (D-WDR), the camera can provide clear images even under backlight circumstances where intensity of illumination can vary excessively. -
Page 6: Dimensions
EMC921F/EMW921F eZ.HD Mobile IR Mini Camera Vandal-resistant construction enables the camera to withstand intentional damage IP67 (non-audio model) rated / IP54 (audio model) rated* Compact size for discreet surveillance eZ Controller function: Control camera OSD settings directly from DVR end ... -
Page 7: Cable Description
EMC921F/EMW921F eZ.HD Mobile IR Mini Camera 2. Cable Description Power Cable Video Output Cable No. Name Descriptions Power Cable Connects to a 12VDC power source. Video Output 1080p output, using a 75 Ohm BNC-type coaxial cable. 3. Installation 3.1 EMW921F 1. - Page 8 EMC921F/EMW921F eZ.HD Mobile IR Mini Camera 2. Attach the camera base to the mounting surface to mark the four screw holes on the mounting surface. You can optionally mark a cable hole only if you want to run the cables through the mounting surface.
-
Page 9: Emc921F
EMC921F/EMW921F eZ.HD Mobile IR Mini Camera 6. Adjust the camera angle by rotating the camera. After adjusting the camera angle, tighten the three cover screws using the supplied Hexagon Wrench. 3.1 EMC921F Loosen to adjust Camera Angle Loosen to adjust Camera Angle Power Cable Screw Hole Video Output Cable... -
Page 10: Configuration In The Osd Menu
EMC921F/EMW921F eZ.HD Mobile IR Mini Camera 4. Configuration in the OSD Menu You can configure camera settings in the OSD menu from DVR end. OSD menu structure is listed on the below table: Main Sub Menu Sub Menu / Function Manual Indoor Min Shutter 1/30... - Page 11 EMC921F/EMW921F eZ.HD Mobile IR Mini Camera All Day Mode Night AGC Level 0-255 Default AWC→SET Special2* White Special1* Balance Blue 0-100 Manual 0-100 D→N(Delay) 0-60 N→D(Delay) 0-60 D→N(AGC) 1-255 D→N(Delay) 0-60 Auto N→D(AGC) 1-255 N→D(Delay) 0-60 Day & Color Night Burst Off/On Level...
- Page 12 EMC921F/EMW921F eZ.HD Mobile IR Mini Camera Color Green, Blue, White, Red Trans 1.00, 0.75, 0.25, 0.00 View Type Off, Block, Outline, All OSD View On/Off Alarm Alarm Out On/Off Time 0-15 Default Select Area1,Area2,Area3,Area4 Position, Color Size,↑,↓,→,← Display Position, Mosaic Privacy Size,↑,↓,→,←...
- Page 13 EMC921F/EMW921F eZ.HD Mobile IR Mini Camera Start Press Enter DPC View Off/On Level 0-100 CAM ID 0-255 RS485 ID Display Off/On Baud Rate 2400, 4800, 9600, 19200 ,38400 Level 0-10 Sharpness Auto Start AGC 0-255 End AGC 0-255 User,0.45,0.50,0.55,0.60,0.65,0.70, Gamma 0.75,0.80,0.85,0.90, 0.95,1.00 Adjust Blue Gain...
-
Page 14: Specifications
