EverFocus ED335 Operation Instructions Manual

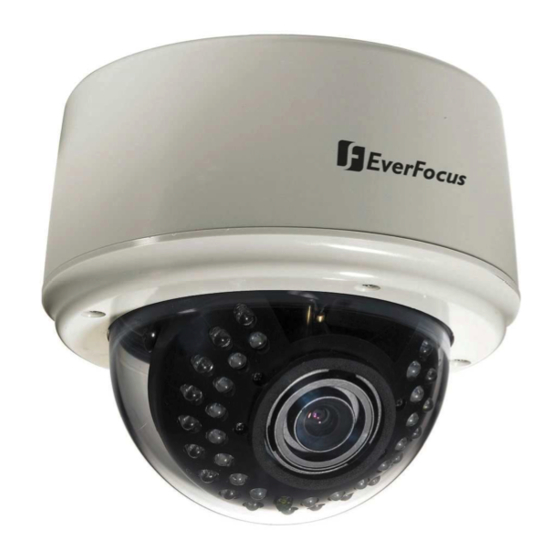

1/3” ccd indoor 3-axis dual voltage true day/night ir dome camera
Hide thumbs Also See for ED335:
Table of Contents

Advertisement

Quick Links

Download this manual
EverFocus ED335 Operation Instructions
http://www.manuallib.com/file/2673673
From ManualLib.com
ManualLib.com collects and classifies the global product
instrunction manuals to help users access anytime and
anywhere, helping users make better use of products.
Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/
This Manual: http://www.manuallib.com/file/2673673

Advertisement

Table of Contents
loading

Related Manuals for EverFocus ED335

Summary of Contents for EverFocus ED335

  • Page 1 EverFocus ED335 Operation Instructions http://www.manuallib.com/file/2673673 From ManualLib.com ManualLib.com collects and classifies the global product instrunction manuals to help users access anytime and anywhere, helping users make better use of products. Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/ This Manual: http://www.manuallib.com/file/2673673...

  • Page 2: Operation Instructions

    1/3” CCD Indoor 3-Axis Dual Voltage True Day/Night IR Dome Camera Operation Instructions ED335 Model No. Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products.

  • Page 3: Product Overview

    ED335 also delivers excellent true day/night low light performance, and equipped with 34 long lifespan/high illumination IR LEDs the ED335 is able to deliver bright, detailed monochrome images even in low light or no light situations out to a range of over 66 feet.
  • Page 4 Power supply pigtail Video test cable Accessory pack #2 containing two flush mounting clips DIMENSIONS This Manual: http://www.manuallib.com/file/2673673...

  • Page 5: Specifications

    SPECIFICATIONS Pickup Device 1/3” SONY Super HAD CCD Video Format NTSC or PAL Scanning System NTSC: 525 TV lines, 60 fields/sec; PAL: 625 TV lines, 50 fields/sec. Picture Element 768 x 494 (NTSC); 752 x 582 (PAL) Horizontal Resolution 520 TV Lines Sensitivity 0 Lux (IR LED on) 0.4 Lux/F=1.2 (AGC ON)
  • Page 6 MAJOR PARTS: NAMES AND FUNCTIONS Front View 1. Outer Base 3. Lens 2. IR LEDs 4. Light sensor 5. Cover Side View 6. Focus Adjust 7. Zoom Adjust 8. Video Output 9. Power Input This Manual: http://www.manuallib.com/file/2673673...
  • Page 7 Back View Video Test Output Iris level adjust 1. Base The camera unit sets in the dome base, when it is shipped from the factory. This base is used for surface mounting, and is discarded for flush mounting. 2. IR LEDs 3.
  • Page 8 7. Zoom Ring To adjust the viewing angle, loosen the zoom ring knob. Turn the ring toward <W> to Zoom out or <T> to Zoom in as necessary, and re-tighten when the adjustment is complete. 8. Video Output Please connect to the BNC connector of the cable from the DVR or monitor. 9.
  • Page 9 3-AXIS GIMBAL BRACKET The 3-axis gimbal enables installers to easily mount the camera on a wall or ceiling and then using the built in tilt and dual axis 180° twist, to adjust the viewing angle to the desired direction. With this unique 3-axis positioning system, installers can capture images from virtually any angle, without compromising performance.

  • Page 10: Installation

    INSTALLATION An ED335 camera may be mounted in two ways: surface mount and flush mount. Select the one that meets your needs. Installation - Surface Mount 1. Paste the drilling template on the ceiling or wall. Please refer to the drilling template below.
  • Page 11 Remove dome cover (4 captive hex head screws); remove inner base from outer base (4 Phillips head screws – retain these for later re-assembly). Pull the cables to be connected to power and video cables into the outer base from the ceiling or wall. Attach power supply pigtail adapter to power wire if needed.
  • Page 12 Attach power and video cables from source to cables from camera and push excess wire back into hole. 8. Insert inner base into outer base and secure using the 4 Phillips removed in the earlier step. Preposition camera so it is facing approximately in the desired direction. 9.
  • Page 13 10. Once the camera view is as desired, attach the cover to outer base with the captive hex head screws. This Manual: http://www.manuallib.com/file/2673673...
  • Page 14 Installation - Flush Mount 1. Paste the drilling template on the ceiling or wall. Please refer to the drilling template below. Use the appropriate tool to drill the OUTER holes; carefully cut along the dashed circle to create a clearance hole for the inner base unit. Note: The minimum recommended material thickness is 1 cm.
  • Page 15 5. Unscrew the 4 Philips screws (retain for future use) to detach the inner base from the outer base. Set aside the outer base. 6. Screw the 2 spring tabs in the orientation shown to the slots at both sides of the inner base using the 4 Philips head screws provided.
  • Page 16 7. Attach power and video cables from source to cables from camera and push excess wire back into hole. Fold the spring tabs up. 8. Preposition camera so it is facing approximately in the desired direction. 9. Push the entire inner base into ceiling while holding the spring tabs with both hands. This Manual: http://www.manuallib.com/file/2673673...
  • Page 17 10. The spring tabs will open automatically to support the camera against the ceiling. 11. Use the long Phillips pan head screws (x4) provided to screw the base to the ceiling. Do NOT use washers. This Manual: http://www.manuallib.com/file/2673673...
  • Page 18 12. Attach video test cable to test point on rear of camera module. Aim and focus the camera. Remove test cable. 13. Screw the cover back to the base with captive hex head screws. This Manual: http://www.manuallib.com/file/2673673...
  • Page 19 Hauppauge, NY 11788 Tel: +1-626-844-8888 Sales: +1-631-436-5070 Fax: +1-626-844-8838 Fax: +1-631-436-5027 Your EverFocus product is designed and Ihr EverFocus Produkt wurde entwickelt und manufactured with high quality materials and hergestellt mit qualitativ hochwertigen components which can be recycled and Materialien und Komponenten, die recycelt reused.
