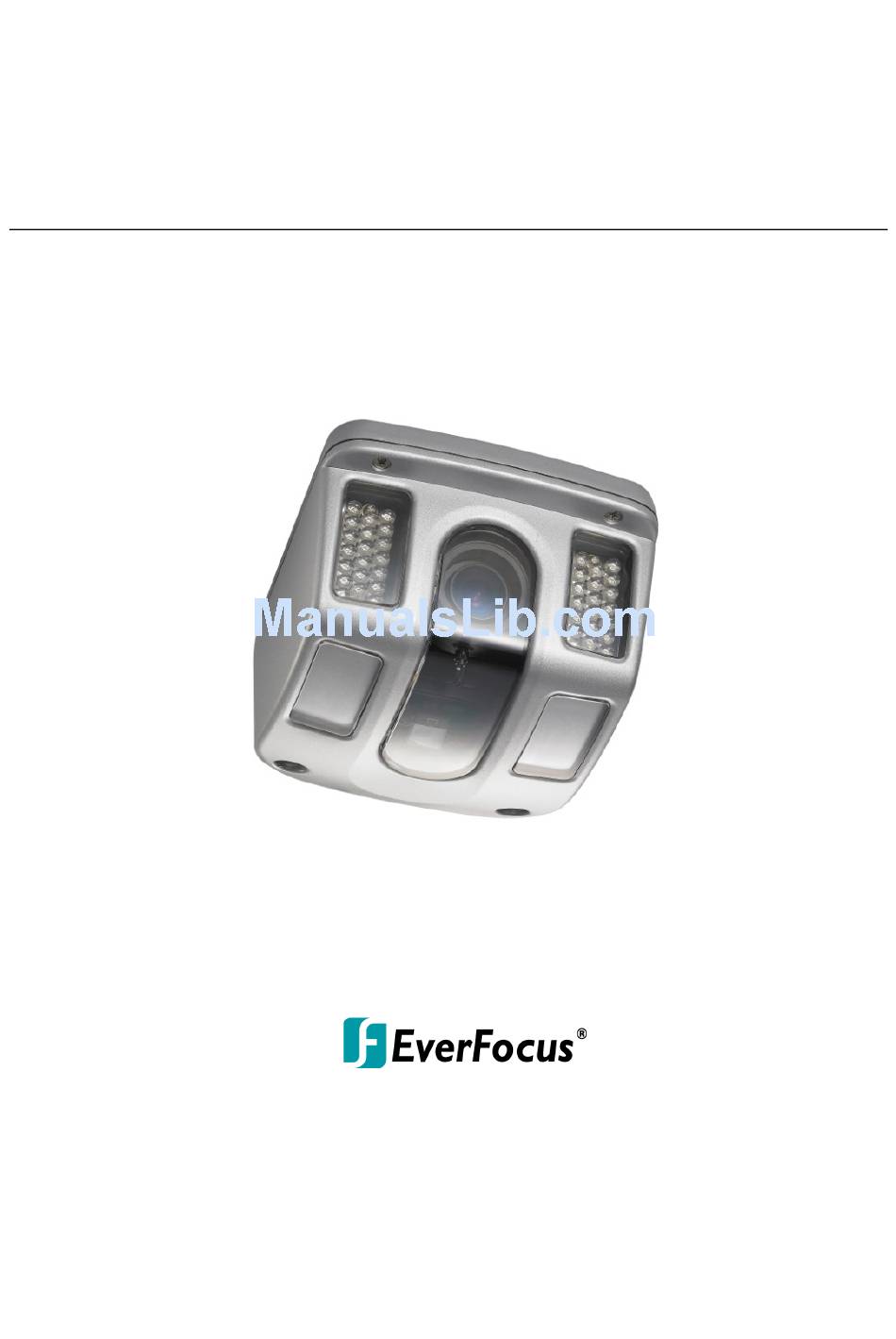

- Page 1 EMW930 Mobile IR Vandal Resistant Camera 720p Analog HD True Day/Night, IP66 Quick Installation Guide Copyright © EverFocus Electronics Corp, Release Date: July, 2015...
-
Page 2: Table Of Contents
Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image. 2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. -
Page 3: Introduction
With a streamlined, vandal resistant, IP66 weatherproof wedge type chassis, the EMW930 is ideal for transit/school bus and similar applications. The EMW930 fixed lens model comes with the IR illuminator module. Users can select a side, rear, wall or ceiling mounting configuration for best viewing angle, and mount the camera easily without brackets. -
Page 4: Cable Description
EMW930 4. Cable Description 12VDC Power Cable OSD Joystick BNC Cable You can use the OSD Joystick to switch between HD and 960H resolution (see image below). Press Right for 5 Seconds: Switch to HD resolution Press Left for 5 Seconds: Switch to 960H resolution... - Page 5 EMW930 3. Loosen the four screws using the provided Torx Wrench to remove the cover from the camera. 4. Attach the camera and Rubber Gasket to align the mounting holes. Screw the camera base using the supplied four Screws and Rubber Washers to the surface tightly. Apply sealant generously around all holes.
- Page 6 EMW930 5. To optionally rotate the Camera Module on-axis to change the camera view: a. Remove the four screws from the Camera Module. Camera Module b. Rotate the Camera Module to the left or right by either 90, 180 or 270-degree and screw back the Camera Module.
- Page 7 EMW930 6. Connect the Power Cable to the 12VDC power source using the supplied Power Adaptor Pigtail (black wire: negative - / black with white stripe wire: positive +) or a power adapter. Connect the BNC Cable to a DVR or a Monitor.
-
Page 8: Osd Menu Tree
EMW930 6. OSD Menu Tree You can use the OSD Joystick on the cable to configure camera settings in the OSD menu. Main Sub Menu Sub Menu / Function Lens Manual* NTSC: 1/30, 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000,... - Page 9 EMW930 Outdoor Blue 1-500(50*) Manual 0-100(50*) D→N(Delay) 0-60(1*) Ext* 0-60(1*) N→D(Delay) D→N(AGC) 1-255(240*) 0-60(1*) D→N(Delay) Auto N→D(AGC) 1-255(50*) 0-60(5*) N→D(Delay) Day & Color Night Burst Off*/On IR Smart Level 0-15(4*) Area Position, Size,↑,↓,→,← IR PWM 0-100(100*) 2DNR Middle*/Low/Off/High 3DNR Middle*/Low/Off/High...
- Page 10 EMW930 Time 1-15(3*) Default Off* Select Area1*,Area2,Area3,Area4 Position, Size,↑,↓,→, Color* ← Display Position, Size,↑,↓,→, Mosaic ← Privacy Position, Size,↑,↓,→, ← White*, Black, Red, Blue, CYAN, Color Yellow, Green 1.00*,0.75,0.50, Trans 0.25 Default Language ENG*/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR Live DPC AGC level 0-255(65*) Level 0-100(100*) Position, Size,↑,↓,→,...
- Page 11 EMW930 Baud Rate 2400,4800,9600,19200 ,38400 Level 0-10(3*) Sharpness Auto* Start AGC 0-255(50*) End AGC 0-255(200*) Black Level 0-60(0*) Blue Gain 0-100(50*) Red Gain 0-255(50*) Adjust User*,0.45,0.50,0.55,0.6 Monitor 0,0.65,0.70,0.75,0.80,0.8 Gamma 5,0.90, LCD* 0.95,1.00 Blue Gain 0-100(50*) Red Gain 0-100(50*) Off*/On Video. Out PAL/NTSC Exit Save&...
-
Page 12: Specification
EMW930 7. Specification Pickup Device 1/3” Sony COMS Video Format NTSC/PAL (can be switched via OSD) Effective Pixels 1280 (H) x 720 (V) Scanning System Progressive Scan Sensitivity 0.05 Lux, 0 Lux With IR On S/N Ratio Over 48dB (AGC off) - Page 13 TEL: +81-3-5625-8188 sales@everfocus.com FAX: +81 3 5625 8189 www.everfocus.co.jp info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
