Changing A Camera Name - Honeywell Performance Series User Manual

Performance Series Network Video Recorder User Guide

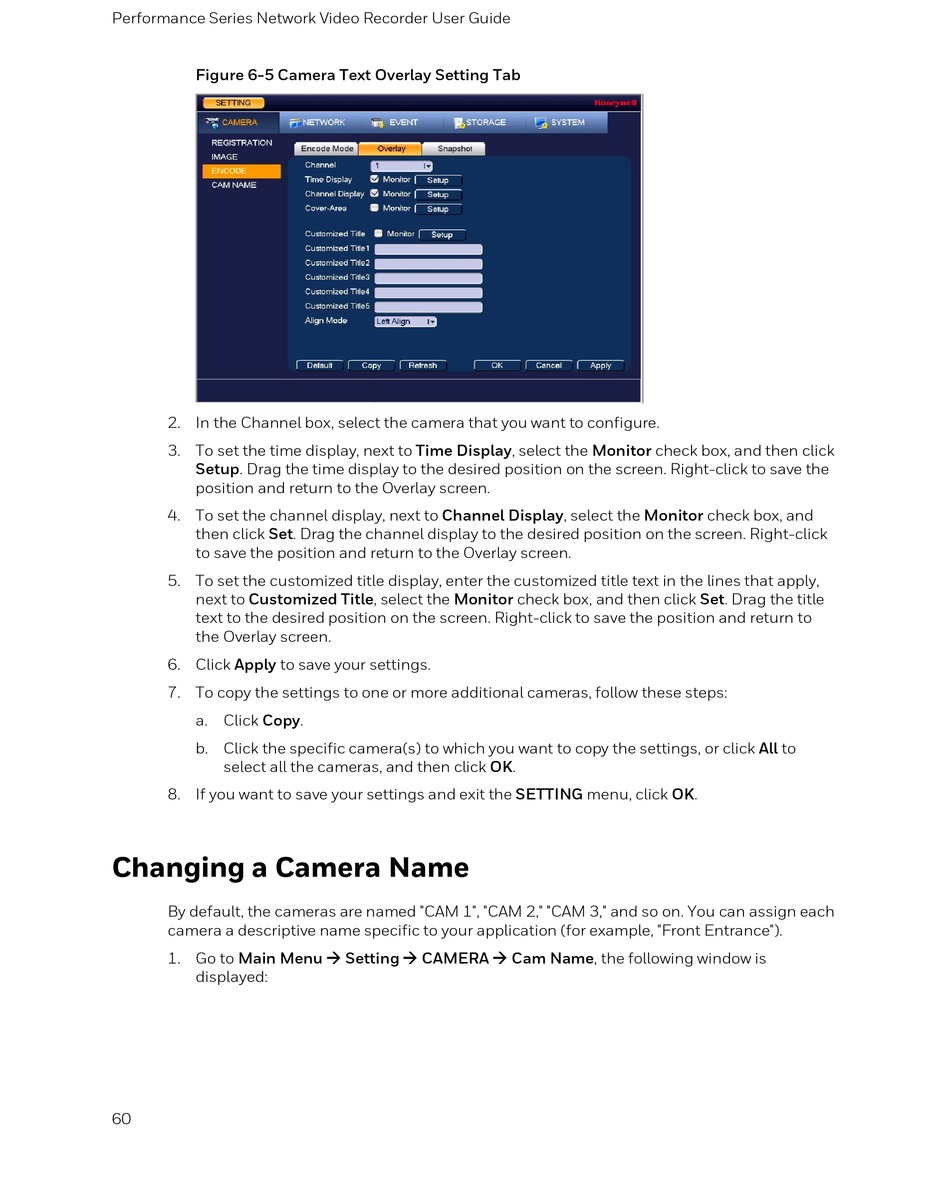

Figure 6-5 Camera Text Overlay Setting Tab
2. In the Channel box, select the camera that you want to configure.
3. To set the time display, next to Time Display, select the Monitor check box, and then click
Setup. Drag the time display to the desired position on the screen. Right-click to save the
position and return to the Overlay screen.
4. To set the channel display, next to Channel Display, select the Monitor check box, and
then click Set. Drag the channel display to the desired position on the screen. Right-click
to save the position and return to the Overlay screen.
5. To set the customized title display, enter the customized title text in the lines that apply,
next to Customized Title, select the Monitor check box, and then click Set. Drag the title
text to the desired position on the screen. Right-click to save the position and return to
the Overlay screen.
6. Click Apply to save your settings.
7. To copy the settings to one or more additional cameras, follow these steps:
a. Click Copy.
b. Click the specific camera(s) to which you want to copy the settings, or click All to
select all the cameras, and then click OK.
8. If you want to save your settings and exit the SETTING menu, click OK.

Changing a Camera Name

By default, the cameras are named "CAM 1", "CAM 2," "CAM 3," and so on. You can assign each
camera a descriptive name specific to your application (for example, "Front Entrance").
1. Go to Main Menu  Setting  CAMERA  Cam Name, the following window is
displayed:
60
