MODEL
HT-SB603
SOUND BAR HOME THEATER SYSTEM

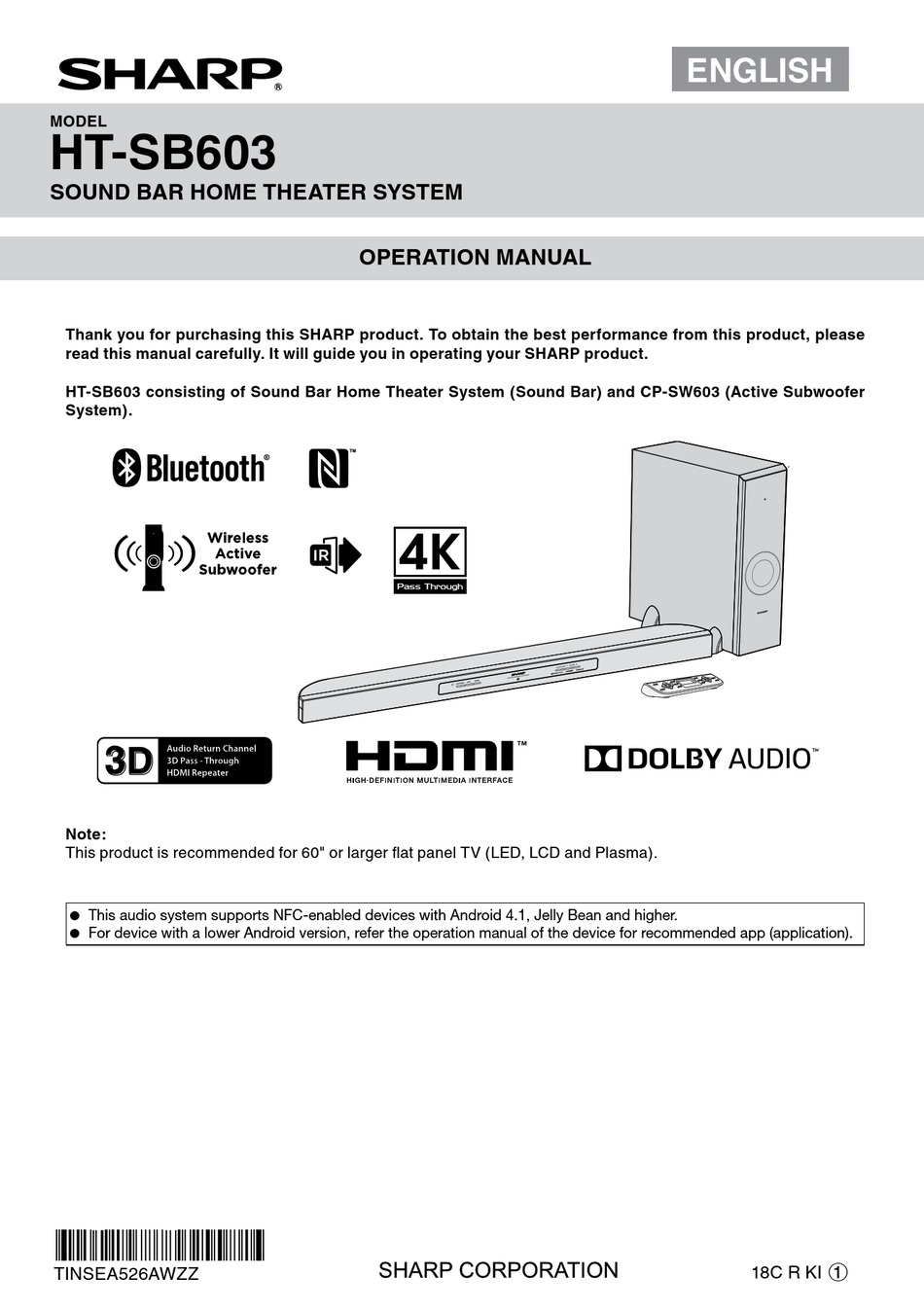

Thank you for purchasing this SHARP product. To obtain the best performance from this product, please
read this manual carefully. It will guide you in operating your SHARP product.
HT-SB603 consisting of Sound Bar Home Theater System (Sound Bar) and CP-SW603 (Active Subwoofer
System).
soft
Note:
.barcodesoft.com
This product is recommended for 60" or larger flat panel TV (LED, LCD and Plasma).
This audio system supports NFC-enabled devices with Android 4.1, Jelly Bean and higher.
●
For device with a lower Android version, refer the operation manual of the device for recommended app (application).
mbology: Code 93 ; Font Facename: Code93MHr
●
code: TINSEA526AWZZ
8 :
*TINSEA526AWZZ5M*|
10 :
*TINSEA526AWZZ5M*|
TINSEA526AWZZ
OPERATION MANUAL
ENGLISH
18C R KI 1

Advertisement

Table of Contents
loading

Related Manuals for Sharp HT-SB603

Summary of Contents for Sharp HT-SB603

  • Page 1 SOUND BAR HOME THEATER SYSTEM OPERATION MANUAL Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product. HT-SB603 consisting of Sound Bar Home Theater System (Sound Bar) and CP-SW603 (Active Subwoofer System).

  • Page 2: Special Notes

    Bluetooth SIG, Inc. and pliance to dripping or splashing. No objects filled with any use of such marks by SHARP is under license. liquids, such as vases, shall be placed on the appa- Other trademarks and trade names are those of their ratus.

  • Page 3: Controls And Indicators

    This unit should only be used within the range of 5°C - Wall mount Wall mount 35°C (41°F - 95°F). 10 cm z SHARP are not responsible for damage due to 10 cm 10 cm improper use. Refer all servicing to a SHARP authorised service centre.
  • Page 4 Controls and indicators (continued) „ Sound Bar Rear Panel 1. IR OUT Terminal 2. HDMI OUT (TV ARC) Socket 3. USB terminal 4. HDMI IN 1 Socket 5. HDMI IN 2 Socket 6. Optical IN Socket 7. Audio IN Terminal 8.
  • Page 5 19. DC IN Terminal The default TV code for the remote control is TV CODE 1. In case SHARP TV is not responding to TV operation „ Display remote control button, change the code by selecting TV CODE from the remote control menu (Refer ‘To select a menu on the...

  • Page 6: Sound Bar Preparation

    „ Driving screws „ Installing the sound bar SHARP designed the sound bar so you may hang them on the wall. Use proper screws (not supplied). See below Align the wall mount slot at the sound bar to the for size and type.

  • Page 7: Falling Prevention

    Falling prevention z Safety wires (not supplied) are useful to prevent the sound bar from falling off. z 2 persons are required to perform this procedure. When mounting on the wall Loop the safety wires (not supplied) into each Align and fix the sound bar to wall mount angle. hole of the wall mount angle as shown.

  • Page 8: Placing The System

    Placing the system Notes: Installation image: z The front panel of the sound bar is not removable. z The maximum transmission distance of the wireless signal between the subwoofer and sound bar is about 10 metres (32 feet), but may vary depending on your operating environment.
  • Page 9 System connections (continued) „ IR (Infrared) transmitter connection If the TV’s remote sensor is blocked by the sound bar, use the IR transmitter to relay the signal to the TV. 1. Connect the IR transmitter to IR out terminal to allow the TV’s remote signal to pass through. 2.

  • Page 10: Audio Connections To Tvs, Dvd Players, Vcrs, Etc

    For details, refer to the operation manual of the TV. z If you are unable to select external speaker setting from the TV menu (E.g. For SHARP LCD TV, it is named as AQUOS AUDIO SP), turn the CEC OFF and ON again.

  • Page 11: Remote Control

    Audio connections to TVs, DVD players, VCRs, etc. (continued) „ Connecting a TV, or DVD player, etc. Connect to the TV using an optical digital cable or an audio cable. To audio output terminals HEADPHONE terminal Blu-Ray/ To optical DVD player/Digital digital audio Tuner output...

  • Page 12: General Control

    The USB connection cannot be used to charge the z “AQUOS speaker is enabled” message will be displayed if SHARP LCD TV does not detect HT-SB603 remote control or as a media playback. during power on. However the message “AQUOS „...
  • Page 13 General control (continued) Sound Bar: Caution: 1. Press and hold the ON/STANDBY button during power z Keep the subwoofer away from water and moisture. on until the sound bar is turned off. z To get the optimum listening performance, make sure - The next time the unit is turned on and off again it will the area around the sound bar and subwoofer is clear enter the low power consumption mode (Sound bar...
  • Page 14 General control (continued) Note: „ APC (Auto Power Off Control) (remote When the sound bar is turned off and back on again, control) muting is cancelled. This sound bar can be set to turn off automatically if „ Bass and Treble Control (remote control) no signal or connection is detected.

  • Page 15: Bluetooth One Touch Connection Via Nfc

    Rear view of the NFC tag z NFC tag provided has unique ID for each sound bar. z SHARP will not be held liable for the damages caused by rewriting the tags. Keep all small parts away from children as they may be accidentally swallowed.

  • Page 16: Listening To Bluetooth Enabled Devices

    NFC detection sound bar. area on the main unit or supplied NFC tag. Listening to Bluetooth enabled devices SOUND BAR HOME THEATER SYSTEM HT-SB603 „ Bluetooth „ Pairing Bluetooth devices Bluetooth wireless technology is a short-range radio technology...

  • Page 17: Bluetooth Status

    Within 1 minute, perform pairing procedure on the Start Bluetooth streaming playback. source device to detect this unit. “HT-SB603 SHARP” Notes: will appear in the detected devices list (if available) in z For various Bluetooth operations, refer “NFC the source device.

  • Page 18: Listening To Usb Mass Storage Device/Mp3 Player

    Notes: In random play, the unit will select and play tracks automatically. ● SHARP will not be held liable for the loss of data while the ● (You cannot select the order of the tracks.). USB memory device is connected to the audio system.

  • Page 19: Troubleshooting Chart

    Troubleshooting chart Many potential problems can be resolved by the owner without Symptom Possible cause calling a service technician. z Wireless z Make sure there is no obstacles If something is wrong with this product, check the following connection cannot (especially metal) blocking before calling your authorised dealer or service centre.

  • Page 20: Maintenance

    Troubleshooting chart (continued) Maintenance „ Condensation Sudden temperature changes, storage or operation in an „ Cleaning the cabinet extremely humid environment may cause condensation Periodically wipe the cabinet with a soft cloth. inside the cabinet or on the transmitter on the remote Caution: control.

  • Page 21: Specifications

    Specifications As part of our policy of continuous improvement, SHARP Support file z MPEG 1 Layer 3 reserves the right to make design and specification Bitrate z MP3 (32 ~ 320 kbps) changes for product improvement without prior notice. support...
