ZTE MF60
User Guide
Mobile WiFi

Advertisement

Table of Contents
loading

Related Manuals for Zte Glo Bolt MF60

Summary of Contents for Zte Glo Bolt MF60

  • Page 1 ZTE MF60 User Guide Mobile WiFi...
  • Page 2 Mobile WiFi Mobile WiFi...

  • Page 3: Legal Information

    ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modi- fications on print errors or update specifications without prior notice.

  • Page 4: Getting To Know Your Device

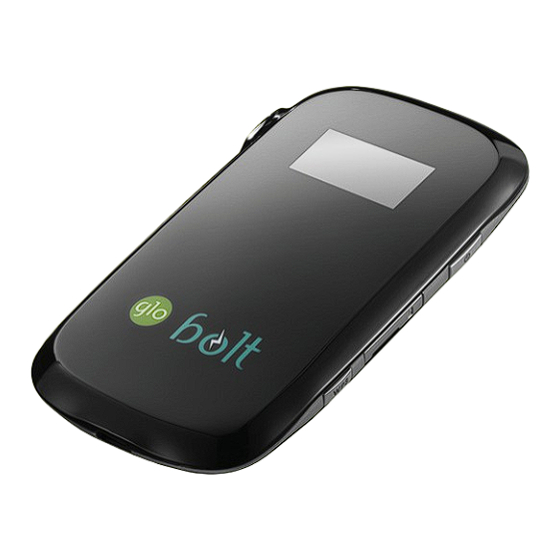

    Getting to Know Your Device Appearance The following figure shows the appearance of the device, it is only for your refer- ence. The actual device may be different. Right Side Front Left Side Bottom Interface and Buttons 1.Power Hold the Power button to switch on/off the device. 2.Memory card slot It is where you insert the memory card (microSD card).
  • Page 5 This button is used to start/end Wi-Fi Protected Setup au- thentication process and enable/disable the Wi-Fi function. Hold it for 3 seconds to activate the WPS function.  3.WPS When the WPS function is available, press it to deacti-  vate the WPS function.
  • Page 6 Indicators When the device is powered on, the following icons will appear on the OLED screen, with the corresponding indicates listed in the table below: Icon Indication Network signal strength. Network type. 2G or 3G icon will appear on the OLED screen according to the network being connected.

  • Page 7: Connection Scenario

    Connection Scenario The following picture is the application example. All of the client devices can surf on the Internet at the same time. NOTES: You can only use USB cable or Wi-Fi to connect this device.  If you want to use Wi-Fi, make sure the client supports the Wi-Fi function. ...

  • Page 8: Installing Your Device

    Installing Your Device 1. Use the thumb catch at the bottom of the device to open the battery cover. 2. Insert the SIM card into the SIM card holder. Mobile WiFi Mobile WiFi...
  • Page 9 3. Insert the battery as shown with the contacts located against the metal springs, and press the battery down into the case. 4. Line the battery cover up correctly and press gently to close the case. Mobile WiFi Mobile WiFi...
  • Page 10 5. Insert the microSD card. 1) Pull the microSD cover out of the card slot. NOTE: Do not pull the cover rudely, as it is connected with the device. 2) Insert the microSD card into the microSD slot. The following picture shows the correct inserting direction.

  • Page 11: Connecting To Your Device

    Connecting to Your Device Via Wi-Fi 1. Power on your device directly. It will take about 30 seconds to initialize. 2. Use your normal Wi-Fi application on the client to search for the available wireless networks. NOTE: Please set the client to obtain an IP address automatically referring to the chapter “Configuring your PC”, and then the client will get an IP address like “192.168.1.101”.
  • Page 12 3. Select the SSID of your device, and then click Connect. NOTE: Please check the label on your device to get the default SSID and Wi-Fi key.  Double press the WPS key, and then the SSID and Wi-Fi password will dis- ...
  • Page 13 4. Input the password, and then click Connect. NOTE: You may need to input the password for Wi-Fi connection, and then please check the label on your device to get the default. 5. Wait a moment, and then the client will connect to your device successfully. Mobile WiFi Mobile WiFi...

  • Page 14: Via Usb Cable

    Via USB Cable 1. Connect to the device. 2. Power on your device. 3. Follow the system prompts to complete the software installation. NOTES: If the operating system does not launch installation automatically, you can  run the installation program in path of My Computer > Glo Mobile WiFi . The driver of your device will be installed at the same time.

  • Page 15: Accessing The Internet

    Accessing the Internet After the client connected to your device successfully, you can access the Inter- net in the Automatic or Manual mode. The default mode is Automatic. Mode Operations Your device will connect to the Internet automatically, and Automatic your clients can surf on the Internet directly.

  • Page 16: Configuring Your Pc

    Configuring Your PC Follow the following steps and figures for Windows XP to configure the Internet Protocol for your Wi-Fi connection. 1. Right-click My Network Places and then select Properties. Mobile WiFi Mobile WiFi...
  • Page 17 2. Right-click Wireless Network Connection and then select Properties. Mobile WiFi Mobile WiFi...
  • Page 18 3. Select Internet Protocol(TCP/IP), and then click Properties. Mobile WiFi Mobile WiFi...
  • Page 19 4. Select Obtain an IP address automatically and Obtain DNS server ad- dress automatically, and then click OK to finish the configuration. Mobile WiFi Mobile WiFi...

  • Page 20: Warning And Notice

    Warning and Notice To the Owner Some electronic devices are susceptible to electromagnetic interference sent  by your device if inadequately shielded, such as the electronic system of vehi- cles. Please consult the manufacturer of your device before using if necessary. Operating your device may interfere with medical devices like hearing aids ...

  • Page 21: Using Your Device

    Do not touch the inner antenna area if not necessary. Otherwise it will affect  your device’s performance. Store your device out of the reach of little children. Your device may cause  injury if used as a toy. Do not touch the metallic parts of your device so as to avoid a burn, when ...

  • Page 22: Using Battery

    Do not use your device immediately after a sudden temperature change. In  such case, it will produce dew inside and outside your device, so don’t use it until it becomes dry. Handle your device carefully. Do not drop, bend or strike it. Otherwise your ...

  • Page 23: Limited Warranty

    End User’s mishandling, misuse, negligence, or improper installation, dis- assembly, storage, servicing or operation of the Product. iv. Modifications or repairs not made by ZTE or a ZTE-certified individual. v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside ZTE’s reasonable control.

  • Page 24: Limitation Of Liability

    Limitation of Liability ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with us- ing of this product, whether or not ZTE had been advised, knew or should have...

  • Page 25: Troubleshooting

    Troubleshooting Problem Suggested Solution Can not establish You need to install the software. Run the installation  program in path of My Computer > Glo Mobile WiFi . the USB connec- tion between your If the driver of your device is abnormal, please reinstall ...
  • Page 26 The client con- Make sure your SIM card is available.  nected to the Change the location to find a place with good signal.  device can not Check WAN Connection mode setting.  access the Inter- Contact with your service provider and confirm your ...
  • Page 27 If you changed the password and forgot the new pass-  word, you need to restore the device to the factory de- fault settings. For more assistance, please: Send E-mail to mobile@zte.com.cn  Visit http://www.zte.com.cn  Call Service Hotline: +86–755–26779999 ...
  • Page 28 ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Mobile WiFi...
