Zte MF63 Getting Started

LEGAL INFORMATION
Copyright © 2012 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or
utilized in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
GO Corporation.
ZTE MF63
Let's The manual is published by ZTE Corporation. We reserve the right to
make modifications on print errors or update specifications without prior
notice.
Getting started with your device Version No. : R1.0
Getting to Know Your Device

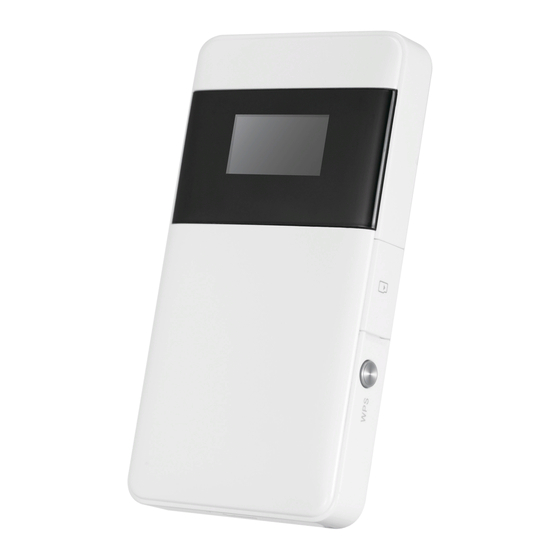

Appearance
The following figure is only for your reference. The actual product may be
different.
1. OLED Screen
2. microSD Card Slot
3. WPS Button
4. RESET Button
5. Micro USB Port
6. (U)SIM Card Slot
ZTE CORPORATION 7. Power Switch
NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 8. External Antenna Connector
NOTES: • 3G Mode: Use your (U)SIM card to access the Internet.
• microSD logo is a trademark of SD Card Association.
• Please use the original external antenna if necessary.
Indicators
When the device is powered on, the following icons will appear on the
OLED screen, with the corresponding indicates listed in the table below:
Icon Indication
Network signal strength.
Network type. 2G or 3G icon will appear on the OLED
screen according to the network being connected.
• AP Station Mode: Your device will connect to other WLAN device
(hotspot device, wireless router, etc.) via Wi-Fi to access the
Connect to the Internet automatically. Internet. The WLAN device has already connected to the Internet.
NOTE:
The subnet must be deferent between your device and other WLAN
Connect to the Internet manually.
device.
Roaming network indication.
New message received.
Wi-Fi Status and number of the connected users.
Battery power indication.
Connection Scenario
Your device supports two methods to go to Internet and supports multi-
clients for surfing on the Internet at the same time. The following figure is
only for your reference.
Installing Your Device
1. Slide the back cover and remove it
5. (Optional) Insert the SD card.
1) Open the microSD card cover.
NOTE: Do not pull the cover rudely, as it is connected with the device.
2. Insert the SIM card.
3. Insert the battery. 2) Insert the microSD card into the microSD slot. The following picture
shows the correct inserting direction. You will hear a click when the
microSD card locks in place.
4. Close the back cover.
3) Close the microSD card cover.
3. Select the SSID of your device, and then click Connect.
Connecting to Your Device
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize.
2. Use your normal Wi-Fi application on the client to search for the
available wireless networks.
4. Input the password, and then click Connect.
NOTE: Please set the client to obtain an IP address automatically
referring to the chapter "Configuring your PC", and then the client will get
an IP address like "192.168.0.100".
NOTE:
You may need to input the password for Wi-Fi connection, and then
please check the label on your device to get the default.
5. Wait a moment, and then the client will connect to your device
successfully.
Via USB Cable
1. Connect to the device.
2. Power on your device.
3. The OS detects and recognizes new hardware and finishes the
installation automatically.
NOTE:
If the system does not launch installation automatically, you can run the
installation program in path of My Computer > ZTEMODEM.
4. Wait a moment, and then the client will connect to your device
successfully.
