MF60 is a 3G/2G mobile hotspot device, working in GSM/GPRS/EDGE/ WCDMA/HSPA/HSPA+ network. The client devices could connect to it via USB or Wi-Fi interface. The device supports data and SMS services, enabling you to communicate anytime and anywhere.
This quick guide provides instructions on how to install and get started with the product. For information about connection of services, please consult your service provider.
Data Service | HSPA+: DL 21.6Mbps, UL 5.76Mbps |
WCDMA CS: 64kbps UL/DL WCDMA PS: 384kbps UL/DL | |
Interface | USB and Wi-Fi |
Wi-Fi Standard | 802.11b/g |
Wi-Fi Security | WEP/WPA/WPA2 |
USB Version | USB 2.0 HIGH SPEED |
USB Interface Type | Micro USB |
Weight | 75g |
Dimensions (W×H×D): | 99.7mm*53.7mm*13.9mm |
microSD card | Support up to 32GB microSD card |
Power Adapter | 5V/700mA |
Battery | 1500mAh |
*Standby time | 100hours |
*Working time | 4hours |
Operate system | Windows 7, Windows Vista(32bit or 64bit), Windows XP (SP2 or later), MAC (10.4 or later) |
Web Browser | IE (6.0 or later), Firefox (2.0 or later), Opera (10.0 or later), Safari (4.0 or later), Chrome (5.0 or later) |
Operating temperature | 0°C ~ +35°C |
Storage temperature | -20°C ~ +50°C |
Charging temperature | 0°C ~ +45°C |
Humidity | 5%~ 95% |
Notes: microSD is a trademark of SD Card Association.
The device's standby and working time are only for your reference, and based on ideal working environment.
The following figure shows the appearance of the device, it is only for your reference. The actual device may be different.

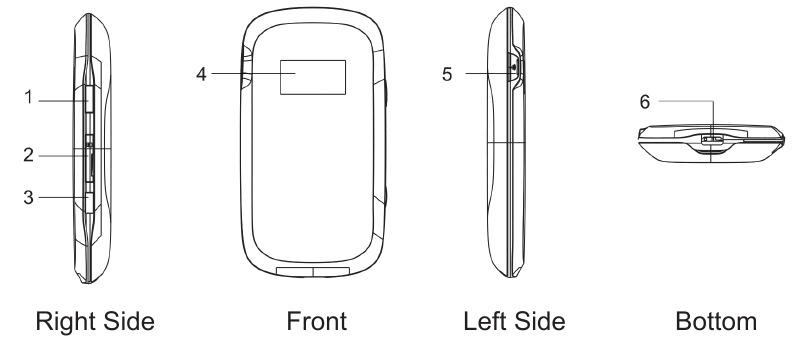

Interface and Buttons
| Hold the Power button to switch on/off the device. |
| It is where you insert the memory card (microSD card). |
| This button is used to start/end Wi-Fi Protected Setup authentication process and enable/disable the Wi-Fi function.
|
| It indicates the signal type, signal strength, battery, Wi-Fi, etc. |
| It is used to connect an external antenna to enhance the signal strength. |
|
|
Notes:
Hold the WPS and Power buttons simultaneously until the LED screen turns off, and then release the buttons. The device will restart automatically and restore to the factory default settings.
Please use the original external antenna if necessary.
LED Indicator
When the device is powered on, the following icons will appear on the LED screen, with the corresponding indicates listed in the table below:
Icon | Indication |
Network signal strength. | |
Network type. 2G or 3G icon will appear on the LED screen according to the network being connected. | |
Connect to the Internet automatically. | |
Connect to the Internet manually. | |
Roaming network indication. | |
New message received. | |
Wi-Fi Status and number of the connecting users. | |
Battery power indication. |

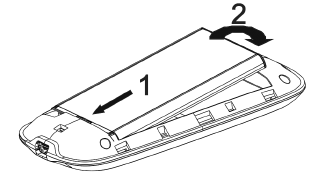

Inserting SIM Card and Battery

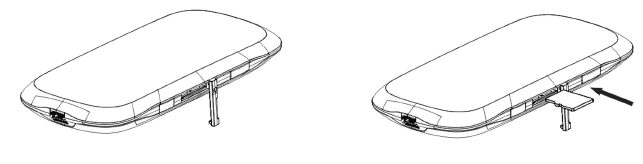

Inserting microSD Card
Switching On/Off Your Device
Hold the Power button to switch on/off the device.
Notes:
The device is powered on when the LED screen lights up.
Charging Your Device

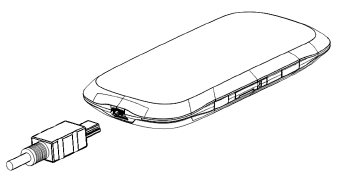

You can charge your device by using USB cable or adapter.
Your device supports three working modes. For the client, we only use PC or laptop as the example in this document.
USB Mode: Connect to the device with the USB cable.
Wi-Fi Mode: Connect to the device via Wi-Fi.
Mixed Mode: Connect to the device with the above two connection methods.
Notes:
If you want to connect to the Internet by using Wi-Fi mode, make sure that the client supports the Wi-Fi function.

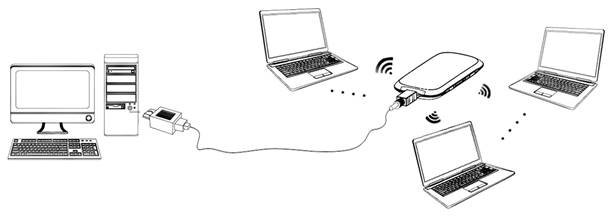

The following picture is the application example. All of the client devices can surf on the Internet at the same time.
Via USB Cable

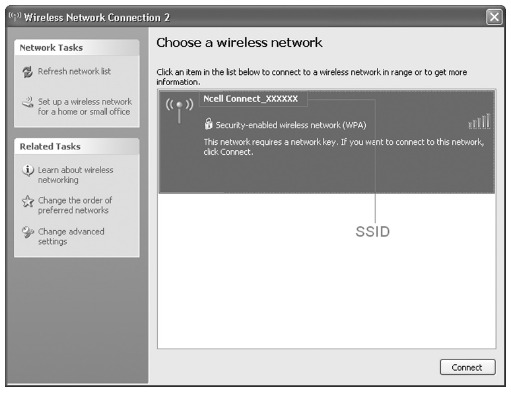

Via Wi-Fi
Notes:
You can browse the WebGUI Configuration page and click WAN Connection to set the WAN connection mode.
View the information of WAN, WLAN and Device. Input the casesensitive default password "admin", and then click Login to access the WebGUI Configuration page.
Notes:
PIN Code Verification

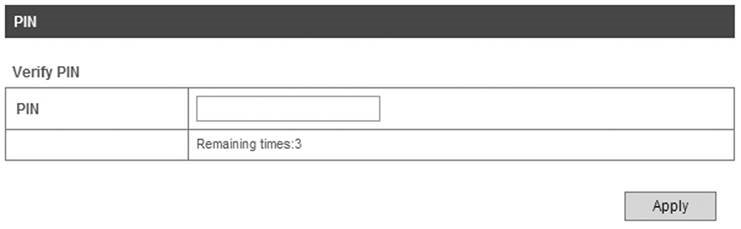

If the PIN code of your SIM card is enabled, you will need to input the PIN code when you login at the first time.
Notes:
The SIM card will be locked if you enter wrong PIN code consecutively for three times.
If you want to modify the PIN Status, please select Settings > Advanced > PIN Management to do the actions.
Quick Settings
After logging in, select Quick Settings, and then the wizard appears.
The wizard guides you how to set the basic parameters for your device in the safest way. After this procedure, you can use your Internet service.
Notes: The parameter settings may have been preset by your service provider, and you will enjoy your Internet service directly. Please contact your service provider for details if you want to do some modification.
WAN Connection

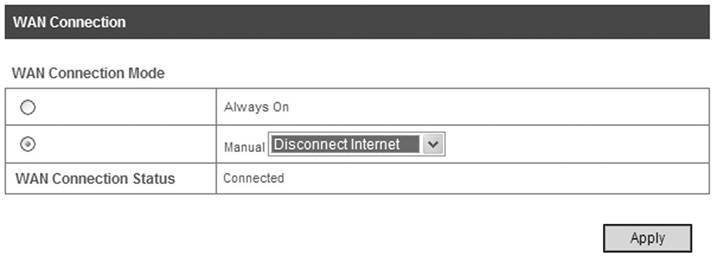

After logging in, select WAN Connection, and you can choose the WAN Connection Mode according to your requirement.
Settings
After logging in, select Settings, and you can do the following operations.
Select Settings > 3G Settings | View the 3G Wireless Information, select Band Selection Mode or change APN Setting. |
Select Settings > Wi-Fi Settings | View the current station list, change the basic wireless network settings, choose security mode and WPA type, and perform the WPS configuration. |
Select Settings > Firewall | Set the MAC/IP/Port Filtering, Port Forwarding or the System Security configuration. |
Select Settings > Advanced | View the current status of your device, change the Administrator Settings, restore factory defaults, manage PIN or set the LAN interface configuration. |
Notes:
Make sure that you can remember the new password if you change the login password by selecting Settings > Advanced > Management. Please restore the device to the factory default settings in case you forget the new password.
Notes:Turning off the device can also terminate the internet connection.
This function allows you to view, send and receive short messages.
After logging in, select SMS, and you can do the following operations.
Select SMS > Device | Operate the SMS in your device. |
Select SMS > SIM Card | Operate the SMS in your SIM card. |
Select SMS > New Message | Send or save SMS. |
Select SMS > SMS Settings | Set the SMS configuration. |
This function allows you to store contacts to your device or SIM card.

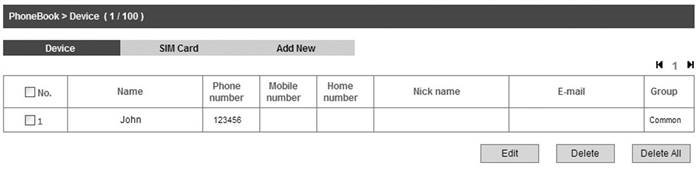

After logging in, select PhoneBook, and you can add a new contact in Add New tab, and perform operations to the contact in the Device or SIM Card tab.
If your client device supports WPS, you need not to input the password manually after WPS has been available. Please do the following:
Notes:
When you enable the Wi-Fi function and use the battery to supply power to the device, once no user connects to the device within 10 minutes or you press the WPS button, the device will enter the sleep mode, and the LED screen will be turned off. In the sleep mode, the Wi-Fi function will be disabled. Press Power or WPS button to wake up the device, and the LED screen will be turned on.
Notes:
With USB connection if no Wi-Fi user connects to the device within 10 minutes, only the Wi-Fi function will be disabled. Hold the WPS button about 3 seconds to enable this function.
To the Owner
Using Your Device
Using Battery
If the battery is broken, keep away from it. If it taints your skin, wash your skin with abundant fresh water and ask doctor help if necessary.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
