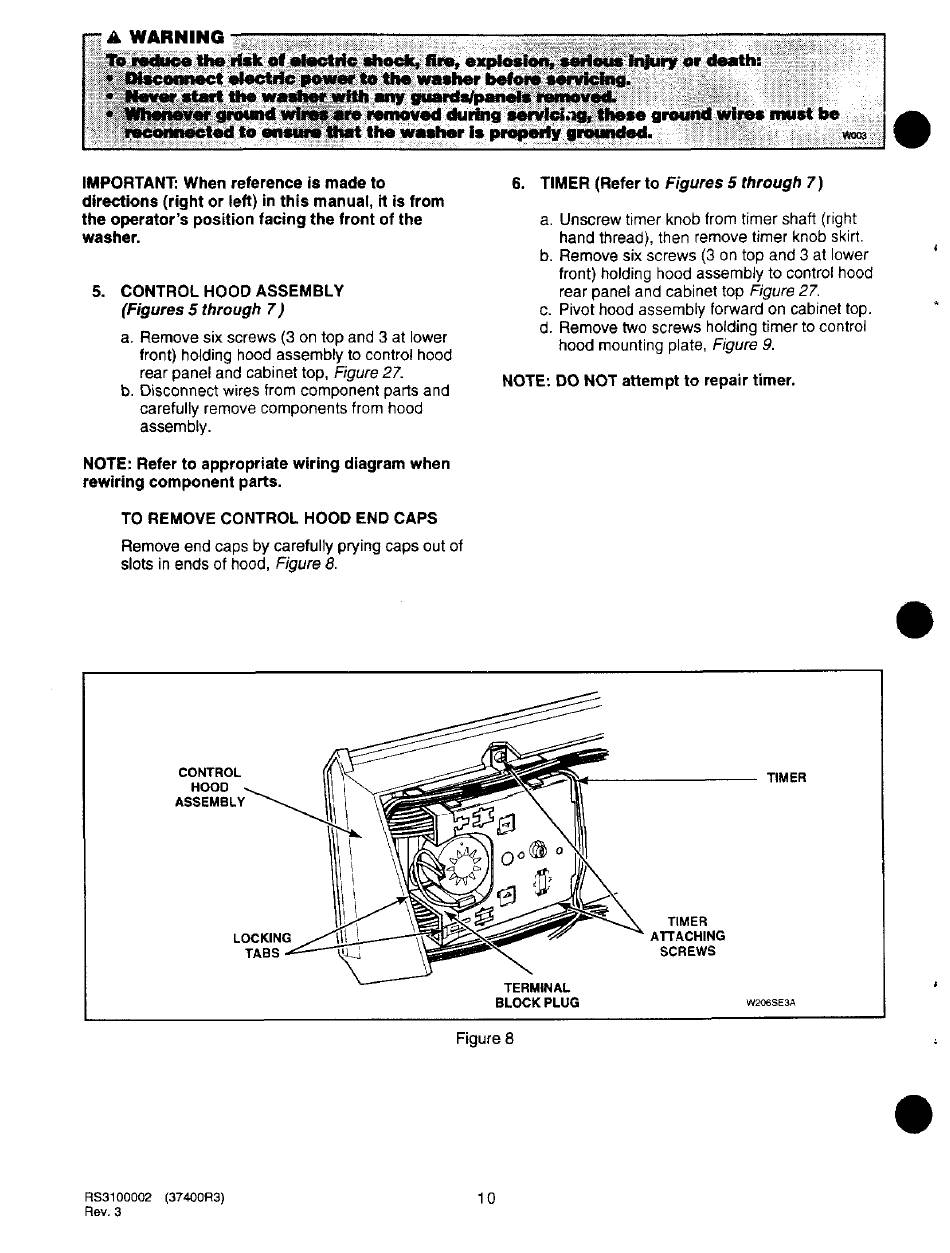

Control Hood Assembly; Timer - Amana Speed Queen AWM190W2 Service Manual

IMPORTANT: When reference is made to
directions (right or left) in this manual, it is from
the operator's position facing the front of the
washer.
5. CONTROL HOOD ASSEMBLY
(Figures 5 through 7)
a. Remove six screws (3 on top and 3 at lower
front) holding hood assembly to control hood
rear panel and cabinet top, Figure 27.
b. Disconnect wires from component parts and
carefully remove components from hood
assembly.
NOTE: Refer to appropriate wiring diagram when
rewiring component parts.
TO REMOVE CONTROL HOOD END CAPS
Remove end caps by carefully prying caps out of
slots in ends of hood, Figure 8.
6. TIMER (Refer to Figures 5 through 7)
a. Unscrew timer knob from timer shaft (right
hand thread), then remove timer knob skirt.
b. Remove six screws (3 on top and 3 at lower
front) holding hood assembly to control hood
rear panel and cabinet top Figure 27.
c. Pivot hood assembly forward on cabinet top.
d. Remove two screws holding timer to control
hood mounting plate, Figure 9.
NOTE: DO NOT attempt to repair timer.
TERMINAL
BLOCK PLUG
TIMER
ATTACHING
SCREWS
W206SE3A
Figure 8
RS3100002 (37400A3)
Rev. 3
10
