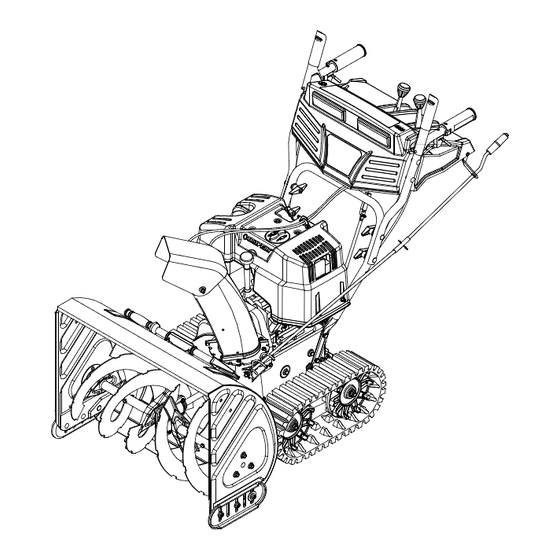

Troy-Bilt Storm Tracker 31AH7T74063 Operator's Manual

Troy-bilt snow thrower operator's manual
Hide thumbs Also See for Storm Tracker 31AH7T74063:
Table of Contents

Advertisement

Quick Links

Operator's Manual

SNOW THROWER

MODEL
31AH7T74063
Storm Tracker
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
WARNING:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered,
brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above
is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal
lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department,
P.O. Box 361131 Cleveland, Ohio 44136-0019.
TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
. 769-00395A.fm
FORM NO
PRINTED IN U.S.A.
(6/03)

Advertisement

Table of Contents
loading

Related Manuals for Troy-Bilt Storm Tracker 31AH7T74063

Summary of Contents for Troy-Bilt Storm Tracker 31AH7T74063

  • Page 1: Snow Thrower

    (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019. TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 . 769-00395A.fm FORM NO PRINTED IN U.S.A.

  • Page 2: Table Of Contents

    You can locate the model number by looking at the lower frame cover on the rear of your snow thrower. A sample model plate is explained below. For future reference, please copy the model number and the serial number of the equipment in the space below. TROY-BILT LLC P. O. BOX 3 6 1 1 3 1 www.troybilt.com...

  • Page 3: Important Safe Operation Practices

    SECTION 1: IMPORTANT SAFE OPERATION PRACTICES This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

  • Page 4: Maintenance And Storage

    Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas. Do not operate machine while under the influence of alcohol or drugs. Muffler and engine become hot and can cause a burn. Do not touch.

  • Page 5: Assembling Your Snow Thrower

    SECTION 2: ASSEMBLING YOUR SNOW THROWER Unpacking • Remove screws from the top sides and ends of the shipping crate. • Set panel aside to avoid tire punctures or personal injury. • Remove and discard plastic bag that covers unit. •...

  • Page 6: Know Your Snow Thrower

    Cable Discharge Chute Figure 3 • Unwrap the headlight wire which is attached to the headlight, beneath the handle panel. Wind the headlight wire around the lower right handle until excess slack is removed. See Figure 4. SECTION 3: KNOW YOUR SNOW THROWER Traction Control / Auger Control Lock Heated Handles...

  • Page 7: Skid Shoe

    This same lever also locks the auger control so you turn chute directional interrupting the snow throwing process. If the auger control is engaged along with the traction control, the operator can release the auger control (on the left handle) and the augers will remain engaged. Release the traction control to stop both the augers and track drive (auger control must also be released).

  • Page 8: Operating Your Snow Thrower

    Track Lock Lever The track lock lever is located on the right side of the snow thrower and is used to select the position of the auger housing and the method of track operation. Move the lever to the right, then forward or backward to one of the three positions.
  • Page 9 • When engine starts, release starter button, and move choke gradually to OFF. If engine falters, move choke immediately to FULL and then gradually to OFF. • When disconnecting the power cord, always unplug from the three-prong receptacle first and then from the snow thrower.

  • Page 10: Operating Tips

    • Rotate the coupling end of the cable counterclockwise to provide more slack. • Retighten the hex jam nut. See Figure 7. • Repeat Auger Control Test to verify proper adjustment has been achieved. Auger Control Z-End Jam Nut Auger Control Cable Figure 7 Chute Clean-Out Tool...

  • Page 11: Making Adjustments

    SECTION 5: MAKING ADJUSTMENTS WARNING: NEVER attempt to make any adjustments while the engine is running, except where specified in the operator’s manual. Chute Assembly The distance snow is thrown can be adjusted by changing the angle of the chute assembly. Move the chute tilt control forward to decrease the distance, toward the rear to increase.

  • Page 12: Maintaining Your Snow Thrower

    Shift Rod Adjustment To adjust the shift rod, proceed as follows: • Remove the hairpin clip and slide the shift rod connector up, to separate the upper shift rod from the lower shift rod. See Figure 11. • Place the shift lever into the sixth (6) position. •...
  • Page 13 Gear Shaft Lubricate the gear shaft with 6-n-1 grease at least once a season or after every 25 hours of operation (available at automotive stores, or order part number 737-0170). Refer to Figure 10. Keep all grease and oil off of the rubber IMPORTANT: friction wheel and aluminum drive plate.

  • Page 14: Belt Removal And Replacement

    SECTION 7: SERVICING YOUR SNOW THROWER WARNING: Before servicing, repairing, or inspecting, disengage all clutch levers and stop engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting. Augers •...

  • Page 15: Replacing Friction Wheel Rubber

    Engine Shroud Bolt Chute Crank Hairpin Clip, Flat Washer Figure 16 • Remove the six self-tapping screws from the frame cover underneath the snow thrower. • Roll the front and rear auger belts off the engine pulley. See Figure 17. •...
  • Page 16 • Tip the snow thrower up and forward, so that it rests on the housing. Refer to Figure 9. • Remove six self-tapping screws from the frame cover underneath the snow thrower. • Remove the click pins which secure the wheels, and remove the wheels from the axle.

  • Page 17: Service

    • Wipe equipment with an oiled rag to prevent rust. • Remove spark plug and pour one ounce of engine oil through spark plug hole into cylinder. Cover spark plug hole with rag. Crank engine several times to distribute oil. Replace spark plug. •...

  • Page 18: Parts List

    SECTION 9: PARTS LIST FOR MODEL 31AH7T74063...
  • Page 19 Model 31AH7T74063 Ref. Part No. Part Description 684-0008A Shift Arm Assembly 710-0458 Carriage Bolt 5/16-18 x 1.75” 710-0449 Carriage Bolt 5/16-18 x 2.25” 710-0788 TT Screw 1/4-20 x 1” 710-0837 C-Sunk Screw #10-16x 0.625” 710-1880 Hex Screw 5/16-18 x.75” 711-0677...
  • Page 20 Model 31AH7T74063...
  • Page 21 Model 31AH7T74063 Ref. Part No. Part Description 712-0116 Lock Jam Nut 3/8-24 756-0178 Flat Idler 784-5632B Auger Idler Arm 710-0459A Hex Cap Screw 3/8-24 x 1.50 738-0281 Shoulder Screw 736-0167 Flat Washer.656 ID x 1.25 OD 732-0611 Extension Spring 712-3068...
  • Page 22 Model 31AH7T74063 Supplied on engine...
  • Page 23 Model 31AH7T74063 Ref. IMPORTANT: For a proper working machine, use Factory Approved Parts. V-BELTS are specially designed to engage and disengage safely. A substitute (non OEM) V-Belt can be dangerous by not disengaging completely Part No. Part Description 710-1652 Hex Washer Screw 1/4-20 x.625...
  • Page 24 Model 31AH7T74063 30 31...
  • Page 25 Model 31AH7T74063 Ref. Part No. Part Description 784-5648 Frame Cover 710-1652 Tap Screw 1/4-20 x.625 748-0190 Spacer.508 ID x.75 OD 732-0264 Extension Spring 712-0711 Jam Nut 3/8-24 736-0105 Bell Washer.401 ID x.87 OD 684-0021 Friction Whl Support Bracket 746-0898B Drive Cable 39.88”...
  • Page 26 Model 31AH7T74063...
  • Page 27 Model 31AH7T74063 Ref. Part No. Part Description 720-0223 Grip 710-0604A Tap Screw, 5/16-18 x.625 784-5642 Track Lockout Plate 710-0157 Hex Cap Screw, 5/16-24 x.75 736-0242 Bell Washer,.34 ID x.872 OD 684-0038 Track Lock Handle Assembly 710-0459A Hex Cap Screw, 3/8-24 x 1.5...
  • Page 28 MANUFACTURER’S LIMITED WARRANTY FOR: The limited warranty set forth below is given by Troy-Bilt LLC with respect to new merchandise purchased and used in the United States, its possessions and territories. “Troy-Bilt” warrants this product against defects in material and workmanship for a period of two (2) years commencing...
