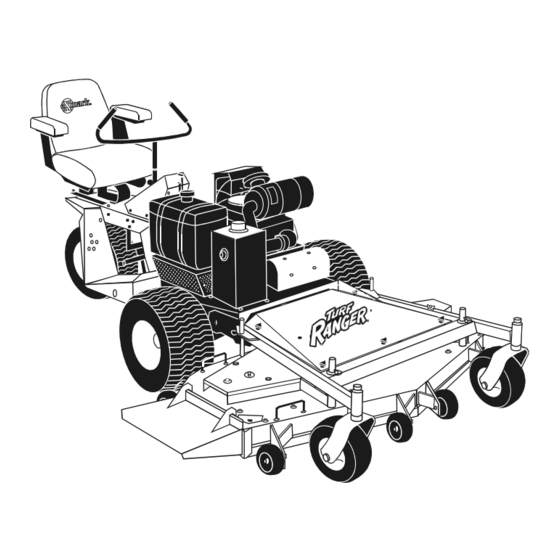

Exmark TURF RANGER TR23KC Operator's Manual
  1. Manuals
  2. Brands
  3. Exmark Manuals
  4. Lawn Mower
  5. Turf Ranger TR23KC
  6. Operator's manual
Exmark TURF RANGER TR23KC Operator's Manual

Exmark TURF RANGER TR23KC Operator's Manual

Hide thumbs Also See for TURF RANGER TR23KC:
Table of Contents

Advertisement

Quick Links

For Exmark Mower Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

Advertisement

Table of Contents
loading

Related Manuals for Exmark TURF RANGER TR23KC

Summary of Contents for Exmark TURF RANGER TR23KC

  • Page 1 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com...
  • Page 2 Public Resource Code. To acquire a spark arrester for your unit, see your Engine Service Dealer. Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously. Exmark, or its distributors and dealers, accept no responsibility for variations which may be evident in the actual specifications of its products and the statements and descriptions contained in this publication.
  • Page 3 3. Exmark being unable to ship the part and the Exmark parts order is received by 3:00 p.m., central time, Exmark pays for the part and freight. 4. If the part does not arrive overnight due to the shipper (UPS), the shipper pays for the freight and Exmark pays for the part.
  • Page 4 If additional information is needed, or should you require trained mechanic service, contact your authorized Exmark equipment dealer or distributor. All Exmark equipment dealers and distributors are kept informed of the latest methods of servicing and are equipped to provide prompt and efficient service in the field or at their service stations.

  • Page 5: Table Of Contents

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 TABLE OF CONTENTS 1. SAFETY ..................... PAGE 1.1 Safety Alert Symbol ..................1 1.2 Training ......................1 1.3 Preparation ....................1-3 1.4 Operation....................3-4 1.5 Maintenance & Storage ................5 1.6 Safety Signs ....................6-7 2. SPECIFICATIONS 2.1 Model Number ....................8 2.2 Engine ......................8...

  • Page 6: Safety

    RESULT IN PERSONAL INJURY IF PROPER PRECAUTIONS ARE NOT TAKEN. 1.2 TRAINING 1.2.1 Regard the Exmark mower as a piece of power equipment and teach this regard to all who operate this unit. 1.2.2 Read the instructions carefully. Familiarize yourself with the controls and the proper use of the equipment.
  • Page 7 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 1.3.3 Thoroughly inspect the area where the equipment is to be used and remove all stones, sticks, wires, bones and other foreign objects, which may damage the equipment or cause personal injury to the operator or bystanders.

  • Page 8: Operation

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 DANGER POTENTIAL HAZARD ♦ In certain conditions gasoline is extremely flammable and highly explosive. WHAT CAN HAPPEN ♦ A static charge can ignite gasoline vapors. A fire or explosion from gasoline can burn you, others, and cause property damage.
  • Page 9 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 1.4.5 Use EXTREME caution when backing up. LOOK BEHIND YOU! 1.4.6 Stop the blades when crossing surfaces other than grass; and when transporting the mower to and from the area to be mowed.

  • Page 10: Maintenance & Storage

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 1.5 MAINTENANCE AND STORAGE 1.5.1 For engine maintenance, follow the engine manufacturer’s recommendations precisely as stated in the engine manual. 1.5.2 When making adjustments while the engine is running, such as carburetor and motion control linkage adjustments, stand to one side and keep clear of moving/rotating components, such as engine screen, drive belts and sheaves.

  • Page 11: Safety Signs

    When new components are installed, be sure that current safety signs are affixed to the replaced components. 1.6.4 New safety signs may be obtained from your authorized Exmark equipment dealer or distributor or from Exmark Mfg. Co. Inc. 1.6.5 Safety signs may be affixed by peeling off the backing to expose the adhesive surface.
  • Page 12 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 PART NO. 1-303293 PART NO. 1-303508 LOCATION: Top Surface LOCATION: On Top RH of Fuel Tank Surface of Mower Deck PART NO. 1-403005 LOCATION: LH & RH Front Top Surface of Mower Deck PART NO.

  • Page 13: Specifications

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 2. SPECIFICATIONS 2.1 Model Number: Serial Numbers 220,000 & Higher: TR23KC 2.2 ENGINE 2.2.1 Engine Specifications: See your engine owners manual. 2.2.2 3600 RPM (No Load) 2.3 FUEL SYSTEM 2.3.1 Capacity: 5.0 gal. (18.9 L.) 2.3.2...

  • Page 14: Tires

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 2.7.5 Filter: Replaceable cartridge type Exmark P/N 513211: 10 micron, 18 psi bypass 2.7.6 Speeds: 0 - 6.4 mph (10.2 km/hr) forward 0 - 3.2 mph (5.1 km/hr) reverse 2.7.7 Drive wheel release lever allows machine to be moved when engine is not running.

  • Page 15: Assembly Instructions

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 2.10.4 Overall Height: 44.0”(111.8) 2.10.5 Wheel Base: 50.5”(128.3 cm) 2.10.6 Tread Width (drive wheels): 39.75”(101 cm) 3. ASSEMBLY INSTRUCTIONS 3.1 Uncrate tractor and cutter deck. 3.2 Service battery: WARNING: Battery posts, terminals, and related accessories contain lead compounds, chemicals known to the State of California to cause cancer and reproductive harm.
  • Page 16 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 CAUTION POTENTIAL HAZARD ♦ If the ignition is in the “ON” position there is potential for sparks and engagement of components. WHAT CAN HAPPEN ♦ Sparks could cause an explosion or moving parts could accidentally engage causing personal injury.
  • Page 17 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 DANGER POTENTIAL HAZARD ♦ Charging the battery may produce explosive gasses WHAT CAN HAPPEN ♦ Battery gasses can explode causing serious injury. HOW TO AVOID THE HAZARD ♦ Keep sparks, flames, or cigarettes away from battery.
  • Page 18 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 3.4 Mount the rear tire and wheel assembly with a 5/8-11 x 10-1/2” bolt and torque nut. Tighten torque nut just enough to create a slight drag on the wheel while the wheel is being rotated.
  • Page 19 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 CAUTION POTENTIAL HAZARD ♦ Removing the two blocks prior to installing the cutter deck and support for counter balance will allow the engine deck to flip backwards. WHAT CAN HAPPEN ♦ If the engine flips backwards pinch points are created, which may cause injury.

  • Page 20: Controls

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 4. CONTROLS 4.1 Steering Handle Bar: Located in center of steering console in front of operator’s seat. During forward operation of the machine, movement of the steering handle to the right will cause the machine to turn to the right and vice versa. The steering system is chain connected from the steering shaft sprocket to the yoke sprocket.

  • Page 21: Operation Instructions

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 NOTE: This switch is not a low oil sensor and will not alert the operator if the engine oil is low. 4.10Fuel Shut-Off Valve: Located in the fuel line near the right rear corner of the engine. The...

  • Page 22: Transporting

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 IMPORTANT: Do not crank the engine continuously for more than ten (10) seconds at a time. If the engine does not start, allow a 60 second starter cool- down period between starting attempts. Failure to follow these guidelines can burn out the starter motor.

  • Page 23: Maintenance & Adjustments

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 6. MAINTENANCE & ADJUSTMENTS 6.1 PERIODIC MAINTENANCE 6.1.1 Check engine oil level: Service Interval: Daily Make sure engine is stopped and on a level surface. Check with engine cold. Clean area around dipstick. Remove dipstick and wipe oil off. Reinsert the dipstick.
  • Page 24 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Inspect blades and sharpen or replace as required. If blade removal is necessary, be careful for the sharp cutting edges of the blades. Re-install the blades (if they were removed) by placing a block of wood between the front or rear baffles and the blade then torquing the blade bolts to 115-120 ft.
  • Page 25 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Check operator presence control (OPC) circuits: Run engine at one-third throttle with blade clutch and parking brake disengaged; lift yourself off the seat (but do not get off the machine) engine must stop after 1/2 second has elapsed.
  • Page 26 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Remove the oil drain plug from the rear of the engine. Allow oil to drain then replace drain plug. Lower cutter deck so that engine deck is level. Replace the oil filter as per Engine Owner's Manual. Clean around oil filter and unscrew filter to remove.
  • Page 27 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 IMPORTANT: Make sure the negative battery cables are disconnected and the battery charger used for charging the battery has an output of 16 volts and 7 amps or less to avoid damaging the battery (see chart below for recommended charger settings).
  • Page 28 Turn filter clockwise until rubber seal contacts the filter adapter, and then tighten the filter an additional 2/3 to 3/4 turn. Use only Exmark (Part No. 513211) or Eaton (Part No. 103144) filter elements.

  • Page 29: Adjustments

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 g) Check hydraulic oil level as outlined in 6.1.9. 6.1.18.2 Change hydraulic oil: Service Interval: Yearly a) Stop engine and remove key. b) Carefully clean area around small fitting under oil reservoir. Loosen clamp, remove hose and allow oil to drain from reservoir.
  • Page 30 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 FIG 5 CUTTING HEIGHT ADJUSTMENT ANTI-SCALP ROLLER ADJUSTMENT Adjust anti-scalp rollers for Normal Operating Conditions. Place rollers in one of the positions shown in Fig 5. Rollers will maintain 3/4 in. (19 mm) clearance to the ground to minimize gouging and roller wear or damage.
  • Page 31 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Release brake lever. The Neutral Centering Device is located on the right-hand underside of the engine deck. Loosen jam nut (d) from the ball joint which connects the override assembly (f), to the engine deck anchor mounting (See Figure 6).
  • Page 32 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 FIG. 8 BRAKE CONTROL LINK AND SPRING ADJUSTMENT 6.2.8 Parking Brake Neutral Lockout Adjustment. Stop engine and remove key. Remove inlet screen and fan. Engage parking brake. Loosen the jam nuts securing the two 5/16 x 1-1/2”...
  • Page 33 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 Check the gap between the motion override tube and the spacer. This gap should measure 1/16” (See Figure 10). If adjustment is required, remove clevis pin at foot pedal end and turn yoke in or out as required to obtain the 1/16"...
  • Page 34 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 ( c ) FIG. 12 ELECTRIC CLUTCH ADJUSTMENT 6.2.13 Steering Chain Adjustment Position the steering handle bar so that it points the unit straight forward (the rear steering wheel should be in line with the rider main frame channel).

  • Page 35: Waste Disposal

    Check that the parking brake switch is properly adjusted. See Section 6.2.9. NOTE: After carefully checking the above steps, attempt to start the engine. If it does not start, contact your authorized Exmark service dealer or distributor. IMPORTANT: It is essential that all Operator Safety Mechanisms be connected and in proper operating conditions prior to the use of the mower.

  • Page 36: Wiring Diagrams

    For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 9. WIRING DIAGRAMS Engine Deck Wiring Diagram Note: All connectors are viewed from the wire input side of the connector. N.O. = Normally Open Console Wiring Diagram Note: All connectors are viewed from the wire input side of the connector.

  • Page 37: Warranty

    Exmark; (vi) repair or replacement arising as a result of any operation from turf equipment that has been altered or modified so as to, in the determination of Exmark or Exmark Warranty Company, adversely affect the operation, performance or durability of the equipment or that has altered, modified or affected the turf equipment so as to change the intended use of the product;...
  • Page 38 REGARDING THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), NOT SPECIFIED HEREIN, RESPECTING THE EQUIPMENT WHICH IS THE SUBJECT OF THIS WARRANTY. This warranty applies to all Exmark turf equipment sold in the United States and Canada and intended to be used for commercial purposes. - 33 -...
  • Page 39 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 - 34 - www.mymowerparts.com...
  • Page 40 For Exmark Mower Parts Call 606-678-9623 or 606-561-4983 SEE EXMARK’S COMPLETE LINE OF PRODUCTS FOR TURF CARE ™ ™ LAZER Z LAZER Z ® ® TURF RANGER TURF TRACER ® TURF TRACER VIKING HYDRO ™ ™ METRO METRO ™ ULTRA VAC GRASS CATCHER ™...
