CE Kit
Groundsmaster
Model No. 30240
Note:
Determine the left and right sides of the machine from the normal operating position.
Safety

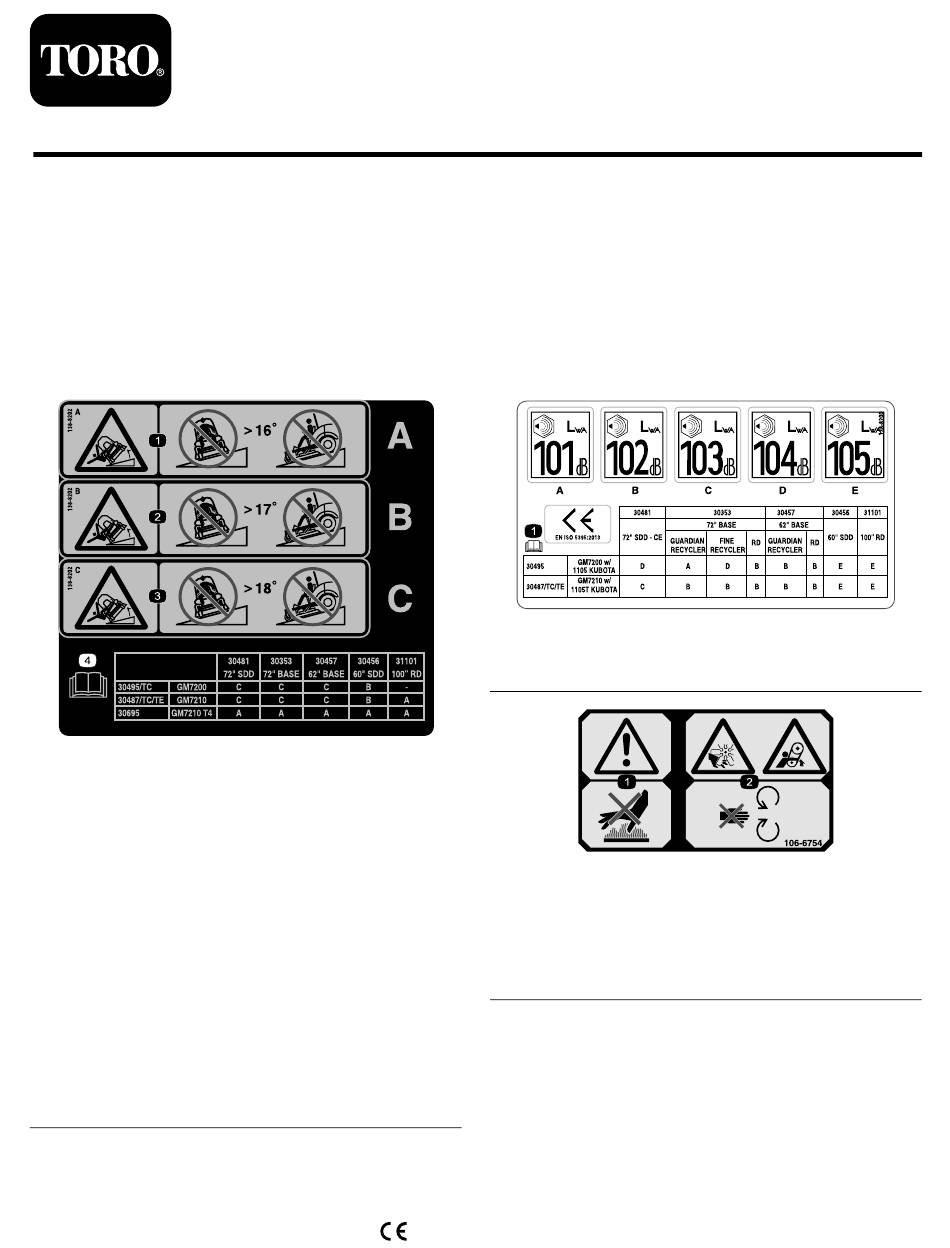

Safety and Instructional Decals
Note:
Safety decals and instructions are easily visible to the operator and are located near any area of potential
danger. Replace any decal that is damaged or missing.
Note:
This machine complies with the industry standard
stability test in the static lateral and longitudinal tests with the
maximum recommended slope indicated on the decal. Review the
instructions for operating the machine on slopes in the Operator's
Manual as well as the conditions in which you would operate the
machine to determine whether you can operate the machine in the
conditions on that day and at that site. Changes in the terrain can
result in a change in slope operation for the machine. If possible,
keep the cutting units lowered to the ground while operating the
machine on slopes. Raising the cutting units while operating on
slopes can cause the machine to become unstable.
1. Tipping hazard—do not
drive the machine on a
slope greater than 16
degrees.
2. Tipping hazard—do not
drive the machine on a
slope greater than 17
degrees.
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
7200 or 7210 Traction Unit
138-8202
3. Tipping hazard—do not
drive the machine on a
slope greater than 18
degrees.
4. Read the Operator's
Manual.
Register at www.Toro.com.
1. Read the Operator's Manual.
decal138-8202
1. Warning—do not touch the
hot surface
Form No. 3431-395 Rev A
Installation Instructions
138-8200
106–6754
2. Cutting/dismemberment
hazard, fan and
entanglement hazard,
belt—stay away from
moving parts.
Original Instructions (EN)
All Rights Reserved *3431-395* A
Printed in the USA
decal138-8200
decal106-6754
Advertisement
Table of Contents
Related Manuals for Toro 30240
Summary of Contents for Toro 30240
- Page 1 Form No. 3431-395 Rev A CE Kit Groundsmaster ® 7200 or 7210 Traction Unit Model No. 30240 Installation Instructions Note: Determine the left and right sides of the machine from the normal operating position. Safety Safety and Instructional Decals Note: Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
-
Page 2: Table Of Contents
Installation Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. – No parts required Prepare the machine. Latch support Latch bracket Lock assembly Install the hood-lock assembly (Kubota models). Bolt (5/16 x 3/4 inch) Bolt (5/16 x 2 inches) Locknut (5/16 inch) Latch support... -
Page 3: Latch Support
Installing the Hood-Lock Assembly Kubota Models Parts needed for this procedure: Latch support Latch bracket Lock assembly Bolt (5/16 x 3/4 inch) Bolt (5/16 x 2 inches) Locknut (5/16 inch) Procedure Locate the upper (rear) metal frame support running across the underside of the hood. In the upper, left corner of the metal frame, locate the hole drilled in the face of the support. - Page 4 g004787 Figure 1 1. Hole in the metal frame support 4. Bolt (5/16 x 3/4 inch) 2. Locknut (5/16 inch) 5. Lock assembly 3. Latch support 6. Locking nut...
-
Page 5: Bolt (1/4 X 1/2 Inch)
Install the latch bracket to the left frame member, directly below the lock assembly, in the existing holes, as shown in Figure Note: Center the bolts in the slots of the latch Installing the Hood-Lock bracket. Assembly Yanmar Models Parts needed for this procedure: Latch support Latch bracket Lock Assembly... -
Page 6: Floor-Plate Latch
Remove the punch-out from the latch support. Close the hood slowly to verify that the latch catches. Install the latch support to the frame (Figure Note: If the latch does not catch, loosen the Remove the locking nut from the lock assembly. bolts securing the latch bracket to the frame Install the lock assembly through the hood and member and adjust the bracket as necessary. -
Page 7: Hood Handle
Install the floor-plate latch to the frame using 2 carriage bolts (1/4 x 3/4 inch) and 2 locknuts (1/4 inch) (Figure Remove the 2 locking nuts from the lock assembly. Insert the lock assembly into the hole in the floor plate with the catch facing to the left. -
Page 8: Clamp
g004788 Figure 7 1. Hood 5. Washer (5/16 inch) 2. Distance from the support edge—3.81 cm (1-1/2 inches) 6. Bolt (1/4 x 1-1/8 inch) 3. Drilled hole 7. Distance between the holes—12.2 cm (4-13/16 inch) 4. Clamp... -
Page 9: Bolt (5/16 X 1-1/4 Inches)
Securing the Belt Covers Securing the Seat Plate Parts needed for this procedure: Parts needed for this procedure: Bolt (5/16 x 1-1/4 inches) Bolt (5/16 x 1-1/4 inches) Retaining nut (5/16 inch) Procedure Push nut Install a bolt in the seat plate to the secure it. Locate the hole in the front, right side of the seat Procedure plate, in front of the manual housing. - Page 10 Note: For each decal, peel off the backing and squeegee across the surface of the decal, starting at the center of the decal and working toward the edges, using overlapping strokes. Install decal 106-6754 onto the hood as shown in Figure g004789 Figure 10...
- Page 11 Selecting the Sound and Angle Decals Note: Use the following tables to determine the proper sound and angle decals to put on the machine after the kit has been installed. Guaranteed Sound Power 101 dBA 102 dBA 103 dBA 104 dBA 105 dBA 2015 and After Model-Number Configurations 30354...
- Page 12 Angle Information 16 Degrees 17 Degrees 18 Degrees 2015 and After Model-Number Configurations 30354 30353 30457 30456 31101 72-inch SDD 72-inch base 62-inch base 60-inch SDD 100-inch RD — 30495/TC GM7200 1105 Kubota 30487/TC/TE GM7210 1105T Kubota 30695 GM7210 T4 Pre-2015 Model-Number Configurations 30360TE GM7200 72-inch...
