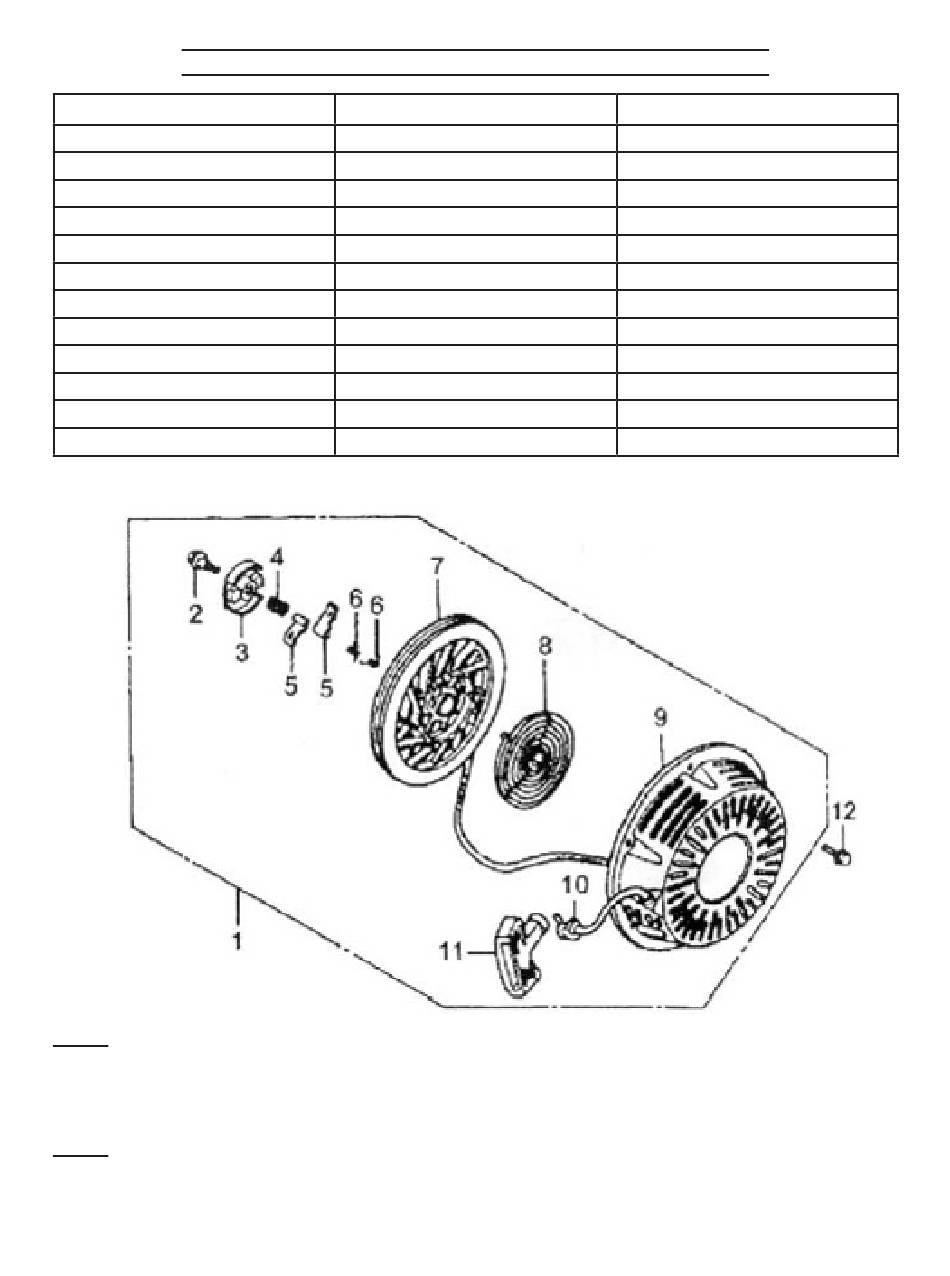

parts list & diagram g - recoil starter assembly
part
1G
2G
3G
4G
G
6G
7G
8G
9G
10G
11G
12G
note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
note: When ordering parts from this list, the suffix "G" must be used at the end of the
number to identify the correct part.
SKU 96617 For technical questions, please call 1-800-444-3353.
description
Recoil Starter Assembly
Center Screw
Spring Retainer
Friction Spring
Starter Ratchet
Ratchet Spring
Recoil Starter Reel
Start Return Spring
Recoil Starter Case
Recoil Starter Rope
Starter Grip
Flange Bolt M6x8
Qty
1
1
1
1
2
2
1
1
1
1
1
Page 30
