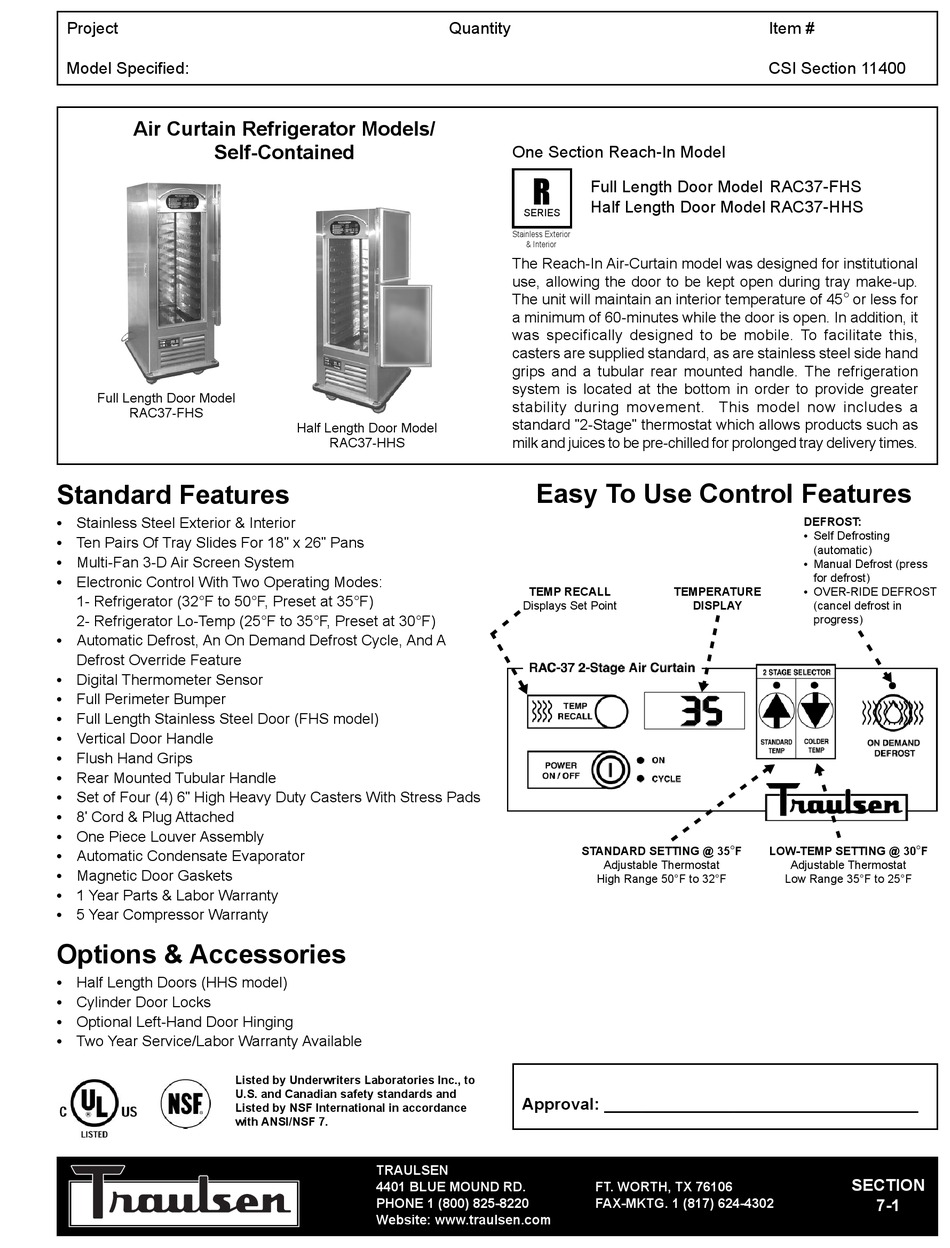

Traulsen RAC37-FHS Specifications

Project
Model Specified:
Air Curtain Refrigerator Models/
Self-Contained

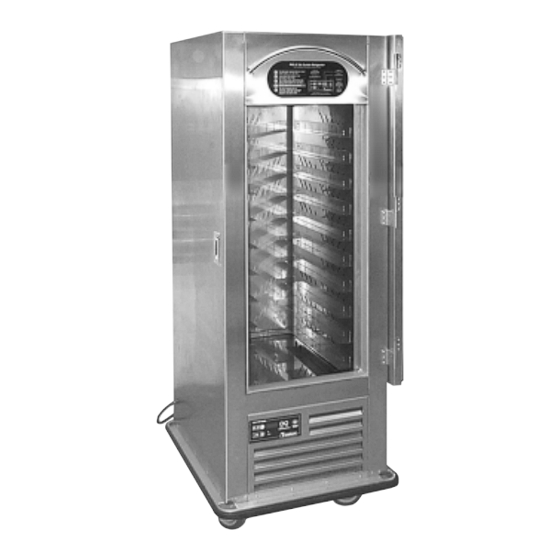

Full Length Door Model
RAC37-FHS

Standard Features

• Stainless Steel Exterior & Interior
• Ten Pairs Of Tray Slides For 18" x 26" Pans
• Multi-Fan 3-D Air Screen System
• Electronic Control With Two Operating Modes:
1- Refrigerator (32°F to 50°F, Preset at 35°F)
2- Refrigerator Lo-Temp (25°F to 35°F, Preset at 30°F)
• Automatic Defrost, An On Demand Defrost Cycle, And A
Defrost Override Feature
• Digital Thermometer Sensor
• Full Perimeter Bumper
• Full Length Stainless Steel Door (FHS model)
• Vertical Door Handle
• Flush Hand Grips
• Rear Mounted Tubular Handle
• Set of Four (4) 6" High Heavy Duty Casters With Stress Pads
• 8' Cord & Plug Attached
• One Piece Louver Assembly
• Automatic Condensate Evaporator
• Magnetic Door Gaskets
• 1 Year Parts & Labor Warranty
• 5 Year Compressor Warranty
Options & Accessories
• Half Length Doors (HHS model)
• Cylinder Door Locks
• Optional Left-Hand Door Hinging
• Two Year Service/Labor Warranty Available
Listed by Underwriters Laboratories Inc., to
U.S. and Canadian safety standards and
Listed by NSF International in accordance
with ANSI/NSF 7.
Quantity
Half Length Door Model
RAC37-HHS
TRAULSEN
4401 BLUE MOUND RD.
PHONE 1 (800) 825-8220
Website: www.traulsen.com
One Section Reach-In Model
Full Length Door Model RAC37-FHS
R
Half Length Door Model RAC37-HHS
SERIES
Stainless Exterior
& Interior
The Reach-In Air-Curtain model was designed for institutional
use, allowing the door to be kept open during tray make-up.
The unit will maintain an interior temperature of 45
a minimum of 60-minutes while the door is open. In addition, it
was specifically designed to be mobile. To facilitate this,
casters are supplied standard, as are stainless steel side hand
grips and a tubular rear mounted handle. The refrigeration
system is located at the bottom in order to provide greater
stability during movement. This model now includes a
standard "2-Stage" thermostat which allows products such as
milk and juices to be pre-chilled for prolonged tray delivery times.
Easy To Use Control Features
TEMP RECALL TEMPERATURE
Displays Set Point DISPLAY
STANDARD SETTING @ 35
Adjustable Thermostat
High Range 50°F to 32°F
Approval: __________________________________
FT. WORTH, TX 76106
FAX-MKTG. 1 (817) 624-4302
Item #
CSI Section 11400
or less for
°
DEFROST:
• Self Defrosting
(automatic)
• Manual Defrost (press
for defrost)
• OVER-RIDE DEFROST
(cancel defrost in
progress)
F LOW-TEMP SETTING @ 30
°
Adjustable Thermostat
Low Range 35°F to 25°F
SECTION
7-1
F
°
