Summary of Contents for Kargo Master 4A943
-

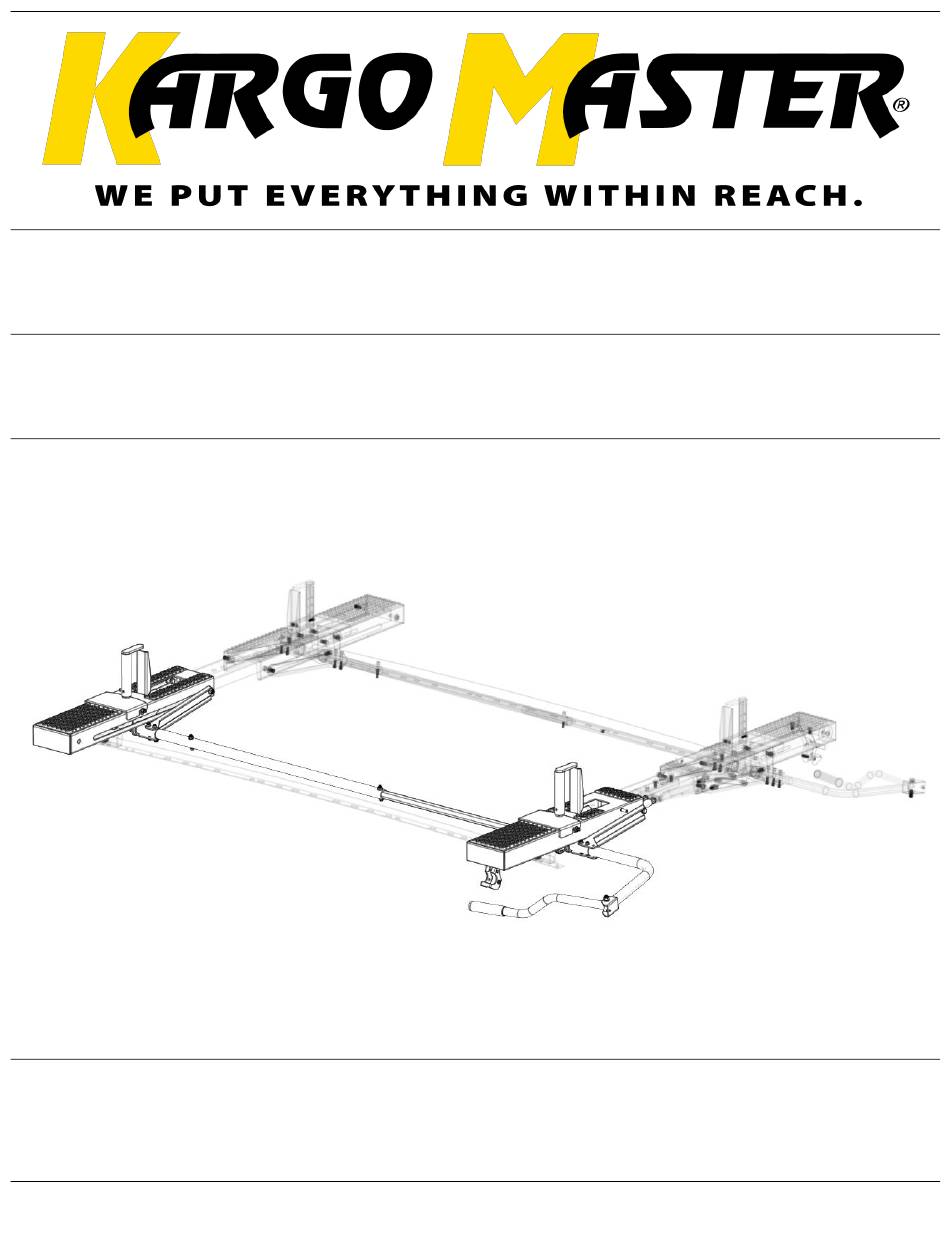

Page 1: Installation Guide
Installation Guide 4A943 Kargo Master Rancho Cordova, CA 95742 800-343-7486 CustomerService@KargoMaster.com DATE: ______________... -
Page 2: Table Of Contents
Installation Instructions – 4A943 *PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING, AND USING THIS PRODUCT* Warning Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products. -
Page 3: Parts List
Installation Instructions – 4A943 Parts For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2... - Page 4 Installation Instructions – 4A943 PARTS Con’t For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3...
-
Page 5: Hardware List
Installation Instructions – 4A943 Hardware 1 of 2 For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4... - Page 6 Installation Instructions – 4A943 Hardware 2 of 2 For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5...
-
Page 7: Step 1 Remove Load Plates
Installation Instructions – 4A943 Step 1 – Load Plates • If installed, remove load plates at the end of each bow, opposite from the pan mechanism. • Repeat on both bows. **Determine front and rear pan. The front pan will have a slot in the pan**... -
Page 8: Step 2 Cantilever Mechanism
Installation Instructions – 4A943 Step 2 – Mount Cantilever Mechanism • Mount Cantilever Mechanism to the under side of the rear bow in the location shown. • Use existing hardware. • Be sure the two bushings are in place. The 4-1/2”... -
Page 9: Step 3 Damper
Installation Instructions – 4A943 Step 3 – Install Dampers • Install dampers in orientation shown. • Install end of damper to damper mount using 2” pin, cotter pin and plastic spacer in orientation shown. The plastic spacer goes in between two dampers. -
Page 10: Step 4 Latch Assembly
Installation Instructions – 4A943 Step 4 – Install Latch ASM • Install latch assembly to the exposed end of the rear bow. • Use 5/16” x 3/4" carriage bolts , 5/16” flat washers and 5/16” nylocs in orientation shown. • Install wheel assembly. Slide wheel axle in the end of the rear bow. Place a wheel on each end of the axle. -
Page 11: Step 5 Rear Pan
Installation Instructions – 4A943 Step 5 – Install Rear Pan • Place rear pan on top of wheels and bow. Be sure the wheel caps do NOT come off. • Slide handle hex bar into position shown. • Bolt together using existing hardware, only use 2 bolts, leaving the hole shown empty. -
Page 12: Step 6 Front Pan
Installation Instructions – 4A943 Step 6 – Install Front Pan • Place front pan on top of front bow. • Place cantilever housing under bow as shown. • Bolt pan arms to cantilever housing using existing bolts. • At the end of the bow, bolt pan to the bow using 5/16” x 7-1/2” hex head bolt, 5/16” flat washers , sleeve bearings and 3/8”... -
Page 13: Step 7 Hex Tube
Installation Instructions – 4A943 Step 7 – Install Hex Tube • Install hex tube to front pan assembly. • Use the end of the hex tube assembly with two exposed holes to mount into the front pan. *Front bow shown* *Rear bow shown below* •... -
Page 14: Step 8 Attach Handle
Installation Instructions – 4A943 Step 8 –Attach Handle • Attach handle to rear pan using 5/16” x 2-1/8” flanged hex head bolt, 5/16” flat washer and a 5/16” nyloc nut. • TIGHTEN For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) -
Page 15: Step 9 Ladder Stops
Installation Instructions – 4A943 Step 9 – Ladder Stop • Using the hardware on the bows, bolt the ladder stop in the orientation shown. Be sure to line up slot in bow with slot in stop. • TIGHTEN Step 10 – Assemble Ladder Hooks •... -
Page 16: Step 11 Ladder Hooks
Installation Instructions – 4A943 Step 11 – Ladder Hooks • Using the hardware and installed studs on the bows, loosen nuts and slide ladder hook into place. • TIGHTEN GO BACK AND TIGHTEN ALL BOLTS FROM PREVIOUS STEPS BE SURE HARDWARE IN MOUNTING IS TIGHT...
