The Analyzer and Accessories
The analyzer is designed for troubleshooting and monitoring Local Area Networks
(LANs). It tests all seven OSI layers from the cable to the application layer and
everything in between, so problems have nowhere to hide. The analyzer can be
used in a stand-alone fashion or mounted in a rack using the optional rackmount
kit. There are three models available:
q OptiView
(10BASE-T and 100BASE-TX) through a RJ-45 jack. Features an additional
10/100 Ethernet RJ-45 jack for out-of-band management, and is
RMON/RMON2 compliant.
q OptiView
fiber optic interface, and packet capture.
q OptiView
1000BASE-SX interface using a standard GBIC (a 1000BASE-LX or
1000BASE-TX GBIC may be ordered as an option).
OptiView
Workgroup
Analyzer
Power Cord

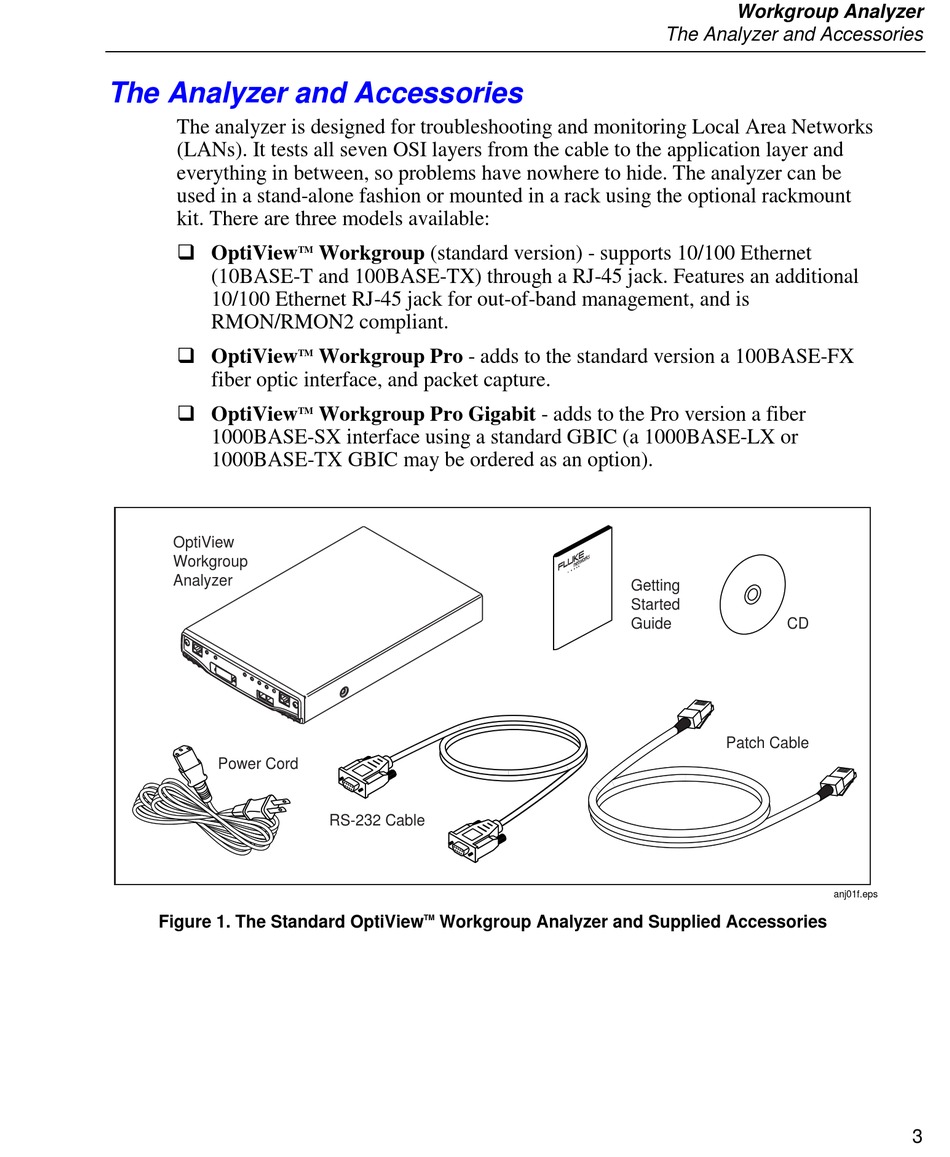

Figure 1. The Standard OptiView
Workgroup (standard version) - supports 10/100 Ethernet
TM
Workgroup Pro - adds to the standard version a 100BASE-FX
TM
Workgroup Pro Gigabit - adds to the Pro version a fiber
TM
RS-232 Cable
TM
Workgroup Analyzer and Supplied Accessories
Workgroup Analyzer
The Analyzer and Accessories
Getting
Started
Guide
CD
Patch Cable
anj01f.eps
3
