FRONT
Left and Right
H1
H2
H3
H4
H5
Top rail screws
Chassis attach screws H6
H7
H8
H9
Bottom rail screws
H10
Chassis attach screws
H11
H12

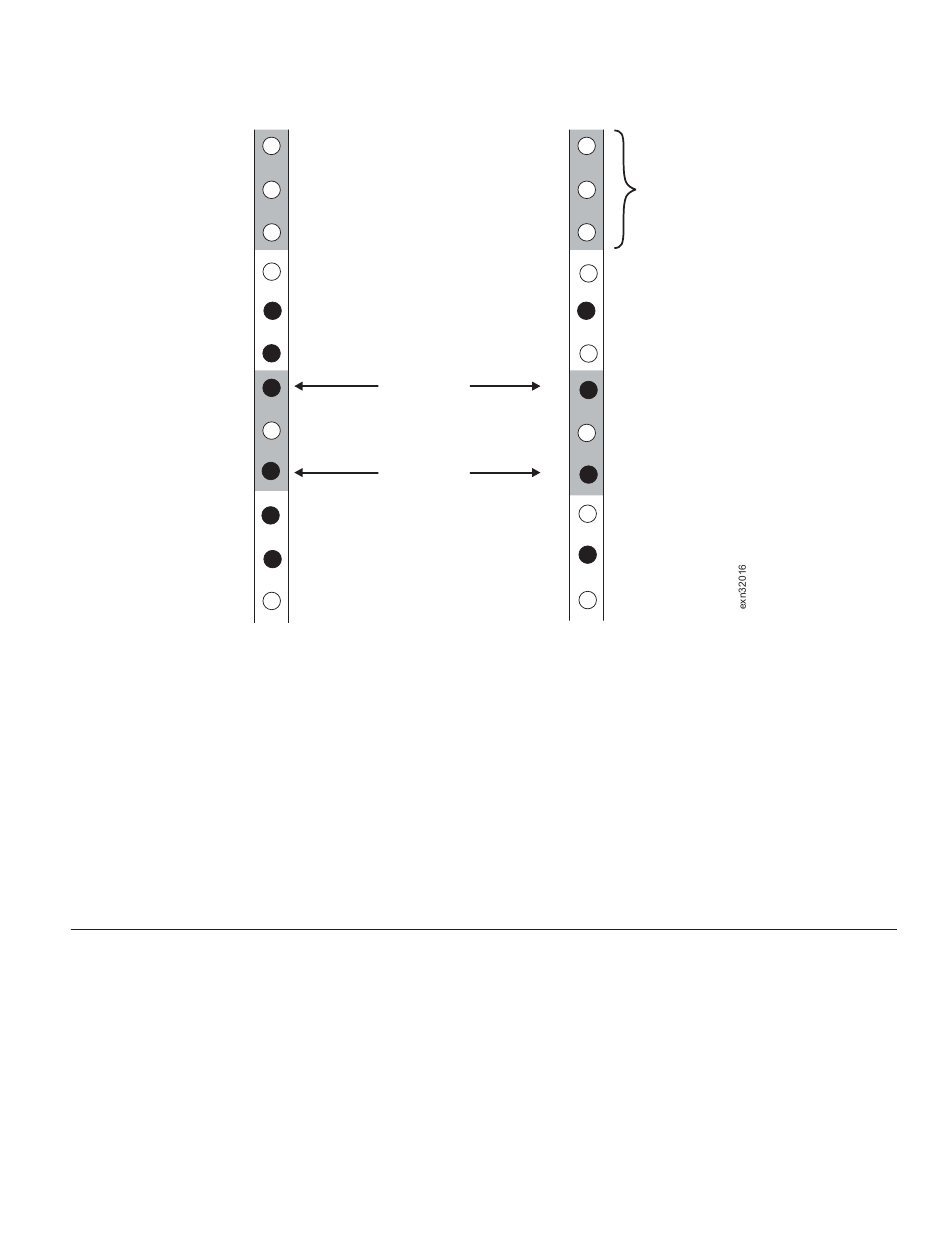

Figure 5. Rail positioning guide
Note: When installed, each EXN3200 unit will occupy a 4U space.
Using two silver pan head M5 screws that come with the rail kit, attach the rail to the front of the
rack using holes H5 and H10. Tighten these screws with a screwdriver.
3. At the rear of the rack, position the rail at the same EIA location used in step 2 (make sure that the
locating pins seat properly). Using two silver pan head M5 screws that come with the rail kit, attach
the rail to the rack using holes H5 and H10. Tighten these screws with a screwdriver.
4. Tighten the four rail adjustment screws on the installed rail.
5. Repeat steps 2 through 5 for the left-hand rail.
6. Repeat steps 1 through 6 for each additional EXN3200 that you are installing in the rack, making sure
to allow 4U of space for each EXN3200.

Installing the EXN3200 in the rack

Use these instructions to install the EXN3200 in the rack.
Section of rack EIA rail
Rails
Locating pins
Locating pins
REAR
Left and Right
Rails
H1
H2 1 EIA unit (1U)
H3
H4
Top rail screws
H5
H6
H7
H8
H9
H10
Bottom rail screws
H11
H12
Installation and setup instructions
3
