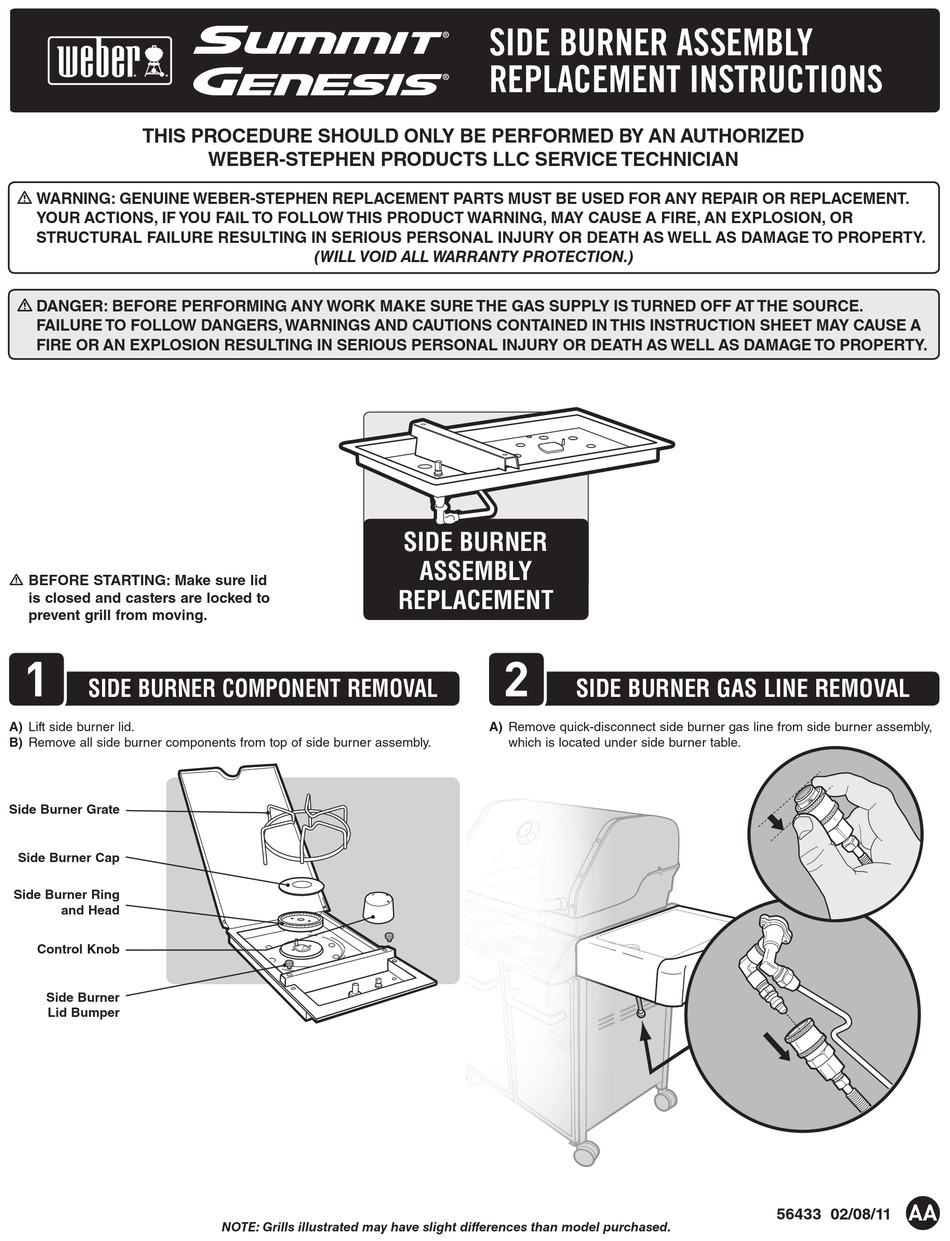

Weber Summit Series Replacement Instructions
Side burner assembly replacement instructions
Hide thumbs
Also See for Summit Series:
- Owner's manual (74 pages) ,
- Installation and owner's manual (45 pages) ,
- Manual (36 pages)
Advertisement
Quick Links
THIS PROCEDURE SHOULD ONLY BE PERFORMED BY AN AUTHORIzED
WARNINg: gENUINE WEBER-STEPHEN REPLACEMENT PARTS MUST BE USED FOR ANY REPAIR OR REPLACEMENT.
YOUR ACTIONS, IF YOU FAIL TO FOLLOW THIS PRODUCT WARNINg, MAY CAUSE A FIRE, AN ExPLOSION, OR
STRUCTURAL FAILURE RESULTINg IN SERIOUS PERSONAL INjURY OR DEATH AS WELL AS DAMAgE TO PROPERTY.
DANgER: BEFORE PERFORMINg ANY WORk MAkE SURE THE gAS SUPPLY IS TURNED OFF AT THE SOURCE.
FAILURE TO FOLLOW DANgERS, WARNINgS AND CAUTIONS CONTAINED IN THIS INSTRUCTION SHEET MAY CAUSE A
FIRE OR AN ExPLOSION RESULTINg IN SERIOUS PERSONAL INjURY OR DEATH AS WELL AS DAMAgE TO PROPERTY.
BEFORE STARTINg: Make sure lid
is closed and casters are locked to
prevent grill from moving.
1
Side Burner cOMpOnent reMOVAL
A) Lift side burner lid.
B) Remove all side burner components from top of side burner assembly.
Side Burner grate
Side Burner Cap
Side Burner Ring
and Head
Control knob
Side Burner
Lid Bumper
WEBER-STEPHEN PRODUCTS LLC SERVICE TECHNICIAN
(Will vOid all WarraNTy prOTEcTiON.)
NOTE: Grills illustrated may have slight differences than model purchased.
SIDE BURNER ASSEMBLY
REPLACEMENT INSTRUCTIONS
Side Burner
ASSeMBLY
repLAceMent
2
Side Burner GAS Line reMOVAL
A) Remove quick-disconnect side burner gas line from side burner assembly,
which is located under side burner table.
AA
56433 02/08/11
