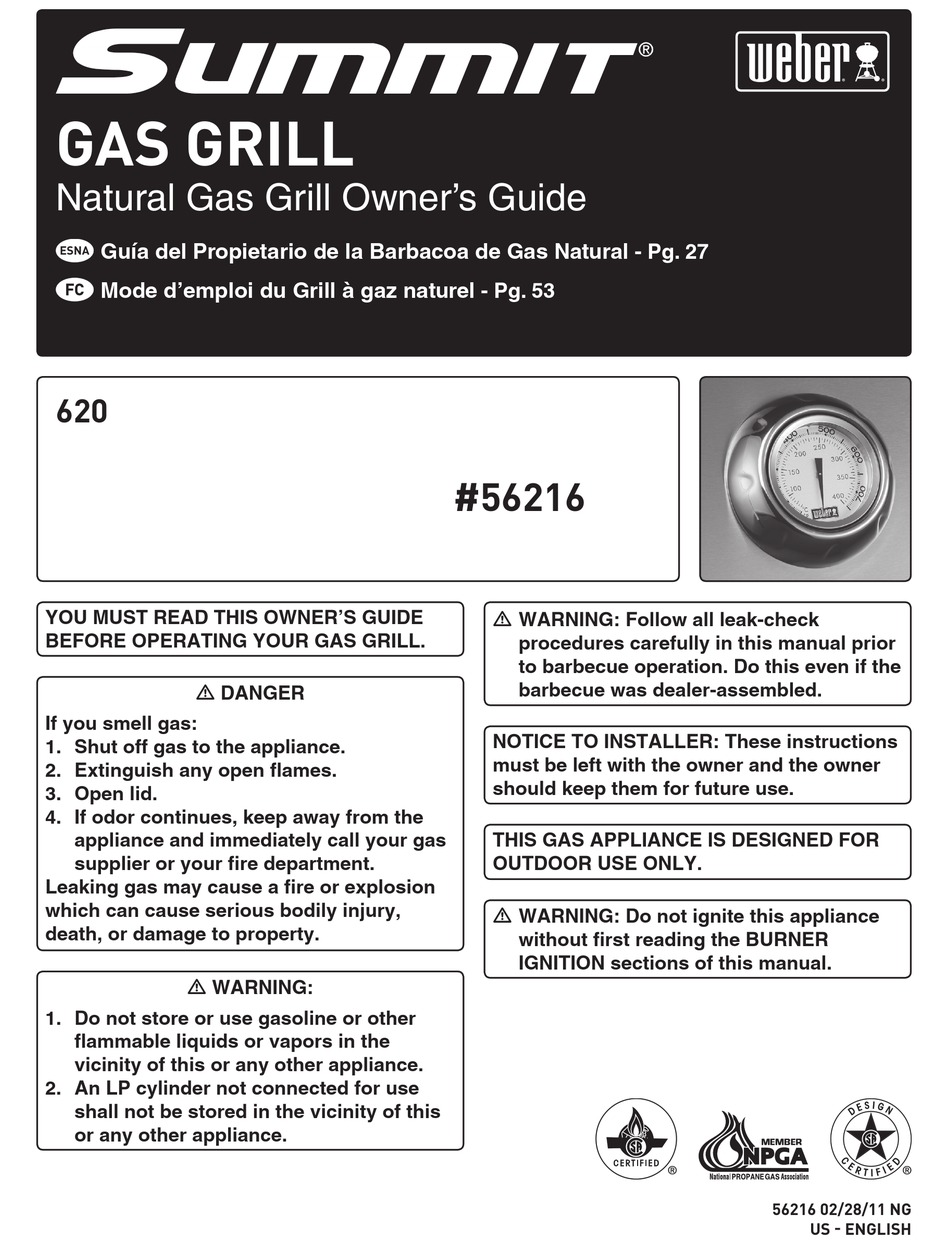

GAS GRILL
Natural Gas Grill Owner's Guide
Guía del propietario de la barbacoa de Gas natural - pg. 27
ESNA
mode d'emploi du Grill à gaz naturel - pg. 53
620
You must read this owner's Guide
before operatinG Your Gas Grill.
m danGer
if you smell gas:
1. shut off gas to the appliance.
2. extinguish any open flames.
3. open lid.
4. if odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
leaking gas may cause a fire or explosion
which can cause serious bodily injury,
death, or damage to property.
m warninG:
1. do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. an lp cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
#56216
m warninG: follow all leak-check
procedures carefully in this manual prior
to barbecue operation. do this even if the
barbecue was dealer-assembled.
notiCe to installer: these instructions
must be left with the owner and the owner
should keep them for future use.
this Gas applianCe is desiGned for
outdoor use onlY.
m warninG: do not ignite this appliance
without first reading the burner
iGnition sections of this manual.
56216 02/28/11 NG
US - ENGLISH
