1
EQUIPMENT SET-UP
EZ Gateway is a high performance, cost effective Building and Industrial Automation multi-protocol
gateway providing protocol translation between serial and Ethernet, devices and networks.
2 CERTIFICATION
BTL Mark – BACnet Testing Laboratory
2.1
The BTL Mark on EZ Gateway is a symbol that indicates that a product has passed
a series of rigorous tests conducted by an independent laboratory which verifies that
the product correctly implements the BACnet features claimed in the listing. The
mark is a symbol of a high-quality BACnet product.
Go to
Testing Laboratory. Click here for
3
SUPPLIED EQUIPMENT
EZ Gateway.
Preloaded with the Modbus and BACnet drivers.
All instruction manuals, driver manuals, configuration manuals and support utilities are available on
the
USB
drive
http://www.sierramonitor.com/customer-care/resource-center?filters=software-downloads
Accessory kit (Optional) (Part # FS-8915-36-QS) including:
7-ft CAT5 cable with RJ45 connectors at both ends
Power Supply -110/220V (p/n 69196)
DIN Rail mounting bracket
Screwdriver for connecting to terminals
USB Flash drive loaded with:
o
Modbus to BACnet Start-up Guide
o
FieldServer Configuration Manual
o
FieldServer Utilities Manual
o
All FieldServer Driver Manuals
o
Support Utilities
o
Any additional folders related to special files configured for a specific EZ Gateway
o
Additional components as required - See Driver Manual Supplement for details
1
BACnet is a registered trademark of ASHRAE
1
http://www.BACnetInternational.net/btl/
provided
in
the

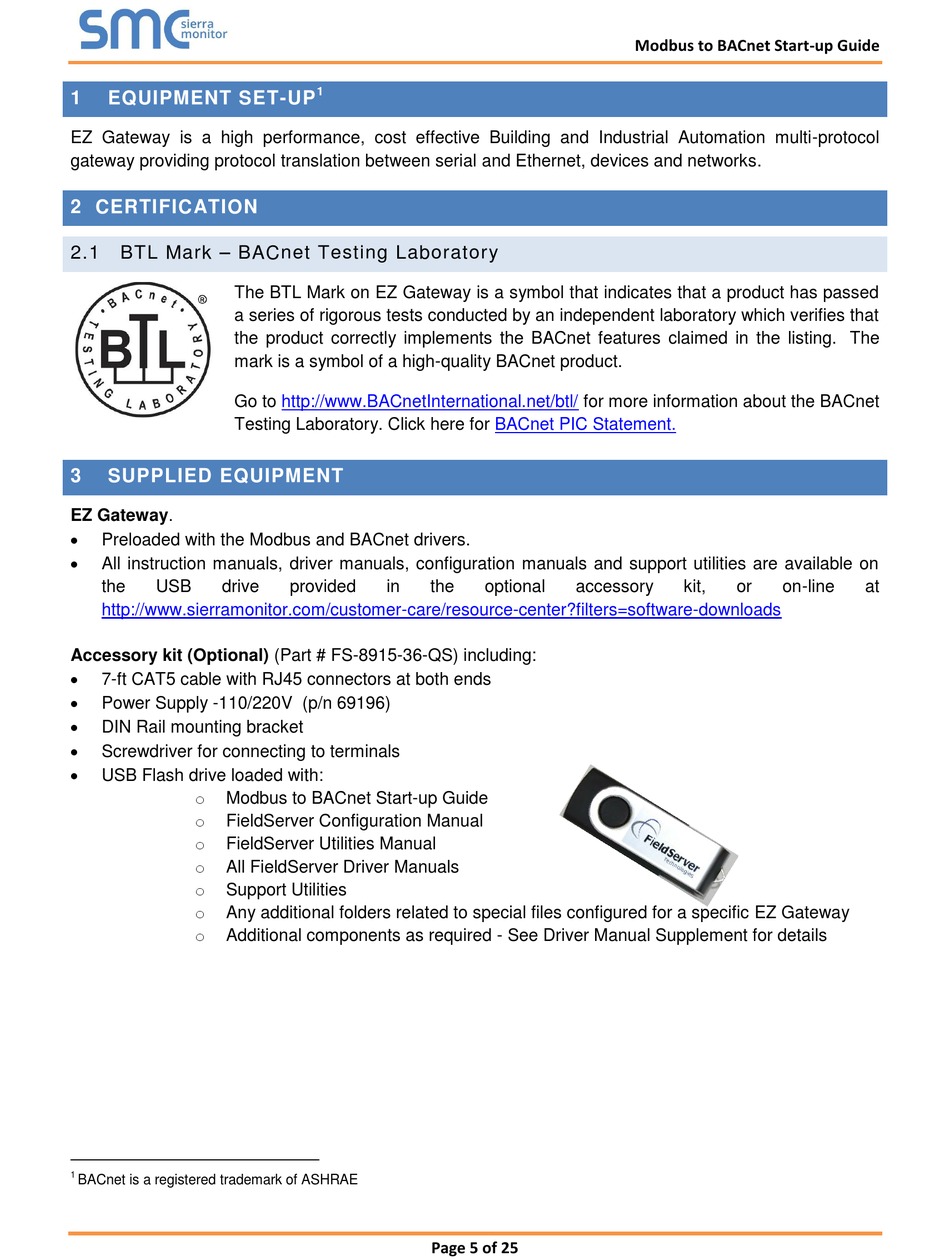

Page 5 of 25
Modbus to BACnet Start-up Guide
for more information about the BACnet
BACnet PIC Statement.
optional
accessory
kit,
or
on-line
at
