- Page 1 Wireless Data Gateway FastFind Links Getting to Know Your Gateway D3G0804W Installing Your Gateway User Manual Preparing to Configure Your Gateway Configuring the Gateway...
- Page 2 Copyright © 2013 SMC Networks All Rights Reserved Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, or for any infringements of patents or other rights of third parties which may result from its use.
-
Page 3: Important Safety Instructions
Do not defeat the purpose of the polarized or grounding type plug. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. D3G0804W User Manual... - Page 4 • Equipment should be installed near the power outlet and should be easily accessible. • The shield of the coaxial cable must be connected to earth (Grounded) at the entrance to the building in accordance with applicable national electrical installation codes. In the U.S., this is D3G0804W User Manual...
- Page 5 In areas of high surge events or poor grounding situation and areas prone to lightning strikes, additional surge protection may be required (i.e. PF11VNT3 or 3020J from American Power Conversion) on the AC, RFM Ethernet and Phones lines. D3G0804W User Manual...
-
Page 6: Table Of Contents
3 Preparing to Configure Your Gateway .............. 11 Configuring Microsoft Windows 2000 ............12 Configuring Microsoft Windows XP .............. 13 Configuring Microsoft Windows Vista ............14 Configuring an Apple® Macintosh® Computer ..........16 Disabling Proxy Settings ..................17 D3G0804W User Manual... - Page 7 Home Network Wizard Page ................51 Connected Devices Menu ..................54 Computers Page ....................55 Parental Control Menu ..................... 56 Managed Sites Page ..................57 Configuring Blocked Sites ................58 Configuring Blocked Keywords ..............60 Configuring Trusted Computers ..............62 D3G0804W User Manual...
- Page 8 Network Diagnostic Tools Page ................. 89 Testing Connectivity to a Destination Address ..........90 Restore/Reboot Page ..................91 Change Password Page ..................92 FCC Interference Statement ..................96 IMPORTANT NOTE: ....................97 FCC Radiation Exposure Statement ................ 97 Index ........................98 viii D3G0804W User Manual...
-
Page 9: Preface
Automation, and IPTV distribution. The Gateway is a versatile and robust all-in-one solutions that make it ideal for homes and businesses to connect their local-area network (LAN) to the Internet. This user manual contains all the information you need to install and configure your new D3G0804W Wireless Data Gateway. -
Page 10: Key Features
Key Features This section summarizes the key features of the D3G0804W Gateways. DOCSIS 3.0 Cable Modem. The Gateway includes an 8x4 DOCSIS 3.0 cable modem capable of maximum downstream speeds of 320 Mbps and maximum upstream speeds of 120 Mbps. -
Page 11: Document Organization
Warnings indicate that failure to take a specified action could result in damage to the device. Electric Shock Hazard This symbol warns users of electric shock hazard. Failure to take appropriate precautions such as not opening or touching hazardous areas of the equipment could result in injury or death. D3G0804W User Manual... -
Page 12: Getting To Know Your Gateway
1 Getting to Know Your Gateway Topics: Before you install your D3G0804W Wireless Data Gateway, check the package contents and become familiar with the Gateway’s Unpacking Package front and back panels. Contents (page 2) This chapter describes the items that come in the Gateway System Requirements ... -
Page 13: Unpacking Package Contents
A Java-enabled Web browser, such as Microsoft Internet Explorer 5.5 or above Microsoft® Windows® 2000 or higher for USB driver support A battery that can be installed in your Gateway to support voice service. Please contact your service provider for more information. D3G0804W User Manual... -
Page 14: Becoming Familiar With The Gateway Hardware

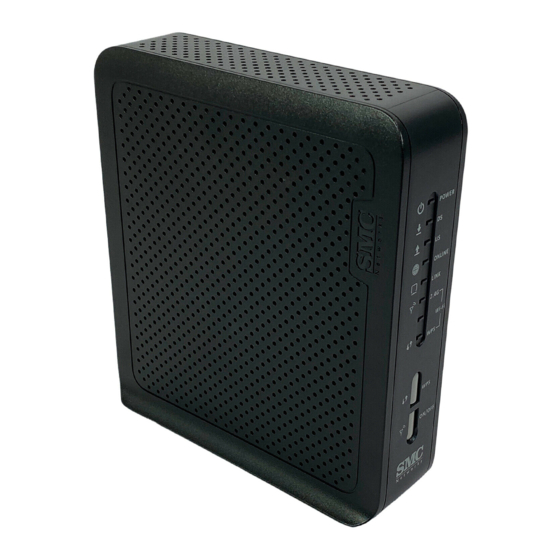

Gateway and simplify troubleshooting. At the bottom of the front panel are WPS and ON/OFF buttons. Figure 1 shows the front panel of the Gateway. Table 1 describes the front panel LEDs and Table 2 describes the front panel push-buttons. Figure 1. Front Panel of the Gateway D3G0804W User Manual... - Page 15 OFF = WAP is OFF Blue Blinking = data activity ON = 5 GHz WAP is ON OFF = WAP is OFF Green Blinking = Wireless Protected Setup (WPS) enabled for device pairing OFF = WPS pairing is OFF D3G0804W User Manual...
-
Page 16: Rear Panel
The rear panel of the Gateway contains a reset button and ports for attaching the supplied power cord and making other connections. Figure 2 shows the rear panel components and Table 3 describes them. RST (RESET) BUTTON LAN 1-4 CABLE POWER Figure 2. Rear View of the Gateway D3G0804W User Manual... -
Page 17: Resetting Or Rebooting The Gateway
1. Leave power plugged into the Gateway. 2. Press and hold the RST button on the Gateway back panel for about 15 seconds, then release the RST button. 3. Wait for the Gateway to reboot with factory default settings. D3G0804W User Manual... -
Page 18: Installing Your Gateway
2 Installing Your Gateway Topics: This chapter describes how to install the Gateway. Finding a Suitable Location (page 8) Connecting to the LAN (page 9) Connecting the WAN (page 10) Powering on the Gateway (page 10) D3G0804W User Manual... -
Page 19: Finding A Suitable Location
Be away from any large metal surfaces, such as a solid metal door or aluminum studs. Large expanses of other materials such as glass, insulated walls, fish tanks, mirrors, brick, and concrete can also affect your wireless signal. D3G0804W User Manual... -
Page 20: Connecting To The Lan
Figure 3. Connecting to a LAN Port on the Gateway Rear Panel< 2. Connect the other end of the cable to your computer’s network-interface card (NIC) or to another network device (see Figure 4). Figure 4. Connecting the Gateway to a Laptop or Desktop Computer D3G0804W User Manual...
