03
McDonald's
A

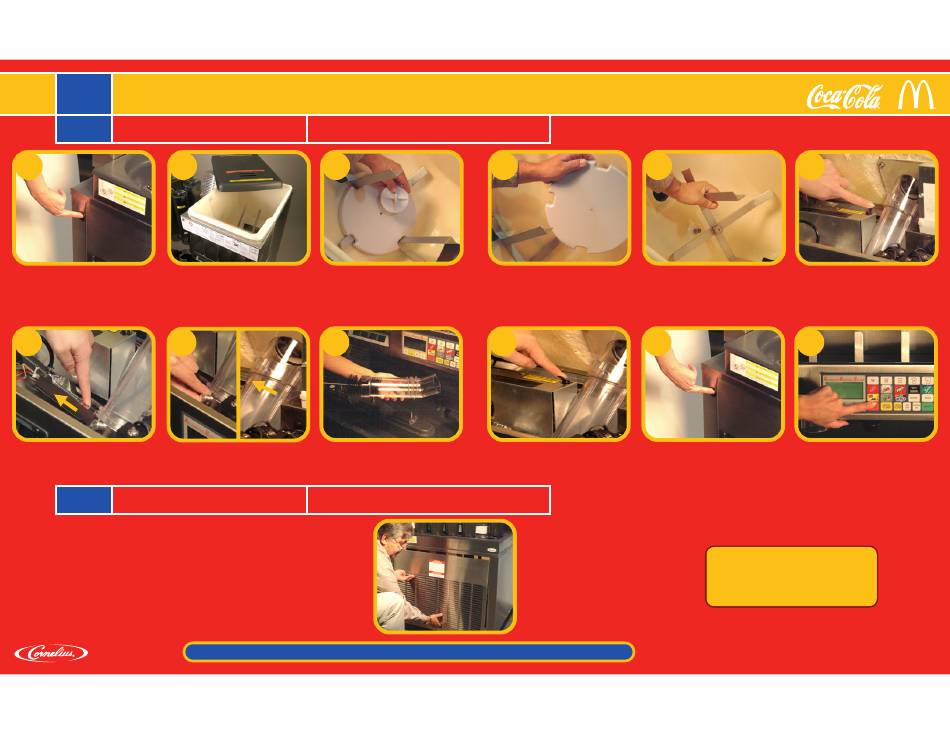

Monthly Maintenance
01
02
01 Turn ABS unit power switch "OFF".
02 Remove the top cover and set it
CAUTION: Unit will agitate if the ABS
aside.
is left "ON".
•
Remove and discard all the ice from
the hopper. If necessary, pour clean,
potable water slowly into the hopper
to assist in melting the ice.
07
08
07 Push the cylinder open to the left.
08 Pull the locking pin out and rotate
the ice chute clockwise
approximately 1 inch and pull down
the ice chute.
B
Quarterly Maintenance
Clean the condenser filter (for units with integral water pre-cooler option only).
01 Remove the front lower grille panel.
02 Turn power supply off via the Pre-Cooler power switch.
03 Slide the condenser air filter vertically and remove the unit.
04 Clean the filter using hot water and shake it dry.
05 Reinstall the condenser air filter.
06 Turn power supply "ON".
07 Reinstall the lower front panel.
© 2008 IMI CORNELIUS
WWW.CORNELIUS.COM
620807805C Revision: B
ABS Planned Maintenance
®
Tools:
03
03 Remove the agitator retainer, disk, and the ice agitator assembly.
•
Using McD APC and a long handled nylon bristle brush, clean the interior of the
hopper, top cover, agitator and agitator cover.
04 Rinse all with clean water.
•
Prepare sanitize solution by adding one packet of McD Sanitizer to 2 1/2 gallons
of lukewarm water in a clean sanitized bucket.
09
09 Using McD Sanitizer and long
handled nylon bristle brush clean
the interior of the ice chute.
•
Reinstall ice chute.
Tools:
To order job aid cards contact Coca-Cola Parts: 1-800-638-2653 Part #111099
CAUTION: Do not use sharp objects, metal devices or abrasives on the ice hopper, top cover or agitator disc. Irreparable
McD Sanitizer, McD APC, Long Handle Nylon
damage may result to the units. Do not use any solvents or other cleaning agents because they may attack the plastic material.
Bristle Brush and a Clean Sanitized Cloth.
04
10
10 Turn manual ice gate switch "ON".
Phillips Head Screw Driver.
NOTE: A dirty condenser restricts
airflow that results in excessively
high operating temperatures.
High operating temperatures reduce
machine capacity and shorten
component life. Any bent condenser
fins must be straightened with a fin
comb. Contact your Service Agent
to perform this service.
-or-
www.3Wire.com
3Wire Part #1039561
05
06
05 Using McD Sanitizer and a soft,
06 Turn manual ice gate switch "OFF"
sanitized cloth, wipe the interior
to relieve pressure on ice gate
of the hopper, top cover, agitator,
cylinder.
and agitator cover.
•
Reinstall the agitator retainer, disk,
and the ice agitator assembly.
11
12
11 Turn ABS unit power switch "ON".
12 Clear drink orders by pressing
the "UP ARROW" to highlight
orders and pressing enter to
clear orders.
•
Refill ice chute.
•
Return ABS unit to the "AUTO"
mode by pressing the
"AUTO/MANUAL" button.
For ABS Service Call:
Coca-Cola SMILE Service
1-800-241-COKE
2 6 5 3
