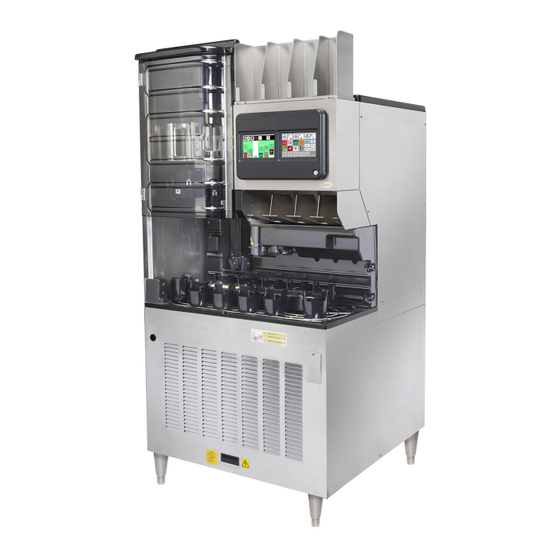

Cornelius ABS Basic Daily Operations

01 McDonald's
01 02
• Press the red "AUTO/MANUAL" • Pressing the appropriate size cup
button to place the ABS unit into button will rotate the cup tube to
"MANUAL" mode. the front for proper filling.
• "MANUAL" mode prevents ABS
moving parts from operating.
07 08
• Place the lids onto the cup tubes. • Remove ice bin lid and fill with ice
Covered cup tubes prevent foreign cubes.
objects or material from falling into • Bin cover must rest securely on top
a customer's cup. of bin. A covered ice bin will prevent
foreign objects or material from
falling inside.
• Do not overfill.
12
• Do not pour coffee or hot liquids into
drain pan, as the plastic drain pan will
develop cracks and leaks.
• Drain pan replacement is very expensive.
© 2008 IMI CORNELIUS
WWW.CORNELIUS.COM
620807805A Revision: B
ABS Basic Daily Operation
®
03
• Load cup tubes properly:
1. fan cups to separate
2. support bottom of tube with
your hand while cup tubes are
being filled. This will prevent
damage to the cup tube fingers.
09
• Visually inspect grabber pads for
tears, cracks, excessive wear or
loose fit. Replace as needed.
• Do not use any cleaning products on
pads, as it will cause pads to slip off
cups.
For ABS Service Call:
Coca-Cola SMILE Service
1-800-241-COKE
To order job aid cards contact Coca-Cola Parts: 1-800-638-2653 Part #111099
04
• Do not over fill cup tubes.
• Overfilling cup tubes past label will
damage cup tube fingers and cause
multiple cups to be pulled by ABS.
10
• Clear drink orders by pressing the
"UP ARROW" to highlight orders
and pressing enter to clear orders.
• Press the red "AUTO/MANUAL"
button to place the ABS unit into
"AUTOMATIC" mode.
2 6 5 3
-or- www.3Wire.com 3Wire Part #1039561
05 06
• Do not hand pull cups from turret. • Do not operate ABS with cracked
• Continuous improper loading, cup tubes or missing hardware.
overfilling and manual pulling of cups This may cause damage to other
will cause damage to the cup tube major components.
fingers and multiple cups to be
extracted.
11
Complete Daily Top 10 Checklist:
01 Is the conveyor clean?
02 Is the nozzle and diffuser clean?
03 Is syrup deflector in place?
04 Are the cup tubes properly filled?
05 Are the cup tubes cracked?
06 Are the cup tubes fingers
damaged or missing?
07
Is the drip tray clean?
08 Is the cup locator spring
damaged or missing?
09 Is the water deflector in place?
10 Are grabber pads cracked,
loose, worn or torn?
