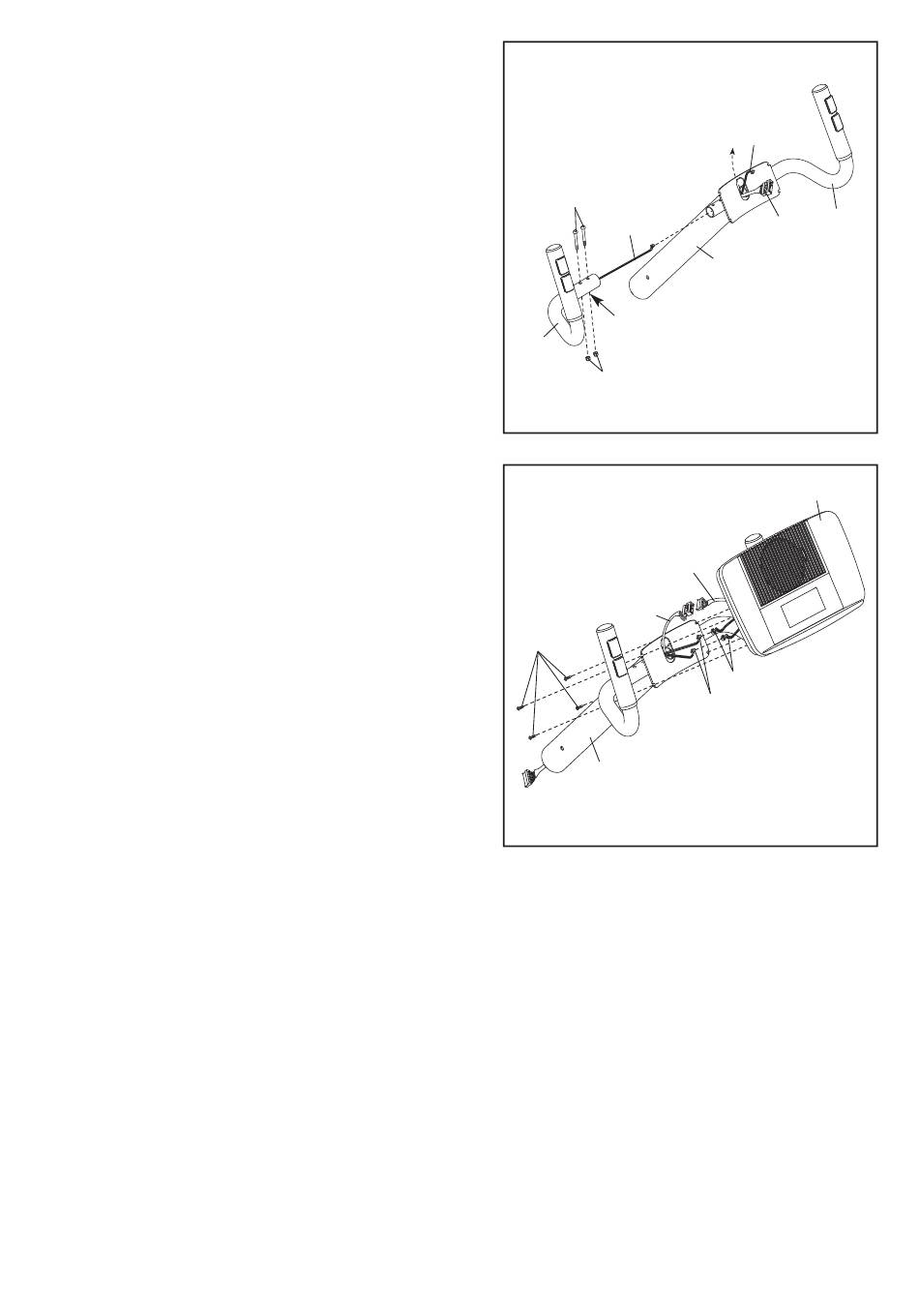

8. Identify the Left Pulse Bar (65), which is marked
with a "Left" sticker.
Have another person hold the Left Pulse Bar (65)
near the left side of the Upright (13). Make sure
that the hexagonal holes are in the indicated
location.
Insert the left Pulse Wire (71) into the Upright (13)
and pull it upward out of the top of the Upright.
Tip: Avoid pinching the wires. Slide the Left Pulse
Bar (65) onto the Upright (13). Attach the Left Pulse
Bar with two M6 x 38mm Button Bolts (69) and two
M6 Locknuts (27). Make sure that the Locknuts
are in the hexagonal holes.
Repeat this step for the Right Pulse Bar (66).
9. While another person holds the Console (16) near
the Upright (13), connect the console wire to the
Upper Wire Harness (36). Then, connect the con-
sole pulse wires to the Pulse Wires (71). Insert the
excess wire downward into the Upright.
Tip: Avoid pinching the wires. Attach the Console
(16) to the Upright (13) with four M4 x 16mm
Screws (52).
