Pro-Form 10.8X User Manual page 10

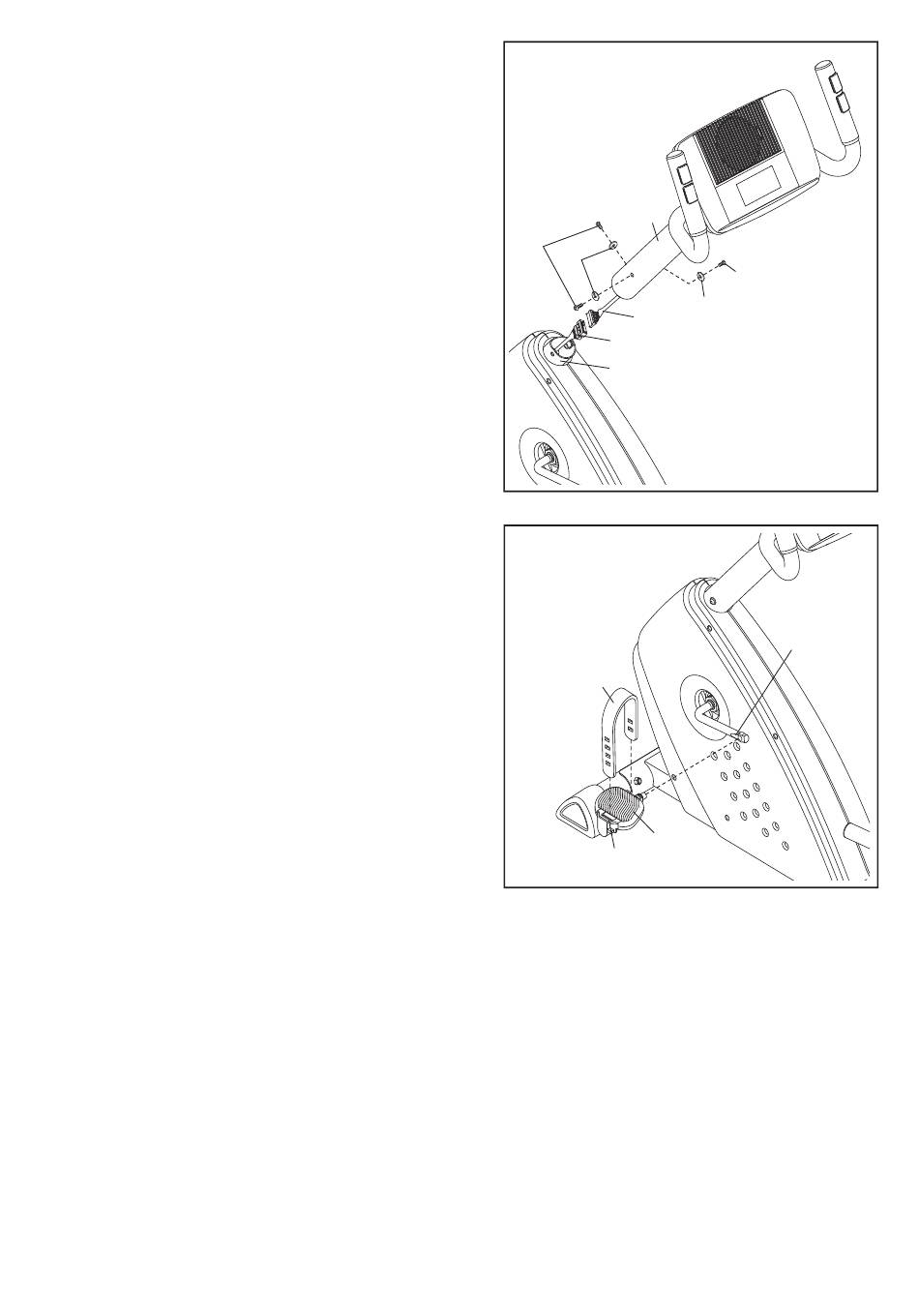

10. While another person holds the Upright (13) near
the Frame (1), connect the Upper Wire Harness
(36) to the Lower Wire Harness (8).
Tip: Avoid pinching the Wire Harnesses (8, 36).
Slide the Upright (13) onto the Frame (1). Attach the
Upright with three M8 x 25mm Button Screws (33)
and three M8 Split Washers (59).
11. Identify the Left Pedal (24), which is marked with a
"Left" sticker.
Firmly tighten the Left Pedal (24) counterclock-
wise into the left arm of the Crank (31).
Tighten the Right Pedal (not shown) clockwise into
the right arm of the Crank (31).
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the Left Pedal. Adjust the strap on
the Right (not shown) in the same way.
12. Make sure that all parts are properly tightened before you use the exercise bike. Note: Some hardware
may be left over after assembly is completed. Place a mat beneath the exercise bike to protect the floor.
