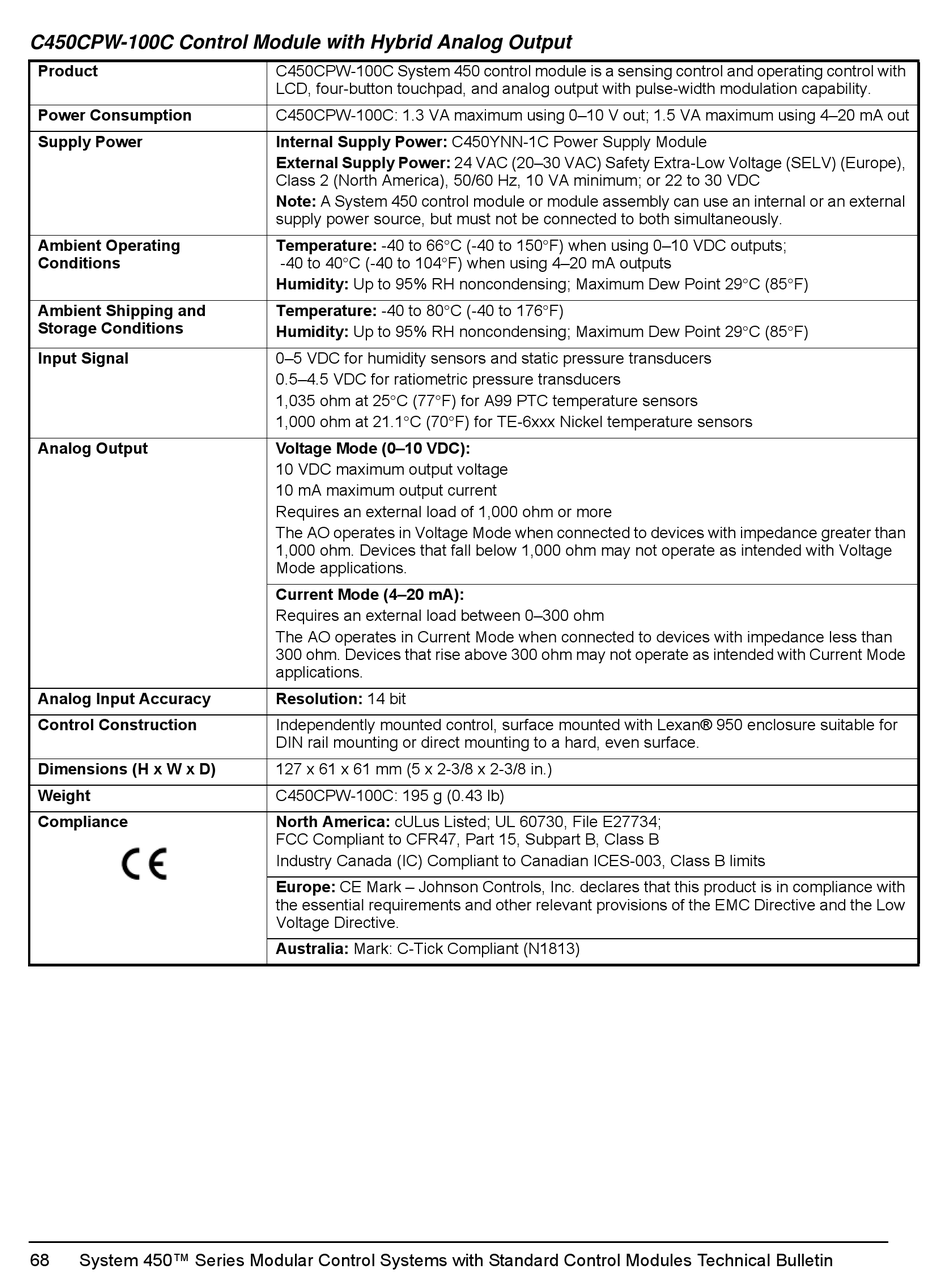

C450CPW-100C Control Module with Hybrid Analog Output

Product
Power Consumption
Supply Power
Ambient Operating
Conditions
Ambient Shipping and
Storage Conditions
Input Signal
Analog Output
Analog Input Accuracy
Control Construction
Dimensions (H x W x D)
Weight
Compliance
68 System 450™ Series Modular Control Systems with Standard Control Modules Technical Bulletin
C450CPW-100C System 450 control module is a sensing control and operating control with
LCD, four-button touchpad, and analog output with pulse-width modulation capability.
C450CPW-100C: 1.3 VA maximum using 0–10 V out; 1.5 VA maximum using 4–20 mA out
Internal Supply Power: C450YNN-1C Power Supply Module
External Supply Power: 24 VAC (20–30 VAC) Safety Extra-Low Voltage (SELV) (Europe),
Class 2 (North America), 50/60 Hz, 10 VA minimum; or 22 to 30 VDC
Note: A System 450 control module or module assembly can use an internal or an external
supply power source, but must not be connected to both simultaneously.
Temperature: -40 to 66C (-40 to 150F) when using 0–10 VDC outputs;
-40 to 40C (-40 to 104F) when using 4–20 mA outputs
Humidity: Up to 95% RH noncondensing; Maximum Dew Point 29C (85F)
Temperature: -40 to 80C (-40 to 176F)
Humidity: Up to 95% RH noncondensing; Maximum Dew Point 29C (85F)
0–5 VDC for humidity sensors and static pressure transducers
0.5–4.5 VDC for ratiometric pressure transducers
1,035 ohm at 25C (77F) for A99 PTC temperature sensors
1,000 ohm at 21.1C (70F) for TE-6xxx Nickel temperature sensors
Voltage Mode (0–10 VDC):
10 VDC maximum output voltage
10 mA maximum output current
Requires an external load of 1,000 ohm or more
The AO operates in Voltage Mode when connected to devices with impedance greater than
1,000 ohm. Devices that fall below 1,000 ohm may not operate as intended with Voltage
Mode applications.
Current Mode (4–20 mA):
Requires an external load between 0–300 ohm
The AO operates in Current Mode when connected to devices with impedance less than
300 ohm. Devices that rise above 300 ohm may not operate as intended with Current Mode
applications.
Resolution: 14 bit
Independently mounted control, surface mounted with Lexan® 950 enclosure suitable for
DIN rail mounting or direct mounting to a hard, even surface.
127 x 61 x 61 mm (5 x 2-3/8 x 2-3/8 in.)
C450CPW-100C: 195 g (0.43 lb)
North America: cULus Listed; UL 60730, File E27734;
FCC Compliant to CFR47, Part 15, Subpart B, Class B
Industry Canada (IC) Compliant to Canadian ICES-003, Class B limits
Europe: CE Mark – Johnson Controls, Inc. declares that this product is in compliance with
the essential requirements and other relevant provisions of the EMC Directive and the Low
Voltage Directive.
Australia: Mark: C-Tick Compliant (N1813)
