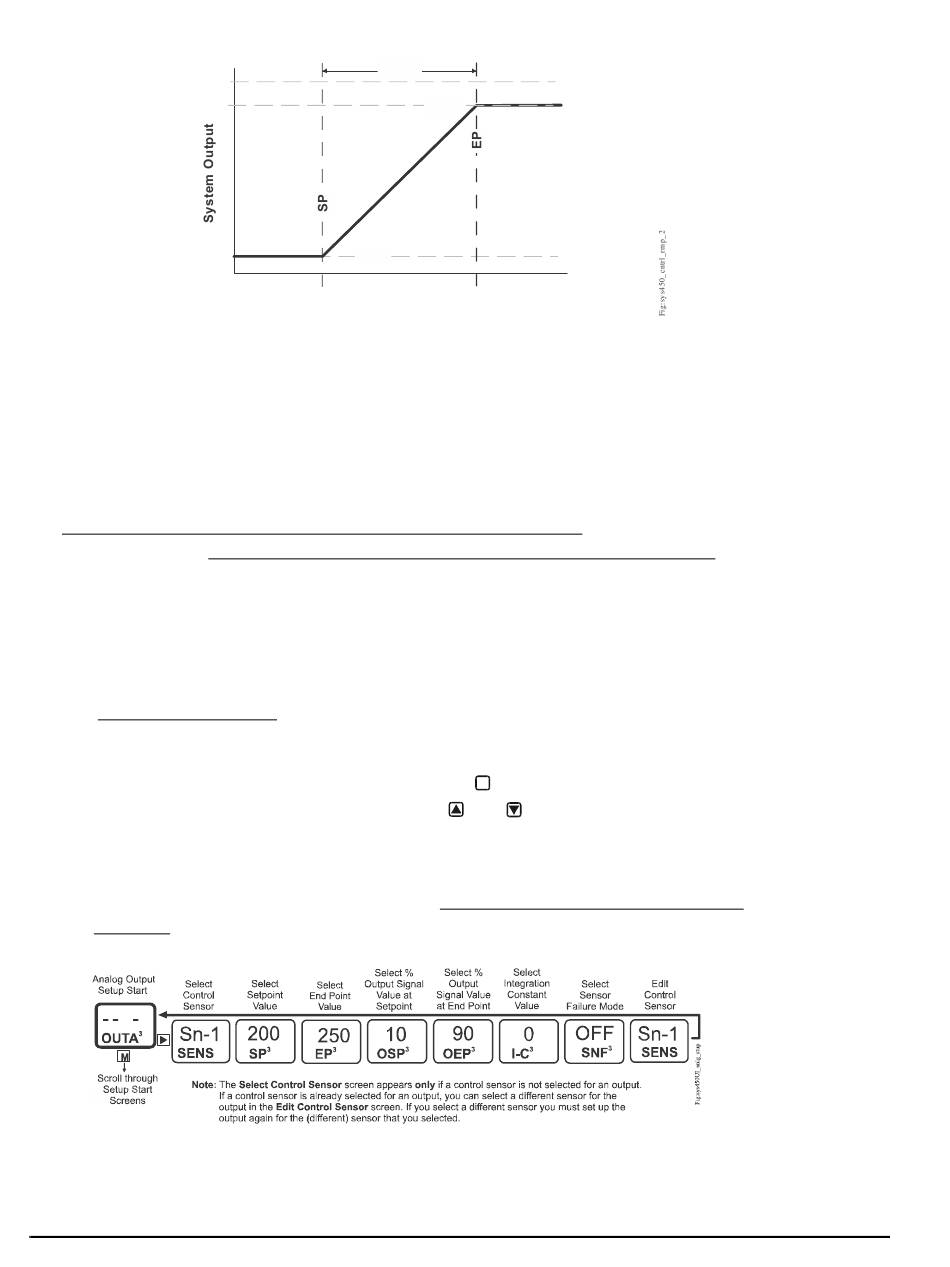

Figure 24: Relationship between Setpoint, End Point, Output at Setpoint, and
Output at End Point for an Analog Output That Controls Condenser Fan Speed
The Integration Constant (I-C) screen allows you to select an integration
constant for the analog signal. Selecting an integration constant other than 0
enables proportional plus integral control action, which in many applications can
drive the condition closer to setpoint (than proportional-only control action). See
Proportional Plus Integral Control and Integration Constants on page 23 for more
information. See Determining the Integration Constant for an Analog Output on
page 56 for procedures on determining and testing integration constants in your
control system.
The Sensor Failure Mode (SNF
output signal is off (corresponding to the lowest output capacity) or on
(corresponding to the highest output capacity) when a sensor failure is detected.
See Sensor Failure Mode on page 26 for more information.
To set up an analog output:
Note: In any of the system setup screens, press
screen. In the setup start screen, press
minutes to return to the Main screens.
1. Access the System 450 UI and navigate to the desired Analog Output Setup
x
Start (OUTA
Interface on page 42 for information on accessing the System Setup screens.)
Figure 25: Analog Output Setup Start Screen and Setup Screen Flow
