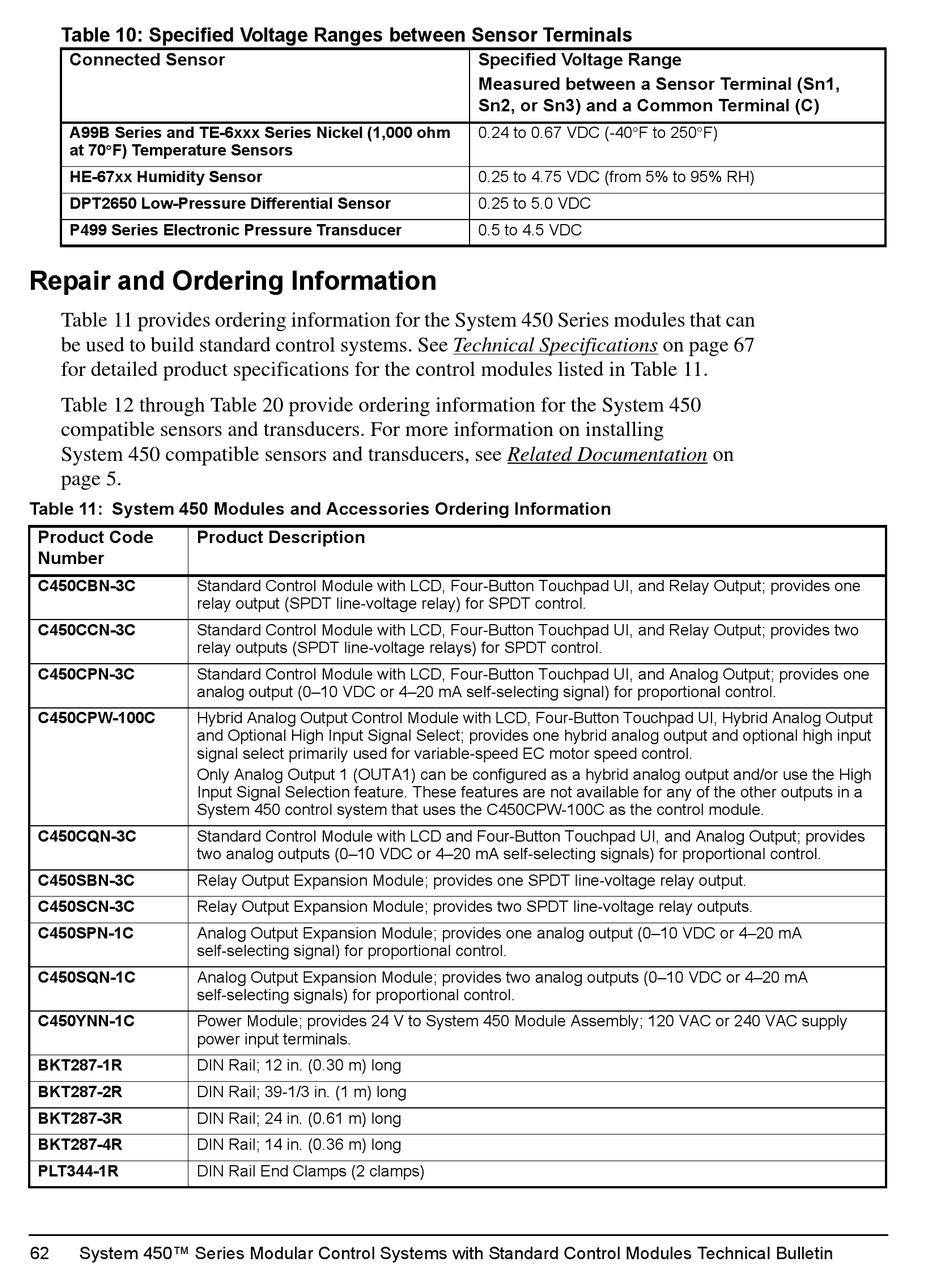

Repair And Ordering Information - Johnson Controls Penn System 450 Series Technical Bulletin

Table 10: Specified Voltage Ranges between Sensor Terminals
Connected Sensor
A99B Series and TE-6xxx Series Nickel (1,000 ohm
at 70F) Temperature Sensors
HE-67xx Humidity Sensor
DPT2650 Low-Pressure Differential Sensor
P499 Series Electronic Pressure Transducer

Repair and Ordering Information

Table 11 provides ordering information for the System 450 Series modules that can
be used to build standard control systems. See Technical Specifications on page 67
for detailed product specifications for the control modules listed in Table 11.
Table 12 through Table 20 provide ordering information for the System 450
compatible sensors and transducers. For more information on installing
System 450 compatible sensors and transducers, see Related Documentation on
page 5.
Table 11: System 450 Modules and Accessories Ordering Information
Product Code Product Description
Number
C450CBN-3C
Standard Control Module with LCD, Four-Button Touchpad UI, and Relay Output; provides one
relay output (SPDT line-voltage relay) for SPDT control.
C450CCN-3C
Standard Control Module with LCD, Four-Button Touchpad UI, and Relay Output; provides two
relay outputs (SPDT line-voltage relays) for SPDT control.
C450CPN-3C Standard Control Module with LCD, Four-Button Touchpad UI, and Analog Output; provides one
analog output (0–10 VDC or 4–20 mA self-selecting signal) for proportional control.
C450CPW-100C Hybrid Analog Output Control Module with LCD, Four-Button Touchpad UI, Hybrid Analog Output
and Optional High Input Signal Select; provides one hybrid analog output and optional high input
signal select primarily used for variable-speed EC motor speed control.
Only Analog Output 1 (OUTA1) can be configured as a hybrid analog output and/or use the High
Input Signal Selection feature. These features are not available for any of the other outputs in a
System 450 control system that uses the C450CPW-100C as the control module.
C450CQN-3C Standard Control Module with LCD and Four-Button Touchpad UI, and Analog Output; provides
two analog outputs (0–10 VDC or 4–20 mA self-selecting signals) for proportional control.
C450SBN-3C Relay Output Expansion Module; provides one SPDT line-voltage relay output.
C450SCN-3C
Relay Output Expansion Module; provides two SPDT line-voltage relay outputs.
C450SPN-1C Analog Output Expansion Module; provides one analog output (0–10 VDC or 4–20 mA
self-selecting signal) for proportional control.
C450SQN-1C Analog Output Expansion Module; provides two analog outputs (0–10 VDC or 4–20 mA
self-selecting signals) for proportional control.
C450YNN-1C Power Module; provides 24 V to System 450 Module Assembly; 120 VAC or 240 VAC supply
power input terminals.
BKT287-1R DIN Rail; 12 in. (0.30 m) long
BKT287-2R DIN Rail; 39-1/3 in. (1 m) long
BKT287-3R DIN Rail; 24 in. (0.61 m) long
BKT287-4R DIN Rail; 14 in. (0.36 m) long
PLT344-1R DIN Rail End Clamps (2 clamps)
62 System 450™ Series Modular Control Systems with Standard Control Modules Technical Bulletin
Specified Voltage Range
Measured between a Sensor Terminal (Sn1,
Sn2, or Sn3) and a Common Terminal (C)
0.24 to 0.67 VDC (-40F to 250F)
0.25 to 4.75 VDC (from 5% to 95% RH)
0.25 to 5.0 VDC
0.5 to 4.5 VDC
