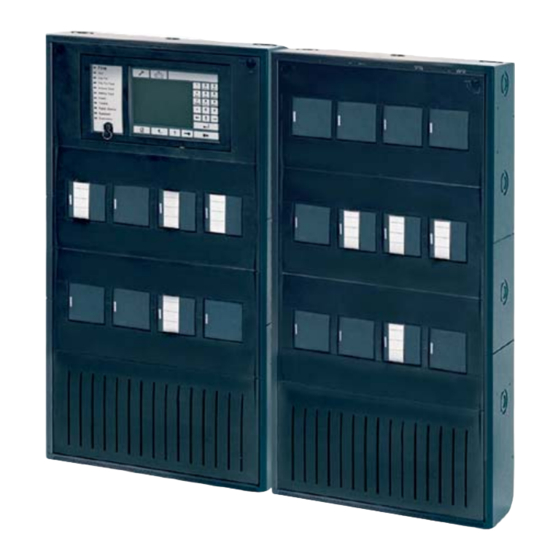

Modular Fire Panel
FPA-5000
en
Product Information

Advertisement

Table of Contents
loading

Related Manuals for Bosch FPA-5000

Summary of Contents for Bosch FPA-5000

  • Page 1 Modular Fire Panel FPA-5000 Product Information...

  • Page 3: Table Of Contents

    HMP 0003 A Mounting Plate for Mounting Frame 1.10.10 FPO-5000-EB Earth Bar 1.11 Installation kits for 19” cabinets 1.11.1 FRK 0019 A 19" Rack Installation Kit 1.11.2 FRB 0019 A 19" Rack Installation Kit, Large Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 4 Achievable cable length with the LSN 1500 A Limits of SG 200 application System limiting values System limiting values of functional modules Power Loss of All Components of the FPA-5000 Examples of housing equipment 3.10 Positioning of the BCM Battery Controller Modules 3.11...
  • Page 5 5.2.2 Installation drawings for wall-mounting housings 5.2.3 Installation dimensions for 19” rack installation kits 5.2.4 Installation dimensions for the FMR-5000 Remote Keypad Maintenance and Service Warranty Repair Disposal Additional documentation Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 6: Product Description

    Modular Fire Panel Product Description With its modular configuration, the FPA-5000 Fire Panel is easily adapted to local circumstances and regulations. The different module blocks mean that country-specific characteristics can be implemented in connection just as quickly as the relevant alarm protocol.

  • Page 7: Mounting Options

    Wall mounting: These housings are screwed directly onto the wall to reduce the installation depth by 9 cm. 19” cabinet mounting – Special mounting kits allow installation in 19" cabinets. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 8: System Overview (Typical Configuration Of Fire Detection System)

    | Product Description Modular Fire Panel System overview (typical configuration of fire detection system) improved/classic improved/classic improved/classic Classic or improved version LSN loop Conventional stub or loop F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 9 • FMC-210-SM • SM 210 LSN • • FMC-300RW • • FMC-120-DKM • • SKM 120 • SMF121 DKM 2014/2-ex • DM 1103 B-Ex • 1) Connection via DCA1192/SB3 only Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 10 BGÜ 20 BGÜ 40 BGÜ 40/30 ENO 0000 B 2) Included in the scope of delivery of the FAT 2002 RE Connection via: ENO 0000 B Key deposits Connection via: – FAA-MSR 420 Door controls – FLM-420-RHV F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 11: Standard Panel With Frame-Mounting (Cph 0006 A Housing)

    EPH 0012 A Extension Housing for 12 Modules, Frame Installation, see Page 13 – PMF 0004 A Power Supply Big, Frame Installation, see Page 14 – PSF 0002 A Power Supply Small, Frame Installation, see Page 14 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 12: Cph 0006 A Modular Panel Housing For 6 Modules, Frame Installation

    2 x 12 V/45 Ah batteries – FDT 0000 A Front Door Transparent, Right-Hand Lock, see Page 29 or – FDT 0003 A Front Door Transparent, Left-Hand Lock, see Page 29 F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 13: Mph 0010 A Modular Panel Housing For 10 Modules, Frame Installation

    EPH 0012 A Extension Housing for 12 Modules, Frame Installation Scope of delivery – Sheet steel housing, painted – Steel front panel with plastic cover – Accessories pack with installation materials and CAN cable (150 cm) Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 14: Pmf 0004 A Power Supply Big, Frame Installation

    FSH 0000 A Mounting Frame Small, see Page 17 Can be extended with: – UPS 2416 A Universal Power Supply, see Page 23 – 2 x 12 V/45 Ah batteries F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 15: Usf 0000 A Universal Housing Small, Frame Installation

    Sheet metal housing, painted, with steel front panel – Power supply bracket, installed – UPS 2416 A Universal Power Supply, see Page 23 – PRS 0002 A Panel Rail Short, see Page 24 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 16: Mounting Frames

    HMP 0003 A Mounting Plate for Mounting Frame, see Page 27 – HPD 0000 A Power Distributor, see Page 25 1.7.2 FHS 0000 A Mounting Frame Large with Distributor Rail Plastic mounting frame, for housings: – CPH 0006 A F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 17: Fmh 0000 A Mounting Frame Medium

    System overview of wall mounting Control panel housings – HCP 0006 A Modular Panel Housing for 6 Modules, see Page 18 – HBC 0010 A Modular Panel Housing for 10 Modules, see Page 19 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 18: Hcp 0006 A Modular Panel Housing For 6 Modules

    2 x 12 V/24 Ah batteries – FDT 0000 A Front Door Transparent, Right-Hand Lock, see Page 29 or – FDT 0003 A Front Door Transparent, Left-Hand Lock, see Page 29 F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 19: Hbc 0010 A Modular Panel Housing For 10 Modules

    2 x 12 V/24 Ah batteries – FDT 0001 A Large Front Door Transparent, right-hand lock, see Page 29 or – FDT 0002 A Large Front Door Transparent, left-hand lock, see Page 29 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 20: Hbe 0012 A Modular Extension Housing For 12 Modules

    FDT 0002 A Large Front Door Transparent, left-hand lock, see Page 29 1.8.5 PSB 0004 A Power Supply, Large Scope of delivery – Sheet steel housing, painted – Steel front panel – Accessories pack with installation materials F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 21: Pss 0002 A Power Supply Small

    HMP 0002 A Mounting Plate Long, see Page 27 1.8.7 DIB 0000 A Distribution Box Scope of delivery – Sheet steel housing, painted – Distributor rail, installed – Steel front panel – Accessories pack with installation materials Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 22: Power Supply Brackets For Wall Mounting Housings

    FPO-5000-PSB1 Power Supply Bracket can be used in the PSS 0002 A and PSB 0004 A Power Supply. It is mounted in a central position to allow a power supply unit to be placed between two batteries. F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 23: Hardware Accessories

    -5 °C to 50 °C (23 °F to 122 °F) temperature Permissible storage -20 °C to 60 °C (-4 °F to 140 °F) temperature Housing material and color Aluminum, anodized, black satin finish Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 24: Prs 0002 A Panel Rail Short For 2 Modules

    ABS plastic (UL94 V-0), satin finish, anthracite, RAL 7016 Dimensions (H x W x D) Approx. 146 x 216 x 35 mm (5.7 x 8.5 x 1.4 inches) Weight Approx. 136 g (approx. 4.8 ounces) F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 25: Prd 0004 A Panel Rail Long For 4 Modules

    The HPD 0000 A is used to clearly connect power supply units and batteries, and to supply power to special notification appliance circuit lines (NACs). The clearly marked connection points enable quick and simple installation. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 26: Rle 0000 A Junction Board Eu

    RLU 0000 A Junction Board US This junction board has been specially developed for the HCP 0006 A and HBC 0010 A Modular Panel Housings. 1.10.7 HMP 0001 A Mounting Plate Short F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 27: Hmp 0002 A Mounting Plate Long

    The earth bar is used exclusively in the FMH 0000 A Mounting Frame Medium in a pre- prepared bracket and facilitates the star grounding of a centrally positioned extension housing. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 28: Installation Kits For 19" Cabinets

    FRM 0019 A 19" Rack Installation Kit, Medium This mounting frame is required for installing the PMF 0004 A Power Supply Big in a 19" cabinet. Space requirement: see Page 105 F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 29: Frs 0019 A 19" Rack Installation Kit, Small

    This robust door is designed for use with HCP 0006 A, CPH 0006 A, MPH 0010 A and EPH 0012 A housings and is mounted using pre-punched housing bores. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 30: Fdt 0001 A Large Front Door Transparent

    The transparent front door has its hinges on the right-hand side and is locked with a cylinder lock. This robust door is designed for use with HBC 0010 A and HBE 0012 A housings and is mounted using pre-punched housing bores. F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 31: Mpc-Xxxx-B Panel Controller

    Operation/processing of messages The complete system is operated via a touch screen (A). This enables the user interface to be adapted flexibly to country-specific standards via virtual keys and variable display windows. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 32 Permissible storage temperature -20 °C to 70 °C Dimensions (H x W x D) 190 x 404 x 60 mm (7.5 x 15.0 x 2.4 inches) Weight Approx. 2000 g (4.4 lb) F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 33 5000 Modular Fire Panel. Although all the panels within a network can be connected to the OPC server, the license key only needs to be fitted to one of these panels. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 34: Fmr-5000 Remote Keypad

    IN1 / GND / IN2 USB Device Ethernet 2 x CAN1 / 2 x CAN2 (RJ45) Touch screen 11 LEDs for displaying the operating status 22 keys for standard entries Key switch F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 35: Functional Modules

    Recommended cable type for CAN J-Y-ST/Y2x2x0.8 connection Input voltage 11 V DC to 30 V DC from FPA-5000 or FPP-5000 Max. line resistance of power supply 18 Ohm Maximum current consumption - Standby mode: 130 mA at 24 V DC...

  • Page 36: Ani 0016 A Annunciator Module

    Please note that a power supply must be available. – The 24 V switch outputs can be reset. The switch output is deactivated if a fault occurs. F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 37 Permissible storage temperature -25 °C to 85 °C Dimensions (H x W x D) Approx. 127 x 96 x 60 mm (5.0 x 3.8 x 2.4 inches) Weight 193 g Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 38 12 V / 28 Ah 12 V / 28 Ah (12 V / 40 Ah) (12 V / 40 Ah) (12 V / 40 Ah) (12 V / 40 Ah) F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 39: Czm 0004 A 4 Zone Conventional Module

    2 x 25 Ohm per zone Dimensions (H x W x D) Approx. 127 x 96 x 60 mm (5.0 x 3.8 x 2.4 inches) Weight without packaging Approx. 135 g (4.8 ounces) Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 40: Eno 0000 B Fire Service Interface Module

    Permissible relay contact load 1 A/30 V Dimensions (H x W x D) Approx. 127 x 96 x 60 mm (5.0 x 3.8 x 2.4 inches) Weight Approx. 150 g F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 41: Fpe-5000-Ugm Interface Module

    1.15.5 FPE-5000-UGM Interface Module The interface module is used to connect the FPA-5000 Module Fire Panel or an FPA-5000/ FMR-5000 network to a superordinate system such as the UGM 2020, FAT-2002/RE or FSM- 2000, and provides two two-way transmission links.

  • Page 42: Iop 0008 A Input/Output Module

    TX - / TX + / RX + / RX - S20 interface (20 mA interface) AUX - / AUX + Power supply +24 V DC/max. 1.3 A RXD/TXD/GND RS232 interface F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 43: Ios 0232 A Rs232 Communication Module

    The module may only be fitted to a PRD 0004 A Panel Rail Long, where it requires two slots. NOTICE! In line with EN 54-13, each LSN stub and T-tap must be terminated with EOL modules for the operation of fire detection systems. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 44 500 mA with 2 stubs Dimensions (H x W x D) Approx. 127 x 190 x 60 mm (5.0 x 7.5 x 2.4 inches) Weight Approx. 440 g (14 ounces) F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 45: Lsn 0300 A Lsn Improved Module 300 Ma

    2 x max. 500 mA with 2 stubs Dimensions (H x W x D) Approx. 127 x 96 x 60 mm (5.0 x 3.8 x 2.4 inches) Weight Approx. 225 g (7.9 ounces) Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 46: Nzm 0002 A Notification Appliance Zone Module

    6.3 A fuse. The maximum permissible contact load is 5 A at 120 V/230 V AC and 5 A at 30 V DC. The relay module can also be used as an extinguishing system interface in accordance with VdS 2496. F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 47: Rml 0008 A Relay Module For Low Voltage

    Relay module for low voltage with eight change-over relays (type C relays) for connecting external consumers e.g. signaling devices, smoke dampers etc. Each relay has one NO (normally open) contact and one NC (normally closed) contact. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 48: Accessories For Functional Modules

    PSK 0001 A Labeling Strips, Wide 210 x 297mm (DIN A4) White A4 paper, with pre-punched blank labeling strips for the function keys on the modules. Each sheet contains six labeling strips. F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 49: Cable Sets

    PDC 0000 A Cable Set HPD/BCM/Battery The three-part cable set is needed to connect a battery pack to the BCM Battery Controller Module via the HPD 0000 A Power Distributor. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 50 – EPH 0012 A + PMF 0004 A/PSF 0002 A – HBC 0010 A + PSB 0004 A/PSS 0002 A – HBE 0012 A + PSB 0004 A/PSS 0002 A F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 51: Networking

    For details on structure and configuration, please read the following technical information document: FPA 5000 network via fiber-optics converters "Phoenix Contact - PSI-MOS-DNET CAN/FO", which you can find on the Bosch Security Systems Extranet at http:// www.boschbest.de. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 52: Connection To Bis

    Connecting a Plena Voice Alarm System The FPA-5000 can transmit up to 120 triggering statuses for activating a Plena via the RS232 interface of the IOS 0020 A or IOS 0232 A. These statuses can be defined right down to detector level.

  • Page 53: Features

    Cable lengths of up to 1000 m between two control panels are possible in the network. – One control panel can be connected to a Building Management System via an OPC server. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 54: Installation/Configuration Notes

    | Installation/Configuration Notes Modular Fire Panel Installation/Configuration Notes NOTICE! FPA-5000 Fire Panels are designed for installation in interior areas! Basic Installation/Configuration Notes – Fuse the power lines using fuses with a conventional tripping current of 16 A (EU) or 20 A (US).

  • Page 55: The Difference Between Lsn Address And Detection Point

    Each LSN element is assigned its own unique LSN address for identification and monitoring. The address cards enable a corresponding number of detection points. An FPA-5000 administers up to 4096 addresses — and therefore 4096 detection points — as a standalone control panel.

  • Page 56: Achievable Cable Length With The Lsn 0300 A

    Y axis at 1000, go horizontally across to the right as far as the 20 mA curve and then from the point of intersection vertically down to the X axis. Read off the maximum number of network elements, in this example it is 8. F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 57 A maximum 500 m of additional cable length is permitted when using remote displays (e.g. MPA/FAA-420-RI). The total length of installed cable must not exceed the limit of 1600 m! Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 58 A maximum 500 m of additional cable length is allowed when using remote displays (e.g. MPA/FAA-420-RI). The total length of installed cable must not exceed the limit of 1600 m! F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 59: Achievable Cable Length With The Lsn 1500 A

    2 mA curve and then from the point of intersection vertically down to the X axis. Read off the maximum number of network elements, in this example it is 73. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 60 A maximum 500 m of additional cable length is allowed when using remote displays (e.g. MPA/FAA-420-RI). The total length of installed line must not exceed the limit of 3000 m! F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 61: Limits Of Sg 200 Application

    Maximum of 500 mA from the NZM 0002 A. Minimum voltage of 10 V at last SG 200 in loop. Number of Maximum cable Maximum cable Maximum distance first SG 200 resistance R [Ω] length [m] SG 200 - NZM 0002 A [m] 4100 2050 1370 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 62: System Limiting Values

    For systems conforming to EN 54-2, a redundant panel controller must be used when more than 512 detectors are connected. System limiting values of functional modules Functional module Max. number BCM-0000-B Battery Controller Module CZM 0004 A CZM 0004 A 4 Zone Conventional Module F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 63: Power Loss Of All Components Of The Fpa-5000

    20 mA Communication Module FPE-5000-UGM Interface Module IOP 0008 A Input/Output Module ENO 0000 B Fire Service Interface Module Power Loss of All Components of the FPA-5000 Component designation Power loss MPC-xxxx-B 4.92 W PRS 0002 A 0.18 W PRD 0004 A 0.33 W...

  • Page 64: Examples Of Housing Equipment

    PRD 0004 A UPS 2416 A <= 4 Module FBH 0000 A / FHS 0000 A HMP 0003 A 12 V / 40 Ah HPD 0000 A 12 V / 40 Ah F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 65 RLU 0000 A HPD 0000 A PRS 0002 A PRD 0004 A <= 4 Module HCP 0006 A FPO-5000-PSB-CH 12 V / 27 Ah 12 V / 27 Ah UPS 2416 A Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 66: Positioning Of The Bcm Battery Controller Modules

    Up to 2 BCM modules at the end of the last panel rail (PRD 0004 A) Each BCM module requires one UPS 2416 A Universal Power Supply. Depending on the back-up time, PMF 0004 A may also be required instead of the PSF 0002 A. F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 67 Two BCM modules at the end of the last panel rail (PRD 0004 A) – The remaining BCM modules on a panel rail in the center of the system. Each BCM module requires one UPS 2416 A Universal Power Supply. Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 68 12 V / 24 Ah 12 V / 24 Ah 12 V / 24 Ah 12 V / 24 Ah 12 V / 24 Ah UPS 2416 A UPS 2416 A F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 69: Redundancy

    Panel housing, additionally installed PRD 0004 A Panel Rail Long (2 x in the MPH 0010 A or 1 x in the CPH 0006 A) may CPH 0006 A be fitted with modules! Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 70: Connection Of Existing Conventional Peripherals

    Interface Module: Conventional detectors/devices that can be connected 3.13 Networking rules FPA-5000 panels with the MPC-xxxx-B Panel Controller and the FMR-5000 Remote Keypad can form a panel network. The panel controller is referred to simply as panel below. The number of networkable panels and remote keypads depends on the choice of network topology.
  • Page 71 Cable type for networking The CAN connection is a two-wire connection (CAN-H and CAN-L). Three-wire connection (CAN-H, CAN-L und CAN-GND) may be necessary in exceptional cases, e.g. with a high EMC Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 72 – Loop topology with redundant panel – Stub topology – Stub topology with redundant panel – Stub topology with redundant network – Stub topology with redundant network and redundant panel. F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 73: Configuration And Addressing

    (RSN) (see the figures in the circle on the circuit diagrams). Configuration The necessary DIP switch settings are listed for the various topologies and for a standalone panel (without and with redundant panel). Addressing and configuration of MPC-xxxx-B Panel Controller Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 74 | Installation/Configuration Notes Modular Fire Panel GNDIN2 G L H G L H G L H G L H CAN1 CAN1 CAN2 CAN2 F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 75 Modular Fire Panel Installation/Configuration Notes | en Addressing and configuration of FMR-5000 Remote Keypad RESET 1 - - 240 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 76: Standalone Panel And Redundant Standalone Panel

    | Installation/Configuration Notes Modular Fire Panel 3.14.1 Standalone Panel and Redundant Standalone Panel FPA-5000 FPA-5000 / FPA-1200 CAN internal CAN1 CAN1 x100 x100 x100 Network Address: ________ Network Address: ________ Network Address: ________ CAN1 Termination CAN1 Termination CAN1 Termination...

  • Page 77: Loop

    CAN1_GND CAN2_GND CAN1_GND CAN2_GND CAN1_GND CAN2_GND Connection Connection Connection Connection Connection PCTRL is PCTRL is PCTRL is Redundant-PCTRL Redundant-PCTRL Redundant-PCTRL No Off No Off No Off No Off No Off Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 78: Loop With Redundant Panel

    CAN1_GND CAN2_GND CAN1_GND CAN2_GND CAN1_GND CAN2_GND Connection Connection Connection Connection Connection PCTRL is PCTRL is PCTRL is Redundant-PCTRL Redundant-PCTRL Redundant-PCTRL No Off No Off No Off No Off No Off F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 79: Stub

    CAN1_GND CAN2_GND CAN1_GND CAN2_GND CAN1_GND CAN2_GND Connection Connection Connection Connection Connection PCTRL is PCTRL is PCTRL is Redundant-PCTRL Redundant-PCTRL Redundant-PCTRL No Off No Off No Off No Off No Off Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 80: Stub With Redundant Panel

    CAN1_GND CAN2_GND CAN1_GND CAN2_GND Connection Connection Connection Connection Connection PCTRL is PCTRL is PCTRL is Redundant-PCTRL Redundant-PCTRL Redundant-PCTRL No Off No Off No Off No Off No Off Figure 3.6 F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 81: Stub With Redundant Network

    CAN1_GND CAN2_GND CAN1_GND CAN2_GND CAN1_GND CAN2_GND Connection Connection Connection Connection Connection PCTRL is PCTRL is PCTRL is Redundant-PCTRL Redundant-PCTRL Redundant-PCTRL No Off No Off No Off No Off No Off Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 82: Stub With Redundant Network And Redundant Panel

    CAN1_GND CAN2_GND CAN1_GND CAN2_GND CAN1_GND CAN2_GND Connection Connection Connection Connection Connection PCTRL is PCTRL is PCTRL is Redundant-PCTRL Redundant-PCTRL Redundant-PCTRL No Off No Off No Off No Off No Off F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 83: Product Range/Order Numbers

    Scope of delivery: Mounting frame with installation materials 4.998.137.298 FSH 0000 A Mounting Frame Small, for PSF 0002 A or USF 0000 A housings, or the THP 2020 A Scope of delivery: Mounting frame with installation materials Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 84: 19" Rack Installation Kits For Frame-Mounting Housings

    FRK 0019 A 19" Rack Installation Kit, for installing a wall-mounting housing in a 19" cabinet. One installation kit is required for each housing. Scope of delivery: Two mounting brackets with installation materials F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 85: Front Doors (Made From Transparent Plastic)

    MPC-5000-B Panel Controller, with software, operating unit, labeling and documentation in French/Dutch F.01U.075.319 MPC-6000-B Panel Controller, with software, operating unit, labeling and documentation in Greek F.01U.075.338 MPC-7000-B Panel Controller, with software, operating unit, labeling and documentation in Romanian/English Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 86: Address Cards

    FMR-5000-15 Remote Keypad with software, labeling and documentation in Czech F.01U.075.337 FMR-5000-16 Remote Keypad with software, labeling and documentation in Hungarian F.01U.075.341 FMR-5000-17 Remote Keypad with software, labeling and documentation in Italian/German F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 87: Panel Rails

    2416 A Universal Power Supply, PRS 0001 A Panel Rail Short, BCM-0000- B Battery Controller Module, CPB 0000 A Cable BCM/UPS, CBB 0000 A Cable Set BCM/Battery F.01U.073.324 FPP-5000-TI Trouble Interface for FPP-5000 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 88: Cable Sets

    ENO 0000 B Fire Service Interface Module 4.998.153.243 CPB 0000 A Cable BCM/UPS is needed to connect a second UPS 2416 A Universal Power Supply to the BCM-0000-B Battery Controller Module F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 89: Installation

    Sufficient space should be left below and next to the control panel for any possible extensions, e.g. for an additional power supply or an extension housing. – Only use installation materials recommended by BOSCH-ST; interference resistance cannot otherwise be guaranteed. –...

  • Page 90: Installation Drawings For Mounting Frames

    | Installation Modular Fire Panel 5.2.1 Installation drawings for mounting frames (Dimensions in mm) FBH 0000 A/FHS 0000 A Mounting Frame Large 290 ±0,5 F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 91 Modular Fire Panel Installation | en FBH 0000 A/FHS 0000 A Mounting Frame Large with Housing 15,5 452,5 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 92 | Installation Modular Fire Panel FMH 0000 A Mounting Frame Medium 290 ±0,5 F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 93 Modular Fire Panel Installation | en FMH 0000 A Mounting Frame Medium with Housing 15,5 452,5 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 94 | Installation Modular Fire Panel FSH 0000 A Mounting Frame Small 290 ±0,5 FSH 0000 A Mounting Frame Small with Housing 15,5 452,5 F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 95: Installation Drawings For Wall-Mounting Housings

    Modular Fire Panel Installation | en 5.2.2 Installation drawings for wall-mounting housings Installation drawing for the HCP 0006 A Modular Panel Housing 12,5 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 96 (22 mm, 35 mm, 44 mm). Carefully punch out the pre-punched hole for the cable entry and fit a suitable cable grommet. When passing the cable into the housing, pierce a hole in the grommet with a pointed object, do not cut! F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 97 Modular Fire Panel Installation | en Installation drawing for the HBC 0010 A Modular Panel Housing 12,5 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 98 Carefully punch out the pre-punched hole for the cable entry and fit a suitable cable grommet. When passing the cable into the housing, pierce a hole in the grommet with a pointed object, do not cut! F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 99 Modular Fire Panel Installation | en Installation drawing for the HBE 0012 A Extension Housing 12,5 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 100 Carefully punch out the pre-punched hole for the cable entry and fit a suitable cable grommet. When passing the cable into the housing, pierce a hole in the grommet with a pointed object, do not cut! F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 101 Modular Fire Panel Installation | en 101 Installation drawing for the PSB 0004 A extension housing 12,5 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 102 Carefully punch out the pre-punched hole for the cable entry and fit a suitable cable grommet. When passing the cable into the housing, pierce a hole in the grommet with a pointed object, do not cut! F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 103 Carefully punch out the pre-punched hole for the cable entry and fit a suitable cable grommet. When passing the cable into the housing, pierce a hole in the grommet with a pointed object, do not cut! Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 104: Installation Dimensions For 19" Rack Installation Kits

    DIB 0000 A 217 mm (8.54") PSB 0004 A 308 mm (12.13") HCP 0006 A 409 mm (16.10") HBC 0010 A 609 mm (23.98") HBE 0012 A 609 mm (23.98") F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 105 FRS 0019 A, 19" Rack Installation Kit for the small PSF 0002 A/USF 0002 A/THP 2020 A frame-mounting housings NOTICE! Space required in the 19” cabinet: 265 x 449 x 233.5 mm Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...

  • Page 106: Installation Dimensions For The Fmr-5000 Remote Keypad

    106 en | Installation Modular Fire Panel 5.2.4 Installation dimensions for the FMR-5000 Remote Keypad Surface mounting F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 107 Modular Fire Panel Installation | en 107 Flush mounting 250 x 310 Bosch Sicherheitssysteme GmbH Product Information F.01U.028.089 | 5.4 | 2009.08...
  • Page 108 108 en | Installation Modular Fire Panel Tilt mounting 244 x 304 F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...

  • Page 109: Maintenance And Service

    (e.g. WEEE in Europe). Additional documentation Persons with access rights can download the installation and operating instructions enclosed with the device as a PDF file from the "Bosch Sicherheitssysteme Extranet" at http:// www.boschbest.de. NOTICE! The table previously shown here listing the hexadecimal error codes can now be found in a separate document on the BOSCH Extranet: LSN Diagnostic Data (F.01U.081.090).
  • Page 110 110 en | Maintenance and Service Modular Fire Panel F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH...
  • Page 112 Bosch Sicherheitssysteme GmbH Robert-Koch-Straße 100 D-85521 Ottobrunn Germany Telefon 089 6290-0 089 6290-1020 www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2009...

Table of Contents
