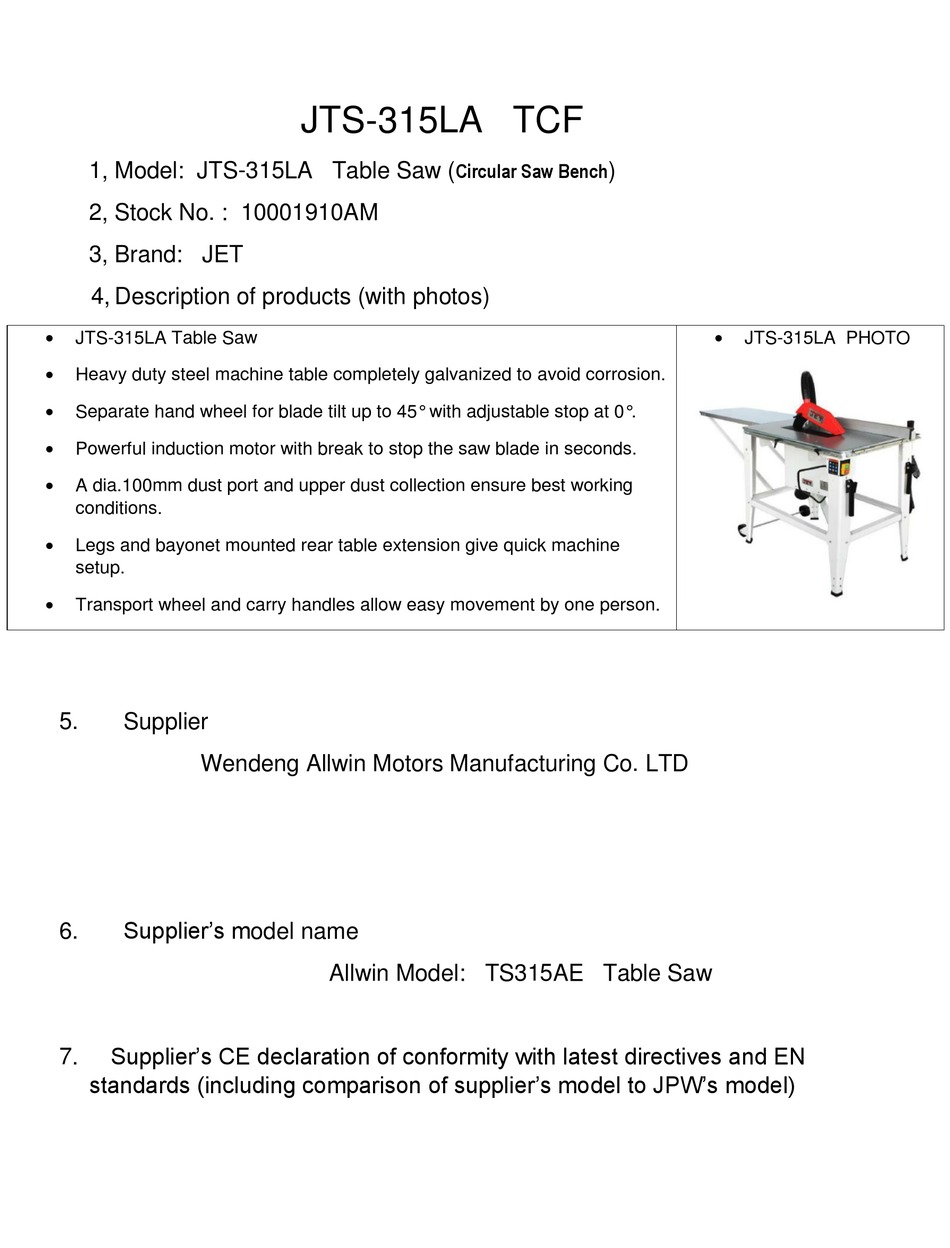

Page 1 JTS-315LA TCF Circular Saw Bench 1, Model: JTS-315LA Table Saw ( 2, Stock No. : 10001910AM 3, Brand: JET 4, Description of products (with photos)   JTS-315LA Table Saw JTS-315LA PHOTO  Heavy duty steel machine table completely galvanized to avoid corrosion.
Page 3 JPW’s CE declaration of conformity with latest directives and EN standards...
Page 4 CE certificates...
Page 7 10. Labels (ID label, motor label, warning label…) 11. Packing information (with photos) 12. User manual (including part list, machine drawings and electric diagrams)
Page 8 JTS-315LA Table Saw Original: Operating Instructions JPW (Tool) AG Tämperlistrasse 5 CH-8117 Fällanden Switzerland Phone +41 44 806 47 48 +41 44 806 47 58 www.jettools.com M-10001910AM 2016-03...
Page 9 CE-Conformity Declaration Product: Table Saw JTS-315LA Stock Number: 10001910AM Brand: JET Manufacturer: JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden, Switzerland On our own responsibility we hereby declare that this product complies with the regulations * 2006/42/EC Machinery Directive * 2014/30/EU...
Page 10: Table Of Contents
Dear Customer, Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been prepared for the owner and operators of a JET JTS-315LA table saw to promote safety during installation, operation and maintenance procedures.
Page 11 remove tie, rings, watches, other Make sure that small cut off extinguisher operation and place. jewellery, and roll up sleeves above workpieces will not be caught and Do not use the machine in a dump the elbows. thrown away by the rising saw blade environment and do not expose it to teeth.
Page 12: Remaining Hazards
make sure that it matches the raving (Inspection tolerance 4 dB) H………..Tilting handle knife. Work piece plywood 16mm: I…………... Blade rising handle J(J1)… …..Leg stand The raving knife thickness must be in Acoustic power level K……………Blade between sawblade body thickness (according to EN ISO 3746): L………..…...
Page 13 Screw the side struts (O) and legs (J,J1) loosely together. Then mount the Support Bracket (U). Mount the four rubber feet (P) on the legs. Fig 8 Fig.5 Install blade guard: Install dust port: See chapter 7.3 Fasten the extractor connection to the bottom of the chip box (Q) with 4 Install rip fence carrier: screw (U).
Page 14: Dust Connection
5.3 Dust connection Attention: A.3.: Crosscutting on rip fence A.4.: Use of push wood handle Before initial operation, the machine The condition of the blade should be must be connected to a dust checked before each machining extractor. The suction should switch process.
Page 15: Mounting The Raving Knife
Fig 18 Fig 16 Fig 14 Start the machine with care. Order for installation: Fig. 14 7.6 Adjusting 90°stop The saw guard must be lowered to -Blade set screw (02) the work piece to minimise the The positive stop is adjusted at the amount of exposed teeth.
Page 16: Troubleshooting
(break motor). If breaking time should exceed 10 seconds, the motor break assembly needs to be replaced. Contact your Jet service station immediately. This symbol indicates separate collection for electrical and electronic 9. Trouble shooting equipment required under the WEEE Motor doesn’t start...
Page 17: Jts315La
Appendix A...
Page 18: Www.jettools.com Or Can Be
JTS-315LA Table Saw 10001910AM ~230V 50Hz PARTS LIST JPW (Tool) AG Tämperlistrasse 5 CH-8117 Fällanden Switzerland Phone +41 44 806 47 48 +41 44 806 47 58 www.jettools.com P- 10000910AM 2016-02...
Page 19: Jts315La
Parts Breakdown for JTS-315LA Table Saw...
Page 20 Parts List for JTS-315LA Table Saw Index No. Part No. Description Size Qty. JTS315LA-001 Rubber Foot JTS315LA-002 JTS315LA-003 Pushing Handle JTS315LA-004 Pushing Handle Cover JTS315LA-005 Pushing Handle Seat JTS315LA-006 Fit Bolt JTS315LA-007 Rip Fence Carrier JTS315LA-008 Front Stem JTS315LA-009 Rip Fence...
Page 21 Parts List for JET JTS-315LA Table Saw Index No. Part No. Description Size Qty. JTS315LA-056 Height Scale JTS315LA-057 Dust Extractor JTS315LA-058 Switch & Plug JTS315LA-059 Hook JTS315LA-060 Push Stick JTS315LA-061 Wrench JTS315LA-062 Dust Extractor Pipe JTS315LA-063 Hex Nut JTS315LA-064 Washer...
Page 22: Jts315La
Wiring Diagram for JTS-315LA Table Saw 10001910AM…………………..….. ~ 230V, 50Hz colour of strands Litzenfarben couleur des cordons black schwarz noir white weiß blanc blue blau bleu rouge brown braun brun grey grau gris GNYE green-yellow grün-gelb vert-jaune meaning of symbol Bedeutung der Zeichen interprétation...
Page 23: Jts315La
13. Test reports with risk analysis Equipment: Table Saw Type: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, TS-315E, TS-315F, TS- 315G (Series No.: 15011601, 15011602, 15011603, 15011601, 15011602, 15011601, 15011602, 15011603) Wendeng Allwin Motors Manufacturing Co. LTD Client: Risk Assessment Measures Hazards See below Mechanical hazards (caused for example by:...
Page 24: Jts315La
Inherently safe machinery design and construction and Shearing hazard take necessary protection measures: 1. Request saw blade guard is provided to guard that portion of the sawblade above the table 2. Slot for the sawblade in the table meets requirements of standards 3.
Page 25: Jts315La
Inherently safe machinery design and construction and take Impact hazard necessary protection measures: 1.Request saw blade guard is provided to guard that portion of the sawblade above the table 2.Slot for the sawblade in the table meets requirements of standards 3.The sawblade below the table can’t be access by a fixed guard 4.All drive mechanisms are guarded...
Page 26: Jts315La
Burns an scalds, by a possible Not relevant contact of persons, by flames or explosions and also by the radiation of heat sources Health-damaging effects by hot or Not relevant cold work environment Hazards generated by noise, resulting in : Inform users of the residual risks: Hearing losses (deafness).other The warning for wearing safety goggles and hearing protection is...
Page 27: Jts315La
Inform users of the residual risks: Inadequate consideration of human The machine should be put on a support base so that position of hand-arm or foot-leg anatomy controls is positioned>=600mm above floor level. Inform users of the residual risks: Neglected use of personal protection Relevant contents are raising up in manual equipment Not significant...
Page 28: Jts315La
Inherently safe machinery design and construction: 11.3 Starting and stopping devices Comply to EN 61029-1:2009+A11 and EN 61029-2-1:2012. Inform users of the residual risks: 11.4 Safety signs and signals All relevant items are mentioned in manual Inform users of the residual risks: 11.5 All kinds of information or warning All relevant items are mentioned in manual...
Page 29: Jts315La
TÜV Rheinland / CCIC (Qingdao) Co., Ltd. Member of TÜV Rheinland Group Wendeng Allwin Motors Manufacturing Date : 2015-11-16 Co., Ltd. Our ref. : OC No. 15 Sichan Road Wendeng, Shandong 264400 P. R. China : Testing Report Type of Equipment : Circular Saw Bench Model Designation : Refer to test report...
Page 31: Jts315La
Page 2 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Grundlegende Sicherheits- und Gesundheitsschutzanforderungen Essential health and safety requirements Allgemeines...
Page 32: Jts315La
Page 3 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Risiken durch Oberflächen, Kanten und Checked and satisfied 1.3.4.
Page 33: Jts315La
Page 4 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Lärm Checked and satisfied 1.5.8.
Page 34: Jts315La
Page 5 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Kennzeichnung der Maschinen Checked and satisfied Auf jeder Maschine müssen...
Page 35: Jts315La
Page 6 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Betriebsanleitung Checked and satisfied Jeder Maschine muss eine...
Page 36: Jts315La
Page 7 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Not applicable Allgemeines 2.2.1.
Page 37: Jts315La
Page 8 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Not applicable Stillsetzen / Bremsen 3.3.3.
Page 38: Jts315La
Page 9 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Not applicable Batterien 3.5.1.
Page 39: Jts315La
Page 10 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Not applicable Schutzmaßnahmen gegen mechanische Gefährdungen...
Page 40: Jts315La
Page 11 of 11 Report No.: 2006/42/EC Anhang zu / annex of Test Report No.: 17706687 001 Part I of II Abschnitt Anforderung / Requirement Umsetzung durch Abschnitt der Norm, anderes: Implementation by clause of standard , other: Clause 2006/42/EC Annex I Not applicable Zwecktauglichkeit 4.1.3.
Page 42: Jts315La
Page 2 of 63 Test Report No.: 17706687 001 Part II of II EN 61029-1:2009+A11 TEST REPORT EN 61029-1:2009+A11 Safety of transportable motor-operated tools Report reference No......: 17706687 001 Part II of II Compiled by (+ signature) ....: See cover page ............
Page 43: Jts315La
Page 3 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Test item particulars: Equipment mobility ............: Transportable Operating condition ............: S6 40% Tested for IT power systems ........: N/A IT testing, phase-phase voltage (V) ......
Page 44: Jts315La
Page 4 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Copy of the marking plate :...
Page 45: Jts315La
Page 5 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Differences between models: All models are similar except motor and working table configuration. 1. Motor: TS-315A, TS-315B, TS-315D, TS-315AE and TS-315BE are equipped with a same motor, for TS-315A, TS- 315B and TS-315D, the nominal rating is: 230V~, 50Hz, 2.2kW S6 40% , for TS-315AE and TS-315BE, the nominal rating is: 230V~, 50Hz, 2.0kW S6 40%.
Page 46: Jts315La
Page 6 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict All models have a same fixed 800mmx550mm working table. i) TS-315A, TS-315AE and TS-315E are equipped with an 800mmx400mm extension table which can be fixed in the rear or right side of fixed table, for these models no exclusive cross-cutting fence provided, the rip fence can be used as cross-cutting fence when fitted on the left side of fixed working table.
Page 47: Jts315La
Page 7 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict GENERAL REQUIREMENTS Safety under normal use condition Principles of safety integration have been taken into account. Materials used for construction No obvious PAK/PAH conspicuousness is observed.
Page 48: Jts315La
Page 8 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict load conditions not specified in part 2 Accessories within the scope of part 2 No such accessories Other accessories No such accessories Electronic speed control devices...
Page 49: Jts315La
Page 9 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Symbol or nature of supply Rated frequency or range in hertz 50Hz Rated input in W or kW or rated current in amperes See labels Rated current in A, if greater than 10A The business name and address of the See labels...
Page 50: Jts315La
Page 10 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Nature of supply besides voltage Dimension of class II symbol Class I Placement of class II symbol Marking of terminals Neutral conductor No conductors exclusively used...
Page 51: Jts315La
Page 11 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Name and address of the manufacturer anu a turer s model or t e re eren e Repeat of safety markings Mass of the tool Requirements for handbook...
Page 52: Jts315La
Page 12 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict including the following. Read all these instructions before attempting to operate this product and save these instru tions d) Maintenance and servicing Checked ok...
Page 53: Jts315La
Page 13 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict type as specified in these instructions, Replacement of the plug or the supply cord shall always be carried out by the manufacturer of the tool or his service organization, Keep water clear off the electrical parts of the...
Page 54: Jts315La
Page 14 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict method and may be used for comparing one tool with another; that the declared vibration total value may also be used in a preliminary assessment of exposure.
Page 55: Jts315La
Page 15 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Measured voltage (V) after 1 sec......: 0V STARTING Starting under all normal voltage conditions Operated reliably Centrifugal and other automatic starting switches Not applicable Testing, starting with lower voltage ......
Page 56: Jts315La
Page 16 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict 11.4 Operating time TS-315D: 1.06Ur: 90min, 0.94Ur: 90min TS-315G: 1.06Ur: 77min, 0.94Ur: 119min 11.5 Thermal cut-outs not operate and temperature rise Not applicable not exceed table 2 11.6...
Page 57: Jts315La
Page 17 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict 13.2.1 Noise reduction Noise reduction at tools is an integral part of the design process and shall be achieved by particularly applying measures at source to control noise, see for example EN ISO 11688-1.
Page 58: Jts315La
Page 18 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict 13.2.4 Operating conditions Tools are tested under the two operating conditions "no load" and "load". The measurement under "load" shall be carried out during processing of a work piece or under external mechanical load equivalent to normal operation.
Page 59: Jts315La
Page 19 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict shall be made as a dual number noise emission declaration according to EN ISO 4871. 13.3 Vibration 13.3.1 Vibration reduction...
Page 60: Jts315La
Page 20 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict In this subclause, the following symbols are used. (t) instantaneous single-axis acceleration value frequency-weighted hand-transmitted vibration at time t, in m/s root-mean-square (r.m.s.) single-axis acceleration value of the frequency- weighted hand-transmitted vibration, in...
Page 61: Jts315La
Page 21 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict 13.3.4.1 Direction of measurement Vibration transmitted to the hand is related to the three orthogonal directions X, Y and Z as shown in Figure Z1.
Page 62: Jts315La
Page 22 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict varying with time. The measurement time shall be as long as reasonably possible and normally not less than 8 s for hand-transmitted vibration measurements.
Page 63: Jts315La
Page 23 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict maximum shock acceleration shall be considered in the selection of transducers. Fastening of transducers 13.3.5.2.2 Guidance on mounting of transducers is given in EN ISO 5349-2.
Page 64: Jts315La
Page 24 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict necessary to provide realistic emission levels, tests shall be carried out under more than one operating condition or set of operating conditions as defined in the relevant Part 2.
Page 65: Jts315La
Page 25 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict typical and normal use of the machine under test. The measurement may be carried out by processing a work piece or under external mechanical load equivalent to normal operation.
Page 66: Jts315La
Page 26 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict To determine the uncertainty K of the declared value according to EN 12096, the following formula shall be used that takes the standard deviation into account: K= 1,65 s or K= 1,5 m/s2, whatever is...
Page 67: Jts315La
Page 27 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict integrators, recording system, etc.); h) position and fastening of transducers, measuring directions and individual vibration values when relevant (e.g. recorded by photos); i) the arithmetic mean total vibration ah, for each operator the total vibration value a and the...
Page 68: Jts315La
Page 28 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict appreciable extent and that there is no trace of water on insulation for which creepage distances are specified in 27.1.
Page 69: Jts315La
Page 29 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Overload protection devices Electric strength test Checked and found satisfactory 16.2 Operation with no load 24hrs with 1.1times rating voltage (253V for TS-315D, 440V for TS-315G) and 24hrs with 0.9times rating voltage...
Page 70: Jts315La
Page 30 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Adjustment of guard For fixed guards that are to be removed at the place of use as part of the routine maintenance procedure, as described in the instruction manual, the fastenings shall remain attached to the guard or the tool...
Page 71: Jts315La
Page 31 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict 19.1 Mechanical strength under normal use condition 19.2 Blows on outer surfaces with impact hammer 3 blows with energy of 1Nm are respectively applied on saw blade top guard, switch box, capacitor box, dust chute, and...
Page 72 Page 32 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Ageing test ..............: Not applicable 20.14 Exposure of insulation to oil grease and similar Internal wires are adequately substances fixed so the insulation is unlikely to be exposed to oil...
Page 73 Page 33 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict  in the plug or  in a separate control box with one or more socket outlets in accordance with EN 60309-2 with the earthing contact position 1 h.
Page 74 Page 34 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict COMPONNETS 22.1 Requirements for components Components complying with the applicable See appended table CENELEC standard Components marked with operating characteristic Capacitors connected in series with a motor For models TS-315A, TS- winding...
Page 75 Page 35 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict 22.6 Capacitor between contacts of thermal cut-outs 22.7 Components for basic radio and interference suppression 22.8 Inductors for basic radio and interference suppression inserted in the earthing circuit Testing of inductors ..........
Page 76 Page 36 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict cord Glands used as cord anchorage Testing for suitability of flexible cable or cord Push test ..............: Pull test ..............
Page 77 Page 37 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict user, no terminals provided for external conductors on this machine. Screws and nuts Soldered connection for input <100W 24.2 Cross-sectional area of conductors of terminals for type X attachment...
Page 78 Page 38 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict 24.11 Terminals for type X and type M attachment 24.12 Accessibilty of terminal device 24.13 Independent retaining of the conductor inside the termination 24.14 Escape of wire of stranded conductor from the...
Page 79 Page 39 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Material of screws No screws of metal which are soft or liable to creep. Screws of insulation material No screws of insulation material Material of replaceable screws...
Page 80 Page 40 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict RESISTANCE TO HEAT, FIRE AND TRACKING 28.1 Resistant to heat of external parts of insulation The testing is carried out for material TS-315D: switch box and capacitor box (75°...
Page 81 Page 41 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Temp. Rise Test (TS-315D) TABLE: temperature rise measurement under normal use conditions test voltage (V) ............. : 216.2V t1 (C) ..............
Page 82 Page 42 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Temp. Rise Test (TS-315G) TABLE: temperature rise measurement under normal use conditions test voltage (V) ............. : 376.0V t1 (C) ..............
Page 83 Page 43 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict TABLE: list of critical components for TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE object/part No. manufacturer/trademark type/model mark(s) of conformity technical data 1.0 Motor for...
Page 84 Page 44 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Ø315X30X3.0X24T, body TUV SUD (B YANGZHOU Longzhongyuan Tools 9.0 Saw blade thickness 2.0mm, max speed 14 04 83717 Manufacturing Co., Ltd 5000/min 003)
Page 85 Page 45 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Changzhou Ainuo Electronics Technical VDE(4003070 ( alternative ) 17AM, AC250V,130℃ Co., Ltd. 6.0 Terminal Heavy Power Co., Ltd. PA9, 450V, 24A, 1.0-2.5mm block (40016425)
Page 86 Page 46 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-1:2009+A11 Requirement  Test Clause Result - Remark Verdict Distance through insulation The distance through capacitor box is 2mm. TABLE: clearance and creepage distance measurements for TS-315G clearance cl and creepage U r.m.s.
Page 87 Page 47 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict SCOPE The machine is used for This European Standard applies to transportable cutting wood or similar circular saw benches intended for cutting wood materials, saw blade and analogous materials, plastics and nonferrous...
Page 88 Page 48 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict RATING CLASSIFICATION MARKING Addition: Circular saw benches shall be marked Provided on the label and on with: the machine.
Page 89: Table Insert
Page 49 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict Provided on the saw blade Addition: The direction of rotation of the saw blade fixed guard under table by a shall be indicated on a fixed part of the tool in the vicinity of the spindle axis by an arrow raised or raised arrow.
Page 90 Page 50 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict Z103) instruction to use only saw blades recommended by the manufacturer, which conform to EN 847-1, if intended for wood and similar materials;...
Page 91: Blade Guard
Page 51 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict Use push-sticks or push blocks: to feed the workpiece past the saw blade; Use and correct adjustment of the riving knife;...
Page 92 Page 52 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict Results of the dust efficiency measurement as defined in 13.1. NOTE Sketches may be used to illustrate the modes of operation.
Page 93 Page 53 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict LEAKAGE CURRENT ENVIRONMENTAL REQUIREMENTS 13.2.1 The major sound sources of tools are: - the saw blade; - gears;...
Page 94 Page 54 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict 18.1.101.1 Circular saw benches shall have a top guard for An adjustable guard provided. the crown and the front of the saw blade that may be an adjustable guard, a self-closing guard or a combination of these.
Page 95 Page 55 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict saw blade at least down to the root of the teeth and at least between the upper surface of the workpiece and the riving knife, c)Return to the initial position, in contact with the top of the table, after the workpiece has moved...
Page 96 Page 56 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict with the following conditions: a) Above the saw table the radial distance between The radial distance between the riving knife and the toothed rim of the saw the riving knife and the blade shall not at any point exceed 5mm as shown...
Page 97 Page 57 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict Riving knives shall have sufficient resiliency. 18.1.103.Z2 After the load is removed the deflection is: 0.3mm Compliance is checked by the following test: With the riving knife adjusted as specified in 18.1.103.3 for the largest saw blade for which...
Page 98 Page 58 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict 18.1.104.2 At maximum depth of cut for the maximum d=12mm diameter saw blade for which the tool is The area surrounding the designed the slot in the table surface shall saw blade where it passes...
Page 99 Page 59 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict cross-cutting fence are provided separately. The distance between the end of the cross- The distance between the cutting fence closest to the saw blade and the end of the cross-cutting saw blade shall not exceed 15 mm.
Page 100 Page 60 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict provided. The surface that may contact the saw It is made of plastic, its blade shall be constructed from shatterproof length is 400mm.
Page 101 Page 61 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict MECHANICAL STRENTH 19.1 The saw blade guard above the table shall be The thickness of saw blade manufactured from: top guard: 3mm.
Page 102 Page 62 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict CONSTRUCTION The actuation of the mains switch or control The actuation of the mains 20.18 device shall not be affected by, nor access to the switch or control device is not switch or control device be restricted by, be affected by, nor access to...
Page 103: Wheel
Page 63 of 63 Test Report No.: No.: 17706687 001 Part II of II EN 61029-2-1:2012 Requirement  Test Clause Result - Remark Verdict 20.21 Circular saw benches are machines where a considerable amount of dust may be expected to be produced.
Page 104 Number: MS-0008446 Version: 2013-12-20 Page: 1 of 6 Created by: Larry Wang Approved by: Wang Huibo Appendix 9: Measuring Instruments and Test Equipments 附件 9：测试设备清单 Test Report No.17706687 001 Page No.: 6 报告号页数 Calibration Name of Equipment Type No. & Series No. Due Date YYYY.MM.DD Jointed Test Finger...
Page 105 Number: MS-0008446 Version: 2013-12-20 Page: 2 of 6 Created by: Larry Wang Approved by: Wang Huibo Digital LCR Tester 9912 N040 2016.08.11 数字式 LCR 测量仪 029902002 Needle-flame Tester NF-II N047 2016.08.08 针焰试验仪 20603 Electronic Scale ACS-DW N051 2016.02.02 电子计重秤 43246 Sound Level Meter 2239A N052...
Page 106 Number: MS-0008446 Version: 2013-12-20 Page: 3 of 6 Created by: Larry Wang Approved by: Wang Huibo Gauge for interchangeability N133 Bild 2 2016.04.12 欧式插头量规 Gauge for single-pole insertion N134 Bild 4 2017.04.09 欧式插头量规 Test finger N138 75mm 2016.03.01 测试手指 Pressure gauge 0~600kPa N139 2016.02.28...
Page 107 Number: MS-0008446 Version: 2013-12-20 Page: 4 of 6 Created by: Larry Wang Approved by: Wang Huibo 绝缘电阻测试仪 8205 Electronic load AN23103H N197 2015.12.03 电子负载 0823H04018 Electronic-load ITECH N198 2016.02.16 电子负载 002001186374001047 Electronic-load ITECH N199 2016.02.16 电子负载 002001186374001068 Manometer 0~60Mpa N200 2015.12.22 压力表...
Page 108 Number: MS-0008446 Version: 2013-12-20 Page: 5 of 6 Created by: Larry Wang Approved by: Wang Huibo 测试针 test plug for antenna coa， xial sockets N264 HY-TA-2 2016.06.19 天线插头 N265 IEC 62151 Fig 3 HY-TP-21 2016.06.19 Soften temperature tester N266 RV-300E 2016.07.20 热变形维卡测试仪...
Page 109 Number: MS-0008446 Version: 2013-12-20 Page: 6 of 6 Created by: Larry Wang Approved by: Wang Huibo 测试指 2016.09.07 N326 PA140A Hysteresis Dynamometer 2016.10.07 N327 AG38 数字式磁滞测功机 Hysteresis Dynamometer 2016.09.08 N327-1 CC40KG 数字式磁滞测功机 Hysteresis Dynamometer 2016.09.08 N327-1 CC300KG 数字式磁滞测功机 Resistor 2KΩ N528 2KΩ...
Page 110: Motor
P H O T O D O C U M E N T A T I O N 17706687 001 Circular Saw Bench TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, TS- 315E, TS-315F, TS-315G Wendeng Allwin Motors Manufacturing Co., Ltd. This documentation consists of pages (excluding this cover page).
Page 111: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00001 Appearance I (TS-315A) Pic00002 Appearance II (TS-315A) - Page 1 of 12 -...
Page 112: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00003 Appearance III (TS-315A) Pic00004 Appearance IV (TS-315A) - Page 2 of 12 -...
Page 113: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00005 Parts under table (I) Pic00006 Parts under table (II) - Page 3 of 12 -...
Page 114: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00007 Parts under table (III) Pic00008 Parts under table (IV) - Page 4 of 12 -...
Page 115: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00009 Rip fence used as cross-cutting fence (TS-315A) Pic00010 Slot for cross-cutting fence (TS-315A) - Page 5 of 12 -...
Page 116: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00011 Guard under table (Saw blade most downwards position) Pic00012 Dust chute opening - Page 6 of 12 -...
Page 117: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00013 Distance from dust chute to saw teeth (saw blade lowest position) Pic00014 Internal parts - Page 7 of 12 -...
Page 118: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00015 Riving knife Pic00016 Flanges - Page 8 of 12 -...
Page 119: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00017 Accessories Pic00018 Working table (TS-315B) - Page 9 of 12 -...
Page 120: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00019 Working table (TS-315D) Pic00020 Motor parts (TS-315A) - Page 10 of 12 -...
Page 121: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00021 Motor connection box (TS-315A) Pic00022 Motor parts (TS-315G) - Page 11 of 12 -...
Page 122: Jts315La
Photo Documentation 17706687 001 Report Number: TS-315A, TS-315B, TS-315D, TS-315AE, TS-315BE, Model: TS-315E, TS-315F, TS-315G Pic00023 Motor connection box (TS-315G) - Page 12 of 12 -...
Page 123: Jts315La
TÜV Rheinland / CCIC (Qingdao) Co., Ltd. Member of TÜV Rheinland Group Wendeng Allwin Motors Manufacturing Date : 2015-11-18 Co., Ltd. Our ref. : ZHL No. 15 Sichan Road Wendeng, Shandong 264400 P. R. China : Testing Report Type of Equipment : Circular Saw Bench Model Designation : Refer to test report...
Page 124: Jts315La
Circular Saw Bench...
Page 125: Jts315La
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 2 von 18 Page 2 of 18 ： Test Report No. TEST SUMMARY 4.1.1 AC M ARMONICS ON AINS Result: Passed 4.1.2 OLTAGE CHANGES VOLTAGE FLUCTUATIONS ON MAINS Result: Passed 4.1.3 AINS ERMINAL ONTINUOUS ISTURBANCE...
Page 126: Jts315La
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 3 von 18 Page 3 of 18 ： Test Report No. Contents TEST SITE ................................. 4 .............................. 4 ACILITY ..................4 IST OF EST AND EASUREMENT NSTRUMENTS GENERAL PRODUCT INFORMATION ...................... 5 .....................
Page 127: Test Site
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 4 von 18 Page 4 of 18 ： Test Report No. 1 Test Site 1.1 Test Facility Laboratory: Qingdao Supervision & Testing Center of Product Quality Address: No. 173 Shenzhen Road, Laoshan District, Qingdao 266061, Shandong The used test equipment is in accordance with CISPR 16-1 series standards for measurement of radio interference.
Page 128: General Product Information
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 5 von 18 Page 5 of 18 ： Test Report No. 2 General Product Information 2.1 Product Function and Intended Use The EUTs (equipment under test) are ordinary circular saw bench for household and similar use.
Page 129: Test Set-Up And Operation Modes
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 6 von 18 Page 6 of 18 ： Test Report No. 3 Test Set-up and Operation Modes 3.1 Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible emission level.
Page 130: Test Results E M I S S I O N
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 7 von 18 Page 7 of 18 ： Test Report No. 4 Test Results E M I S S I O N 4.1 Emission in the Frequency Range up to 30 MHz 4.1.1 Harmonics on AC Mains Result: Passed...
Page 131: Jts315La
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 8 von 18 Page 8 of 18 ： Test Report No. Table 2: Harmonic currents measurement result for TS-315A Equipment category: Class A; Test voltage: AC 230V, 50Hz Fundamental current I1: 2.257A; Power factor: 0.679; Active input power: 373.5W. Harmonic Result (avg.) 100% limits...
Page 132: Jts315La
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 9 von 18 Page 9 of 18 ： Test Report No. Table 3: Harmonic currents measurement result for TS-315E, L1 Equipment category: Class A; Test voltage: AC 400V, 50Hz Fundamental current I1: 1.819A; Power factor: 0.108; Active input power: 45.58W. Harmonic Result (avg.) 100% limits...
Page 133: Jts315La
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 10 von 18 Page 10 of 18 ： Test Report No. Table 4: Harmonic currents measurement result for TS-315E, L2 Equipment category: Class A; Test voltage: AC 400V, 50Hz Fundamental current I1: 1.784A; Power factor: 0.106; Active input power: 43.6W. Harmonic Result (avg.) 100% limits...
Page 134: Jts315La
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 11 von 18 Page 11 of 18 ： Test Report No. Table 5: Harmonic currents measurement result for TS-315E, L3 Equipment category: Class A; Test voltage: AC 400V, 50Hz Fundamental current I1: 1.818A; Power factor: 0.088; Active input power: 37.17W. Harmonic Result (avg.) 100% limits...
Page 135: Voltage Changes, Voltage Fluctuations On Ac Mains
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 12 von 18 Page 12 of 18 ： Test Report No. 4.1.2 Voltage changes, voltage fluctuations on AC mains Result: Passed Date of testing 03.11.2015 Test procedure EN 61000-3-3:2013 Ambient Tempreture:20°C, relative humidity: 50% condition According to the characteristics of the sample, as specified by clause 5 of the basic standard, following limits apply:...
Page 136: Mains Terminal Continuous Disturbance Voltage
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 13 von 18 Page 13 of 18 ： Test Report No. 4.1.3 Mains Terminal Continuous Disturbance Voltage Result: Passed Test procedure EN 55014-1:2006+A1+A2 and CISPR 16-1 series standards The only electrical part that may generate RF noise incorporated in the sample is an induction motor.
Page 137: Emission In The Frequency Range Above 30 Mhz
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 14 von 18 Page 14 of 18 ： Test Report No. 4.2 Emission in the Frequency Range above 30 MHz 4.2.1 Disturbance Power in the Frequency Range from 30MHz to 300MHz Result: Passed Test procedure EN 55014-1:2006+A1+A2 and CISPR 16-1 series standards...
Page 138: Radiated Disturbance In The Frequency Range From 30Mhz To 1000Mhz
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 15 von 18 Page 15 of 18 ： Test Report No. 4.2.2 Radiated Disturbance in the Frequency Range from 30MHz to 1000MHz Result: Passed Test procedure EN 55014-1:2006+A1+A2 and CISPR 16-1 series standards The only electrical part that may generate RF noise incorporated in the sample is an induction motor.
Page 139: Test Results I M M U N I T Y
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 16 von 18 Page 16 of 18 ： Test Report No. 5 Test Results I M M U N I T Y The immunity test was not necessary for the EUT because it belongs to category I apparatus according to EN 55014-2:1997+A1+A2, i.e., “Category I: Apparatus containing no electronic control circuitry.
Page 140: Photographs Of The Test Set-Up
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 17 von 18 Page 17 of 18 ： Test Report No. 6 Photographs of the Test Set-Up Photograph 1: Set-up for emission of harmonics and voltage fluctuation...
Page 141: List Of Tables
Produkte Products Prüfbericht - Nr.: 17706754 001 Seite 18 von 18 Page 18 of 18 ： Test Report No. 7 List of Tables Table 1: List of Test and Measurement Equipment ...................... 4 Table 2: Harmonic currents measurement result for TS-315A ..................8 Table 3: Harmonic currents measurement result for TS-315E, L1 ................

Jet JTS-315LA Operating Instructions Manual

Gb - English Operating Instructions

1 Declaration of Conformity

2 Warranty

3 Safety

4 Machine Specifications

5 Transport and Start up

6 Machine Operation

7 Setup and Adjustments

8 Maintenance and Inspection

9 Troubleshooting

10 Environmental Protection

Www.jettools.com or Can be

Parts Breakdown for Jts-315La Table Saw

Jts315La

1 Test Site

2 General Product Information

3 Test Set-Up and Operation Modes

4 Test Results E M I S S I O N

5 Test Results I M M U N I T y

6 Photographs of the Test Set-Up

7 List of Tables

8 List of Photographs

Quick Links

Chapters

Related Manuals for Jet JTS-315LA

Summary of Contents for Jet JTS-315LA

Table of Contents
