Invacare® Modulite
Standard backrest tube*
Backrest height
48 cm
Tube diameter
22 mm
* used with one-piece seat plate only.
Installation follows the same defined order of steps for all backrests.

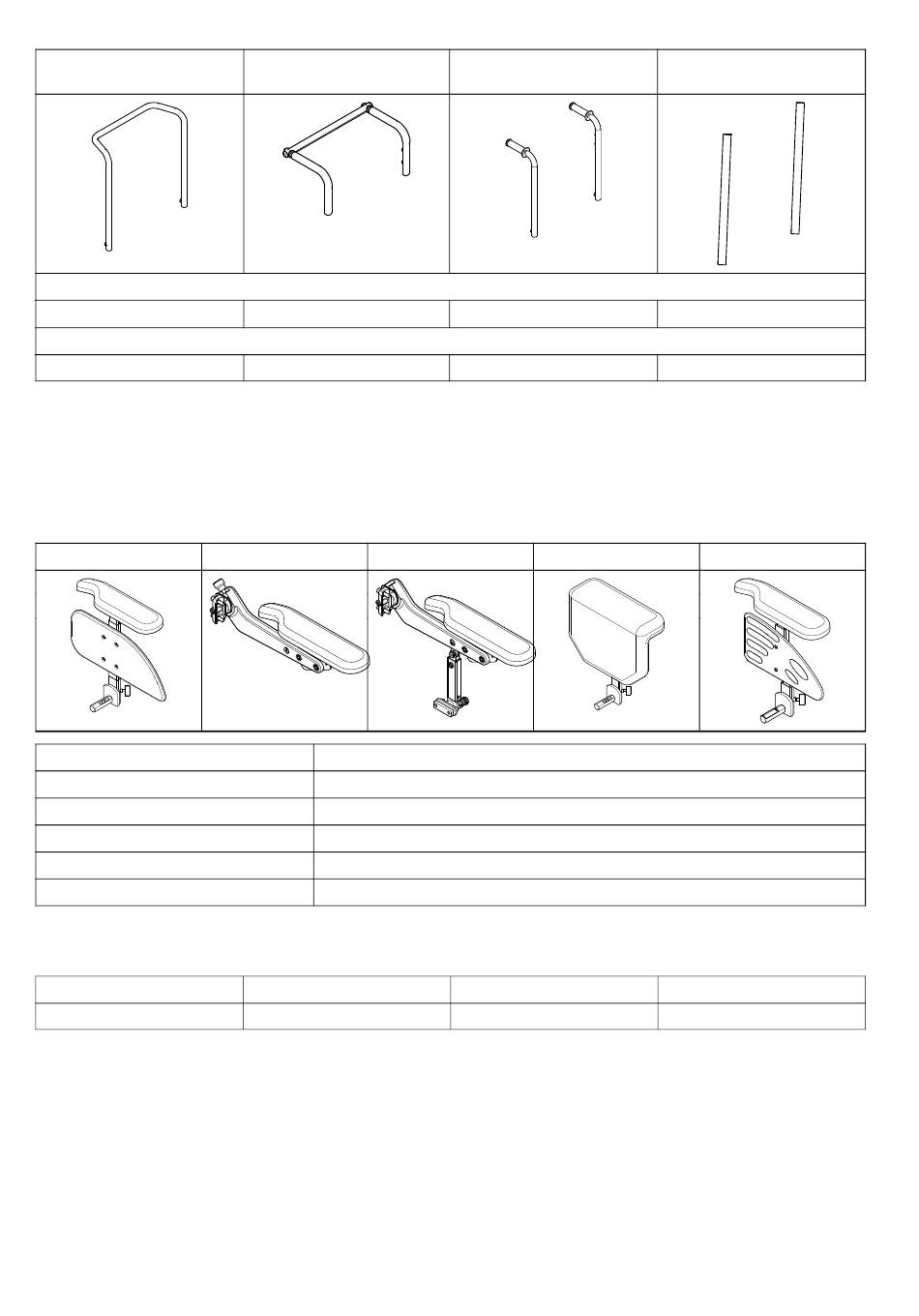

5.3.4 Armrest styles

Modulite seat is available with different armrest styles. For remote brackets that can be mounted to armrest, see 5.3.5
Remote Brackets and Headrest Adapters, page 16.
T-Armrest
Function
T-armrest
Flip-up Armrest
Following Armrest
Padded Armrest
Inrigged armrest
Armpad styles
All Modulite armrests are available with the following armpads, except for padded armrest.
Short armpad
325 mm

5.3.5 Remote Brackets and Headrest Adapters

Modulite can be fitted with different brackets for remotes.
16
Push bar for backrest posts
with push handles
22 mm
Flip-up Following
Available armrest bracket length
Regular or higher (+5 cm)
one size
one size
one size
one size
Long armpad
375 mm
Backrest posts with push
handles
48 cm / 54 cm
25 mm
Padded
Long ergonomic armpad
397 mm
Backrest posts without push
handles
48 cm / 54 cm
25 mm
Inrigged
Soft armpad
468 mm
1604311-G
