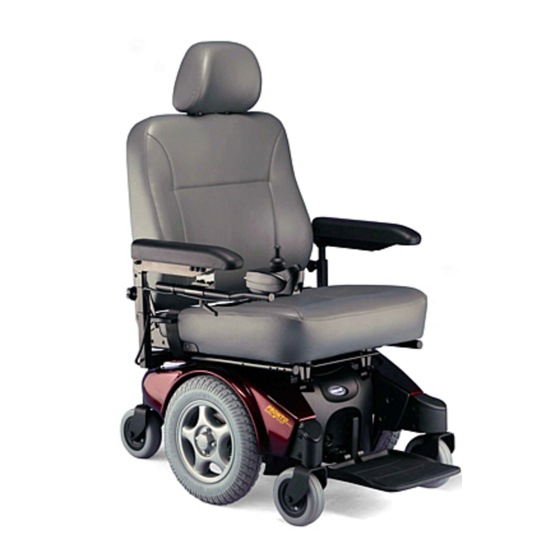

Owner's Operator and Maintenance Manual
Pronto
M91
®
™
with SureStep
®
DEALER: This manual MUST be given to
the user of the wheelchair.
USER: BEFORE using this wheelchair, read
this manual and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com

Advertisement

Table of Contents
loading

Related Manuals for Invacare Pronto M91

Summary of Contents for Invacare Pronto M91

  • Page 1: Pronto M91

    SureStep ® DEALER: This manual MUST be given to the user of the wheelchair. USER: BEFORE using this wheelchair, read this manual and save for future reference. For more information regarding Invacare products, parts, and services, please visit www.invacare.com...

  • Page 2: Reference Documents

    ACCESSORIES WARNING Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. REFERENCE DOCUMENTS MANUAL PART NUMBER ™NX™Electronic Owner Manual...

  • Page 3: Table Of Contents

    SPECIAL NOTES ................7 LABEL LOCATIONS ................9 M91 Standard...............................9 M91 Heavy Duty............................10 All Wheelchairs............................10 TYPICAL PRODUCT PARAMETERS ..........11 PRONTO M91............................11 SECTION 1—GENERAL GUIDELINES ..........13 Controller Settings/Repair or Service ....................13 Accessories Information .........................13 Operation Information ..........................13 Batteries..............................15 Charging Batteries ..........................15 Grounding Instructions ...........................16...
  • Page 4 TABLE OF CONTENTS TABLE OF CONTENTS SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING ....26 Safety Inspection Checklists........................26 Inspect/Adjust Initially .........................26 Inspect/Adjust Weekly........................27 Inspect/Adjust Monthly........................27 Inspect/Adjust Periodically.........................27 Troubleshooting Guide ...........................28 Troubleshooting - Electrical........................29 Information Gauge Display Diagnostics ..................29 Service Indicator Light Diagnostics .....................29 Checking Battery Charge Level......................30 SECTION 5—WHEELCHAIR OPERATION ...........
  • Page 5 TABLE OF CONTENTS TABLE OF CONTENTS SECTION 8—FOOTBOARD ASSEMBLY ..........42 Removing/Installing the Footboard Assembly..................42 Removing ...............................42 Installing..............................42 Adjusting the Footboard Assembly ......................43 Angle ...............................43 Depth..............................44 SECTION 9—FRONT RIGGINGS ............45 Installing/Removing Front Riggings .......................45 PW93, PH904A and PHAL4A......................45 70° and 70° Taper..........................46 Adjusting Footrest Height ........................46 Model PHWH93, PW93 and 70°...

  • Page 6: Register Your Product

    Register ONLINE at warranty.invacare.com Please have your model number and purchase date available to complete your registration. Any registration information you submit will only be used by Invacare Corporation and protected as required by applicable laws and regulations. Pronto® M91™ with SureStep®...

  • Page 7: Special Notes

    CHANGE WITHOUT NOTICE. WHEELCHAIR USER As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection.
  • Page 8 WARNING The drive behavior initially experienced by the user may be different from other chairs previously used. This Power Wheelchair has Invacare’s SureStep technology, a feature that provides the wheelchair with optimum traction and stability when driving forward over transitions and thresholds of up to 3-inches. The following warnings apply specifically to the SureStep Feature.

  • Page 9: Label Locations

    LABEL LOCATIONS LABEL LOCATIONS M91 Standard Serial Number Label is located on a plate on the inside of the right rear frame. Part No 1141450 Pronto® M91™ with SureStep®...

  • Page 10: M91 Heavy Duty

    LABEL LOCATIONS M91 Heavy Duty Serial Number Label is located on a plate on the inside of the right rear frame. All Wheelchairs NOTE: Auto style seat positioning  strap shown. This label is also on the  airline style seat positioning strap. Pronto® M91™ with SureStep® Part No 1141450...

  • Page 11: Typical Product Parameters

    TYPICAL PRODUCT PARAMETERS TYPICAL PRODUCT PARAMETERS PRONTO M91 18-INCH 20-INCH 22-INCH VAN SEAT VAN SEAT VAN SEAT SEAT WIDTH RANGE: 18 inches 20 inches 22 inches SEAT DEPTH: 16 -18 inches 18-20 inches 20-22 inches BACK HEIGHT W/O HEADREST SEMI RECLINE:...
  • Page 12 TYPICAL PRODUCT PARAMETERS *NOTE: Values for range are calculated for maximum chair weight rating using largest batteries  applicable (22NF), per test procedures described in ANSI/RESNA WC/VOL2‐1998 Section 4 and  meet federal reimbursement requirements for this product. While considered typical, they are  derived based on certain ideal conditions. Variances in battery condition, user weight, usage  pattern or overall terrain conditions will result in actual values for range that differ from these  stated values. Users should become accustomed to how their unique conditions impact their  individual results. Users should become familiar with the battery discharge indicator on the  joystick to determine the range of their wheelchair. Refer to Battery Charger Operation on page 65  for more information about the battery discharge indicator. **NOTE: Refer to Stability and Balance on page 20. Pronto® M91™ with SureStep® Part No 1141450...

  • Page 13: Section 1-General Guidelines

    SECTION 1 - GENERAL GUIDELINES contains important information for the safe operation and use of this product. Controller Settings/Repair or Service Set‐up of the Electronic Control Unit is to be performed ONLY by a qualified technician.  The final adjustments of the controller may affect other activities of the wheelchair.  Damage to the equipment could occur if improperly set‐up or adjusted. DO NOT service or adjust your wheelchair while occupied, unless otherwise noted. Wheelchairs should be examined during maintenance for signs of corrosion (water  exposure, incontinence, etc.).  Electrical components damaged by corrosion should be  replaced IMMEDIATELY.   Wheelchairs that are used by incontinent users and/or are frequently exposed to water  may require replacement of electrical components more frequently. Accessories Information Invacare products are specifically designed and manufactured for use in conjunction with  Invacare accessories. Accessories designed by other manufacturers have not been tested  by Invacare and are not recommended for use with Invacare products. EXTREME care should be exercised when using oxygen in close proximity to electric  circuits and other combustible materials. Contact your oxygen supplier for instruction in  the use of oxygen. Operation Information Performance adjustments should only be made by professionals of the healthcare field or  persons fully conversant with this process and the driverʹs capabilities. Incorrect settings  could cause injury to the driver, bystanders, damage to the wheelchair and to  surrounding property. After the wheelchair has been set‐up, check to make sure that the wheelchair performs to  the specifications entered during the set‐up procedure. If the wheelchair does NOT ...
  • Page 14 DO NOT attempt to reach objects if you have to move forward in the seat. DO NOT attempt to reach objects if you have to pick them up from the floor by reaching  down between your knees. DO NOT lean over the top of the back upholstery to reach objects behind you, as this may  cause the wheelchair to tip over. ALWAYS keep hands and fingers clear of moving parts to avoid injury. DO NOT store items under seat ‐ interference with seat latch may result. DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may  occur. DO NOT engage or disengage the motor release levers until the power is in the Off  position. DO NOT attempt to stop a moving wheelchair with wheel locks. Wheel locks are not  brakes. DO NOT operate on roads, streets or highways. DO NOT climb, go up or down ramps or traverse slopes greater than 9°. NEVER leave an unoccupied wheelchair on an incline. Invacare strongly recommends proceeding down ramps or slopes at half speed or slower  and to avoid hard braking or sudden stops. DO NOT leave elevating legrests in the fully extended position when proceeding down  ramps or slopes. DO NOT attempt to move up or down an incline with a water, ice or oil film. DO NOT attempt to drive over curbs or obstacles. Doing so may cause your wheelchair  to turn over and cause bodily harm or damage to the wheelchair. DO NOT leave the power button in the On position when entering or exiting your  wheelchair. DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by  means of any removable (detachable) parts of the wheelchair may result in injury to the  user or damage to the wheelchair. DO NOT stand on the frame of the wheelchair. DO NOT stand on the footplates/footboard. When getting in or out of the wheelchair,  make sure that the footboard or footplates are in the upward position or swing the  footrests towards the outside of the wheelchair. Pronto® M91™ with SureStep® Part No 1141450...

  • Page 15: Batteries

    SECTION 1—GENERAL GUIDELINES Before attempting to transfer in or out of the wheelchair, every precaution should be  taken to reduce the gap distance. Turn both casters parallel to the object you are  transferring onto. Also be certain the power is Off and wheel locks are engaged to prevent  the wheels from moving. DO NOT adjust the rear seat posts higher than the front seat posts. Before performing any maintenance, adjustment or service verify that On/Off switch on  the joystick is in the Off position. ALWAYS wear your seat positioning strap. The seat positioning strap is a positioning belt  only. It is not designed for use as a safety device withstanding high stress loads such as  auto or aircraft safety belts. If signs of wear appear, belt MUST be replaced  IMMEDIATELY. Avoid storing or using the wheelchair near open flame or combustible products. Serious  injury or damage to property may result. Batteries The warranty and performance specifications contained in this manual are based on the  use of deep cycle gel cell batteries. Invacare strongly recommends their use as the power  source for this unit. Carefully read battery/battery charger information prior to installing, servicing or  operating your wheelchair. DO NOT remove fuse or mounting hardware from POSITIVE (+) RED battery cable/ mounting screw. All battery terminal covers (two on the front battery and two on the rear battery) MUST  be installed prior to use. The use of rubber gloves is recommended when working with batteries. Some battery manufacturers mold a carrying strap and/or hold down flanges directly into  the battery case. Batteries that interfere with the battery box cannot be used for these  applications. Attempting to “wedge” a battery into a battery box may damage the box,  the battery and/or be a fire hazard, resulting in serious injury or further damage to  property. Charging Batteries DANGER When using an extension cord, use only a three wire extension cord having at least 16 AWG (American Wire Gauge) wire and the same or higher electrical rating as the devise being connected.

  • Page 16: Grounding Instructions

    DO NOT attempt to recharge batteries using BOTH the on‐board battery charger and an  independent battery charger (plugged into the joystick charger port) at the SAME time.  Doing so will reduce the life of the batteries. READ and CAREFULLY follow the manufacturer’s instructions for each charger  (supplied or purchased). If charging instructions are not supplied, consult a qualified  technician for proper procedures. AFTER charging batteries, ALWAYS make sure that the battery charger cord is securely  wrapped and stored within the hook and loop strap assembly on the rear of the battery  tray. Failure to do so may result in damage to the cord or personal injury to the user or  bystanders. Ensure the pins of the extension cord plug are the same number, size, and shape as those  on the charger. DO NOT under any circumstances cut or remove the round grounding plug from the  charger AC cable plug or the extension cord plug. Grounding Instructions DO NOT, under any circumstances, cut or remove the round grounding prong from any  plug used with or for Invacare products. Some devices are equipped with three‐prong  (grounding) plugs for protection against possible shock hazards and fire. Where a two‐ prong wall receptacle is encountered, it is the personal responsibility and obligation of the  customer to contact a qualified electrician and have the two‐prong receptacle replaced with  a properly grounded three‐prong wall receptacle in accordance with the National Electrical  Code. If you must use an extension cord, use ONLY a three‐wire extension cord having the  same or higher electrical rating as the device being connected. In addition, Invacare has  placed RED/ORANGE warning tags on some equipment. DO NOT remove these tags. Rain Test Invacare has tested its power wheelchairs in accordance with ISO 7176 “Rain Test.” This  provides the end user or his/her assistant sufficient time to remove his/her power  wheelchair from a rain storm and retain wheelchair operation. DO NOT leave power wheelchair in a rain storm of any kind. DO NOT use power wheelchair in a shower. DO NOT store power wheelchair in a damp area for an extended period of time. Pronto® M91™ with SureStep® Part No 1141450...

  • Page 17: Weight Training

    SECTION 1—GENERAL GUIDELINES Direct exposure to excessive rain or dampness may cause the wheelchair to malfunction  electrically and mechanically, may cause the wheelchair to prematurely rust or may  damage the upholstery. Check to ensure that the RED and BLACK battery terminal caps are secured in place,  joystick boot is NOT torn or cracked where water can enter and that all electrical  connections are secure at all times. DO NOT use the wheelchair if the joystick boot is torn or cracked. If the joystick boot  becomes torn or cracked, replace IMMEDIATELY. Weight Training Invacare DOES NOT recommend the use of its wheelchairs as a weight training  apparatus. Invacare wheelchairs have NOT been designed or tested as a seat for any kind  of weight training. If occupant uses said wheelchair as a weight training apparatus,  Invacare shall NOT be liable for bodily injury and the warranty is void. Weight Limitation The Pronto M91 wheelchairs have the following weight limitations: MODEL WEIGHT LIMITATION STANDARD 300 lb HEAVY DUTY 400 lb Part No 1141450 Pronto® M91™ with SureStep®...

  • Page 18: Section 2-Emi Information

    SECTION 2—EMI INFORMATION SECTION 2—EMI INFORMATION WARNING CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC INTERFERENCE ON YOUR POWERED WHEELCHAIR. Electromagnetic Interference (EMI) From Radio Wave Sources Powered wheelchairs and motorized scooters (in this text, both will be referred to as powered wheelchairs) may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two way radios, and...
  • Page 19 2) This device has been tested to a radiated immunity level of 20 volts per meter; 3) The immunity level of the product is unknown. Modification of any kind to the electronics of this wheelchair as manufactured by Invacare may adversely affect the EMI immunity levels. Part No 1141450 Pronto® M91™ with SureStep®...

  • Page 20: Section 3-Safety/Handling Of Wheelchairs

    IMMEDIATELY. DO NOT climb, go up or down ramps or traverse slopes greater than 9°. Invacare strongly recommends proceeding down ramps or slopes at half speed or slower and to avoid hard braking or sudden stops. DO NOT leave elevating legrests in the fully extended position when proceeding down ramps or slopes.

  • Page 21: Coping With Everyday Obstacles

    The Pronto M91 wheelchairs have the following weight limitations: MODEL WEIGHT LIMITATION...

  • Page 22: Pinch Points

    SECTION 3—SAFETY/HANDLING OF WHEELCHAIRS Pinch Points WARNING Pinch point may occur when returning the tilted seat to the full upright position. Make sure the hands and body Pinch of the occupant, attendants and Point bystanders are clear of all pinch points before lowering seat (FIGURE 3.2).

  • Page 23: Lifting/Stairways

    MUST be removed and transported independently of the power wheelchair. Extreme caution is advised when it is necessary to move an unoccupied power wheelchair up or down the stairs. Invacare recommends using two assistants and making thorough preparations. Use ONLY secure, nondetachable parts for hand-hold supports.

  • Page 24: Transferring To And From Other Seats

    SECTION 3—SAFETY/HANDLING OF WHEELCHAIRS Transferring To and From Other Seats WARNING ALWAYS turn the wheelchair power Off and engage the Motor Release Levers to prevent the wheels from moving before attempting to transfer in or out of the wheelchair. Also, make sure every precaution is taken to reduce the gap distance by aligning both the front and rear casters parallel with the object you are transferring onto.

  • Page 25: Reaching, Leaning And Bending - Forward

    SECTION 3—SAFETY/HANDLING OF WHEELCHAIRS Reaching, Leaning and Bending - Forward   WARNING DO NOT attempt to reach objects if you have to move forward in the seat or pick them up from the floor by reaching down between your knees. NOTE: For this procedure, refer to FIGURE 3.6.

  • Page 26: Section 4-Safety Inspection/Troubleshooting

    SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING SECTION 4—SAFETY INSPECTION/ TROUBLESHOOTING NOTE: Every six months or as necessary take your wheelchair to a qualified dealer for a thorough  inspection and servicing. Regular cleaning will reveal loose or worn parts and enhance the smooth  operation of your wheelchair. To operate properly and safely, your wheelchair must be cared for just  like any other vehicle. Routine maintenance will extend the life and efficiency of your wheelchair. Safety Inspection Checklists CAUTION As with any vehicle, wheels and tires should be checked periodically for cracks and wear and should be replaced as necessary. Initial adjustments should be made to suit your personal body structure needs and  preference. Thereafter follow these maintenance procedures: Inspect/Adjust Initially ❑...

  • Page 27: Inspect/Adjust Weekly

    SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING Inspect/Adjust Weekly ❑ Ensure seat is secured to wheelchair frame. ❑ Ensure seat and/or back upholstery have no rips and do not sag. Replace if necessary. ❑ Ensure seat release latch is not worn and is functional. Replace if necessary. ❑ Inspect tires for flat spots and wear. ❑ Ensure arm pivot points are not worn and/or loose. Replace if necessary. ❑ Inspect and clean the stability lock gears. Replace if worn. ❑ Ensure casters are free of debris. Inspect/Adjust Monthly ❑ Ensure wheel mounting nuts are secure on drive wheels. ❑ Ensure there is no excessive side movement or binding when drive wheels are lifted  and spun when disengaged (free‐wheeling). ❑ Ensure wheel/fork assembly has proper tension when caster is spun. Caster should  come to a gradual stop. ❑ Loosen/tighten caster locknut if wheel wobbles noticeably or binds to a stop. ❑ Ensure all caster/wheel/fork/headtube fasteners are secure. ❑ Inspect for any loose hardware on the wheelchair. ❑ Inspect the seat positioning strap for signs of wear. Replace if worn or damaged. ❑ Ensure that the buckle on the seat positioning strap latches. Replace if necessary. ❑ Verify that the hardware that attaches the seat positioning strap to the seat frame is  secure and undamaged. Replace if necessary.

  • Page 28: Troubleshooting Guide

    Batteries draw excessive Battery failure. Have batteries checked for shorted cell. Replace if current when charging. necessary. Electrical malfunction. Contact Dealer/Invacare for service. Battery indicator flashes Battery failure. Check batteries for shorted cell. Replace if the charge level is low - necessary.

  • Page 29: Troubleshooting - Electrical

    SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING Troubleshooting - Electrical NOTE: For additional troubleshooting information and explanation of error codes, refer to the  individual Electronics Manual supplied with each wheelchair The joystick information gauge and the service indicator give indications of the type of  fault or error detected by the control module. When a fault is detected, the wheelchair  may stop and not drive. The LEDs on the information gauge may flash in a particular  pattern or the service indicator light will flash. The number or type of flashes indicates the  nature of the error. If multiple errors are found, only the first error encountered by the  control module will be displayed. Information Gauge Display Diagnostics DISPLAY DESCRIPTION DEFINITION COMMENTS Information Gauge Display All LEDs are off. Power is off. All LEDs are on. Power is on. Fewer than three LEDs on implies reduced battery charge.

  • Page 30: Checking Battery Charge Level

    Contact Invacare/Dealer for service. Communications Fault Contact Invacare/Dealer for service. General Fault Contact Invacare/Dealer for service. Incompatible or incorrect Wrong type of remote connected. Contact Invacare/Dealer Remote for service. Checking Battery Charge Level The following “Do’s” and “Don’ts” are provided for your convenience and safety. DON’T Don’t perform any installation or maintenance Read and understand this manual and any service without first reading this manual.

  • Page 31: Section 5-Wheelchair Operation

    SECTION 5—WHEELCHAIR OPERATION SECTION 5—WHEELCHAIR OPERATION WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Set-up of the Electronic Control Unit is to be performed only by a qualified technician.
  • Page 32 SECTION 5—WHEELCHAIR OPERATION The joystick has proportional drive control, meaning that the further it is pushed from the  upright (neutral) position, the faster the wheelchair moves. The maximum speed,  however, is limited by the setting of the speed‐control knob. To slow the wheelchair to a stop, simply release the joystick. The wheelchair has  automatic speed and direction compensation to minimize corrections. When first learning to drive, select a slow speed and try to drive the wheelchair as slowly as  possible by pushing the joystick slightly forward. This exercise will help you learn to utilize  the full potential of the proportional control and allow you to start and stop smoothly. To drive the wheelchair, perform the following: 1. Adjust speed. Refer to Speed Control Buttons on page 33. 2. Turn the power On. Refer to Turning the Power On/Off on page 31. 3. Maneuver the joystick in the following manner: MOVEMENT ACTION FORWARD Push forward on the joystick. REVERSE Pull back on the joystick. Turn RIGHT Move the joystick RIGHT. Turn LEFT Move the joystick LEFT.

  • Page 33: Spj™+ Joystick Switches And Indicators

    SECTION 5—WHEELCHAIR OPERATION + Joystick Switches and Indicators ™ NOTE: For the following information, refer to FIGURE 5.3. Joystick Information Gauge On/Off Display Button Decrease Speedometer Speed Button (Tortoise) Increase DETAIL “A” - Speed FRONT VIEW Button GREEN (Hare) Charger/ Programming Input Service Indicator FIGURE 5.3 SPJ™+ Joystick Switches and Indicators On/Off Button This button is located at the front of the joystick housing. It is used to turn the wheelchair ...

  • Page 34: Joystick

    SECTION 5—WHEELCHAIR OPERATION • Adjust Speed in Smaller Increments (VSP Mode) ‐ Perform the following steps: i. Press and hold both the tortoise button ( ) and hare button ( ) until the  joystick beeps. ii. Perform one of the following: • Press the tortoise button ( ) or hare button ( ) to decrease/increase the  speed in 20% increments. The larger bars in the speedometer will light. • Press and hold the tortoise button ( ) or hare button ( ) to decrease/ increase the speed in smaller increments. The smaller bars in the  speedometer will light. Joystick The joystick has proportional drive control, meaning that further the joystick is pushed  from the upright (neutral) position, the faster the wheelchair or seat moves. Your top  speed, however, is limited by the programmed settings. To slow the wheelchair to a stop, simply release the joystick. The wheelchair has  automatic speed and direction compensation to minimize corrections. Charger/Programming Input The charger/programming input is located at the front of the joystick housing. This provides  easy access for charging the wheelchair batteries. This port also serves as the Remote  Programmer Communication connection. Driving is prevented while the system is charging. Service Indicator The AMBER service indicator will light when an error or fault occurs. A chart of the  diagnostic indications is given in Diagnostic Code of the electronics manual supplied  with the wheelchair. Information Gauge Display Located on the front of the joystick housing, it provides the following information to the ...

  • Page 35: Section 6-Arms

    SECTION 6—ARMS SECTION 6—ARMS WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service verify that On/Off switch on the joystick is in the Off position.

  • Page 36: Section 7-Seat

    SECTION 7—SEAT SECTION 7—SEAT WARNING After any adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service verify that On/Off switch on the joystick is in the Off position.

  • Page 37: Installing

    SECTION 7—SEAT 2. Push down on the latch bar underneath front of seat. 3. Tilt front edge of seat up. 4. Slide the seat assembly forward to disengage seat from the pivot brackets located in  the rear. Installing 1. Position the seat in the rear pivot brackets as shown in FIGURE 7.3. 2. Tilt front edge of seat down. 3. When seat is lowered, engage seat brackets into seat clevis pins. WARNING When reinstalling the seat verify that the seat brackets are engaged with the seat clevis pins by pulling up on the latch bar. 4.
  • Page 38 SECTION 7—SEAT 3. Adjust tube to desired mounting position. Refer to the following table for available  mounting positions. AVAILABLE MOUNTING HOLES FOR FRONT ADJUSTABLE HEIGHT TUBE WHEELCHAIR IS EQUIPPED WITH VAN SEAT WITH FOOTBOARD REAR ADJUSTABLE HEIGHT TUBE Mounted in hole A N/A**     Mounted in hole B N/A* N/A* ...

  • Page 39: Adjusting Seat Position On Seat Frame

    SECTION 7—SEAT Adjusting Seat Position on Seat Frame NOTE: For this procedure, refer to FIGURE 7.5 and FIGURE 7.7 on page 41. 1. Remove the seat. Refer to Removing/Installing the Seat Assembly on page 36. 2. Remove the four mounting screws and washers securing the seat assembly to the seat  frame (FIGURE 7.5). 3. Separate the seat assembly from the seat frame. 4. Refer to FIGURE 7.7 to determine the correct mounting holes to achieve the desired  seat position. 5. Align the seat assembly mounting holes determined in STEP 4 with the seat frame  mounting holes determined in STEP 4. 6. Using the four mounting screws and washers, secure the seat assembly to the seat  frame. Securely tighten. 7. Reinstall the seat. Refer to Removing/Installing the Seat Assembly on page 36. Seat Assembly Seat Frame Seat Positioning Strap Washer Mounting Screws...

  • Page 40: Adjusting Seat Depth

    SECTION 7—SEAT Adjusting Seat Depth NOTE: For this procedure, refer to FIGURE 7.6 on page 40. 1. Remove the seat. Refer to Removing/Installing the Seat Assembly on page 36. 2. Remove the seat base from the seat assembly. Refer to Adjusting Seat Position on Seat  Frame on page 39. 3. Remove the six mounting screws located under the seat that secure the seat back  assembly in place. 4. Adjust seat back assembly to desired position and reinstall the six mounting screws.  Securely tighten. NOTE: Refer to Detail “A” of FIGURE 7.6 for proper seat depth positions. For example, to achieve  maximum seat depth, the front mounting hole on the seat back bracket aligns with the third hole  on the seat base.  5. Reinstall the seat base onto the seat assembly. Refer to Adjusting Seat Position on Seat  Frame on page 39. 6. Reinstall the seat. Refer to Removing/Installing the Seat Assembly on page 36. DETAIL “A” - SEAT DEPTH POSITIONS NOTE: Seat depth maximum is at the third seat hole. Seat Back Minimum Seat Depth Seat Depth Seat Size Mounting...

  • Page 41: Replacing The Seat Positioning Strap

    SECTION 7—SEAT Replacing the Seat Positioning Strap WARNING ALWAYS wear your seat positioning strap. The seat positioning strap is a positioning belt ONLY. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts. If signs of wear appear, belt must be replaced IMMEDIATELY.

  • Page 42: Section 8-Footboard Assembly

    SECTION 8—FOOTBOARD ASSEMBLY SECTION 8—FOOTBOARD ASSEMBLY WARNING After any adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service verify that On/Off switch on the joystick is in the Off position.

  • Page 43: Adjusting The Footboard Assembly

    SECTION 8—FOOTBOARD ASSEMBLY Wheelchair Frame Mounting DETAIL “A” - BOTTOM Quick Hole VIEW OF FOOTBOARD Release Pin Quick Detent Release Ball Footboard Outer Edge Detent Balls Assembly of Tube FIGURE 8.1 Removing/Installing the Footboard Assembly Adjusting the Footboard Assembly Angle NOTE: For this procedure, refer to FIGURE 8.2.

  • Page 44: Depth

    SECTION 8—FOOTBOARD ASSEMBLY Depth NOTE: For this procedure, refer to FIGURE 8.3. 1. Remove the quick release pin that secures the footboard assembly to the wheelchair  frame. WARNING Make sure the detent balls of the quick release pin are fully released and protruding past the outer edge of the tube before operating the wheelchair. Otherwise, injury and/or damage may result. Keep detent balls clean.

  • Page 45: Section 9-Front Riggings

    SECTION 9—FRONT RIGGINGS SECTION 9—FRONT RIGGINGS WARNING After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. DO NOT stand on the front riggings, otherwise damage may occur. When getting in or out of the wheelchair, make sure that the footplates on the front riggings are in the upward position or moved out of the way.

  • Page 46: 70° And 70° Taper

    SECTION 9—FRONT RIGGINGS 7. Lift up on front rigging and remove from the wheelchair. 8. Repeat STEPS 1‐2 for opposite side of wheelchair. 70° and 70° Taper Footrest Mounting Pin NOTE: For this procedure, refer to  Footrest FIGURE 9.2 Release 1. Turn the footrest to the side (open  Mounting Tube Lever footplate is perpendicular to  wheelchair). Footplate 2. Insert footrest mounting pin into  mounting tube. FIGURE 9.2 Installing/Removing Front 3. Push the footrest towards the inside of  Riggings - 70° and 70° Taper the wheelchair until it locks into place.

  • Page 47: 70° Taper

    SECTION 9—FRONT RIGGINGS 7. Reinstall the footrest(s) onto the wheelchair. Refer to Installing/Removing Front  Riggings on page 45. 8. Reinstall any accessories onto the footrest(s). 70° Taper NOTE: For this procedure, refer to  Coved Spacer FIGURE 9.4. Mounting 1. Remove any accessory from the  Screw footrest(s). 2. Remove the footrest from the  Heel Loop wheelchair. Refer to Installing/ Footrest Removing Front Riggings on page 45. FIGURE 9.4 Installing/Removing Front NOTE: Lay the assembly on a flat surface to  Riggings - 70° Taper improve access to the hardware. NOTE: Note the position of the spacers before disassembly. 3.

  • Page 48: Raising/Lowering Elevating Front Riggings

    SECTION 9—FRONT RIGGINGS Raising/Lowering Elevating Front Riggings NOTE: For this procedure, refer to FIGURE 9.6. 1. Perform one of the following: • Raising ‐ Pull back on the release lever and raise front rigging to the desired height. • Lowering ‐ Support front rigging with one hand away from the release lever. Push  release lever downward with other hand. Release Lever FIGURE 9.6 Raising/Lowering Elevating Front Riggings Adjusting/Replacing Telescoping Front Rigging Supports NOTE: For this procedure, refer to FIGURE 9.7 on page 49. NOTE: When adjusting the telescoping front rigging support depth, ensure the footplate does not  interfere with the caster wheel rotation. NOTE: Telescoping front rigging supports may be extended up to 2‐inches from the wheelchair  frame in 1‐inch increments. This adjustment does not affect seat depth. NOTE: When installing the front riggings support tubes, ensure that the hinge pins are on the  outside of the wheelchair facing away from the seat frame.  1. Remove the seat. Refer to Removing/Installing the Seat Assembly on page 36. 2.
  • Page 49 SECTION 9—FRONT RIGGINGS 3. Perform one of the following: • Adjusting ‐ Align the appropriate mounting hole of the telescoping front rigging  support with the front mounting hole in the seat frame tubes to achieve the desired  depth as shown in FIGURE 9.7. • Replacing ‐ Perform the following steps: i. Remove the existing telescoping front rigging support from the wheelchair  frame. ii. Insert the new telescoping front rigging support into the seat frame. iii. Align the appropriate mounting hole of the telescoping front rigging support  with the front mounting hole in the seat frame tubes to achieve the desired  depth as shown in FIGURE 9.7. NOTE: The footplate will be on the inside of the wheelchair when locked in place. 4. Using the two socket bolts and locknuts, secure the telescoping front rigging support  to the seat frame as shown in FIGURE 9.7. 5. If necessary, repeat STEPS 2‐4 on remaining telescoping front rigging support. 6. Reinstall the seat. Refer to Removing/Installing the Seat Assembly on page 36. Not Used Mounting Bolts Inner Mounting Holes Telescoping Front Seat Frame Rigging Support Mountin...

  • Page 50: Installing Adjustable Angle Flip-Up Footplate Hinge

    SECTION 9—FRONT RIGGINGS Installing Adjustable Angle Flip-up Footplate Hinge NOTE: For this procedure, refer to  Footplate Mounting Screw FIGURE 9.8. Hinge 1. Position footplate hinge on the footrest  support tube at the desired height. Locknut 2. Position mounting screw, washers,  Washers spacer, and locknut on the footrest  support as shown (FIGURE 9.8). Footrest Support Spacer 3. Flip the footplate hinge to the up  FIGURE 9.8 Installing Adjustable Angle position. Flip-up Footplate Hinge NOTE: The footplate hinge will fall to the down ...

  • Page 51: Adjusting Adjustable Angle Flip-Up Footplates

    SECTION 9—FRONT RIGGINGS Adjusting Adjustable Angle Flip-Up Footplates Depth Adjustment NOTE: For this procedure, refer to FIGURE 9.9 on page 50. 1. Remove the two flat screws, washers and locknuts that secure footplate to the half  clamp. NOTE: Observe the angle of the footplate for reinstallation. 2. Move footplate to one of four mounting positions. NOTE: If desired depth is still not obtained, rotate the half clamp on the footplate hinge 180°. 3. Retighten the two flat screws, washers and locknuts. NOTE: The settings for positioning the footplates on the half‐clamps may vary for each footplate. Angle Adjustment NOTE: For this procedure, refer to FIGURE 9.9 on page 50 and FIGURE 9.10. 1. Loosen, but DO NOT remove, the two  Side View of flat screws, washer and locknuts that  Footrest Support Footplate and secure the footplate to the footplate  Footrest Footplate Support hinge (FIGURE 9.9).

  • Page 52: Composite/Articulating Footplate Heel Loop Replacement

    SECTION 9—FRONT RIGGINGS Composite/Articulating Footplate Heel Loop Replacement NOTE: For this procedure, refer to FIGURE 9.12. NOTE: To assemble, reverse these procedures. NOTE: When securing heel loop to the footrest assembly, tighten mounting screw until the spacer  is secure. Disassembly Composite Composite Cane of Footrest Assembly 1. Remove the mounting screw and coved  Mounting Screw washer that secures the lower half of  the footrest to the swingaway footrest  Spacer assembly. 2. Remove the lower footrest assembly. Composite 3. Remove the mounting screw and  Footplate locknut that secure the heel loop to the  Locknut footrest. 4. Slide heel strap over cane of footrest  Articulating assembly.

  • Page 53: Installing/Removing Elevating Legrests

    SECTION 9—FRONT RIGGINGS Installing/Removing Elevating Legrests NOTE: For this procedure, refer to FIGURE 9.13. Installing 1. Turn legrest to side (open footplate is perpendicular to wheelchair).  2. Install the legrest hinge plates onto the hinge pins on the wheelchair frame. 3. Rotate legrest toward the inside of the wheelchair until it locks in place. NOTE: The footplate will be on the inside of the wheelchair when locked in place. 4. Repeat STEPS 1‐3 for the opposite  Calfpad legrest. Hinge Pins 5. After the user is seated in wheelchair,  Legrest adjust footplate to correct height by  loosening nut and sliding the lower  Hinge Plates footrest assembly up or down until  desired height is achieved. Legrest Release Handle Removing 1. Push the legrest release handle toward  the inside of the wheelchair (facing the  front of the wheelchair) and swing the  Bolt/Nut legrest to the outside of the wheelchair.

  • Page 54: Raising/Lowering Elevating Legrests And/Or Adjusting Calfpads

    SECTION 9—FRONT RIGGINGS Raising/Lowering Elevating Legrests and/or Adjusting Calfpads NOTE: For this procedure, refer to  Legrest to Normal Position FIGURE 9.14. Raising/Lowering Elevating Legrests 1. Perform one of the following: • Raising ‐ Pull back on the release  lever until the leg is at the desired  height. • Lowering ‐ Support leg with one  hand and push release lever  downward with other hand. Adjusting Calfpads Adjust Calfpad Secure Calfpad 1. Turn the calfpad towards the outside of  the wheelchair. FIGURE 9.14 Raising/Lowering Elevating Legrests and/or Adjusting Calfpads 2.

  • Page 55: Section 10-Shroud/Wheels

    SECTION 10—SHROUD/WHEELS SECTION 10—SHROUD/WHEELS WARNING After any adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service verify that On/Off switch on the joystick is in the Off position.

  • Page 56: Installing

    SECTION 10—SHROUD/WHEELS Installing 1. Perform one of the following: • Top Shroud ‐ Position top shroud on to the base frame and gently press down on  top shroud to secure the four hook and loop strips that secure the top shroud to the  base frame (Detail “A”). • Front Shroud ‐ Position front shroud onto the two base frame hooks. Turn release  knob ¼‐turn to the locked position (Detail “B”). 2. Reinstall the seat. Refer to Removing/Installing the Seat Assembly on page 36. DETAIL “B” - FRONT SHROUD DETAIL “A” - TOP SHROUD Base Top Shroud Frame Hooks Seat Supports Rear of Wheelchair Base Frame Front Shroud Release Knob Front of Hook and...

  • Page 57: Engaging/Disengaging Motor Release Lever

    SECTION 10—SHROUD/WHEELS Engaging/Disengaging Motor Release Lever WARNING DO NOT engage or disengage the motor release lever until the On/Off switch on the joystick is in the Off position. CAUTION Ensure both motor release levers are fully engaged before driving the wheelchair NOTE: For this procedure, refer to FIGURE 10.2.

  • Page 58: Replacing Front/Rear Caster Assemblies

    SECTION 10—SHROUD/WHEELS Replacing Front/Rear Caster Assemblies NOTE: For this procedure, refer to  Locknut FIGURE 10.3. NOTE: Front and rear caster assemblies are  Mounting replaced in the same manner. Screw NOTE: When replacing the front/rear caster  assemblies, it is necessary to brace the caster  Washer Washer assemblies to prevent the wheel from spinning. Caster 1. Remove the mounting screw, two  washers, and locknut that secures the  FIGURE 10.3 Replacing Front/Rear Caster caster to the fork. Assemblies 2. Remove the caster and discard. 3. Secure new caster to fork with existing mounting screw, two washers and locknut  (FIGURE 10.3). Securely tighten. Adjusting Forks NOTE: For this procedure, refer to FIGURE 10.4. 1.

  • Page 59: Section 11-Batteries

    DO NOT tip the batteries. Keep the batteries in an upright position. Avoid storage or use near external flame or combustible products. Invacare strongly recommends that battery installation and battery replacement always be done by a qualified technician. After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely - otherwise injury or damage may result.

  • Page 60: Installing/Removing The Batteries

    SECTION 11—BATTERIES Installing/Removing the Batteries NOTE: For this procedure, refer to FIGURE 11.1 on page 61 and FIGURE 11.2 on page 61. NOTE: Have the following tools available: TOOL COMMENTS Battery Lifting Strap Supplied 1/2-inch (6 pt) Box Wrench Not Supplied 7/16-inch (6pt) Box Wrench Not Supplied 3/8-inch (6pt) Box Wrench Not Supplied Diagonal Cutters Not Supplied Installing 1. Place the wheelchair in a well ventilated area where work can be performed without  risking damage to carpeting or floor covering.
  • Page 61 SECTION 11—BATTERIES DETAIL “A” - BATTERIES WITH DETAIL “B” - BATTERIES WITHOUT BUILT-IN LIFTING STRAPS BUILT-IN LIFTING STRAPS Built-in Lifting Battery Lifting Straps Straps Rear Battery Front Battery Battery Tray Battery Battery Terminals/Posts FIGURE 11.1 Batteries with/without Lifting straps 11. Connect the front battery to the controller (RED connector). Refer to FIGURE 11.2. 12.

  • Page 62: Removing

    SECTION 11—BATTERIES Removing 1. Place the wheelchair in a well ventilated area where work can be performed without  risking damage to carpeting or floor covering. 2. Verify the joystick On/Off switch is in the Off position and disconnect joystick. Refer  to Disconnecting/Connecting the MK5 Joysticks on page 69. 3. Remove the seat. Refer to Removing/Installing the Seat Assembly on page 36. 4. Remove the top shroud. Refer to Removing/Installing the Shrouds on page 55. 5. If necessary, disconnect right and left motor leads to allow access to the front of the  battery tray. 6. Disconnect the front battery from controller (RED connector). Refer to FIGURE 11.2. 7. Move aside the motor leads and controller cable to allow unobstructed access to the  front of the battery tray. 8. Disconnect the rear battery from the front battery (RED and BLACK connectors). Refer  to FIGURE 11.2. 9. If necessary, disconnect the wiring harness from batteries. Refer to Connecting/ Disconnecting the Battery Wiring Harness on page 62. 10. Unfasten the retaining strap that secures the two batteries in the battery tray. NOTE: Perform this section on one battery at a time starting with the FRONT battery. Repeat  STEP 10 to remove remaining battery from battery tray. 11. Perform one of the following to remove the battery from the battery tray: • Batteries With Built‐in Lifting Strap‐ Use built in lifting strap to remove the battery  from the battery tray (Detail “A” of FIGURE 11.1).

  • Page 63: Connecting

    SECTION 11—BATTERIES Connecting NOTE: For this procedure, refer to FIGURE 11.3 on page 63. 1. Peel back RED battery terminal cover to expose RED battery cable connection to  battery terminal. 2. Peel back BLACK battery terminal cover from BLACK battery cable on front battery  or GREY battery terminal cover from BLACK battery cable on rear battery. 3. Using the mounting screws and nuts, secure the NEGATIVE (‐) BLACK battery cable  to NEGATIVE (‐) battery terminal/post as shown in FIGURE 11.3. 4. Using the mounting screws and nuts, secure the POSITIVE (+) RED battery cable to  POSITIVE (+) battery terminal/post as shown in FIGURE 11.3. 5. Verify wiring harness is correctly installed and securely tightened. 6. Verify proper battery orientation. 7. Reposition battery terminal covers over battery post(s). 8. Using new tie‐wraps, secure the terminal covers to the battery terminals as shown in  FIGURE 11.3. 9. Repeat STEPS 1‐8 to install and connect the rear battery to the rear battery harness. POSITIVE (+) NEGATIVE (-) Battery Cable, Battery Cable Mounting Screw with Fuse Hardware NEGATIVE (-) Battery Terminal...

  • Page 64: Charging Batteries

    SECTION 11—BATTERIES 3. Peel back BLACK battery terminal cover from BLACK battery cable on front battery  or GREY battery terminal cover from BLACK battery cable on rear battery. 4. Remove the mounting screws and nuts that secure the POSITIVE (+) RED battery cable  to the POSITIVE (+) battery terminal/post as shown in FIGURE 11.3. 5. Remove the mounting screws and nuts that secure the NEGATIVE (‐) BLACK battery  cable to the NEGATIVE (‐) battery terminal/post as shown in FIGURE 11.3. 6. Set wiring harness aside. 7. Repeat STEPS 1‐6 to disconnect the rear battery from the rear battery harness. Charging Batteries DANGER When using an extension cord, use only a three wire extension cord having at least 16 AWG (American Wire Gauge) wire and the same or higher electrical rating as the devise being connected.

  • Page 65: Battery Charger Operation

    DO NOT under any circumstances cut or remove the round grounding plug from the charger AC cable plug or the extension cord plug. NOTE: For this procedure, refer to FIGURE 11.4 on page 66. NOTE: Charge indicator light is only visible with rear shroud removed. 1. Plug the female connector of the AC power cord (supplied) to the AC receptacle on  the charger and plug in the male connector on the AC power cord into the wall outlet. 2. The On/Off LED indicator illuminates solid RED indicating that the charger is on. 3. If the On/Off LED indicator is “Blinking” RED, this is abnormal. Unplug AC power  cord from the on‐board battery charger and wall outlet. Contact Invacare at the  number listed on the back page of this manual. Part No 1141450 Pronto® M91™ with SureStep®...

  • Page 66: Independent Charger

    SECTION 11—BATTERIES 4. When the On/Off LED indicator light is off, charger is off. 5. When the Charge LED indicator light is YELLOW, the batteries are charging. 6. When the Charge LED indicator light is solid GREEN, the batteries are fully charged  (as their condition will allow). At this point, the charger automatically stops charging. 7. When charging is complete, unplug the male connector of the AC power cord from the  wall outlet and then unplug the female connector of the AC power cord from the AC  receptacle on the charger. WARNING DO NOT operate wheelchair with AC power cord attached to the wheelchair. To Wall Outlet Male Connector on AC Power Cord Female Connector on AC (Connects to Wall Outlet) Power Cord (Connects to AC Charger...
  • Page 67 SECTION 11—BATTERIES CAUTION DO NOT use an independent charger with an output rating of over 8A (amps). Otherwise, damage may occur. NOTE: For this procedure, refer to FIGURE 11.5 on page 67. NOTE: The charger port located on the Front of the joystick requires the use of an independent  charger. The independent charger is NOT supplied with the wheelchair. Required Items: Battery Charger*, Power Cord** *NOTE: Item not supplied. **NOTE: AC power cord (3‐prong plug, 15 ampere current rating; industrial type). Wheelchair with MK  SPJ‐80/DPJ/MPJ/SPJ+ joystick: 1. Attach the battery charger connector to the charger port on the front of the joystick. 2. Plug the charger’s AC power cord or extension into the grounded 110‐volt wall outlet. 3. Unplug the AC power cord or extension once charging is complete. Charger/ Programming Port FIGURE 11.5 Independent Charger Part No 1141450 Pronto®...

  • Page 68: Section 12-Electronics

    SECTION 12—ELECTRONICS SECTION 12—ELECTRONICS WARNING After any adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise injury or damage may result. Before performing any maintenance, adjustment or service verify that On/Off switch on the joystick is in the Off position.

  • Page 69: Disconnecting/Connecting The Mk5 Joysticks

    SECTION 12—ELECTRONICS Disconnecting/Connecting the MK Joysticks NOTE: For this procedure, refer to FIGURE 12.2. Disconnecting 1. Loosen the thumb screws on the joystick connector. 2. Disconnect the joystick connector from the controller connector. Connecting 1. Align the joystick connector with the controller connector. 2. Secure the joystick connector to the controller connector using the thumb screws on  the controller connector. WARNING The excess joystick cable must be coiled, and tie-wrapped to the rear of the seat frame to ensure that cable does NOT become entangled or damaged during normal operation of seating system - otherwise injury or damage may result.
  • Page 70 NOTES NOTES Pronto® M91™ with SureStep® Part No 1141450...

  • Page 71: Global Limited Warranty (Excluding Canada)

    Invacare warrants the seat frame to be free from defects in materials and workmanship for a period of three (3) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.

  • Page 72: Canada Limited Warranty

    Invacare warrants the seat frame to be free from defects in materials and workmanship for a period of three (3) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.
