Invacare® Modulite
Installing Holder
1. Install parts in reverse order. Tighten screw B to
6 Nm.
2. Test all functions.

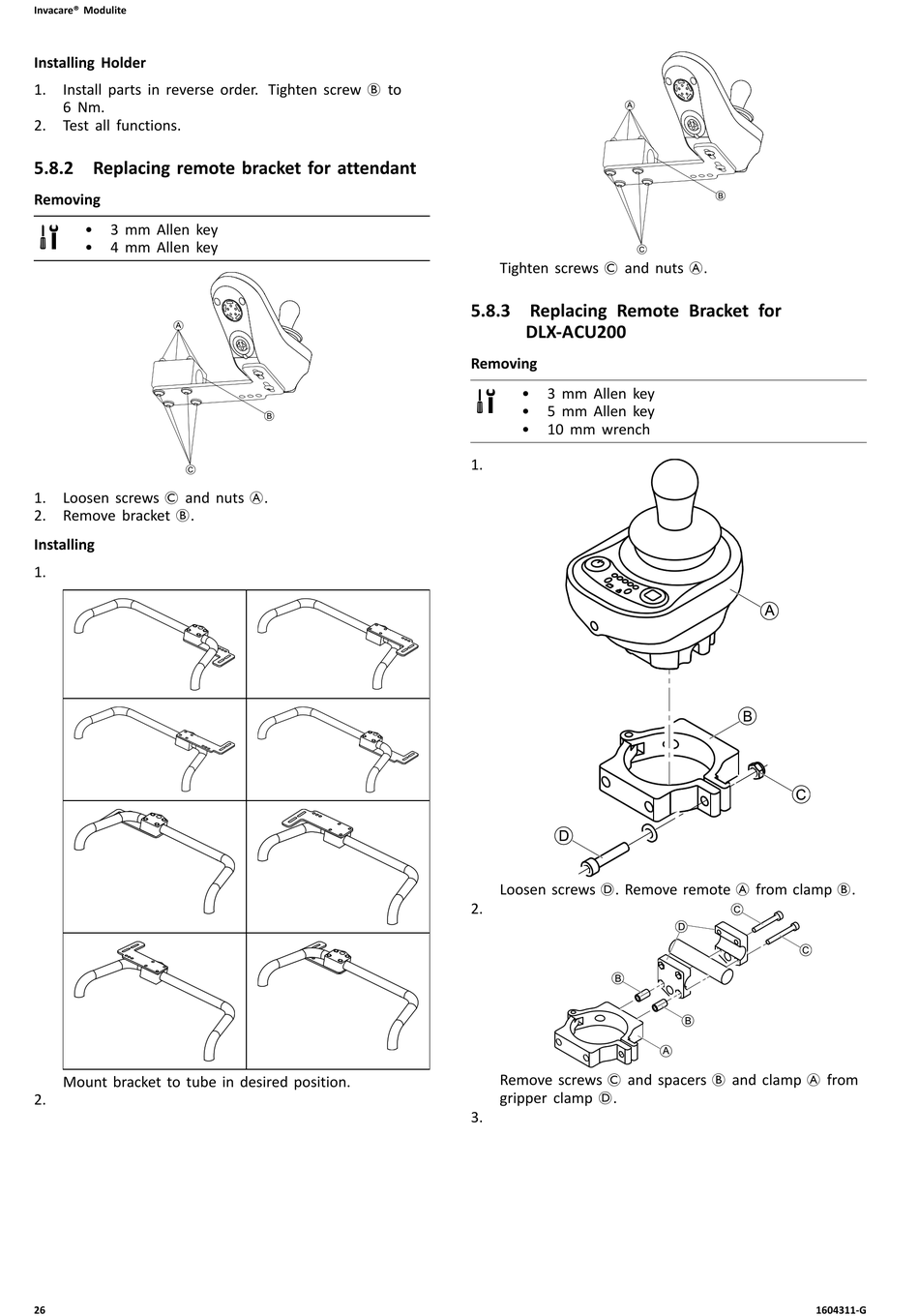

5.8.2 Replacing remote bracket for attendant

Removing
• 3 mm Allen key
• 4 mm Allen key
1. Loosen screws C and nuts A.
2. Remove bracket B.
Installing
1.
Mount bracket to tube in desired position.
2.
26
Tighten screws C and nuts A.
5.8.3 Replacing Remote Bracket for
DLX-ACU200
Removing
• 3 mm Allen key
• 5 mm Allen key
• 10 mm wrench
1.
Loosen screws D. Remove remote A from clamp B.
2.
Remove screws C and spacers B and clamp A from
gripper clamp D.
3.
1604311-G
