Invacare® Modulite

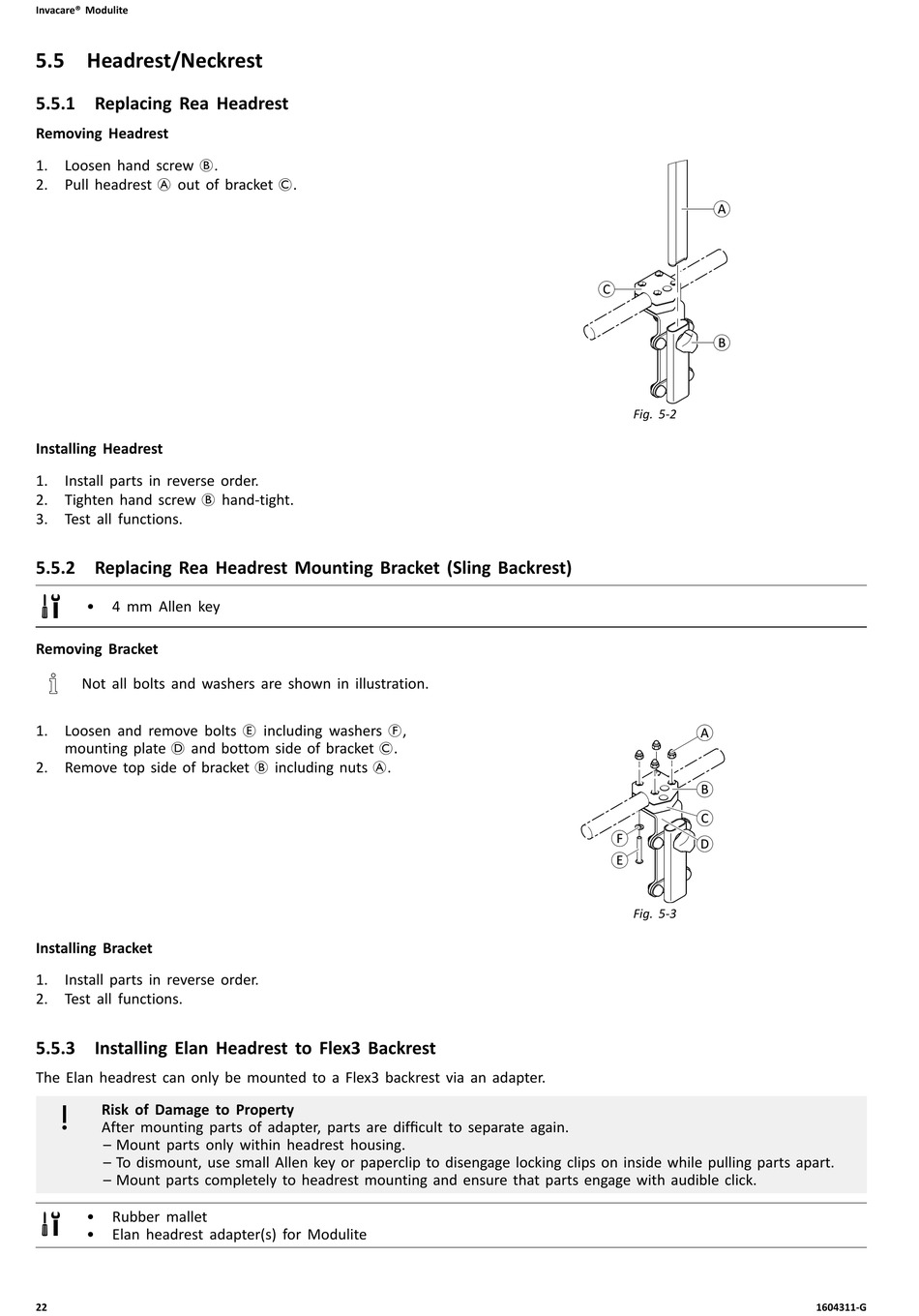

5.5 Headrest/Neckrest

5.5.1 Replacing Rea Headrest

Removing Headrest
1. Loosen hand screw B.
2. Pull headrest A out of bracket C.
Installing Headrest
1. Install parts in reverse order.
2. Tighten hand screw B hand-tight.
3. Test all functions.

5.5.2 Replacing Rea Headrest Mounting Bracket (Sling Backrest)

• 4 mm Allen key
Removing Bracket
Not all bolts and washers are shown in illustration.
1. Loosen and remove bolts E including washers F,
mounting plate D and bottom side of bracket C.
2. Remove top side of bracket B including nuts A.
Installing Bracket
1. Install parts in reverse order.
2. Test all functions.

5.5.3 Installing Elan Headrest to Flex3 Backrest

The Elan headrest can only be mounted to a Flex3 backrest via an adapter.
Risk of Damage to Property
After mounting parts of adapter, parts are difficult to separate again.
– Mount parts only within headrest housing.
– To dismount, use small Allen key or paperclip to disengage locking clips on inside while pulling parts apart.
– Mount parts completely to headrest mounting and ensure that parts engage with audible click.
• Rubber mallet
• Elan headrest adapter(s) for Modulite
22
Fig. 5-2
Fig. 5-3
1604311-G
