OPT3004EVM Software

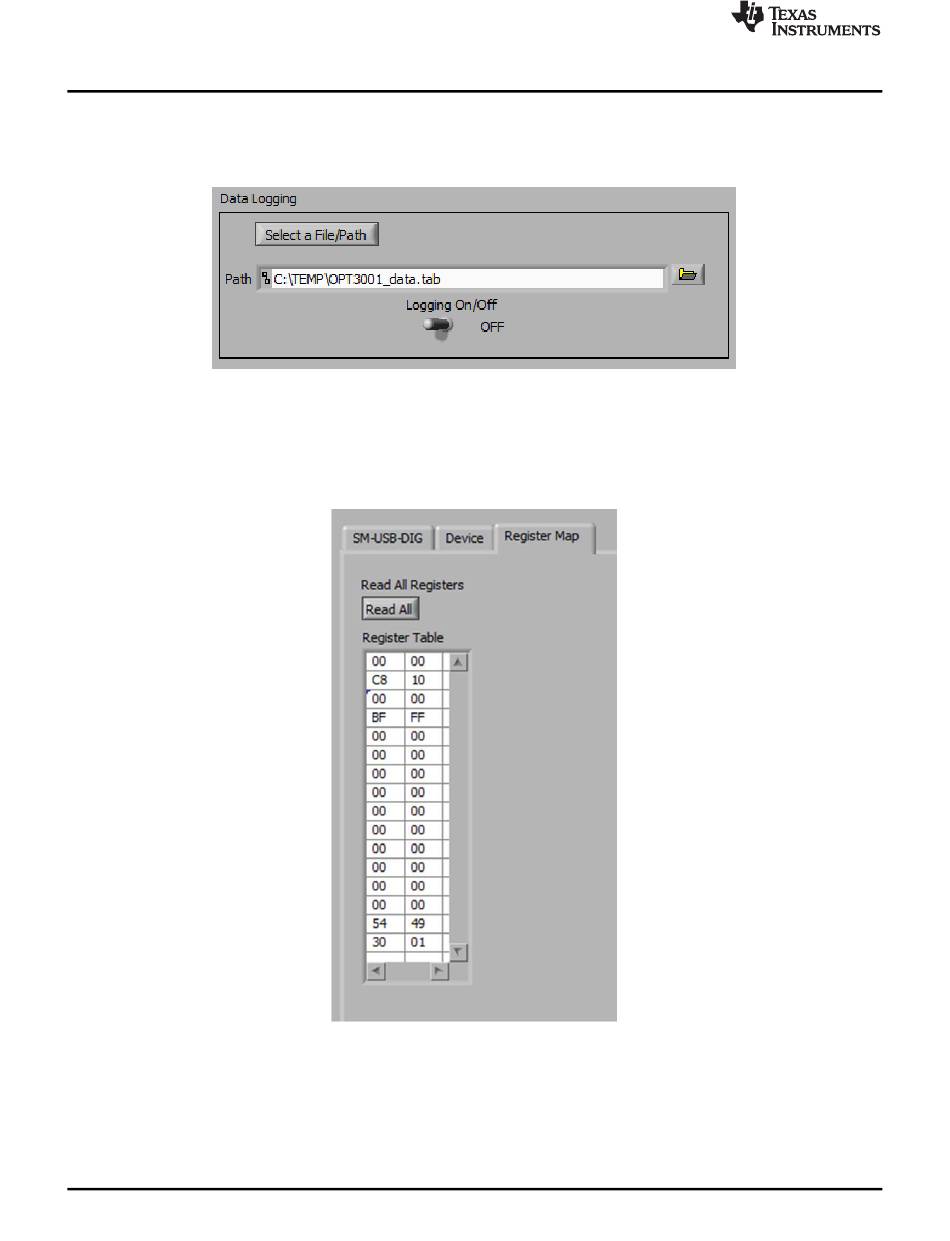

There is a data logging feature included in the software, as shown in
user to record the date and time from the host computer, along with the measured lux value reported by
the device. After a destination file is selected by clicking Select a File/Path, turning on the Logging On/Off
selector switch appends data to that file in .tab format.
Under the final tab, Register Map, shown in
button reads registers x00 through x0F and displays the results to the Register Table spreadsheet. In this
way, all register values, including the values of x0E and x0F, can be easily verified to match the values
shown in the data sheet.
Figure 20. Read All Button on the Register Map Tab with Example Output
