WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc.
Copyright 2019, T.I.

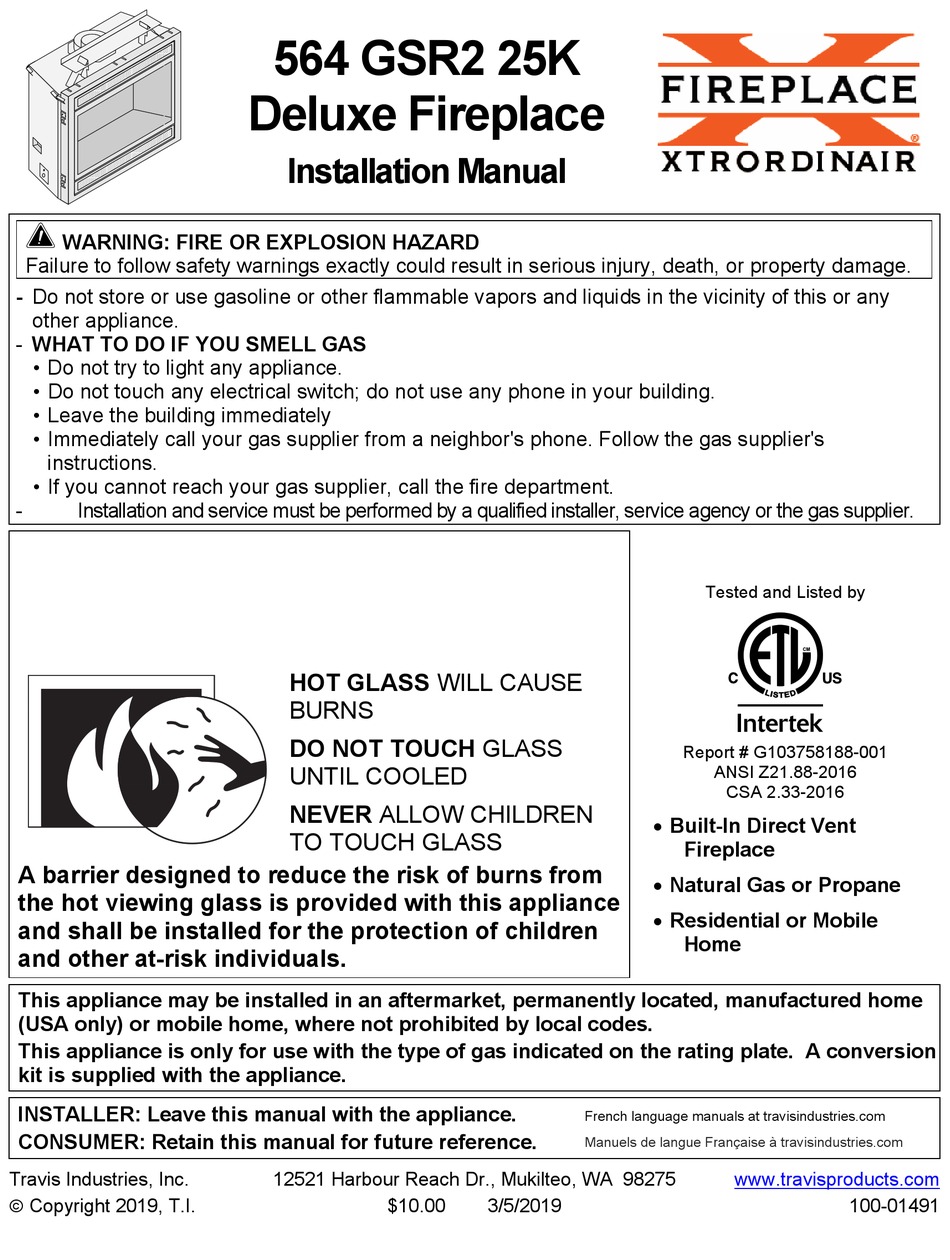

564 GSR2 25K
Deluxe Fireplace
Installation Manual
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
Built-In Direct Vent
Natural Gas or Propane
Residential or Mobile
French language manuals at travisindustries.com
Manuels de langue Française à travisindustries.com
3/5/2019
Tested and Listed by
Report # G103758188-001
ANSI Z21.88-2016
CSA 2.33-2016
Fireplace
Home
www.travisproducts.com
100-01491
Advertisement
Table of Contents
Related Manuals for FireplaceXtrordinair 564 GSR2 25K Deluxe
Summary of Contents for FireplaceXtrordinair 564 GSR2 25K Deluxe
- Page 1 564 GSR2 25K Deluxe Fireplace Installation Manual WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Overview
Introduction Overview This manual details the installation requirements for the 564 GSR2 25K fireplace. For operating and maintenance instructions, refer to the 564 GSR2 25K Owner's Manual. Listing Details This appliance was listed to ANSI Z21.88. The listing label is attached to the appliance near the gas control valve. -
Page 3: Table Of Contents
Table of Contents Overview ............2 Rear Vent Configuration with Horizontal Termination (with vertical rise) ....28 Listing Details ..........2 Rear Vent Configuration with Vertical Installation Options ........6 Termination..........29 Heating Specifications ........6 ... -
Page 4: Safety Warnings
Safety Precautions Safety Warnings Failure to follow all of the requirements may result in property damage, bodily injury, or even death. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns. - Page 5 Safety Precautions Safety Warnings (continued) Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near the appliance. Light the heater using the built-in igniter. Do not use matches or any other external device to light your heater.
-
Page 6: Installation Options
Features and Specifications Installation Options Residential or Mobile Home Internal or External Chase Straight or Corner Placement Horizontal or Vertical Vent Flush or Recessed Face Bedroom Approved Raised or Floor Placement Heating Specifications Natural Gas Propane Approximate Heating Capacity (in square feet)*... -
Page 7: Packing List
Installation (for qualified installers only) Packing List Propane Conversion Kit (Front #60 Orifice, Rear #60 Orifice, Pilot Orifice 0.14 LP). Thimble (sku# 250-04833) Remote Insulation and Heat Shield (for rear vent conversion) Exhaust Deflector (used for min. rear vent configurations only) ... -
Page 8: Massachusetts Requirements
Installation (for qualified installers only) Massachusetts Requirements NOTE: The following requirements reference various Massachusetts and national codes not contained in this document. Requirements for the Commonwealth of Massachusetts For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:... -
Page 9: Top Stand-Off Assembly
Installation (for qualified installers only) Top Stand-Off Assembly The top stand-offs must be assembled prior to installation. Bend both standoffs as shown below. Remove the screw from the top of the The two standoffs are shipped flat. fireplace and secure the standoff as shown. The (2) header standoffs are screwed down flat to front edge of the top of the fireplace. -
Page 10: Front Standoffs And Sheetrock Supports
Installation (for qualified installers only) When finished the fireplace should be configured like the picture below. Front Standoffs and Sheetrock Supports The front standoffs are shipped flat. Remove the appropriate screw and form the standoffs as shown below. Replace the screw to secure. Bend the sheetrock supports up perpendicular to the top of the fireplace front (see the right hand illustration below) . -
Page 11: Top Vent Or Rear Vent Configuration
Installation (for qualified installers only) Top Vent or Rear Vent Configuration This appliance is shipped in the top vent configuration. To change to the rear vent configuration, follow the directions below. NOTE: the vent configuration affects several aspects of installation (framing, maximum vent rise, maximum vent run). - Page 12 Installation (for qualified installers only) Converting the Fireplace to Rear Vent Configuration (continued) Tuck the insulation (included in the rear vent conversion kit) into the area above the exhaust manifold. NOTE: The longer edge goes side to side. The insulation must be placed so it covers the entire area over the exhaust manifold.
- Page 13 Installation (for qualified installers only) FOR REAR VENT APPLICATIONS WITH NO VERTICAL RISE ONLY When using a rear vent configuration with no vertical rise (see page 27) remove and discard the exhaust restrictor and install the exhaust deflector (included with the fireplace) as shown below. Remove and discard the exhaust restrictor (keep the...
-
Page 14: Fireplace Placement Requirements
Installation (for qualified installers only) Fireplace Placement Requirements Fireplace must be installed on a level surface capable of supporting the fireplace and vent Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet) ... -
Page 15: Minimum Framing Dimensions
Installation (for qualified installers only) Minimum Framing Dimensions MIn. Enclosure 39-1/2" 1004mm 37-1/4" 947mm 37-3/4" 959mm 17-1/2" 445mm SHADOWBOX FACE NOTE: The Shadowbox face extends 1” below the base of the fireplace. © Travis Industries 3/5/2019 - 1491 564 GSR2 25K... -
Page 16: Nailing Brackets
Installation (for qualified installers only) Nailing Brackets There are four nailing brackets on the front of the fireplace. Follow the directions below to prepare the nailing brackets. Once in place, nail or screw the nailing brackets to the framing. Make sure the fireplace is square and plumb when placed in the framing. -
Page 17: Corner Installations - Top Vent Configuration
Installation (for qualified installers only) Corner Installations - Top Vent Configuration A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances still apply). Minimum 1/2" (13mm) Clearance 14-1/4" 362mm 45-3/4" Min. 1163mm © Travis Industries 3/5/2019 - 1491 564 GSR2 25K... -
Page 18: Outdoor Fireplace Installations
Installation (for qualified installers only) Outdoor Fireplace Installations Travis Industries Inc. gas-fired fireplaces are suitable for installation into outdoor areas protected from direct water impingement. In addition to maintaining listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of installed appliances (see the illustration to the right). -
Page 19: Gas Line Requirements
Installation (for qualified installers only) Gas Line Requirements MASSACHUSETTS INSTALLATIONS - WARNING: THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE COMMONWEALTH OF MASSACHUSETTS. OTHER MASSACHUSETTS CODE REQUIREMENTS: Flexible connector must not be longer than 36 inches. ... -
Page 20: Gas Line Location
Installation (for qualified installers only) Gas Line Location NOTE FOR RIGID PIPE: When using rigid pipe, you may wish to disconnect the shutoff valve from the fireplace and route the pipe through the fireplace wall. First, disconnect the gas line from the shutoff valve (see step 1 below). -
Page 21: Electrical Connection (Required)
Installation (for qualified installers only) Electrical Connection (required) The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified installer and must meet all local codes. Make sure the household breaker is shut off prior to working on any electrical lines. ... -
Page 22: Vent Requirements
Installation (for qualified installers only) Vent Requirements The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use its own separate vent system. -
Page 23: Approved Vent
Installation (for qualified installers only) Approved Vent Rear Vent Configurations Horizontal Terminations: use 8" (203mm) diameter Dura-Vent Model Direct-Vent Pro*. Vertical Terminations: use 8" (203mm) diameter Dura-Vent Model Direct-Vent Pro* for the initial horizontal run and 90° upward elbow. Then attach the 8" (203mm) to 6-5/8" (168mm) reducer (Travis part # 98900165) to the elbow. -
Page 24: Approved Vent Configurations
Installation (for qualified installers only) Approved Vent Configurations Restrictor Position Intake and exhaust restrictors are built into the appliance to adjust the flow rate of intake air and exhaust gases. Depending upon the vent configuration, you may be required to adjust the restrictor positions. -
Page 25: Intake Restrictor Adjustment
Installation (for qualified installers only) Intake Restrictor Adjustment The intake restrictor is located on the back wall of the firebox. To adjust the restrictor, follow the steps below: Position # 1 (open) 1/4" Socket Loosen the two screws holding the intake restrictor in place.. -
Page 26: Diffuser Plate Adjustment
Installation (for qualified installers only) Diffuser Plate Adjustment Certain vent configurations require the diffuser plate to be adjusted (refer to the approved vent configuration charts for details). Position # 1 is stock (bent). Position # 2 is flattened. See the directions below to change the diffuser to position #2. -
Page 27: Rear Vent Configuration With Horizontal Termination (No Vertical Rise)
Installation (for qualified installers only) Rear Vent Configuration with Horizontal Termination (no vertical rise) The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions. Use 8” diameter vent. - Remove the Exhaust Restrictor 3 feet and Install Exhaust Deflector 915mm... -
Page 28: Rear Vent Configuration With Horizontal Termination (With Vertical Rise)
Installation (for qualified installers only) Rear Vent Configuration with Horizontal Termination (with vertical rise) The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions. Up to four elbows (45° or 90°) may be used. ... -
Page 29: Rear Vent Configuration With Vertical Termination
Installation (for qualified installers only) Rear Vent Configuration with Vertical Termination The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions. 40' max (12m) 40' max (12m) Up to four elbows (45° or 90°) may be used. -
Page 30: Top Vent Configuration With Horizontal Termination
Installation (for qualified installers only) Top Vent Configuration with Horizontal Termination The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions. Up to four elbows (45° or 90°) may be used. ... -
Page 31: Top Vent Configuration With Vertical Termination
Installation (for qualified installers only) Top Vent Configuration with Vertical Termination The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions. 40' max (12m) 40' max (12m) Up to four elbows (45° or 90°) may be used. -
Page 32: Masonry Chimney Conversions
Installation (for qualified installers only) Masonry Chimney Conversions This appliance may utilize 6-5/8" diameter direct vent manufactured by Duravent (reducer may be required). The vent may be adapted to utilize an existing masonry fireplace using the Duravent Co-Linear Adapter (46DVA-GCL or TCL). The vent must be installed following all directions included with the vent and those listed below: ... -
Page 33: Class A Chimney Conversion
Installation (for qualified installers only) Class A Chimney Conversion Duravent provides a conversion kit for those wishing to use an existing class A chimney to vent this direct fireplace. The illustration below gives an overview of this type of installation. See the instructions included with the kit for details. -
Page 34: Termination Requirements
Installation (for qualified installers only) Termination Requirements Venting terminals shall not be recessed into a wall or siding. Minimum 9" (229mm) clearance from any door or window Roof Minimum 12" (305mm) above any grade, veranda, porch, deck or balcony Surface Minimum 1"... -
Page 35: Hearth Requirements
Installation (for qualified installers only) Hearth Requirements Do not build a hearth more than 1" (25mm) above the Floor Mounted baseplate (this area must remain clear for the access Fireplaces door). If installed near carpet or other combustible flooring, the fireplace must be raised so the base of the unit is above the carpet surface or flooring material. -
Page 36: Facing Requirements
Installation (for qualified installers only) Facing Requirements This appliance is designed to allow for drywall (or other combustible facing) to contact the sides and top of the front of the fireplace. Tile or other non-combustible facing may be placed on the front of the fireplace (see "Facing Overview"... -
Page 37: Facing Overview
Installation (for qualified installers only) Facing Overview Upgrade faces are available for this fireplace and may influence facing installation. Consult with your Travis Dealer if you are using an upgrade face. Optional non-combustible facing may be installed on the fireplace. Use the guidelines below to determine the location (also see the following pages for detailed diagrams. - Page 38 Installation (for qualified installers only) Thin Facing Installation (tile, marble, or other non-combustible under 1" (25mm) thick) Upgrade faces are available for this fireplace and may influence facing installation. Consult with your Travis Dealer if you are using an upgrade face. Facing is installed to this edge of the fireplace.
- Page 39 Installation (for qualified installers only) Thin Facing Installation (tile, marble, under 1" (25mm) thick) - Side View Drywall Raised Fireplace (with no Hearth) Tile or other facing under 1'' (25mm) thick. Face SIDE OF FIREPLACE Note how the facing extends 1'' (25mm) above the base of the fireplace.
- Page 40 Installation (for qualified installers only) Thick Facing Installation (stone, brick, or other non-combustible over 1" (25mm) thick) If using a Fireplace Xtrordinair (FPX) arched face, see "Thick Facing with a Fireplace Xtrordinair Arched Faces" on page 41. Do not install masonry (or other material) in front of the fireplace.
- Page 41 Installation (for qualified installers only) Thick Facing with Fireplace Xtrordinair (FPX) Arched Faces The following illustration shows facing considerations for those fireplaces utilizing FPX arched faces. The facing must be non-combustible and over 1" (25mm) in depth. Masonry Line The Fireplace Xtrordinair 564 Masonry Template is recommended for masonry installation (sku 98500674).
- Page 42 Installation (for qualified installers only) Thick Facing Installation - Side View Drywall Floor-Mounted Fireplace (with Hearth) Masonry or other non-combustible over 1'' (25mm) thick SIDE OF FIREPLACE Face Hearth (note how it extends under the face - max. 1'' (25mm) thick). The fireplace may be raised to accommodate thicker hearth materials.
-
Page 43: Mantel Requirements
Installation (for qualified installers only) Mantel Requirements Combustible Mantels Use the table below to determine the maximum mantel depth allowed. The mantel depth (measured from the face of the fireplace) must fall in the shaded portion of the table. ... -
Page 44: Installation Example - Build-Out (Dog-House) With Hor. Termination
Installation (for qualified installers only) Installation Example - Build-Out (Dog-House) with Hor. Termination The framing, facing, and other building materials depicted below are for example only. Refer to local building codes for framing, facing, and insulating requirements in your area. Side View Drywall See “Vent Termination”... -
Page 45: Installation Example - Build-In With Horizontal Termination
Installation (for qualified installers only) Installation Example - Build-In with Horizontal Termination The framing, facing, and other building materials depicted below are for example only. Refer to local building codes for framing, facing, and insulating requirements in your area. Side View Drywall See “Vent Termination”... -
Page 46: Steps For Finalizing The Installation
Finalizing the Installation (for qualified installers only) Steps for Finalizing the Installation Remove the glass (see page 48). NOTE: If using propane (LP) convert the appliance prior to installing the logs. We recommend you purge the gas line at this time (with the glass removed). This allows gas to be detected once it enters the firebox, ensuring gas does not build up. -
Page 47: Air Shutter Adjustment
Finalizing the Installation (for qualified installers only) 11. Check the air shutter following the directions below. Air Shutter Adjustment Let the heater burn for fifteen minutes (make sure the logs and glass are in place). The flames should be yellow with no sooting. Adjust the air shutter, if necessary, to achieve the correct looking flame. Correct Not Enough Air Too Much Air... -
Page 48: Barrier Removal
Finalizing the Installation (for qualified installers only) Barrier Removal A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. -
Page 49: Glass Frame Removal And Installation
Finalizing the Installation (for qualified installers only) Glass Frame Removal and Installation Warning: The appliance must be completely cool before removing the glass. Warning: Do not strike or slam the glass. Note: Remove the barrier before removing the glass (see previous page). Replace barrier after replacing the glass. -
Page 50: Glass Frame Removal And Installation (Continued)
Finalizing the Installation (for qualified installers only) Glass Frame Removal and Installation (continued) The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose. Hold the latch at an angle and insert it into the slot on the glass frame anchor. -
Page 51: Fireback Configuration Notes (Optional Fireback)
Finalizing the Installation (for qualified installers only) Fireback Configuration Notes (Optional Fireback) NOTE: If using an optional fireback install the kit prior to performing any other firebox setup. WARNING: Turn off gas to the appliance and make sure it has fully cooled prior to conducting service. You may need to change the configuration of the firebox depending on which fireback option is being installed. -
Page 52: Ember Bed Glass And Ember Material Installation
Finalizing the Installation (for qualified installers only) Ember bed Glass and Ember Material Installation Ember bed Glass Installation Make sure the ember skirt is in place. The skirt hooks over the front of the ember platform and slopes outward toward the glass. The skirt helps keep the glass and ember material from falling off the platform when the glass is removed. -
Page 53: Ember Material Installation
Finalizing the Installation (for qualified installers only) Ember Material Installation Once the ember glass installation is complete, place a generous amount of ember material on the firebox floor on either side of the firebox. Completely cover any visible metal on the firebox floor. NOTE: Make sure no ember material is placed directly on the burner. -
Page 54: Log Set Installation
Finalizing the Installation (for qualified installers only) Log Set Installation Installation Warnings NOTE: If using propane (LP), convert the appliance before installing the log set. If using firebacks, install them prior to installing the log set. The logs are fragile, especially after being exposed to heat. ... - Page 55 Finalizing the Installation (for qualified installers only) Log Set Overview – Birch 94500624 When installed, the ten (10) logs should appear as shown below. Center Log 250-04934 Rear Log 250-04925 Left Log Right Twig 250-04928 250-04930 Center Left Twig Right Log 250-04932 250-04929 Left Twig...
- Page 56 Finalizing the Installation (for qualified installers only) Installation Rear Log The rear log has two pockets that insert over two tabs on the back burner (see photos below). Place the log in place and push it back. The log straddles the burner and does not cover any burner holes. ©...
-
Page 57: Right Log
Finalizing the Installation (for qualified installers only) Left Log The left log has two flat surfaces on the bottom. Place the log so the flat surfaces rest against the burner as shown below. Make sure the log does not block any burner holes. Right Log The right log has a channel on the bottom that fits over the ridge on the burner. - Page 58 Finalizing the Installation (for qualified installers only) Front Left Log The front left log has a channel that fits over the grate. When in place, the knob on the front of the log fits over the grate as well. Front Ember Chunk The front ember chunk has a groove on the bottom that fits over the grate.
- Page 59 Finalizing the Installation (for qualified installers only) Center Twig The center twig is shown below. It has a pin on the bottom side. When in place, the fork on the front straddles the grate and the pin rests on the rear burner (make sure it is not over any burner holes). Center Log The center log has a hole on the back and a fork on the front.
- Page 60 Finalizing the Installation (for qualified installers only) Left Twig The left twig has a hole on the bottom that fits over the locating pin on the front left log. Place the twig as shown below. The front left log has a groove that will point the twig upwards and to the right. Center Left Twig The center left twig is flat on the bottom with one hole.
-
Page 61: Right Twig
Finalizing the Installation (for qualified installers only) Right Twig The right twig has a hole and a slot on the bottom that fit over the pins on the right log. When properly positioned, the log will be placed as shown below and to the right. Ember Installation NOTE: The embers are included with the fireplace. - Page 62 Finalizing the Installation (for qualified installers only) Rock Wool Placement NOTE: The rock wool is included with the fireplace. Consult the installation manual for details on installing the rock wool. The included rock wool is placed on top of the burner to enhance the glow from the burner. The rock wool works best when it is applied in a very thin layer.
-
Page 63: Lp Conversion Instructions
Finalizing the Installation (for qualified installers only) LP Conversion Instructions WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. - Page 64 Finalizing the Installation (for qualified installers only) Remove the manifold cover. NOTE: Discard the orifice gaskets and reinstall the manifold cover after changing the orifices Follow the directions below to replace the orifice. Slide the air shutters to provide access to the orifices. Remove and discard the gasket on each burner orifice.
- Page 65 Finalizing the Installation (for qualified installers only) 1. Install the LP pilot orifice following the instructions below. (a) Use a 7/16” open-end wrench to remove the pilot hood. (b) Remove and discard the Natural Gas (NG) orifice. Place the LP orifice in the pilot assembly then replace the pilot hood, tightening the pilot hood until it is snug (do not over-tighten).
-
Page 66: Special Instructions For Fireback Installation
Optional Equipment (for qualified installers only) Special Instructions for Fireback Installation - This fireplace may use existing 564 firebacks. However, the instructions included with the firebacks do not include the following caveats: Firebox Baffle and Exhaust Restrictor Must Be Removed To Install Firebacks (replace once firebacks in place) Firebox Baffle The baffle and exahaust restrictor have keyholes, allowing... - Page 67 Optional Equipment (for qualified installers only) Rear Air Deflector (behind the rear log) Must be Removed (replace after firebacks in place) Remove the rear burner. NOTE: when replacing make sure the burner is properly aligned and the holes on the tabs on the burner insert over the pins IDB01282 on the burner stand.
-
Page 68: Grill Installation
Optional Equipment (for qualified installers only) Grill Installation NOTE: Install the barrier screen before attaching the grills.Follow the directions below to install. Upper Grill Installation (FPX and Avalon) Hold the grill at an angle and insert the Swing the grill upwards to engage the upper slot. You lower slot over the lower bushing on will need to lift the grill slightly to get it over the bushing. -
Page 69: Optional Coolsmart Tv Kit (Sku#98900778)69
Optional Equipment (for qualified installers only) Optional CoolSmart TV Kit (sku#98900778) The CoolSmart system is designed to redirect the convective heat of the fireplaces from the front of the unit, just above the glass, to a location higher on the wall. The use of this kit allows for reduced clearances to televisions and a recessed cavity above the fireplace. -
Page 70: 564 25K Installation Requirements
Optional Equipment (for qualified installers only) 564 25K Installation Requirements Min. 1-1/4" Clearance 3/8" Upper Manifold Framing from Top, Sides and 1-1/4" Back to Combustibles 1-3/4" Ceiling 3/4" Min. 1-1/2" Manifold 3-3/4" Manifold Support Bracket Lower Manifold Framing Min. 3-1/2" Min. -
Page 71: Framing The Chase
Optional Equipment (for qualified installers only) 564 25K Framing the Chase When using this kit, disregard the framing dimensions in the manual and follow the framing instructions shown below. 26-1/2" 674mm Braces for Manifold Support Brackets 3-3/4" Bottom of Upper 96mm Manifold Framing 8-1/2"... -
Page 72: Installation
Optional Equipment (for qualified installers only) Installation Remove the grill from the manifold (2 screws hold it in place). Remove the rear-mounting brackets by loosening 1/4" screws and sliding it out of the keyhole slots. Determine the desired location of the bottom of the convection air outlet. Install a horizontal framing member at the desired height, parallel to the header. - Page 73 Optional Equipment (for qualified installers only) Secure the manifold to the upper framing using screws (not included). Secure to framing Re-attach the two rear mounting brackets (removed in step 6) to the bottom of the convection manifold. Leave the screws loose so the brackets can be positioned to the back of the chase. Secure the brackets to the chase using screws (not included).
- Page 74 Optional Equipment (for qualified installers only) Grab on to the knockout with pliers and bend it back and forth until the remaining tabs break free. Discard the knock out plate. 10 Under each knock out plate, you will find a cover plate held in place with (2) ¼” screws. Use a nut driver or drill with an extension to remove the (2) screws.
- Page 75 Optional Equipment (for qualified installers only) 12 Insert a starter collar into each of the (2) holes that were uncovered in the previous step and bend the tabs to secure the starter collar to the fireplace.. Seal the joints with silicone caulk or aluminum (U.L.
- Page 76 Optional Equipment (for qualified installers only) 14 Stretch the included flex to its maximum length. Measure the distance between the starter collars on the fireplace and the inlets on the convection manifold. Cut the flex to the appropriate length and install between the fireplace and the manifold. Secure using (3) screws at every connection and seal the joints with silicone caulk or aluminum (U.L.
-
Page 77: Wiring Diagram
Optional Equipment (for qualified installers only) Wiring Diagram White Black Black White Accent Light (s)* Blower(s)* Power 3 Amp 3 Amp Fuse Fuse Integrated Fireplace Control (IFC) Appliance Ground 3 Amp 3.15A Fuse FUSE Pilot Sensor Flame Detect Rheostat Spark System EmberBed Jumper... -
