10.2. Y Connector

Y connectors can be used with the EX245-DX1 and EX245-DY1.

There are two options –

2 x M12 to M12

2 x M8 to M12

Model No.：PCA-1557785

(Y branch Connector (2 x M12 to M12))

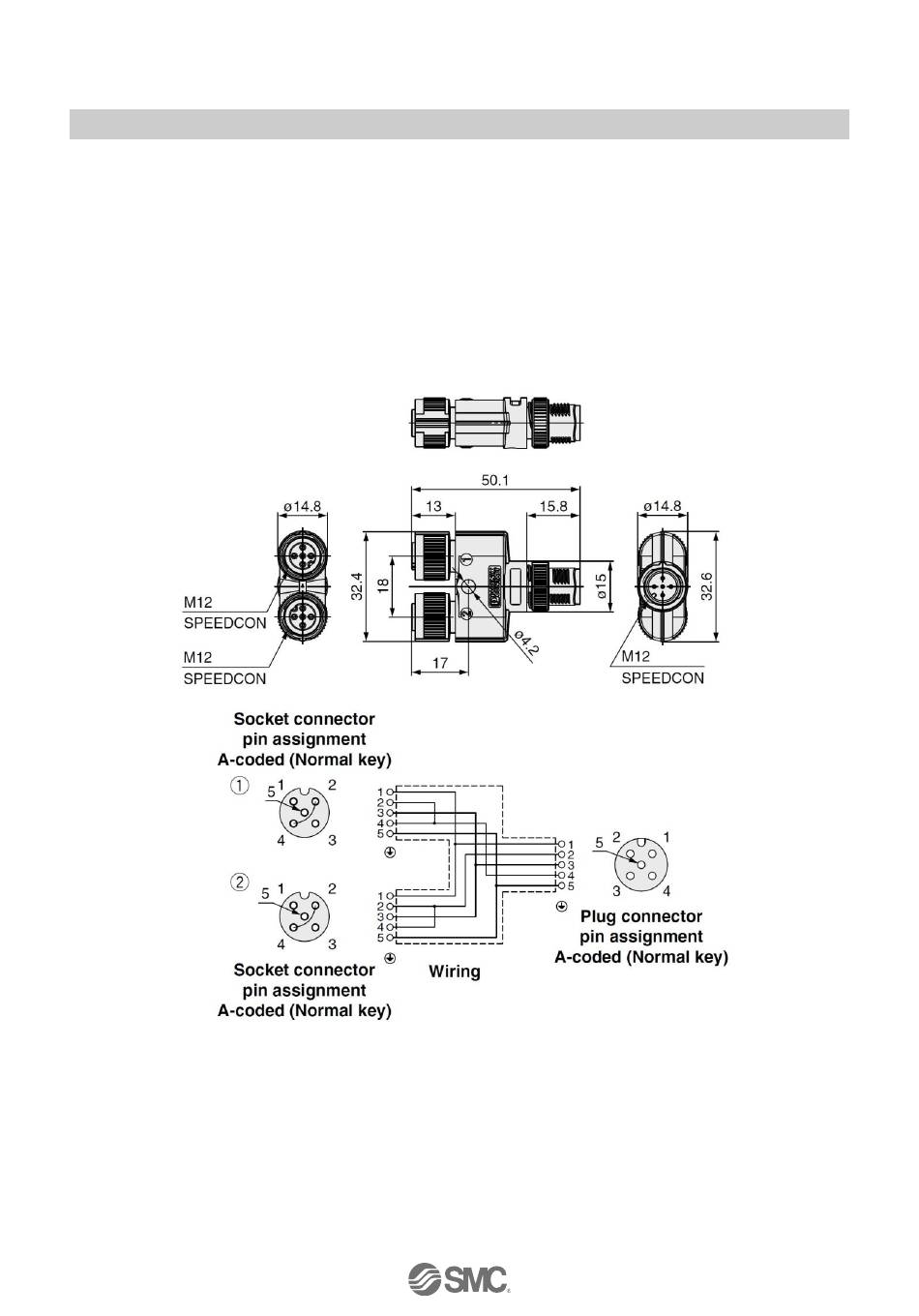

Fig. 10-2 PCA-1557785

- 58 -

No.EX※※-OMW0011-A
