3.2. Wiring

Caution
To prevent damage, all voltages to the SI Unit must be turned off (i.e. de-energized) before the
modules are installed or removed.
Wire the grounding cable, the PROFINET cables and the power cable.
EX245-SPN1A
①
M4, FE terminal screw (torque = 0.7 - 0.8 Nm)
②
Push Pull connector (24 Volt), Power connection (XD1)
③
Push Pull connector (24 Volt), Power connection (XD2)
④
Push Pull connector (SCRJ), PROFINET connection Port1 (XF1)
⑤
Push Pull connector (SCRJ), PROFINET connection Port2 (XF2)
EX245-SPN2A
①
M4, FE terminal screw (torque = 0.7 - 0.8 Nm)
②
Push Pull connector (24 Volt), Power connection (XD1)
③
Push Pull connector (24 Volt), Power connection (XD2)
④
Push Pull connector (RJ45), PROFINET connection Port1 (XF1), Port type: MDI
⑤
Push Pull connector (RJ45), PROFINET connection Port2 (XF2), Port type: MDI-X

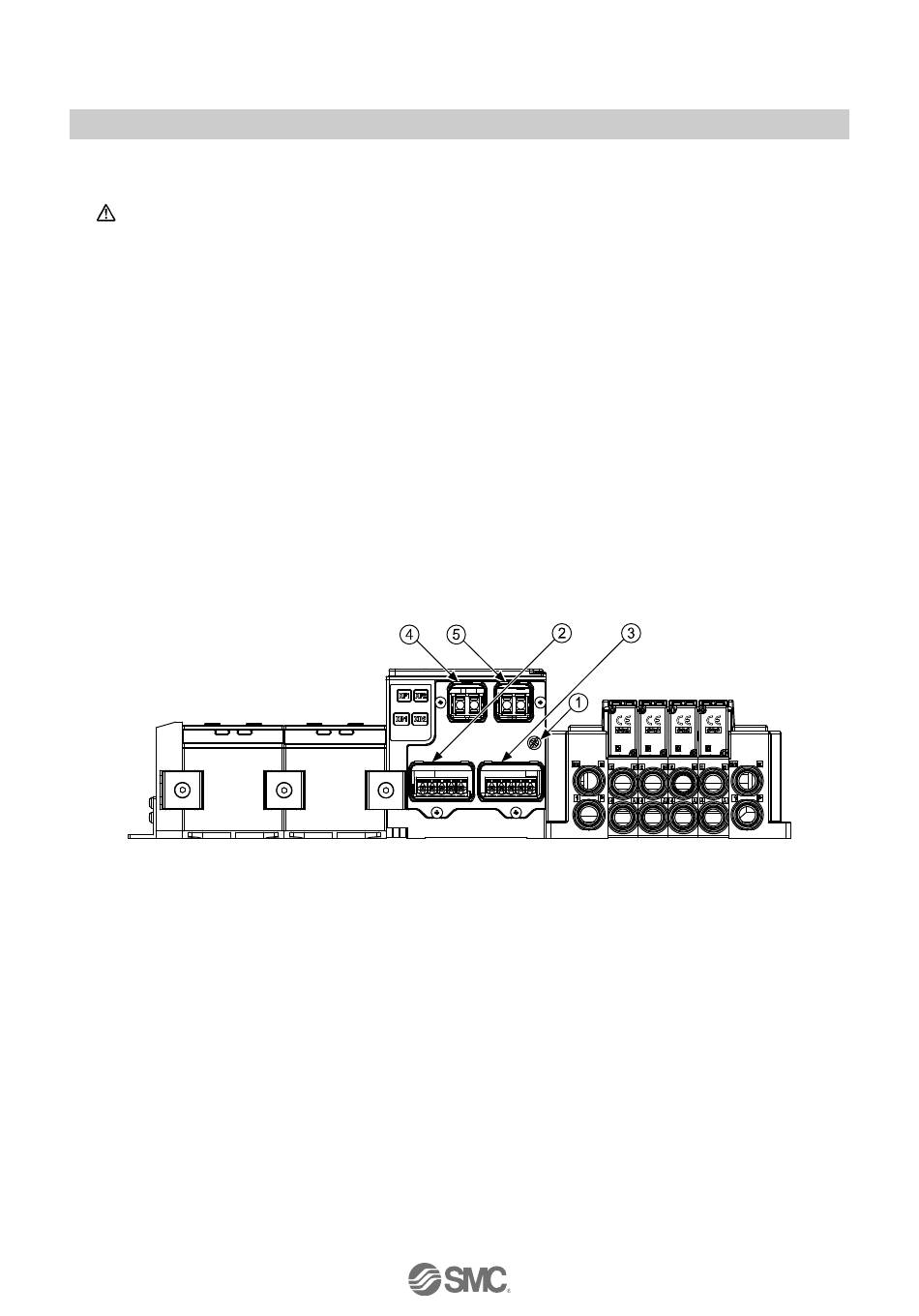

Fig. 3-4 Screw and connector allocation (EX245-SPN1A/SPN2A)
