6.3. Process data for valves

The SI Unit occupies 2 or 4 bytes of output data for valves. The counting of valve coils starts at the
SI Unit from left to right.
Byte
0 Valve coils 0-7
1 Valve coils 8-15
2
3
Output data
16 Valves

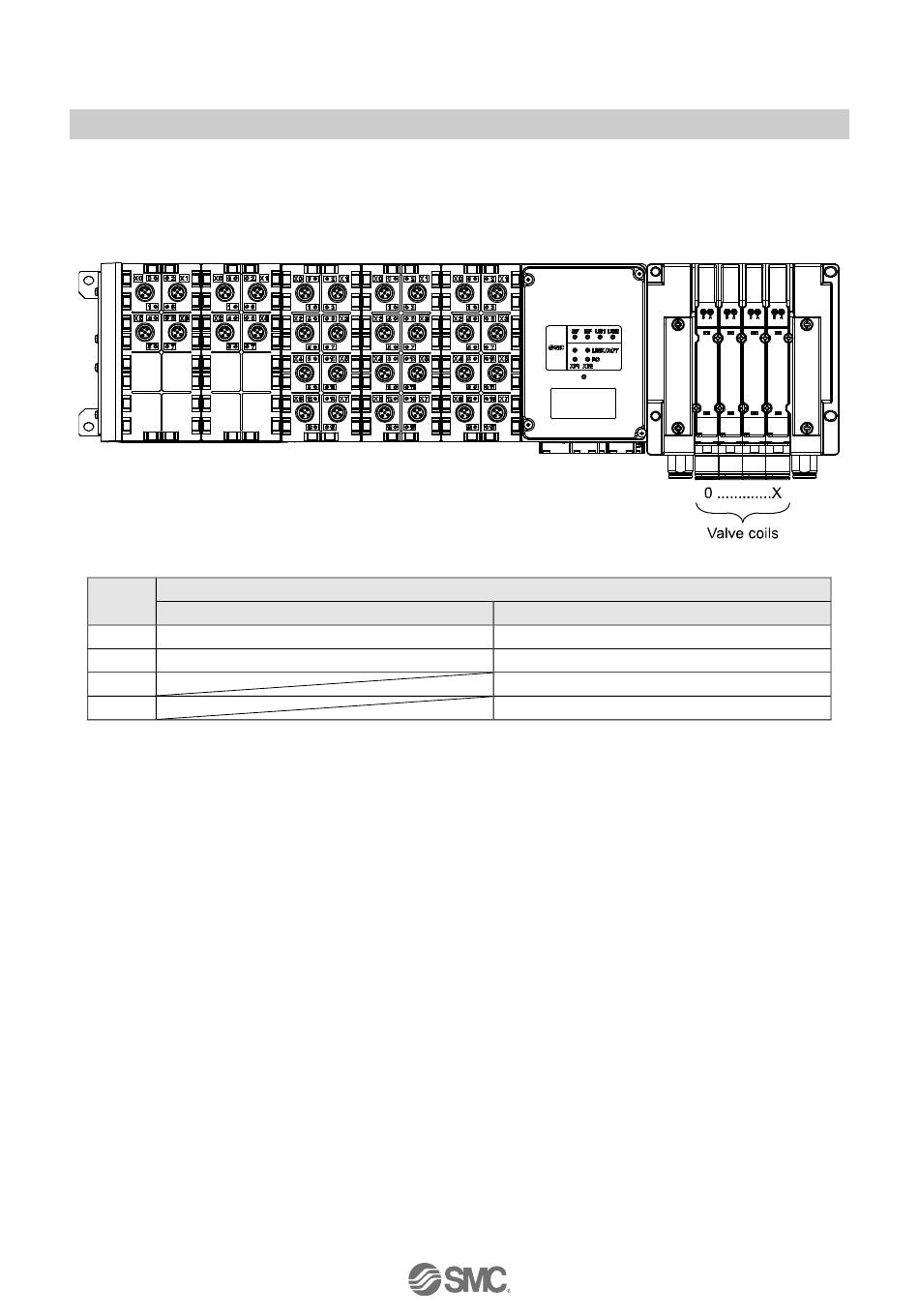

Fig. 6-3 The process data for valves
- 36 -
32 Valves
Valve coils 0-7
Valve coils 8-15
Valve coils 16-23
Valve coils 24-31
