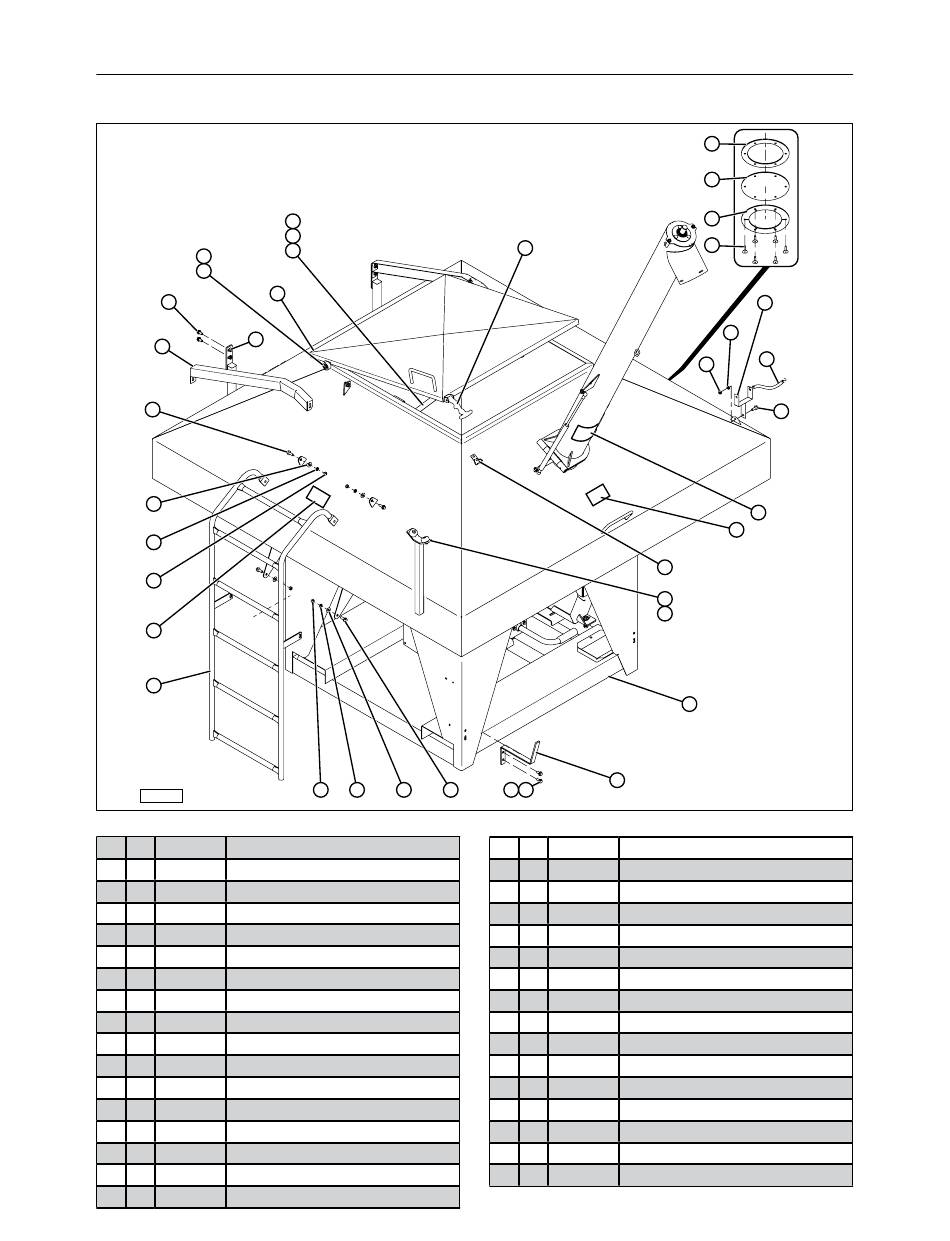

14.1 112BST SEED TENDER

15
14
17
12
13
11
5
6
7
8
10
9
110-062
1 1 35504-00 Base Assembly
2 1 21036-00 Bracket, Flex Spout Hanger
3 2 19564 Nut, Hex, Flange, 3/8-16
4 2 19577 Bolt, Hex, Flange, 3/8-16 x 3/4"
5 1 19569 Bolt, Hex, Flange, 3/8-16 x 1"
6 1 19348 Washer, Flat, 3/8"
7 4 19349 Washer, Lock, 3/8"
8 1 19343 Nut, Hex, 3/8-16
9 1 35503-00 Ladder Assembly
10 1 19939 Decal, Warning, Fall Hazard
11 1 35509-01 Track, Lid Assembly
12 2 19569 Bolt, Hex, Flange, 3/8-16 x 1"
13 2 19564 Nut, Hex, Flanged, 3/8-16
14 1 19401 Roller, Nylon Sleeve
15 1 19402 Roller Inner Bushing
17 1 35502-00 Lid, Hopper Assembly
18 1 35505-00 Arm, Swing Assembly
20
19
18
8 7 6 5
21
34
32
33
2
4 3
19 2 19325 Bolt, Hex, 3/8-16 x 1"
20 2 19347 Nut, Lock, 3/8-16 Nylon
21 1 18111 Latch, Rubber
22 1 19055 Gasket, View Glass
23 1 19285 Glass, Lexan View
24 1 19077 Ring, View Glass
25 6 19129 Rivet, 3/16"
26 1 19564 Nut, Hex, Flange, 3/8-16
28 1 30995 Bracket, Spout Rest
29 1 21319-00 Strap, Tarp 6"
30 1 19569 Bolt, Hex, Flange, 3/8-16 x 1"
31 1 19935 Decal, Warning, Pinch Point
32 2 19133 Bumper, Rubber
33 2 19301 Bolt, Hex, 1/4-20 x 1"
34 1 18112 Anchor for Latch
35 1 17509 Decal, Warning, Electrocution
22
23
24
25
28
27
29
26
30
35
31
1
