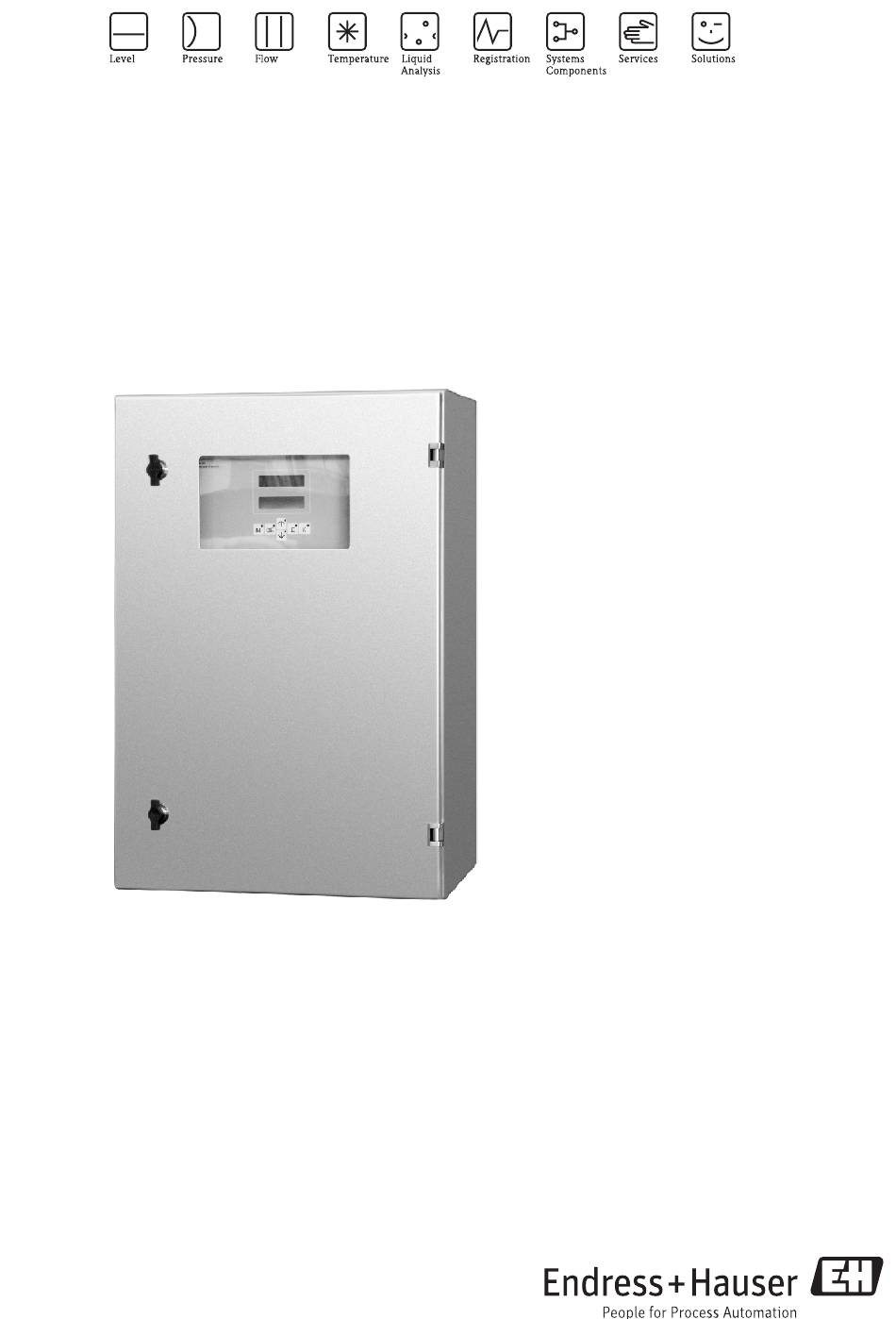

Technical Information
Stamolys CA71SI
Silicate Analyzer
Compact photometric analysis system for the silicate measurement in
ultrapure water and boiler feedwater
TI00364C/07/EN/14.12
71161856
Application
• Ultrapure water
• Boiler feedwater
• Steam and condensate analysis
• Reversed osmosis
• Demineralizers
Industries:
• Pharmaceutical industry
• Power stations
Your benefits
Stamolys CA71SI measures the silicate content quasi-
continuously to assure a constant optimum water quality. This is
of special advantage in the performance monitoring of ion
exchange and reversed osmosis systems. The analyzer replaces
frequent manual sampling and exactly determines the silicate
break through of the system.
• Stainless steel or glass-fibre reinforced carbon housing
available
• Two channel version available
• Measured value storage using integrated data logger
• Automatic calibration and self-cleaning
• Free selectable measuring, cleaning and calibration intervals
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Stamolys CA71SI-Ax0A3A1
Summary of Contents for Endress+Hauser Stamolys CA71SI-Ax0A3A1
- Page 1 Technical Information Stamolys CA71SI Silicate Analyzer Compact photometric analysis system for the silicate measurement in ultrapure water and boiler feedwater Application • Ultrapure water • Boiler feedwater • Steam and condensate analysis • Reversed osmosis • Demineralizers Industries: • Pharmaceutical industry •...
-
Page 2: Function And System Design
The standard limit for boiler feed water is 0.02 ppm silicic acid (SiO ). For injection and boiler water the standard limits are pressure dependent. For example, at an operational pressure of 68 bar (986 psi), the concentration of silicic acid in boiler water must not exceed 10 ppb. Endress+Hauser... - Page 3 Reversed osmosis or demineralizer monitoring, steam and condensate analysis Sampling from hydraulic main, measurement after cooling and pressure reduction: • Analyzer with collecting vessel, Stamolys CA71SI-Ax0A3A1 Expansion up to a six channel system by means of a separate SPS possible (s. special accessories)
- Page 4 230 V / 115 V AC max. 2 A, 30 V DC max. 1 A Data interface RS 232 C Data logger 1024 data pairs per channel with date, time and measured value 100 data pairs with date, time and measured value for calibration factor determination (diagnostic tool) Endress+Hauser...
-
Page 5: Power Supply
0.2 A at 230 V approx. 0.5 A at 115 V Fuses 1 x slow-blow 0.5 A for electronics 2 x semi-delay 0.2 A for photometer 1 x slow-blow 0.1 A for motors 1 x slow-blow 1 A for fan Endress+Hauser... -
Page 6: Performance Characteristics
15 minutes per week (typical) Environment Ambient temperature 5 to 35 ˚C (40 to 95 ˚F), avoid strong fluctuations Humidity below the condensation limit, installation in usual, clean rooms outdoor installation only possible with protective devices (customer supplied) Ingress protection IP 54 Endress+Hauser... -
Page 7: Mechanical Construction
5 ml (0.17 fl.oz.) per min Consistence of the sample low solid content (< 50 ppm) Sample inlet Unpressurized pH value of the sample > pH 3 (not buffered) Mechanical construction Design, dimensions Analyzer, stainless steel version, SI-A and SI-B a0001361 Stainless steel version Endress+Hauser... - Page 8 140 (5.51) 100(3.94) 330 (13.0) 60 (2.36) 7-11/ 0.28 - 0.43 (M 6) 200 (7.87) Ø 26 (1.02) 326 (12.8) Ø 16 (0.63) 360 (14.2) 436 (17.2) Ø 27 (1.06) 120(4.72) 465 (18.3) mm(inch) 500 (19.7) a0001354-en GFR version Endress+Hauser...
- Page 9 For these versions, the outlet pipe must be installed right of the analyzer. The outlet pipe must be mounted to a wall so that the sample outlet hoses from the photometer have a gradient of 5 to 10 %. If neccessary, extend the hoses. Endress+Hauser...
- Page 10 • Depending on the ordered version, one or two collecting vessels (without level measurement) are included in the scope of delivery. • Only one collecting vessel can be mounted at the housing. The second is to be placed nearby the analyser. Endress+Hauser...
-
Page 11: Certificates And Approvals
The manufacturer confirms successful testing of the product by affixing the 4 symbol. Test reports Quality certificate Depending on the order code, you receive a quality certificate. With the certificate the manufacturer confirms compliance with all technical regulations and the successful individual testing of your product. Endress+Hauser... -
Page 12: Ordering Information
With GFR housing With stainless steel 1.4301 (AISI 304) housing Communication 0/4 ... 20 mA, RS 232 Additional equipment Quality certificate Quality certificate + set of inactive reagents Quality certificate + three sets of inactive reagents CA71SI - complete order code Endress+Hauser... - Page 13 – 6.4 mm x 6.4 mm x 6.4 mm (0.25 inch x 0.25 inch x 0.25 inch) • An interference suppressor for the current output • Four edge covers (version with GFR housing only) • A roll of PTFE strip • A quality certificate • Operating Instructions (English). Endress+Hauser...
- Page 14 • Interference suppressor for control, power and signal lines order no. 51512800 • Silicon grease, tube, 35 g order no. 71017654 • Valve set, 2 pieces, for two-channel version order no. 51512234 • Upgrade kit for upgrading from one-channel to two-channel version order no. 51512640 Endress+Hauser...
- Page 15 Stamolys CA71SI Endress+Hauser...
- Page 16 TI00364C/07/EN/14.12 71161856...
